The cylinder has a 9.625" stroke.
Strongway Air/Hydraulic Service Floor Jack, 35-Ton Capacity, Quick-Lift, Heavy-Duty Automotive Jack
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$649.99
- 35-Ton Capacity: Supports lifting of heavy-duty vehicles, equipment and machinery
- Quick-Lift Air/Hydraulic System: Pneumatic motor and trigger control reduce lifting time
- Compact Low-Access Design: Fits between dual tandem axles for service access
- Hydraulic Cylinder + Pump: Large-diameter cylinder reduces pressure and wear; QT450 nodular iron pump increases durability
- Polished Ram + Seal System: Treated piston with Y-style polyurethane sealing ring and backup ring helps prevent drift and oil bypass
See full description
Price for all two:
$734.94
What's Included
- (1) Strongway Air/Hydraulic Service Floor Jack (1) Handle (1) 3/4in. height adapter (1) 2-1/4in. height adapter (1) 4in. height adapter
Downloads

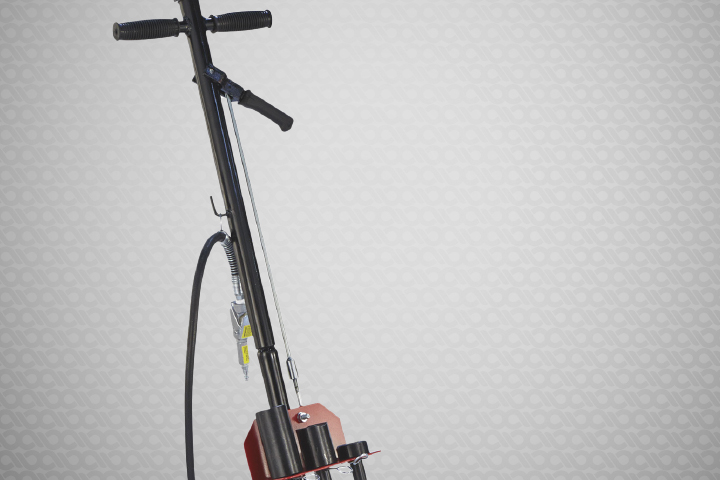

ENHANCED SPEED AND SAFETY
The QUICK-LIFT TECHNOLOGY and built-in bypass system prevent overloading, ENSURING SAFE OPERATION. The efficient trigger push button control significantly reduces lifting time

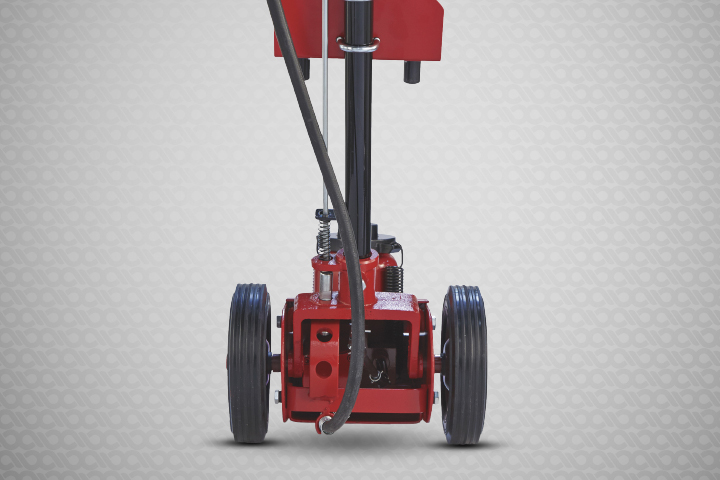

SUPERIOR BUILD QUALITY
Constructed from robust materials with a LEAD-FREE PAINT FINISH that is oil, grease and dirt resistant, this jack is built to last and is easy to maintain

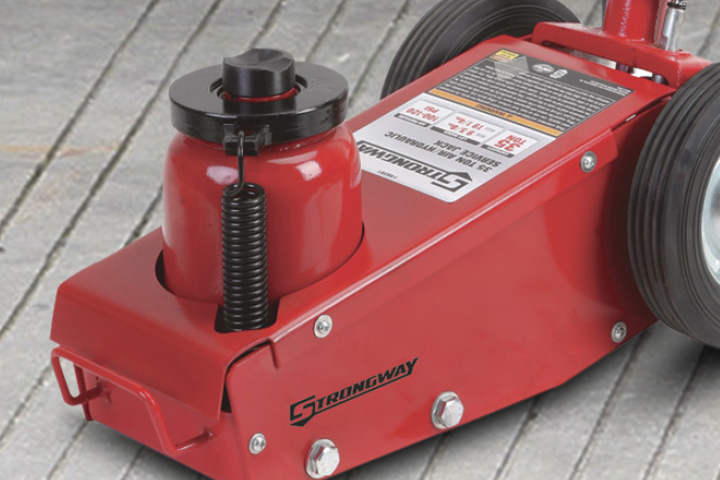

STABILITY AND PRECISION
The EXTRA-LARGE BASE provides increased stability under load and the MECHANICAL SPRING RAM automatically returns the ram to minimum height, setting it for the next use

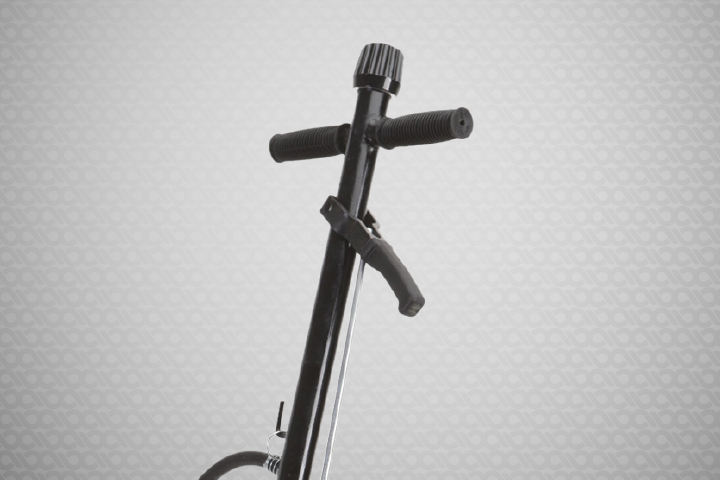

CONVENIENT FEATURES
Features include a THREE-POSITION PUMPING HANDLE, large rear wheels for easy maneuvering and an extra-long T-handle that makes it simple to position and move around

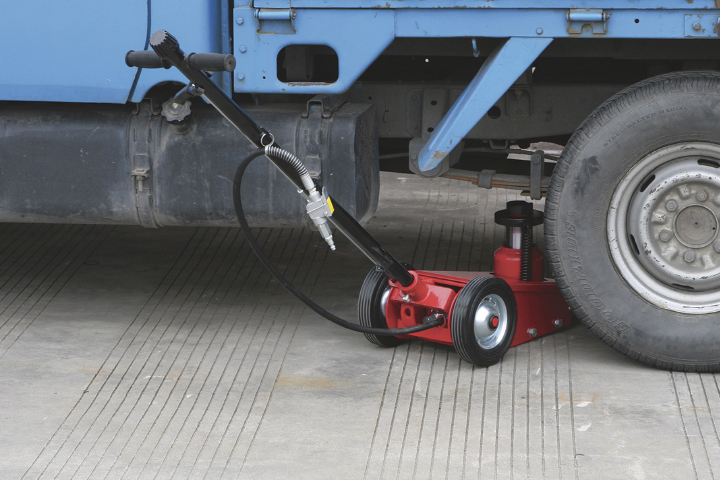

HEAVY-DUTY PERFORMANCE
This 35-TON FLOOR JACK is powered by an EFFICIENT AIR HYDRAULIC SYSTEM, perfect for lifting heavy loads in garages, farms, industrial facilities and more, with less effort and more safety

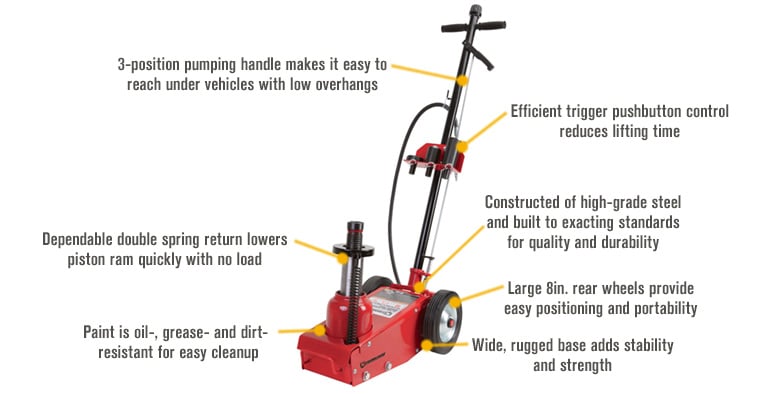

Features + Benefits
- 35-Ton Capacity: Supports lifting of heavy-duty vehicles, equipment and machinery
- Quick-Lift Air/Hydraulic System: Pneumatic motor and trigger control reduce lifting time
- Compact Low-Access Design: Fits between dual tandem axles for service access
- Hydraulic Cylinder + Pump: Large-diameter cylinder reduces pressure and wear; QT450 nodular iron pump increases durability
- Polished Ram + Seal System: Treated piston with Y-style polyurethane sealing ring and backup ring helps prevent drift and oil bypass
- Hydraulic Oil Performance: High-quality oil supports corrosion resistance and operation from 40°F to 105°F
- Spring Return + Overload Protection: Mechanical return resets ram; bypass system helps prevent overloading
- Mobility + Control: 8in. rear wheels and extra-long T-handle support positioning and movement
- Stable Base: 21.73in. x 12.44in. footprint provides support under load
- Air Requirements: 100–120 PSI operating pressure
- Included Height Adapters: 3/4in., 2-1/4in. and 4in. adapters support varied lifting heights
- Manufacturing + Safety Standards: Built in ISO-certified facilities and meets ASME PASE 2019 requirements
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Floor Jacks
See All Strongway Floor Jacks
Currently Viewing This Product
Specifications
Specifications
Strongway Air/Hydraulic Service Floor Jack, 35-Ton Capacity, Quick-Lift, Heavy-Duty Automotive Jack
Omega 1.5-Ton Hybrid Service Floor Jack, Aluminum, Model# 26017
Strongway Professional Low-Profile Service Floor Jack, 3-Ton Capacity
Pro-Lift Low-Profile Floor Jack, 2-Ton Capacity, Model# F-767
Lift Capacity
Same
35 Tons
1.5 Tons
3 Tons
2 Tons
Max. Lift Height
Same
19.25 in
13.78 in
20.5 in
14 in
Low Profile
Same
No
Yes
-
Yes
Product Type
Same
Axle Jack
Service Jack
Trolley Jack
Jack
Min. Lift Height
Same
9.63 in
3.35 in
3.35 in
3.5 in
Safety Valve
Same
Yes
-
Yes
Yes
Product Weight
Same
110 lb
-
73.4000 lb
lb
Dimensions L x W x H (in.)
Same
21.75 x 12.43 x 9.875 in
-
28.9 x 13.4 x 6.3 in
22.64 x 8.86 x 5.91 in
Material
Same
-
Multiple
-
-
