It doesn't appear to be chromed. It has a fine ground finish. With that and a film of hydraulic oil there should be no issues with corrosion providing the ram is lowered during storage.

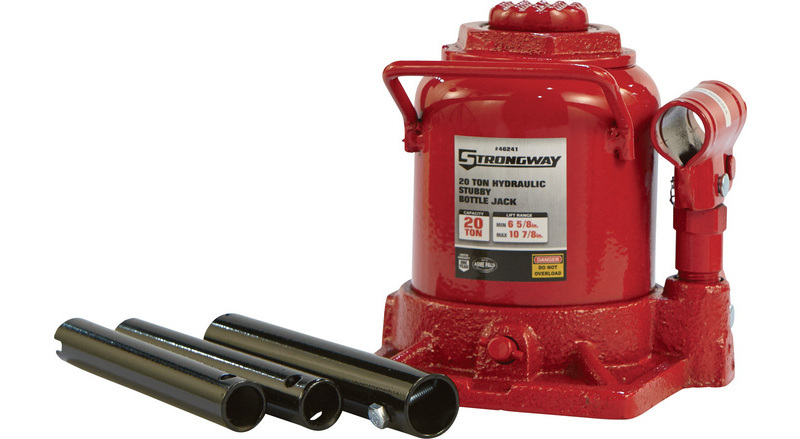

Strongway 20-Ton Hydraulic Low-Profile Bottle Jack
Top Seller
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$59.99
- Constructed of high-grade steel and built to exacting standards for quality and durability
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
- Paint is oil, grease and dirt resistant for easy cleanup
- High-quality large-diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
- Piston-ram is treated and polished to resist skiving
See full description
Price for all three:
$575.94
What's Included
- (1) Hydraulic low-profile bottle jack (1) Handle
Downloads

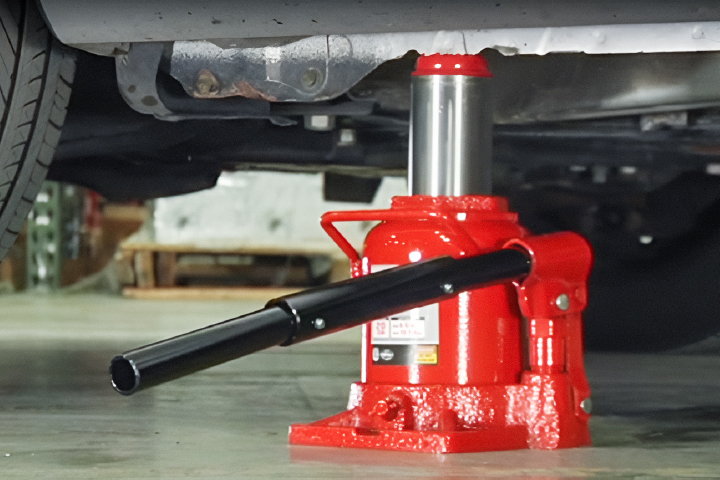

LOW-PROFILE DESIGN
Its 6.625 inch of low-profile structure ALLOWS IT TO BE POSITIONED UNDER VEHICLES and equipment with LIMITED GROUND CLEARANCE, providing a solution where other jacks might not work

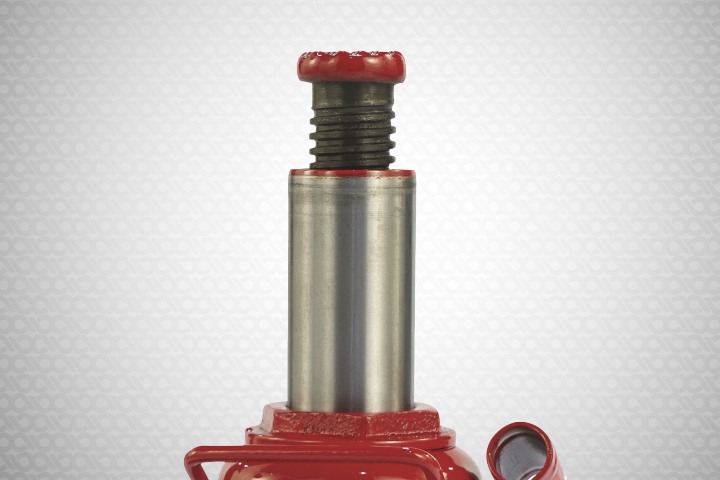

RELIABLE PERFORMANCE
Built to exacting standards, the hydraulic pump made from QT450 NODULAR IRON OFFERS GREATER DURABILITY and STRENGTH THAN OTHER IRONS, ensuring reliable performance under heavy use

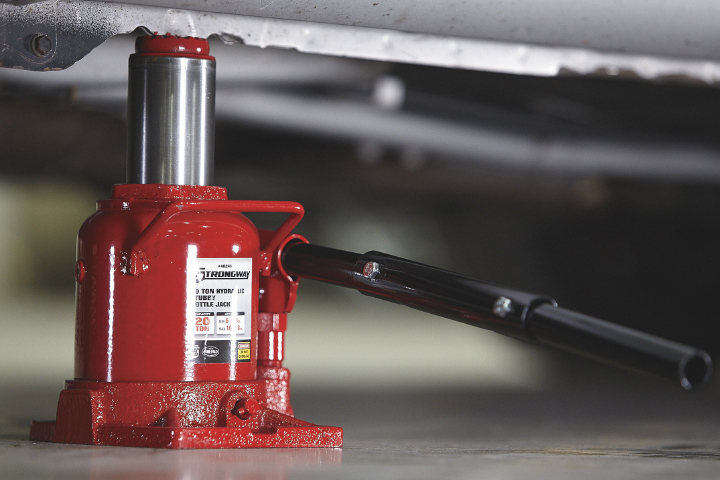

HIGH LIFTING CAPACITY
This jack’s 20-TON CAPACITY ensures it can handle heavy loads, making it ideal for LIFTING CARS, TRUCKS and MACHINERY on factory floors and in repair shops, lifting range from 6.63 inch to 10.88 inch

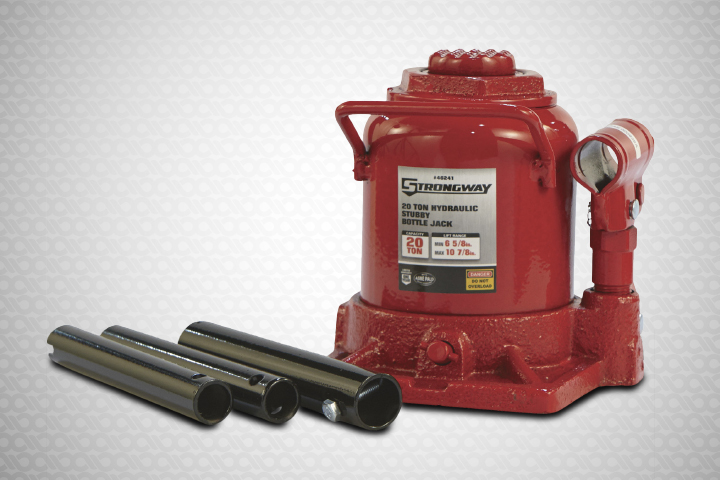

COMPLIANCE AND QUALITY ASSURANCE
Meets ASME PALD 2009 STANDARDS and is constructed in ISO-CERTIFIED facilities using aerospace technology systems, ensuring top-tier quality and safety

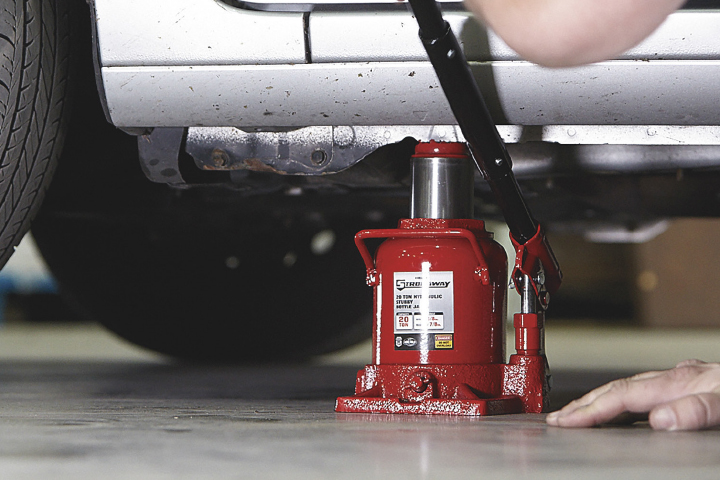

TEMPERATURE VERSATILE
Operates effectively between 40°F and 105°F thanks to high-quality oil that enhances corrosion resistance and maintains OPERATIONAL FLEXIBILITY IN VARYING TEMPERATURES
Features + Benefits
- Constructed of high-grade steel and built to exacting standards for quality and durability
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
- Paint is oil, grease and dirt resistant for easy cleanup
- High-quality large-diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
- Piston-ram is treated and polished to resist skiving
- Piston-ram utilizes a Y-style polyurethane sealing ring with backup ring, preventing load from falling slowly or bypassing oil drift
- Hydraulic pump is constructed of QT450 Nodular Iron which has a higher strength than other types of iron, resulting in greater durability
- Hydraulics are powered with a high-quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures between 40°–105°F
- Knurled heat-treated pad with 1-1/4in. screw adjustment for versatility
- Lifting handle is sectional and connects quickly making storage easier
- Convenient steel carrying handle makes it easy to transport the jack
- Wide base adds stability
- Built in ISO-certified facilities and engineered using the same systems as Aerospace Technologies and the Automotive OEM sector
- Meets ASME PALD 2009 standard
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Bottle Jacks
See All Strongway Bottle Jacks
Currently Viewing This Product
Specifications
Specifications
Strongway 20-Ton Hydraulic Low-Profile Bottle Jack
Sunex Air/Hydraulic Bottle Jack, 20-Ton Capacity, 9.5in.–18in. Lift Range, Model# 4420AH
Stronghold 20-Ton Air/Hydraulic Bottle Jack, Model# 61202
Sunex Tools Air/Hydraulic Bottle Jack — 12-Ton Capacity, 9.1in. to 17.6in. Lift Range, Fully Welded Base, Model# 4412AH
Lift Capacity
Same
20 Tons
20 Tons
20 Tons
12 Tons
Max. Lift Height
Same
10.88 in
18 in
20 in
17.63 in
Min. Lift Height
Same
6.63 in
9.5 in
10.25 in
9.13 in
Ram Travel
Same
3 in
8.5 in
6.63 in
8.5 in
Screw Top Adjustment
Same
1.25 in
2.3 in
3.13 in
2.3 in
Handle Included
Same
Yes
Yes
Yes
Yes
Dimensions L x W x H (in.)
Same
6.18 x 6.02 x 6.625 in
11.43 x 9.65 x 12.25 in
9.05 x 6.89 x 10.24 in
11.25 x 7.25 x 11.625 in
Power Source
Same
-
Air/Hydraulic
-
Air/Hydraulic
Safety Valve
Same
-
Yes
-
Yes
Handle Length
Same
-
22 in
-
22 in
Saddle Diameter
Same
-
2 in
-
2 in
Material
Same
-
Metal
-
Metal
Product Weight
Same
-
34.2000 lb
33.0600 lb
27.6000 lb
