The jack will require 7.8 CFM with a range of 120-150 PSI.
Strongway 20-Ton Air/Hybrid Short Bottle Jack
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$279.99
- High-grade steel construction with lead-free paint finish for rust and corrosion resistance
- Paint is also oil, grease and dirt resistant for easy cleanup
- Completely welded design with drop-forged base
- Treated, polished piston ram resists skiving
- Screw-top provides up to 3 1/4in. additional height adjustment
See full description
Price for all four:
$684.88
What's Included
- (1) Jack
Downloads

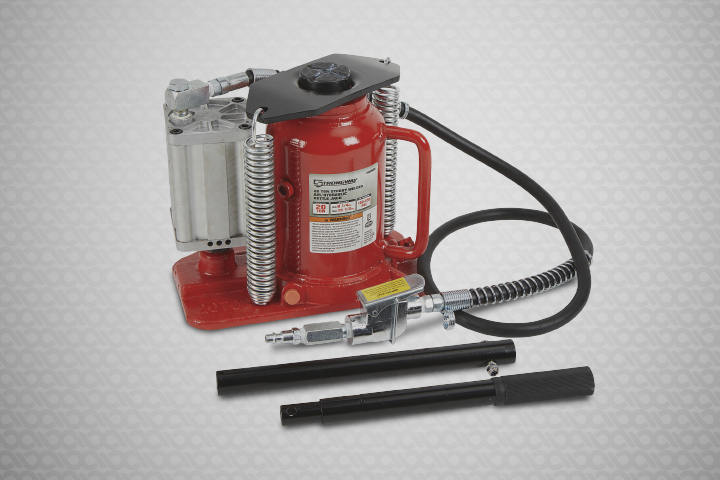

ENGINEERED FOR EFFICIENCY
The LARGE-DIAMETER HYDRAULIC STEEL CYLINDER in this jack reduces the oil pressure required to lift heavy loads, which helps to extend the life of the jack and decrease the user’s effort

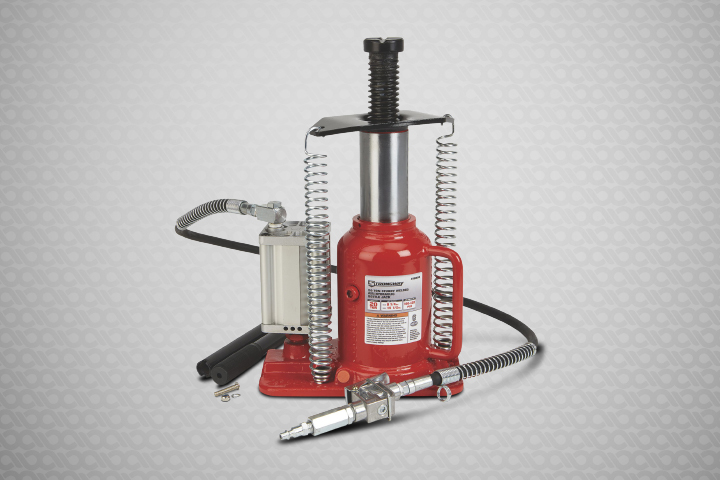

ENHANCED MOBILITY
Features a 1/4 INCH QUICK-CONNECT ATTACHMENT for easy mobility and remote operation, making it a versatile addition to your shop equipment

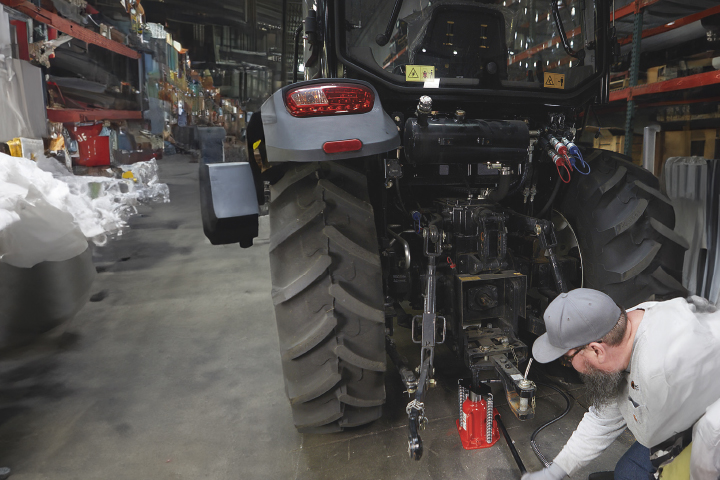

HEAVY-DUTY PERFORMANCE
With a 20-TON CAPACITY, this jack can handle the most demanding lifting tasks in commercial, agricultural and industrial environments

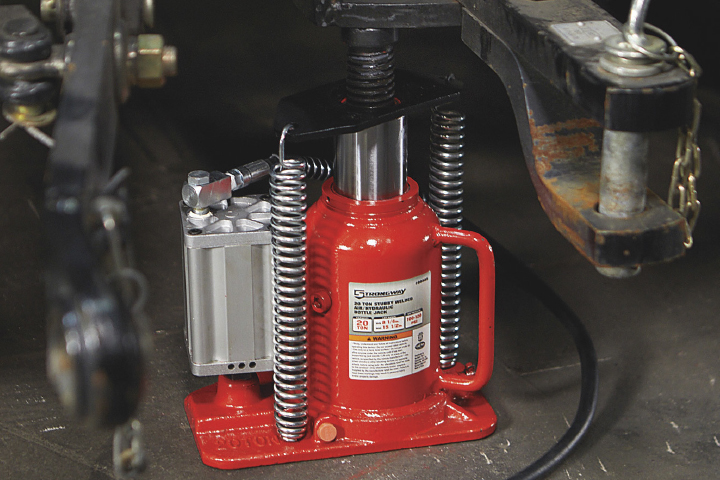

RELIABLE IN ALL CONDITIONS
The CHROME-PLATED RAM not only resists wear and tear but also WITHSTANDS HARSH OUTDOOR CONDITIONS, making it suitable for a wide range of applications

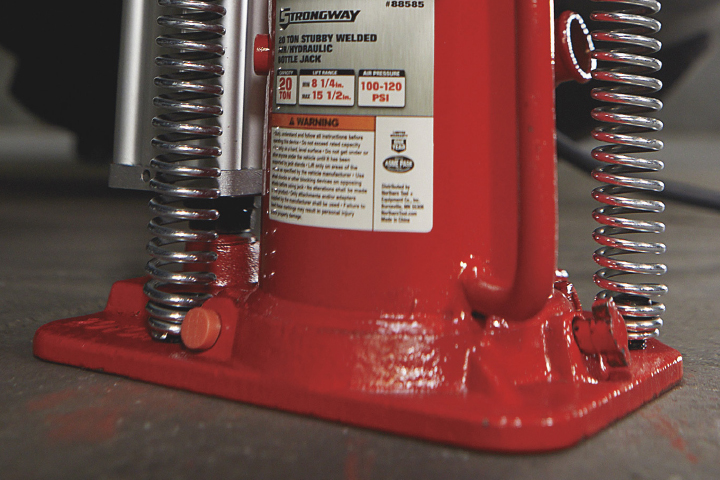

STABLE AND SECURE
The DROP-FORGED BASE provides a solid foundation that enhances stability during use, ensuring safety and reliability
Features + Benefits
- High-grade steel construction with lead-free paint finish for rust and corrosion resistance
- Paint is also oil, grease and dirt resistant for easy cleanup
- Completely welded design with drop-forged base
- Treated, polished piston ram resists skiving
- Screw-top provides up to 3 1/4in. additional height adjustment
- Minimum lift of 8 1/4in.; maximum lift of 15 1/2in.
- 1/4in. quick-connect feature for easy mobility and remote operation
- Built-in bypass device to protect hydraulic system from over-pumping damage
- Self-returning springs for easier operation
- Large-diameter hydraulic steel cylinder results in lower oil pressure needed to raise load, longer jack life
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Bottle Jacks
See All Strongway Bottle Jacks
Currently Viewing This Product
Specifications
Specifications
Strongway 20-Ton Air/Hybrid Short Bottle Jack
Omega 20-Ton Low Profile Air Actuated Bottle Jack,Model# 18209
Sunex Air/Hydraulic Bottle Jack, 20-Ton Capacity, 9.5in.–18in. Lift Range, Model# 4420AH
Sunex Tools Air/Hydraulic Bottle Jack — 12-Ton Capacity, 9.1in. to 17.6in. Lift Range, Fully Welded Base, Model# 4412AH
Lift Capacity
Same
20 Tons
20 Tons
20 Tons
12 Tons
Max. Lift Height
Same
15.5 in
15.5 in
18 in
17.63 in
Min. Lift Height
Same
8.25 in
8.13 in
9.5 in
9.13 in
Ram Travel
Same
4 in
-
8.5 in
8.5 in
Screw Top Adjustment
Same
3.25 in
-
2.3 in
2.3 in
Handle Included
Same
Yes
-
Yes
Yes
Product Weight
Same
34.1000 lb
-
34.2000 lb
27.6000 lb
Dimensions L x W x H (in.)
Same
9.25 x 6.875 x 10.875 in
-
11.43 x 9.65 x 12.25 in
11.25 x 7.25 x 11.625 in
Power Source
Same
-
-
Air/Hydraulic
Air/Hydraulic
Safety Valve
Same
-
-
Yes
Yes
Handle Length
Same
-
-
22 in
22 in
Saddle Diameter
Same
-
-
2 in
2 in
Material
Same
-
-
Metal
Metal
