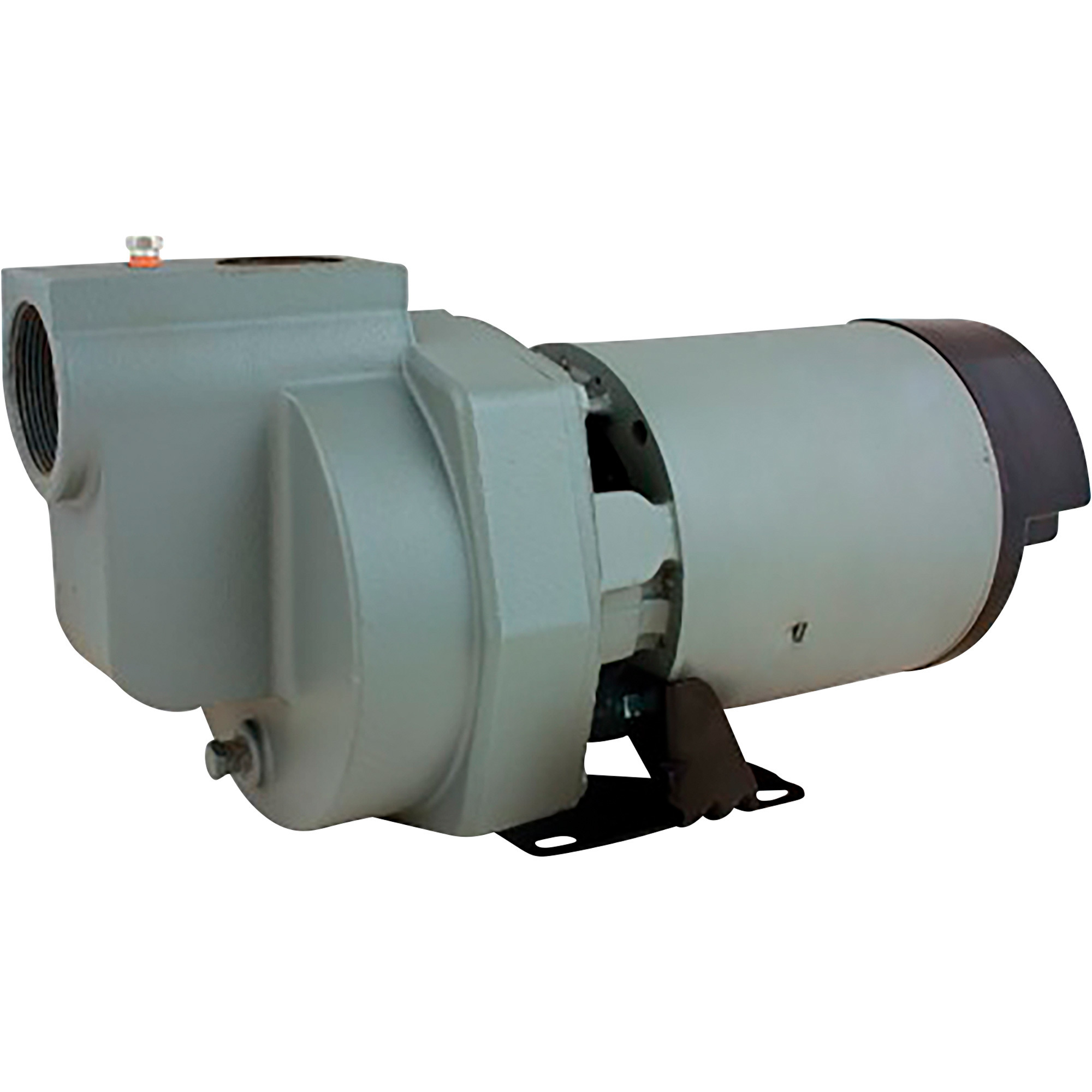

Star Water Systems Self-Priming Cast Iron Lawn Sprinkler Water Pump, 4,500 GPH, 2 HP, 2in. Port, Model# HSP20P1

Item# 43553
"Star Water Systems Self-Priming Cast Iron Lawn Sprinkler Water Pump, 4,500 GPH, 2 HP, 2in. Port, Model# HSP20P1"
Star Water Systems Self-Priming Cast Iron Lawn Sprinkler Water Pump, 4,500 GPH, 2 HP, 2in. Port, Model# HSP20P1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Star Water Systems Self-Priming Cast Iron Lawn Sprinkler Water Pump, 4,500 GPH, 2 HP, 2in. Port, Model# HSP20P1

Click or Tap image to Zoom

$455.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Quick self-priming operation
  • 2 HP hand-wound copper wire ball bearing motor
  • Cast iron pump
  • Dual voltage operation (115V or 230V)
  • Supports up to 20 2.0 GPM spray-type sprinkler heads per zone

See full description

Complete Your Solution

  • Star Water Systems Self-Priming Cast Iron Lawn Sprinkler Water Pump, 4,500 GPH, 2 HP, 2in. Port, Model# HSP20P1
  • JGB Enterprises Suction Hose, 2in. x 50ft., Model# A007-0329-1650
  • JGB Enterprises Water Pump Suction Hose, 1 1/2in. x 20ft., Model# A007-0249-1620
  • Water and Trash Pump Strainer, 2in.
Price for all four:

$700.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Star Water Systems Lawn Sprinkler Pump is ideal for lawn sprinkler or irrigation uses. The 2 HP hand-wound copper wire motor easily handles a 25ft. suction lift. U.S.A.

What's Included

    (1) Lawn sprinkler pump

Downloads

Product Manual Product Manual2

Features + Benefits

  • Quick self-priming operation
  • 2 HP hand-wound copper wire ball bearing motor
  • Cast iron pump
  • Dual voltage operation (115V or 230V)
  • Supports up to 20 2.0 GPM spray-type sprinkler heads per zone
  • Easy-access drain plug
  • Large capacity 2in. inlet suction pipe
  • 1 1/2in. discharge pipe
  • Akulon® polyamide impeller for performance and long life
  • Thermoplastic internal parts
  • Cast iron body with 56 frame motor

Key Specs

AttributeSpecification

item#

43553

Brand

Star Water Systems

Manufacturer's Warranty

2 year limited warranty

Ship Weight

60.0 LB

Max. Flow

4,500 GPH

Horsepower

2 HP
AttributeSpecification

Port Size

2 in

Self-Priming

Yes

Volts

115/230

Max. PSI

48 PSI

Max. Total Head

150 ft

Max. Suction Lift

25 ft

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–10 of 16 Questions
Sort by:

  1. Does this pump have a brass impeller....or plastic ? Thanks

    1 answer

    1. This pump has thermoplastic internal parts.

      Helpful?

  2. I have a 11/2 HP booster pump that is in-between a water storage tank and two pressure tanks to feed house water. Can I use this pump , even though its a sprinkler pump ? for a back up replacement ?

    1 answer

    1. It would not be recommended to use the pump for a booster pump application. The pump is designed for high volume not a high pressure application.

      Helpful?

  3. I am looking for a pump to pump down a small pond when it gets to full of water. There is a fair amount of organic material in the pond. Can this pump handle this organic material or must it be finely screened first?

    1 answer

    1. This pump could be used to move water from a pond. The intake should be screened to prevent solids from being pulled into the pump and causing damage.

      Helpful?

  4. I knowticed in your questions section a mention of a Thermal coupler does the product have one, Thanks, Glen,

    1 answer

    1. This pump is equipped with a thermal overload protection that will trip in the event the pump overheats to prevent damage.

      Helpful?

  5. We have a creek on our property that has water for 2-3 days after a rain. I need a pump that can run continuously for 48-72 hours before the creek dries up again. How long can this pump run before it overheats or otherwise needs a break?

    1 answer

    1. This is a commercial pump and is rated for continuous use. Provided there is adequate ventilation to the pump area it can run continuously without the need for a break.

      Helpful?

  6. Can i add a pressure switch to this pump

    1 answer

    1. This pump can be used with a variety of controls, including a pump start relay, pressure switch with tank and indexing valve.

      Helpful?

  7. what is the physical dimensions of this pump?

    1 answer

    1. The dimensions on this pump will be 19'' long, 10'' wide, and 10'' high.

      Helpful?

  8. Want to make sure model # HSP20P1 has bough 120 and 230 voltage connections. Bought Red Lion pump. On your website kt says has 120 and 230v connections, but in reality just 230v.

    1 answer

    1. This pump can be wired to run on 115/120 or 230 volt. See page 16 of the product manual online.

      Helpful?

  9. Will go still get the same performance if you reduce inlet and outlet to 3/4” ?

    1 answer

    1. You would not get the same performance from this pump if the inlet and outlet were reduced to 3/4". Reducing the suction port on this Star Water Systems sprinkler pump is not recommended by the manufacturer. This would greatly limit the capabilities of the pump. Reducing the discharge port side only would still have an impact on the GPM performance for this pump too.

      Helpful?

  10. continuous irrigation

    Can this pump be operated in continuous mode for several hours without tripping the heat overload?

    1 answer

    1. Running the pump for several hours should not trip the thermal overload unless there is a problem in pumps operation.

      Helpful?
