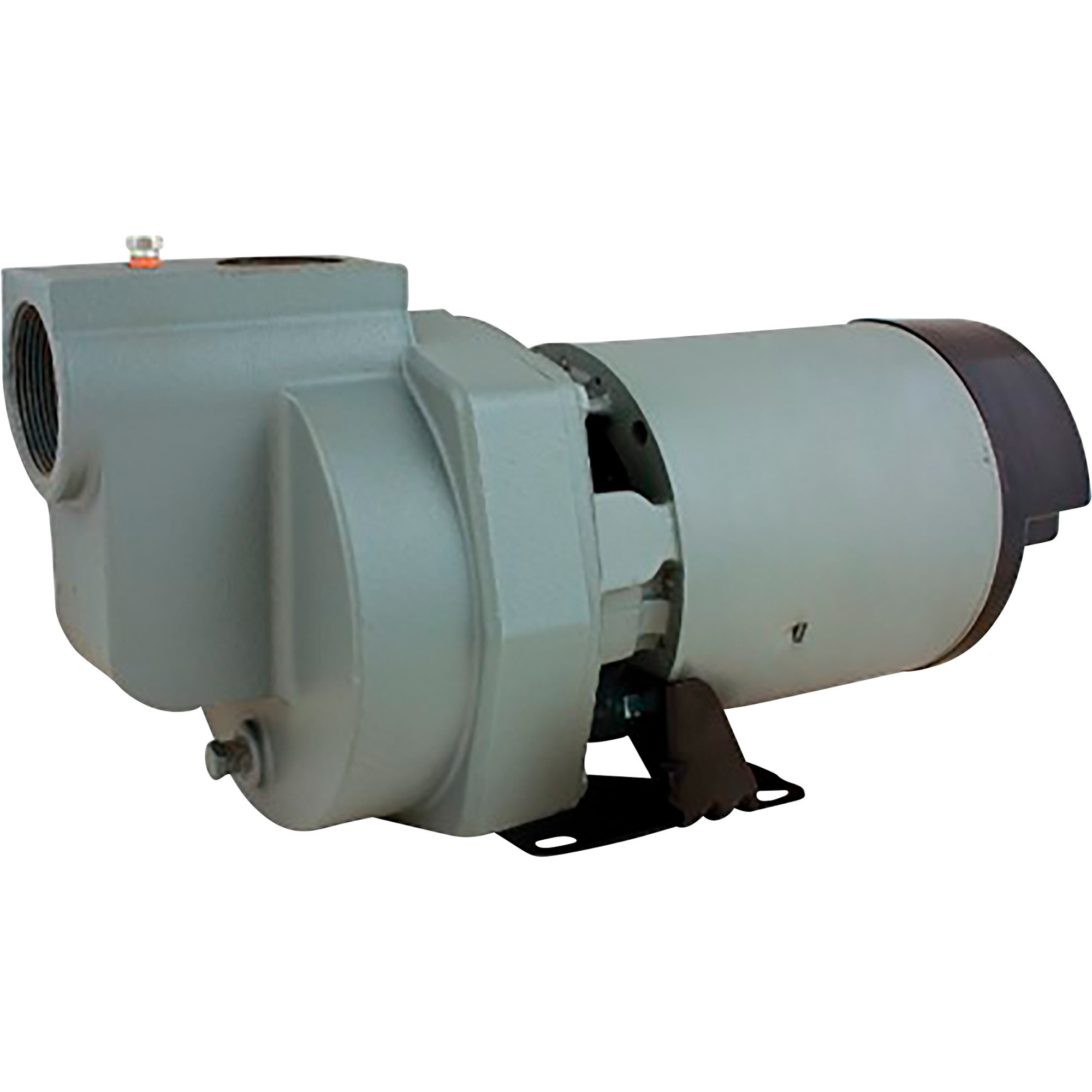

Star Water Systems Self-Priming Cast Iron Lawn Sprinkler Water Pump, 4,020 GPH, 1.5 HP, 2in. Ports, Model# HSP15P1

Item# 43552
"Star Water Systems Self-Priming Cast Iron Lawn Sprinkler Water Pump, 4,020 GPH, 1.5 HP, 2in. Ports, Model# HSP15P1"
Star Water Systems Self-Priming Cast Iron Lawn Sprinkler Water Pump, 4,020 GPH, 1.5 HP, 2in. Ports, Model# HSP15P1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Star Water Systems Self-Priming Cast Iron Lawn Sprinkler Water Pump, 4,020 GPH, 1.5 HP, 2in. Ports, Model# HSP15P1

Click or Tap image to Zoom

$409.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Durable cast iron construction
  • Supports up to 15 heads per zone
  • Hand-wound copper motor
  • Dual voltage (115V or 230V) operation for universal installation
  • Ball bearing motor with capacitor start for continuous operation

See full description

Complete Your Solution

  • Star Water Systems Self-Priming Cast Iron Lawn Sprinkler Water Pump, 4,020 GPH, 1.5 HP, 2in. Ports, Model# HSP15P1
  • JGB Enterprises Suction Hose, 2in. x 50ft., Model# A007-0329-1650
  • JGB Enterprises Water Pump Suction Hose, 1 1/2in. x 20ft., Model# A007-0249-1620
  • Water and Trash Pump Strainer, 2in.
Price for all four:

$654.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Star Water Systems Cast Iron Lawn Sprinkler Pump is a durably made, easy-to-use, quick-priming solution for lawn sprinklers and irrigation. The 1.5 HP motor can lift up to 25ft. with 2,490 GPH at 20 PSI. Dual voltage operation allows for universal installation. U.S.A.

What's Included

    (1) Irrigation sprinkler pump

Downloads

Product Manual Product Manual2

Features + Benefits

  • Durable cast iron construction
  • Supports up to 15 heads per zone
  • Hand-wound copper motor
  • Dual voltage (115V or 230V) operation for universal installation
  • Ball bearing motor with capacitor start for continuous operation
  • Easy-access drain plug
  • Large capacity 2in. suction pipe and 1.5in. discharge pipe
  • Akulon polyamide impeller

Key Specs

AttributeSpecification

item#

43552

Brand

Star Water Systems

Manufacturer's Warranty

2 year limited warranty

Ship Weight

56.0 LB

Max. Flow

4,020 GPH

Horsepower

1.5 HP
AttributeSpecification

Port Size

2 in

Self-Priming

Yes

Volts

115/230

Max. PSI

45 PSI

Max. Suction Lift

25 ft

Housing Material

Cast-Iron

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. can this pump operate safely with a 1.5 inch outlet pipe

    1 answer

    1. This pump can be safely run on a 1.5" discharge pipe.

      Helpful?

  2. is a foot valve included?

    1 answer

    1. A foot valve is not included with this pump.

      Helpful?

  3. what is the amp draw

    1 answer

    1. This pump draws 18 amps when wired for 115 volts, and 9 amps at 230 volts.

      Helpful?

  4. Can this pump be exposed to the weather (rain) and operating sprinklers during the irrigation season, or does it need to be in protected enclosure?

    Star Water Systems Cast Iron Lawn Sprinkler Pump - 1.5 HP, 2in. Ports, Model# HSP15P1

    1 answer

    1. This Star Water System lawn sprinkler pump does need to be enclosed in a pump house or something similar so that it is protected from the elements and the sprinklers as they operate.
