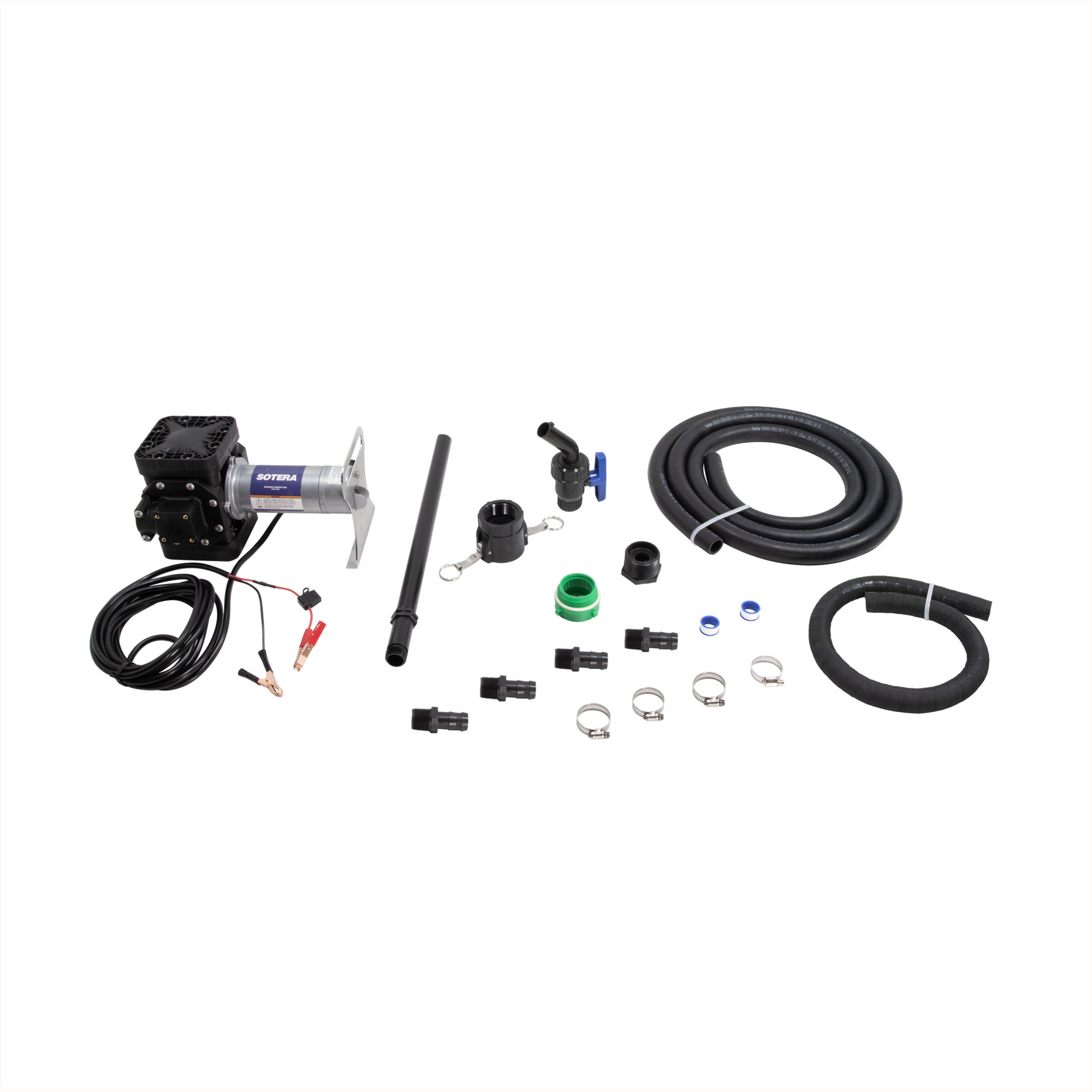

Sotera Systems Tote & Go Pumping Kit, 12VDC, Model# SS415BX731PG

Item# 20862
Sotera Systems Tote & Go Pumping Kit, 12VDC, Model# SS415BX731PG

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Sotera Systems Tote & Go Pumping Kit, 12VDC, Model# SS415BX731PG

Click or Tap image to Zoom

$829.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Double-acting, self-priming 1/4 HP, 12V DC diaphragm pump can run dry without damaging the pump
  • 1in. inlet/outlet ports
  • 20-ft. max. head; 8-ft. max. suction lift
  • All fittings, clamps, pump and 1in. x 12ft. EPDM discharge hose included for top-mount installation on drums or IBC containers, or bottom installation from IBC containers
  • 2 F camlock coupler has F threads

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Sotera Systems® Tote Go Pumping Kit adapts to a variety of chemical pumping applications up to 13 GPM, including pesticides, fertilizers, mild acids, soaps and water. Especially suited for glyphosate and Roundup® herbicides that thicken. Made in U.S.A.

What's Included

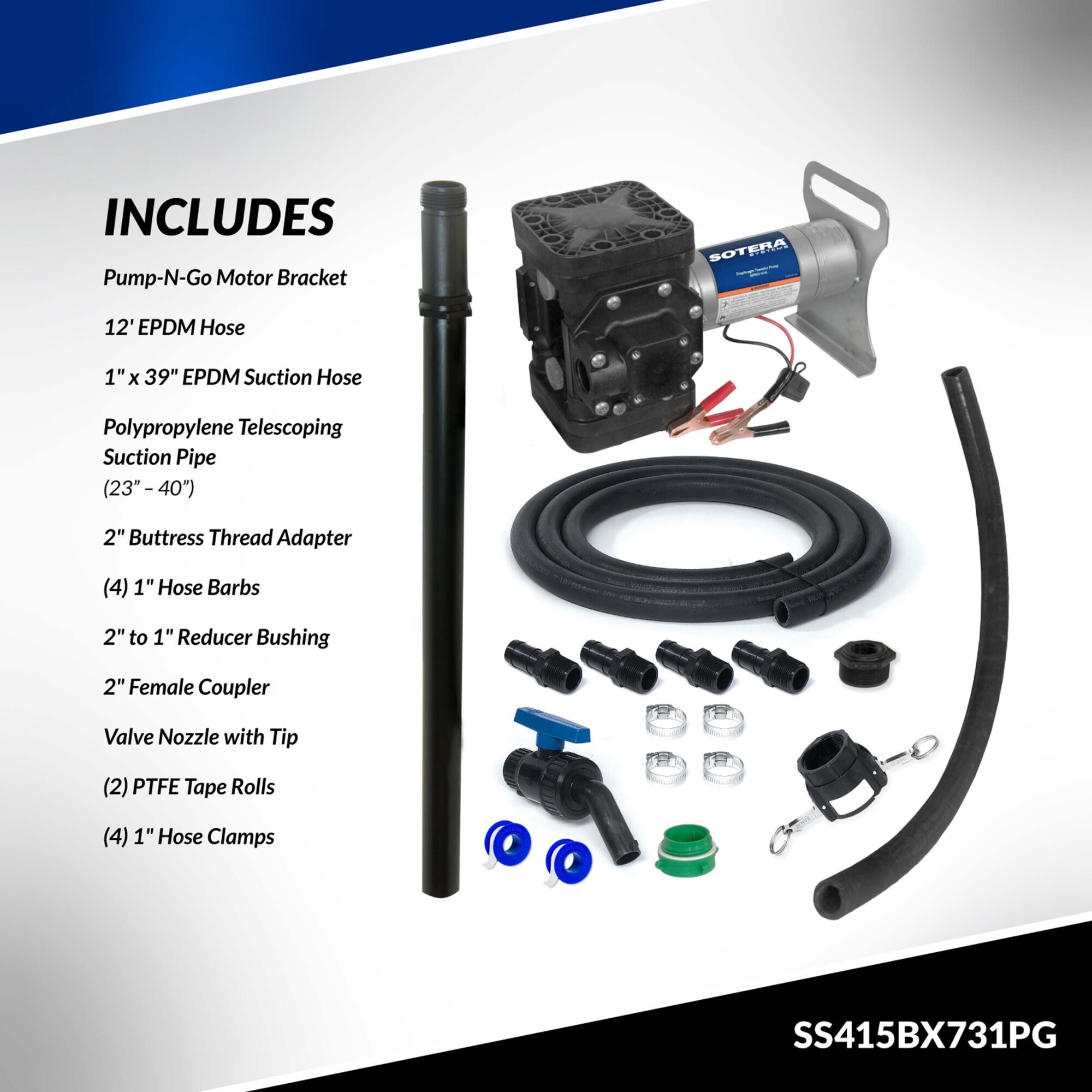

    (1) Pump (1) 20ft. battery cable with clips and 30 amp fuse (1) Pump bracket (1) Camlock coupler (1) Telescoping suction tube (1) Discharge hose (1) Clamps (1) Fittings (1) Nozzle (1) Reducer bushing
Play Item Video

Features + Benefits

  • Double-acting, self-priming 1/4 HP, 12V DC diaphragm pump can run dry without damaging the pump
  • 1in. inlet/outlet ports
  • 20-ft. max. head; 8-ft. max. suction lift
  • All fittings, clamps, pump and 1in. x 12ft. EPDM discharge hose included for top-mount installation on drums or IBC containers, or bottom installation from IBC containers
  • 2 F camlock coupler has F threads
  • 2 x 1 reducer bushing
  • Polypropylene suction tube telescopes from 23in. to 40in.
  • Includes 20ft. battery cable with clips and 30 amp fuse

Key Specs

AttributeSpecification

item#

20862

Brand

Tuthill

Manufacturer's Warranty

2 year limited warranty

Ship Weight

31.6 LB

Flow Rate

15 GPM

Max. PSI

15

Speed

2,600 rpm

Volts

12

Watts

240

Amps

19

Horsepower

0.25

Material

Polypropylene
AttributeSpecification

Fuel Type

Electric

Max. Total Head

20 ft

Max. Suction Lift

8 ft

Inlet Port

1 in

Outlet Port

1 in

Nozzle Type

Manual

Discharge

12 ft

Duty Cycle

30 min

Self-Priming

Yes

Bypass Valve

No

Product Weight

lb

Dimensions L x W x H (in.)

12.0 x 9.0 x 9.0 in

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. Can this pump be used with gear oil? 85w140 or 80w90

    1 answer

    1. This pump cannot be used with gear or motor oil.

      Helpful?

  2. Can you regulate the flow ?

    1 answer

    1. There is not an option to regulate the flow of the pump.

      Helpful?

  3. Can you reverse flow by changing polarity on the motor?

    1 answer

    1. The unit would not be able to reverse the flow.

      Helpful?

  4. can this be used to dispense motor oil directly to engine? can I also attach a nozzle with meter?

    1 answer

    1. This pumping kit could be used to dispense oil directly to crankcase of engine and you could also attach a nozzle with meter.

      Helpful?

  5. PSI

    what is the PSI rating of this pump. will it keep pumping if pressure builds up above open flow pressure? is the 20 amps current rating at the max PSI rating or at the free flow rating? so basically, does this draw 20 amps at free flow...then if the pressure builds up above free flow...does the current start to rise and pop the fuse?

    1 answer

    1. The psi rating is between 13-15. After that it will go into bypass. The 20 amps is the standard amperage (running).

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
