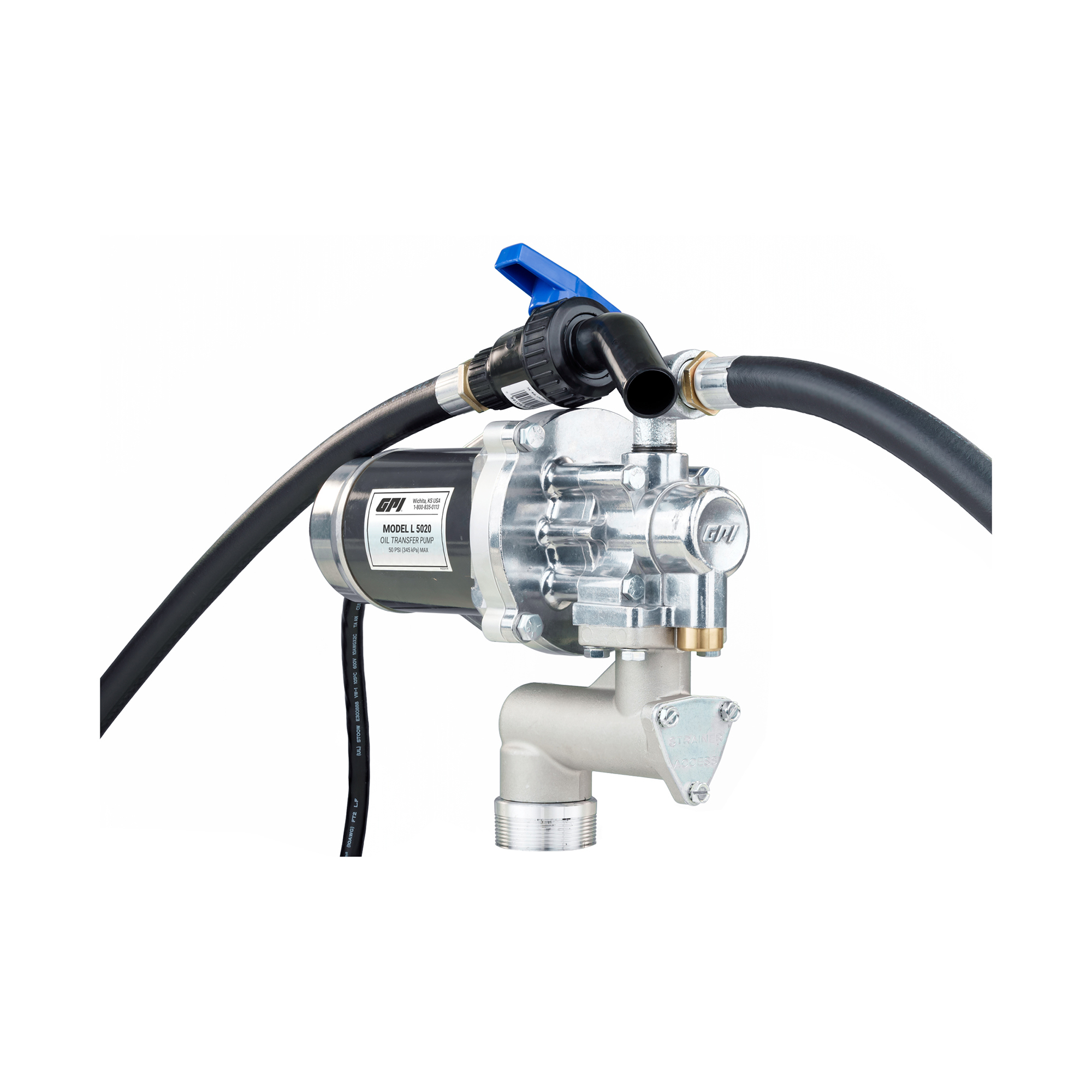

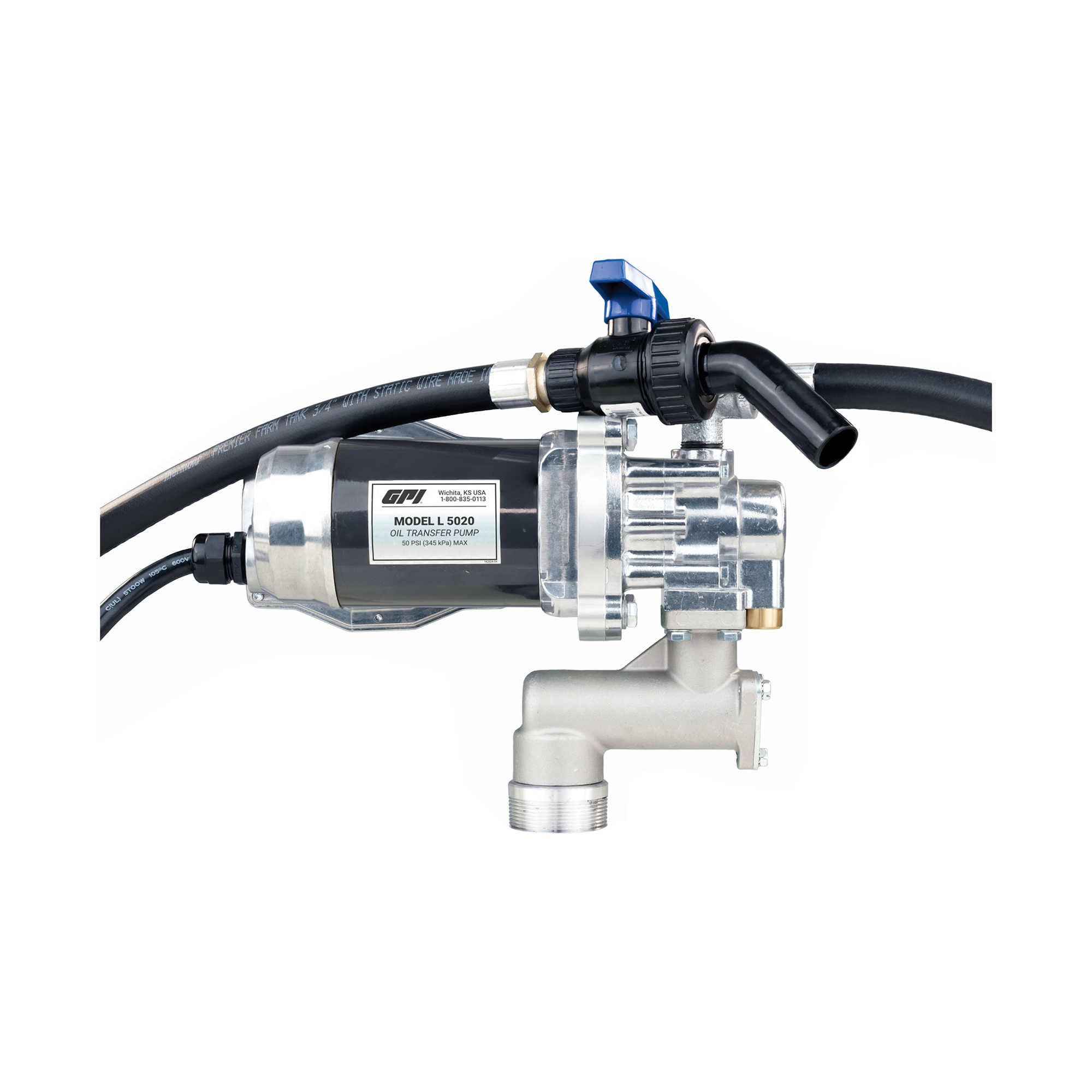

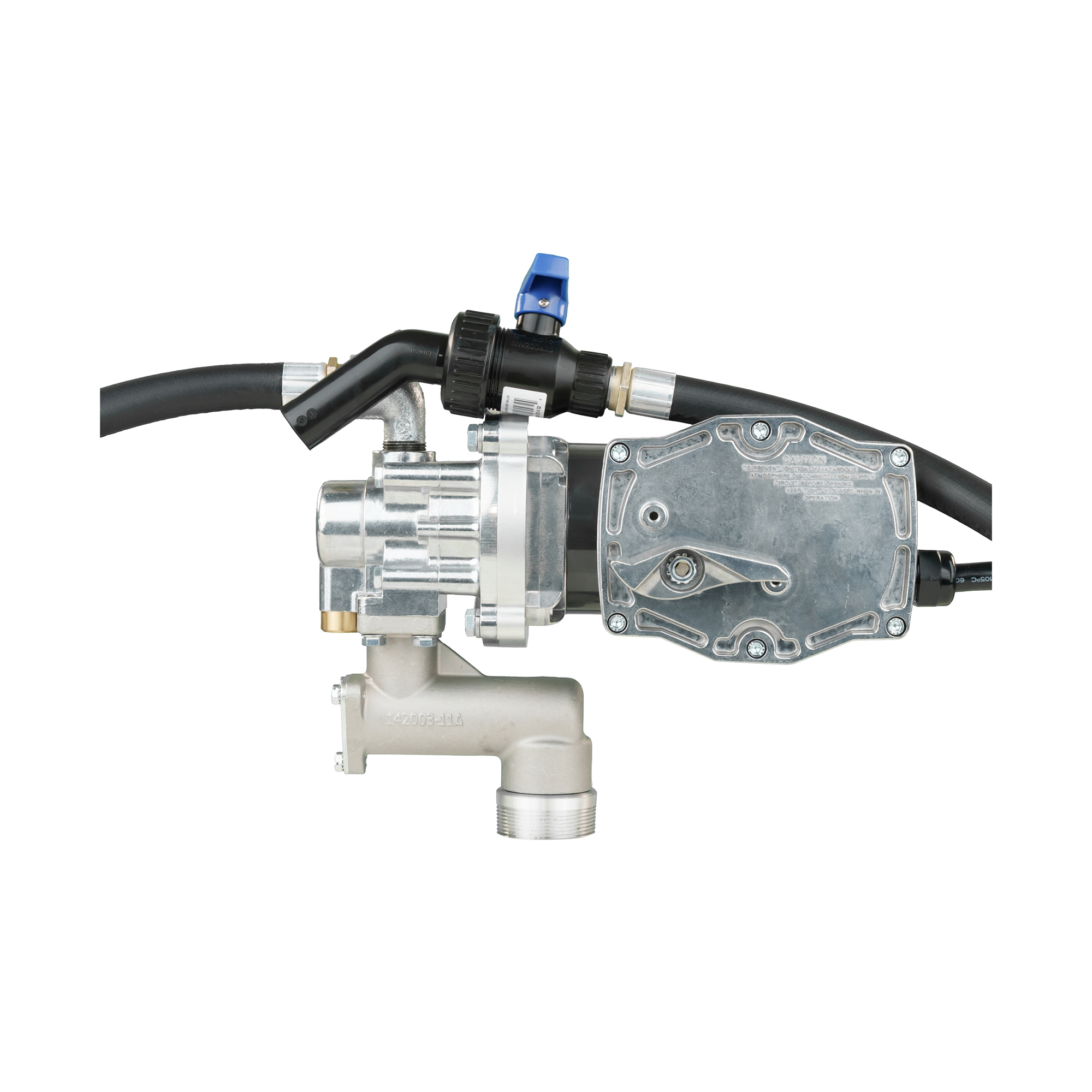

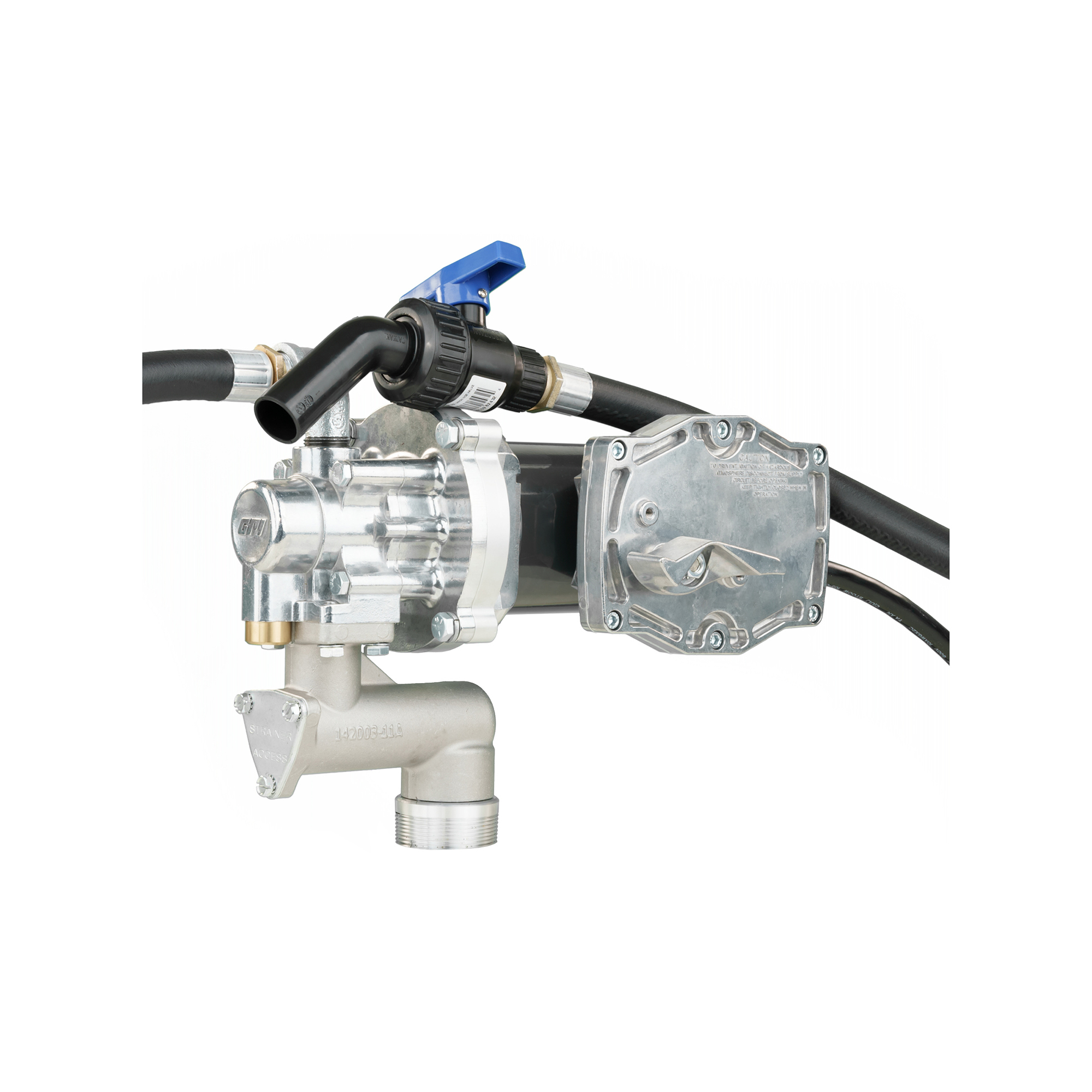

GPI Heavy-Duty Oil Transfer Pump — 5 GPM, 12V, Cast Aluminum, 8ft. Hose, Model# L5020

Item# 5989129
Top Seller
GPI Heavy-Duty Oil Transfer Pump — 5 GPM, 12V, Cast Aluminum, 8ft. Hose, Model# L5020

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

GPI Heavy-Duty Oil Transfer Pump — 5 GPM, 12V, Cast Aluminum, 8ft. Hose, Model# L5020

Click or Tap image to Zoom

$949.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Thermally protected 0.4 HP motor is designed for long life and limited maintenance
  • Specifically designed for use with medium viscosity fluids. NOT FOR USE WITH FUEL
  • Weight-centering inlet base reduces tank stress and includes an easy-access strainer to protect pump from debris
  • Wetted materials: aluminum, stainless steel, brass, steel, nitrile rubber & zinc plated steel
  • Equipped with Safe Stop. 30 minute auto power down with easy reset protects motor

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The GPI L-Series oil pump is ideal for use with new oil (up to 90 wt.), hydraulic fluid, antifreeze, or other non-flammable oil-based solvents. It features a gerotor gear design and durable, lightweight cast aluminum housing. With a rugged 12-volt (dc) motor delivering flow rates up to 20 QPM (19 L/min.). It is engineered for long life and limited maintenance. The L-Series pump has a ball valve nozzle, an 8ft. (2.5 m) dispensing hose, a telescoping suction pipe to fit tank depths between 15 and 40in., and a factory-installed power cord.

What's Included

    (1) L5020 12V 20 Q/min pump (19 L/min) with installed power cord, Ball valve nozzle, Dispensing hose, Adjustable suction pipe, 90 degree street elbow

Features + Benefits

  • Thermally protected 0.4 HP motor is designed for long life and limited maintenance
  • Specifically designed for use with medium viscosity fluids. NOT FOR USE WITH FUEL
  • Weight-centering inlet base reduces tank stress and includes an easy-access strainer to protect pump from debris
  • Wetted materials: aluminum, stainless steel, brass, steel, nitrile rubber & zinc plated steel
  • Equipped with Safe Stop. 30 minute auto power down with easy reset protects motor

Key Specs

AttributeSpecification

item#

5989129

Brand

GPI

Manufacturer's Warranty

2 year limited warranty

Ship Weight

41.0 LB

Flow Rate

5 GPM

Max. PSI

50

Speed

1,800 rpm

Volts

12

Watts

300

Amps

40

Horsepower

0.4
AttributeSpecification

Material

Aluminum

Fuel Type

Oil

Max. Total Head

125 ft

Max. Suction Lift

15 ft

Inlet Port

1 in

Outlet Port

0.75 in

Nozzle Type

Manual

Self-Priming

Yes

Bypass Valve

Yes

Product Weight

41.0000 lb

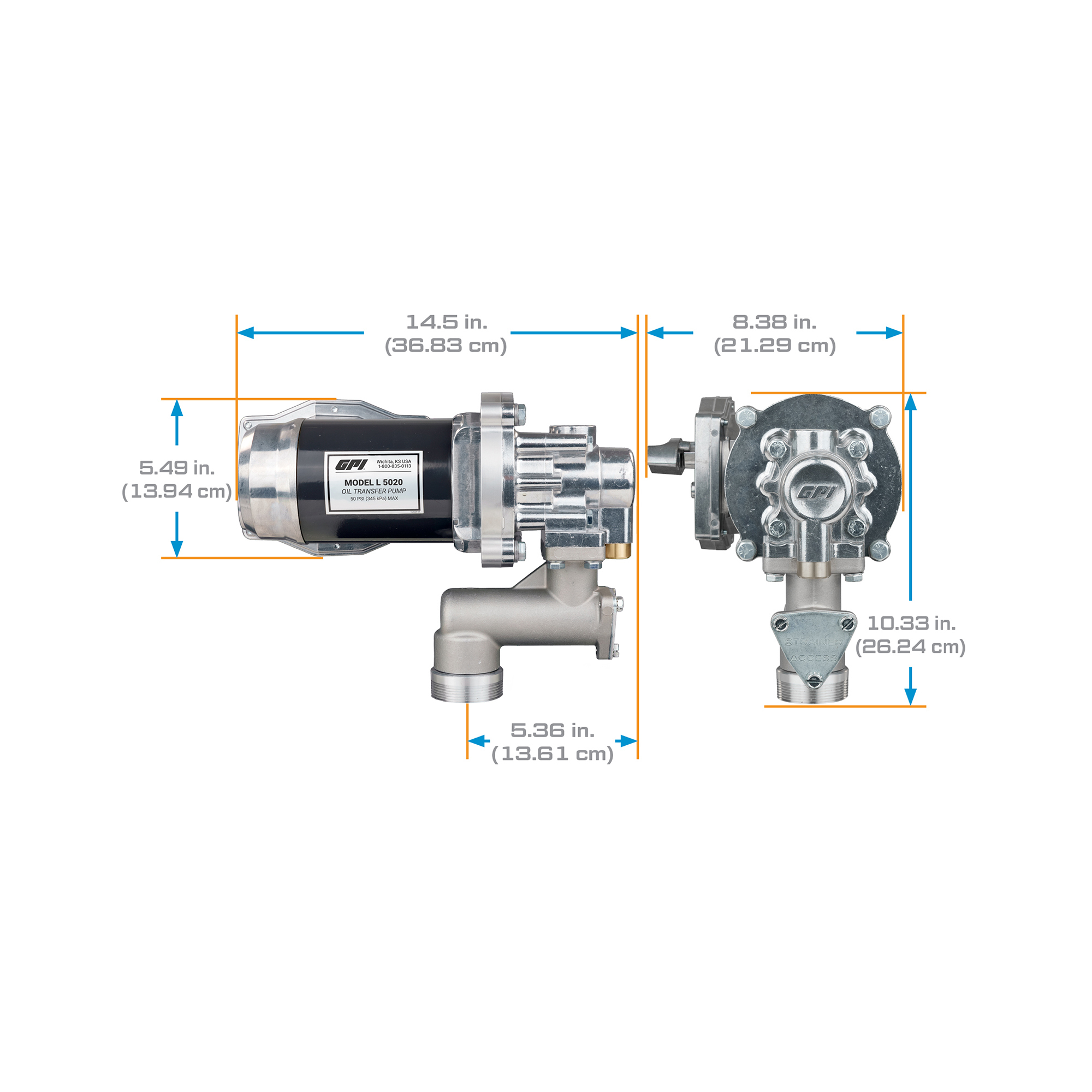

Dimensions L x W x H (in.)

18.0 x 15.0 x 11.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
