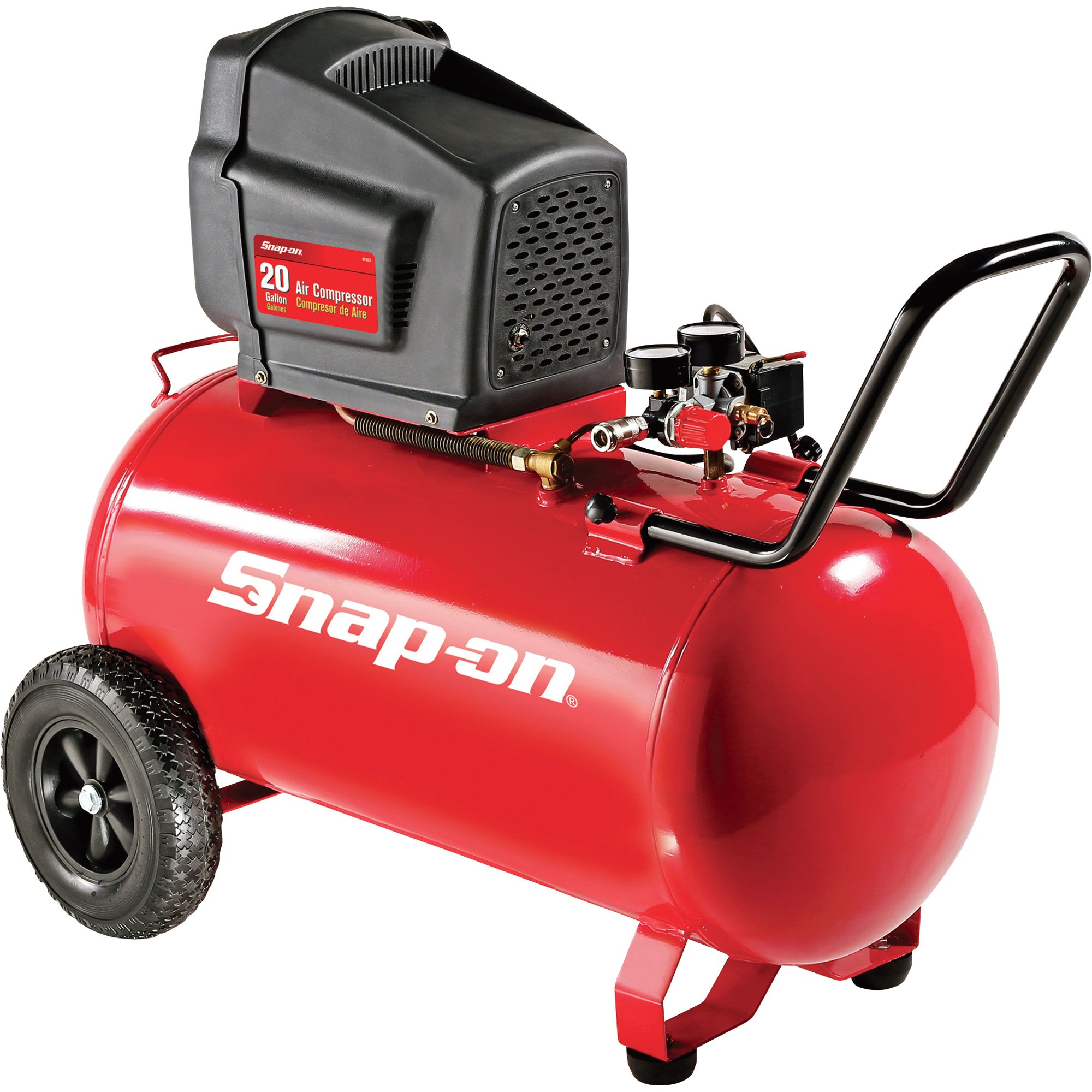

Snap-on Horizontal Air Compressor — 2 HP, 20-Gallon, Model# 871118

Item# 39513
Snap-on Horizontal Air Compressor — 2 HP, 20-Gallon, Model# 871118

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Snap-on Horizontal Air Compressor — 2 HP, 20-Gallon, Model# 871118

Click or Tap image to Zoom

  • 5.7 CFM @ 40 PSI
  • 4.6 CFM @ 90 PSI
  • Oil-free pump requires no maintenance
  • 2 HP, 120V, 13.5 Amp induction motor
  • Dual capacitor motor design

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Snap-on® 2 HP, 20-Gallon Horizontal electric air compressor is perfect for DIY projects around the house or shop. 150 max. PSI allows longer run time for air tools. Features tank pressure gauge, regulated pressure gauge and 1/4in. quick coupler. Equipped with handle and flat-free tires for easy portability.

What's Included

  • (1) 2 HP, 20-gallon horizontal air compressor

Features + Benefits

  • 5.7 CFM @ 40 PSI
  • 4.6 CFM @ 90 PSI
  • Oil-free pump requires no maintenance
  • 2 HP, 120V, 13.5 Amp induction motor
  • Dual capacitor motor design
  • Steel tank
  • Tank pressure gauge
  • Regulated pressure gauge
  • 1/4in. quick coupler
  • Handle and 10in. flat-free tires for portability
  • 22 1/8in.L x 22 1/2in.W x 43 3/4in.H

Key Specs

AttributeSpecification

item#

39513

Brand

Snap-On

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

104.0 LB

Horsepower

2 HP

Air Tank Size

20 Gal

Volts

120

CFM at 90 PSI

4.6

Max. PSI

150
AttributeSpecification

Amps

13.5

Duty Cycle

50%

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

5.7

Noise Level

84 dB

Oil Required

No

Tank Orientation

Horizontal

Dimensions L x W x H (in.)

22.125 x 22.5 x 43.75 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. what is the noise level ( db )

    1. The noise level on this unit is probably around 95 to 100 db. California Air Tools make quiet units that are 60 to 70 db. Check them out on Northerns website and watch the videos.

      Helpful?

    2. This Snap-on Horizontal Air Compressor is rated at 84 decibels.

      Helpful?

  2. What is the duty cycle of the compressor?

    1. The duty cycle is typically 50/50. Which means while in use it should be off equal to the time it is running. That is always my rule and you will achieve optimum life expectancy.

      Helpful?

    2. This Snap-on Horizontal Air Compressor is rated at a 50% duty cycle.

      Helpful?

  3. Does the tank have a drain valve? If not, how does on drain moisture the out of tank ?

    1 answer

    1. Yes this unit does have a drain valve on the bottom of the tank.

      Helpful?

  4. Is the air compressor shown here actually manufactured by Snap-on or is it manufactured by a contractor with a license to put the Snap-on name on it?

    Is the compressor that your company sales actually 100% manufactured by Snap-on? I spoke to a Snap-on rep and he advised that many contractors have a license to put the Snap-on name on their compressors but their compressors are not actually made by Snap-on--for example, the snap-on compressors sold at large chain stores such as Costco, are not made by Snap-on.

    1 answer

    1. This Snap-on Horizontal Air Compressor is manufactured by another company other than Snap-On. The manufacture of this particular unit is All Trade.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts / 12 months labor
