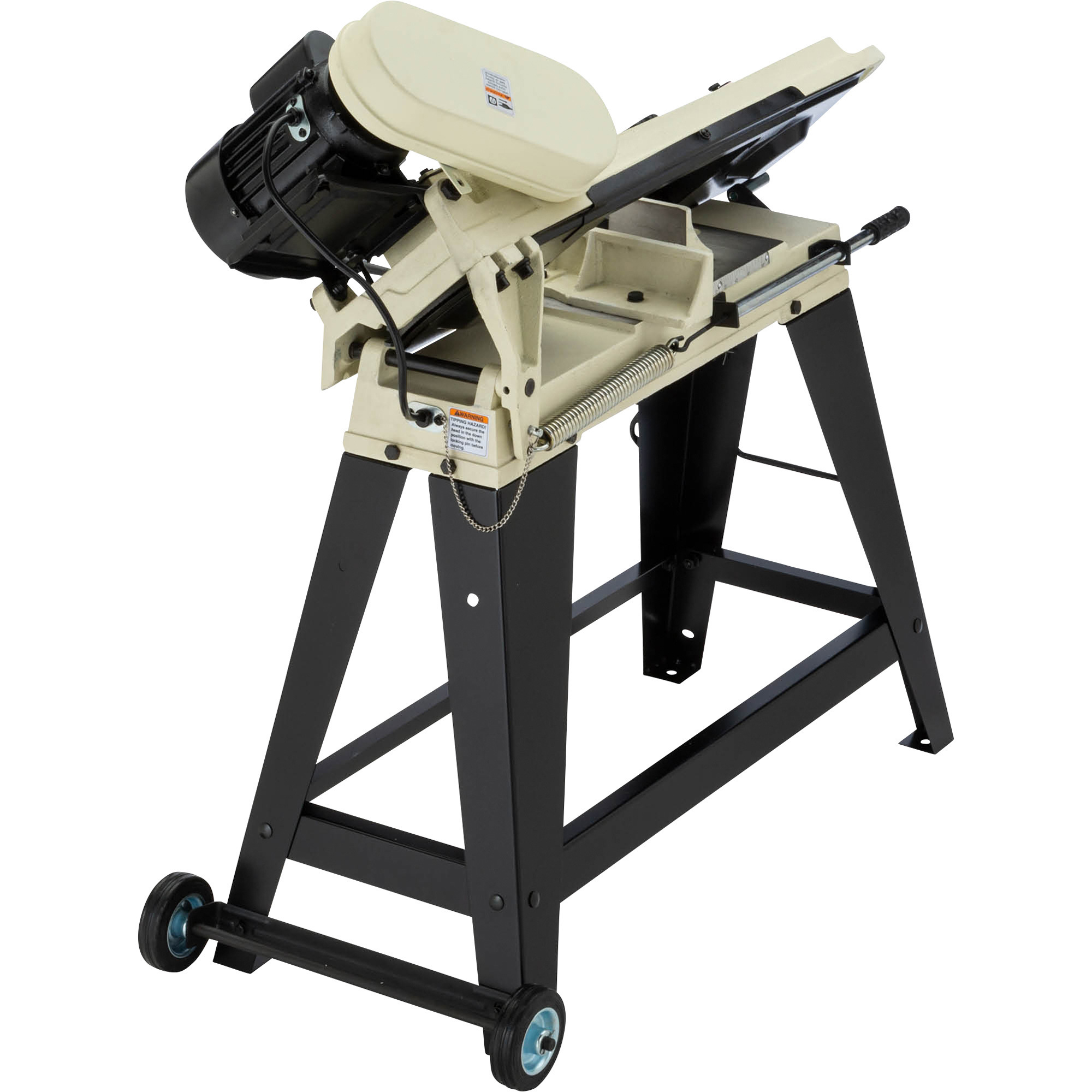

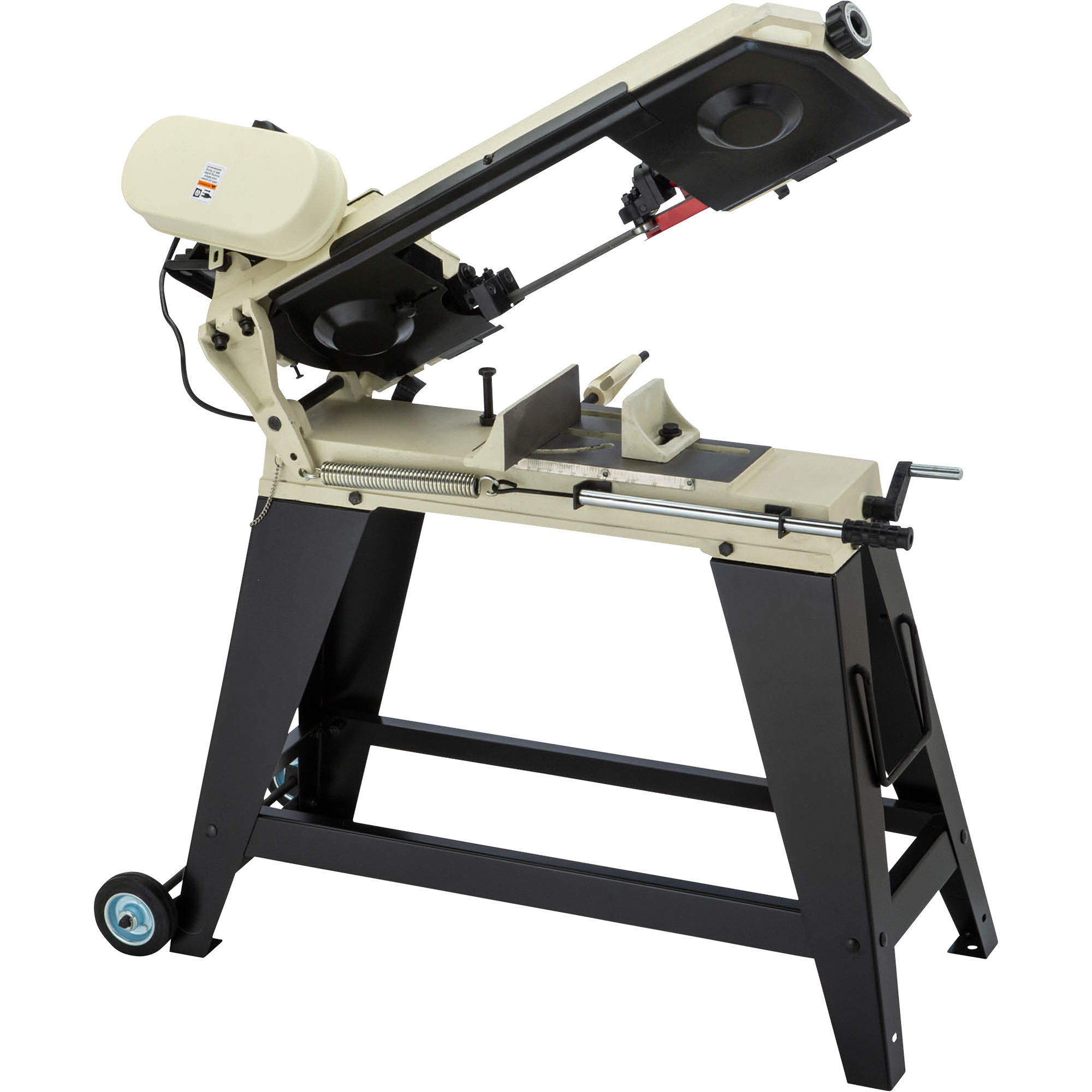

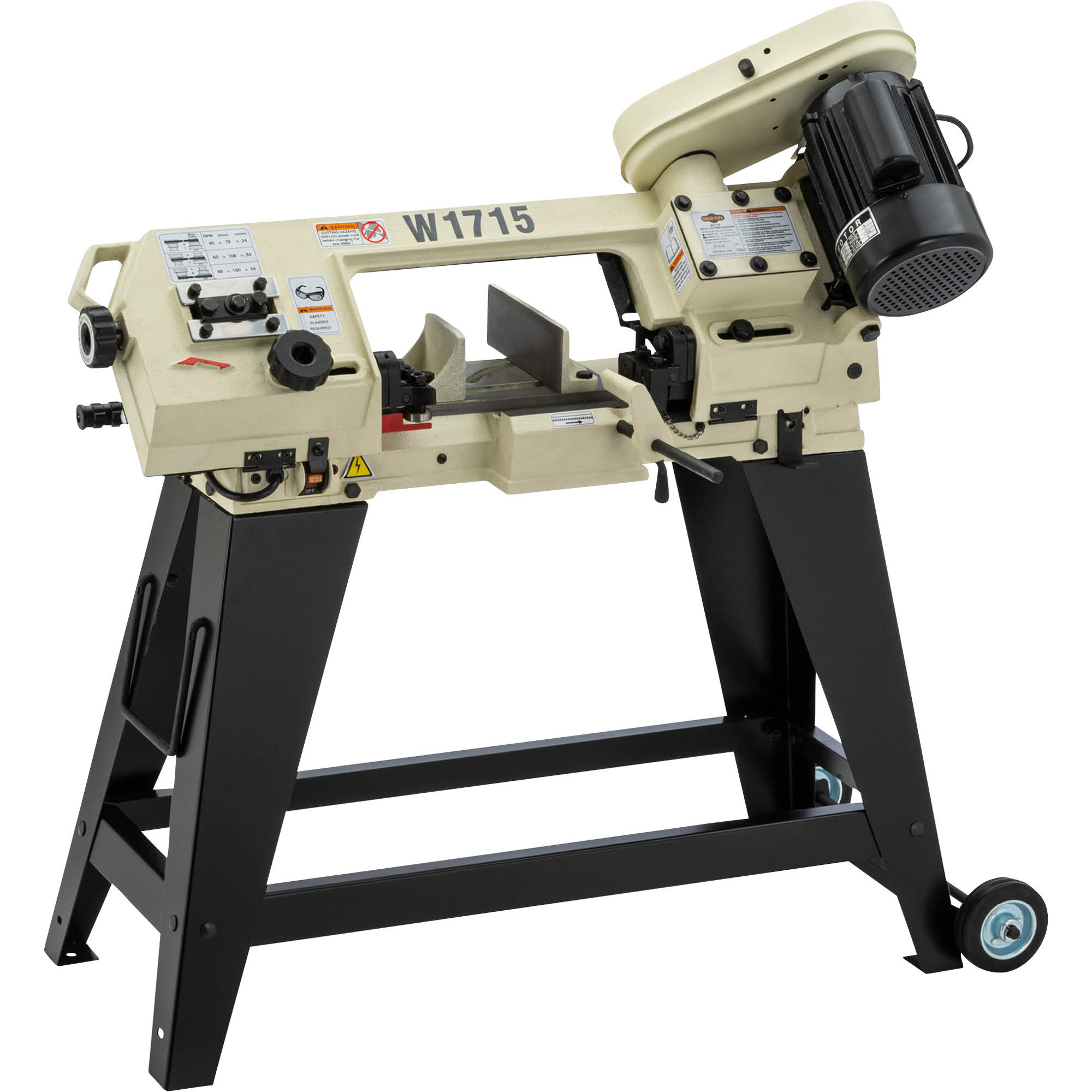

Shop Fox Horizontal/Vertical Metal Cutting Band Saw - 4 1/2in. x 6in., 3/4 HP, 110V, Model# W1715

Item# 74248
"Shop Fox Horizontal/Vertical Metal Cutting Band Saw - 4 1/2in. x 6in., 3/4 HP, 110V, Model# W1715"
Shop Fox Horizontal/Vertical Metal Cutting Band Saw - 4 1/2in. x 6in., 3/4 HP, 110V, Model# W1715

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Shop Fox Horizontal/Vertical Metal Cutting Band Saw - 4 1/2in. x 6in., 3/4 HP, 110V, Model# W1715

Click or Tap image to Zoom

$565.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Powerful 3/4 HP, 110V, single-phase motor generates 1725 RPM

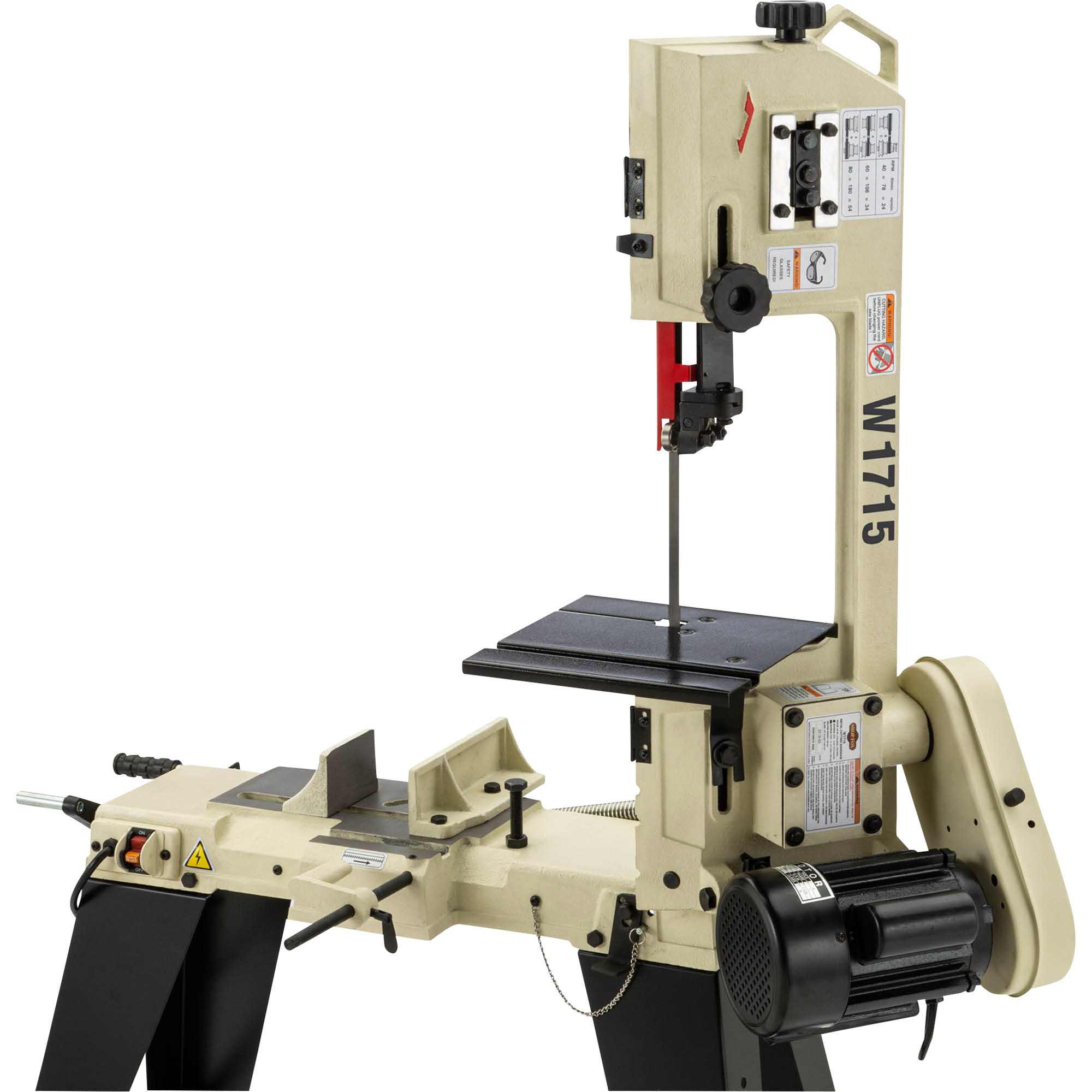

  • Easy setup for vertical cutting operations to make cuts that are not a straight cut through the entire workpiece, such as curves or pattern cuts
  • Blade speed can easily be adjusted to 78 FPM, 108 FPM or 180 FPM by changing the V-belt placement
  • Horizontal and Vertical operation add versatility
  • Automatic shutoff adds safety

See full description

Complete Your Solution

  • Shop Fox Horizontal/Vertical Metal Cutting Band Saw - 4 1/2in. x 6in., 3/4 HP, 110V, Model# W1715
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
Price for all four:

$588.45

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This SHOP FOX® Horizontal/Vertical Metal Cutting Band Saw is an economical, portable saw that makes an excellent choice for small or large projects where you need to cut a variety of metals, plastics or wood. 3 cutting speeds (78, 108 or 180 FPM) allow for the cutting of a variety of stock with varying hardnesses. A vertical cutting attachment can be installed to create the capability to cut in the same manner as a vertical bandsaw, offering plenty of options for unique cutting requirements. Cannot ship to AK, CA or HI.

What's Included

    (1) Bandsaw (2) Stand legs (1) Tool tray (2) Wheels (1) Table and table support (1) Hardware bag

Features + Benefits

  • Powerful 3/4 HP, 110V, single-phase motor generates 1725 RPM
  • Easy setup for vertical cutting operations to make cuts that are not a straight cut through the entire workpiece, such as curves or pattern cuts
  • Blade speed can easily be adjusted to 78 FPM, 108 FPM or 180 FPM by changing the V-belt placement
  • Horizontal and Vertical operation add versatility
  • Automatic shutoff adds safety
  • Built-in work stop for extra control
  • Maximum cut: Round stock -- 4 1/2in. dia.; Rectangular stock -- 4 1/2in. x 6in.
  • 64 1/2in. x 1/2in. blade size
  • Ball bearing construction for smooth operation
  • Handles and wheels add portability

Key Specs

AttributeSpecification

item#

74248

Brand

Shop Fox

Manufacturer's Warranty

2 year limited warranty

Ship Weight

139.0 LB
AttributeSpecification

Volts

110

Horsepower

0.75 HP

Product Weight

lb

Dimensions L x W x H (in.)

39.0 x 16.0 x 19.0 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. What is the thickest and tallest blade this unit will take?

    1 answer
    Originally posted on grizzly.com

    1. Thank you for getting in touch with us. It can accommodate a blade up to 64-1/2" long, 0.025" thick, and 1/2" wide.

  2. Is there a part number for a replacement motor? Mi e is dead and need a new motor

    1 answer

    1. The electric motor, part number MSX1715035V2, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  3. What is the maximum cutting height when the saw is in its vertical postion?

    1 answer

    1. The maximum cutting height would be 6 inches.

      Helpful?

  4. Does the saw cut by itself once you set the blade

    1 answer

    1. This is a manually operated saw, it would not cut by itself.

      Helpful?

  5. Will this saw cut non-ferrous metals like aluminum? Can you change the blade to do so?

    1 answer

    1. The W1715 can be used to cut aluminum. The blade can be swapped.

      Helpful?

  6. How high off the ground is the bottom plate that the material sits on

    1 answer

    1. The floor to table height is 33 inches.

      Helpful?

  7. Does This Saw Come With A Pump That Puts Liquid On The Cutting Surface So Saw Blad Does Not Cut Dry

    1 answer

    1. The saw does not come with a pump for coolant.

      Helpful?

  8. I am in the ice business. I make ice blocks that around 12 cm. Is this powerful enough to cut ice in smaller blocks of ice?

    1 answer

    1. It is not recommended that the saw be used for cutting ice.

      Helpful?

  9. How do you measure the blade size? Is it from center to center? Or wheel to wheel?

    1 answer

    1. Measuring the blade center to center should be done to get an accurate length measurement.

      Helpful?

  10. What is the number of teeth per inch on the saw blade that comes with this saw?

    1 answer

    1. The unit would not include a blade. The size needed for this is 64 1/2in. x 1/2in. The size needed is unavailable from Northern Tool. Please inquire with the manufacturer for the proper blade.

      Helpful?
