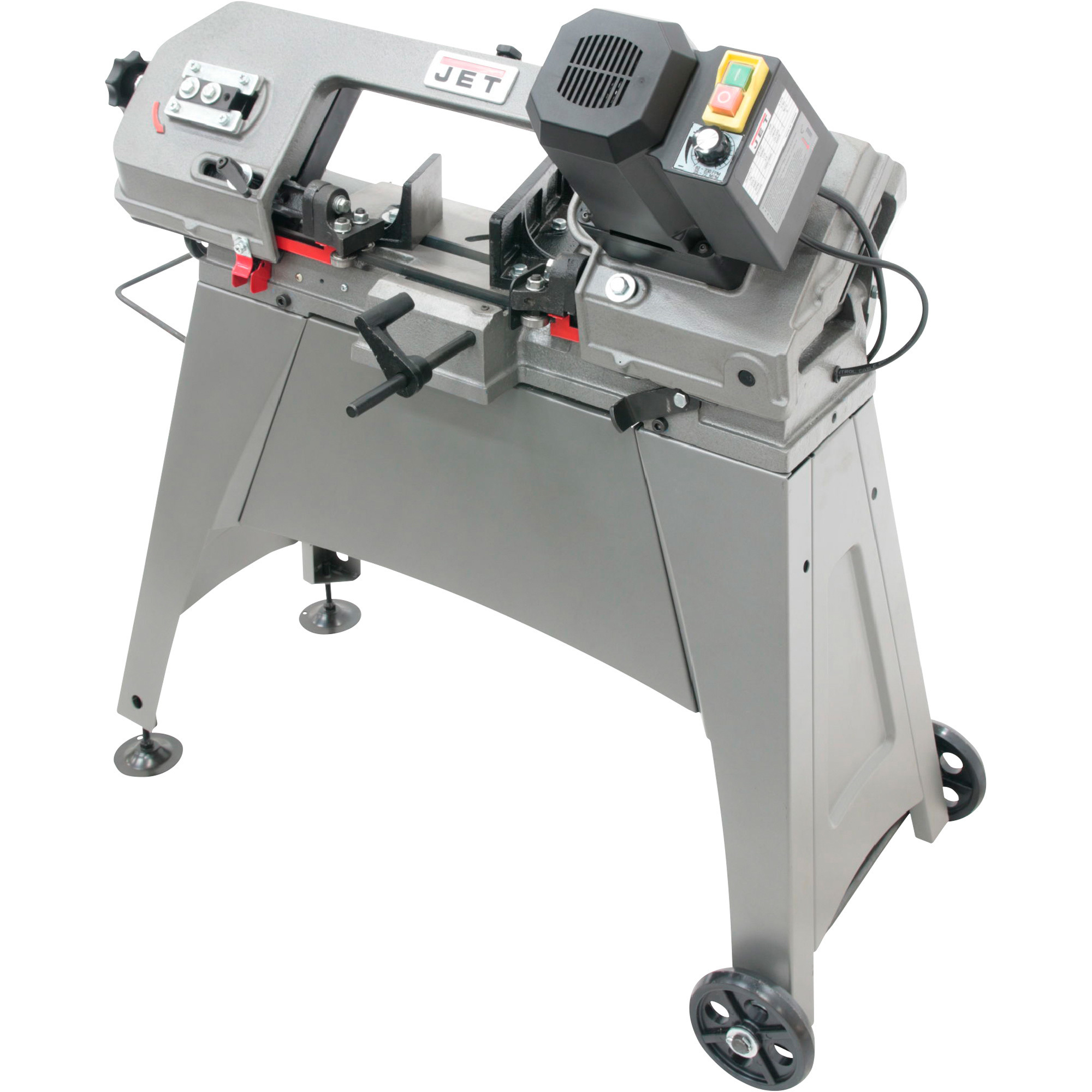

JET Horizontal/Vertical Variable Speed Metal Cutting Band Saw, 5in. x 6in., 1/2HP, 115/230 Volt, Single Phase, Model# HVBS-56V

Item# 66149
JET Horizontal/Vertical Variable Speed Metal Cutting Band Saw, 5in. x 6in., 1/2HP, 115/230 Volt, Single Phase, Model# HVBS-56V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Horizontal/Vertical Variable Speed Metal Cutting Band Saw, 5in. x 6in., 1/2HP, 115/230 Volt, Single Phase, Model# HVBS-56V

Click or Tap image to Zoom

$949.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • Heavy-duty casted head is designed for years of sawing
  • Improved stand with built-in shelf for convenient storage
  • DC motor with 3-step gear transmission increases torque output
  • Ball bearing supported blade wheel
  • Blade is fully guarded for safety

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Horizontal/Vertical Variable Speed Metal Cutting Band Saw, 5in. x 6in., 1/2HP, 115/230 Volt, Single Phase, Model# HVBS-56V
  • SuperCut Bimetal Replacement Band Saw Blade, 64.5in.L x 0.5in.W x 0.025in. Thick
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
Price for all four:

$993.44

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 5in. x 6in. JET Horizontal/Vertical Variable Speed Band Saw is engineered to be as powerful as it is versatile. The portable bandsaw can be operated in either the vertical or horizontal cutting position and includes a newly designed motor with a 3-step gear transmission for unprecedented torque output. 1/2HP, single phase, 115/230V motor. CSA/CUS certified. Item too large for lift gate. Forklift required for on site unloading.

What's Included

    (1) Horizontal/vertical variable speed band saw

Downloads

Product Manual

Features + Benefits

  • Heavy-duty casted head is designed for years of sawing
  • Improved stand with built-in shelf for convenient storage
  • DC motor with 3-step gear transmission increases torque output
  • Ball bearing supported blade wheel
  • Blade is fully guarded for safety
  • Automatic shut-off after each cut
  • Variable speed operation gives you the ability to cut various materials
  • Fully adjustable ball bearing blade guides
  • Front legs feature leveling pads
  • Wheels come standard for excellent maneuverability around the shop
  • Standard equipment includes: vertical worktable, adjustable material stop and 1/2in. carbon steel blade 14T
  • UPS/Fedex Shipping

Key Specs

AttributeSpecification

item#

66149

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

121.0 LB

Volts

115

Variable Speed

Yes
AttributeSpecification

Max. Cutting Capacity

230 SFPM

Case Included

No

Horsepower

0.5 HP

Product Weight

121.0000 lb

Dimensions L x W x H (in.)

88.0 x 55.0 x 51.0 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Will this saw cut 3"x3" square tubing at 45 degree angle

    1 answer

    1. This metal cutting band saw would be able to cut 3" x 3" square tubing at a 45 degree angle.

      Helpful?

  2. where is it made?

    1 answer

    1. This item is manufactured in Taiwan.

      Helpful?

  3. Is there a coolant tray so that a coolant system could be added to this saw?

    1 answer

    1. There is not a tray or coolant system available for the saw.

      Helpful?

  4. I am considering this for artistic blacksmith work.  I’ll want to use it in vertical mode to make lengthwise cuts in 1 1/4 square stock of mild steel (low carbon).  Is the 1/2 HP motor powerfull enough for that?

    1 answer

    1. The saw will cut 1 1/4" square mild steel in the vertical position.

      Helpful?

  5. What is the slowest speed for metal cutting?

    1 answer

    1. The lowest blade speed is 80 SFPM. That is square feet per minute.

      Helpful?

  6. what starter capacitor is on this half horse motor

    1 answer

    1. This band saw does not have a starter capacitor. It has an inverter that converts the motor to a DC brushed motor. It would have a brushless motor.

      Helpful?
