Shop Fox Dust Collector, 1 HP, 800 CFM, Model# W1727

Item# 81823
"Shop Fox Dust Collector, 1 HP, 800 CFM, Model# W1727"
Shop Fox Dust Collector, 1 HP, 800 CFM, Model# W1727

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Shop Fox Dust Collector, 1 HP, 800 CFM, Model# W1727

Click or Tap image to Zoom

$409.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Powered by 1 HP 120V electric motor
  • Dust collector can be moved from one machine to another when needed
  • With height of only 54 1/2in. with bags inflated and a 15 3/4in. x 39 3/4in. portable base, this dust collector is ideal for shops with limited space

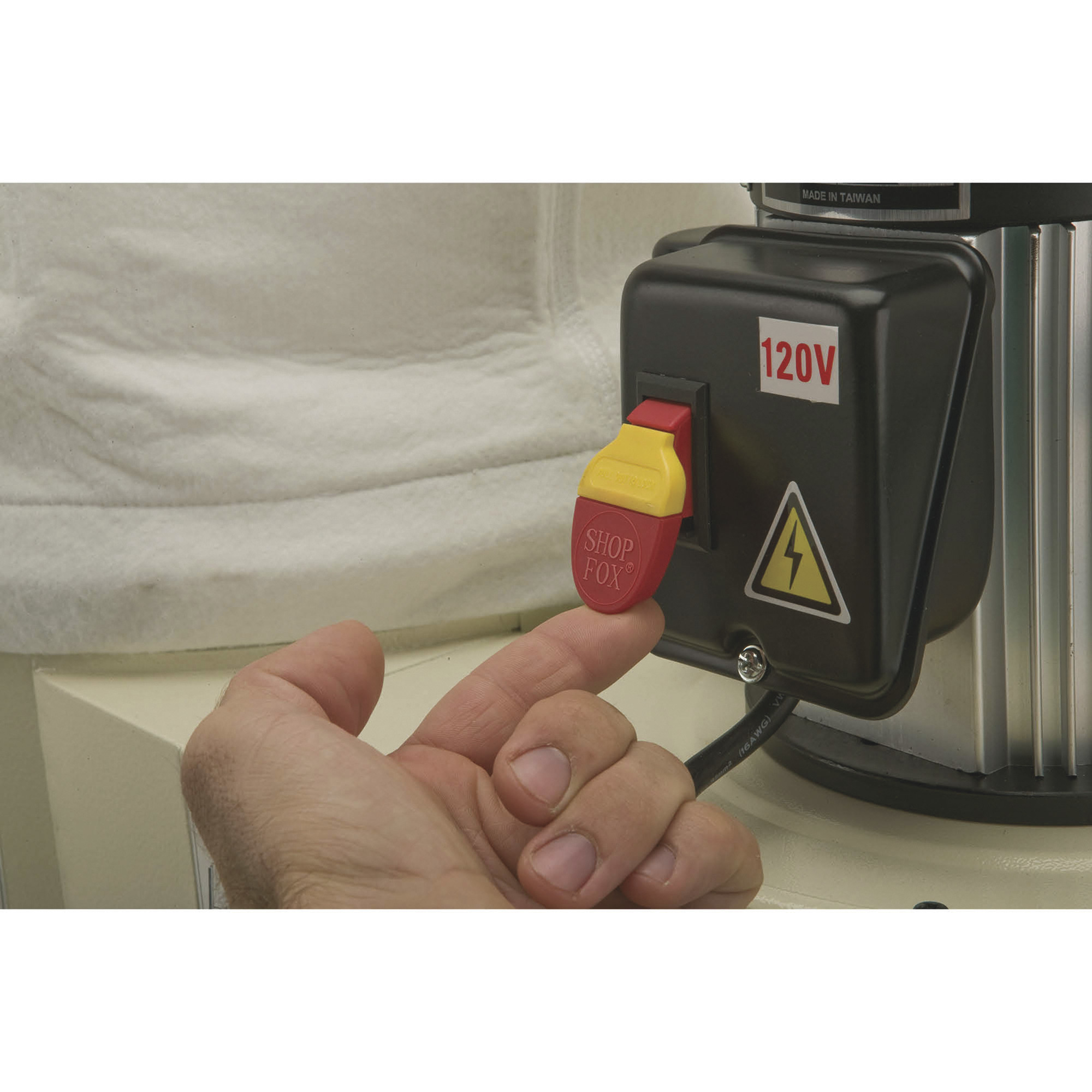

  • Paddle safety switch with a removable key protects against unauthorized use
  • Can be operated as either a stationary, central dust collector or a mobile unit

See full description

Complete Your Solution

  • Shop Fox Dust Collector, 1 HP, 800 CFM, Model# W1727
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • 3M Professional-Grade Over-the-Head Hearing Protector, NRR 30dB, Model# 90565-4DC-PS
  • 3M Sanding/Drywall/Fiberglass Respirator with Valve, N95, NIOSH Approved, Model# 8511HA1-A
Price for all four:

$468.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Designed for portability, the model W1727 1 HP Dust Collector can be moved from one machine to another when needed, instead of having to build an entire fixed dust collection system and running ducts to each machine. CSA certified meeting CSA C22.2 #243-M91 and UL 1017-4th standards.

What's Included

    (1) Dust collector assembly

Features + Benefits

  • Powered by 1 HP 120V electric motor
  • Dust collector can be moved from one machine to another when needed
  • With height of only 54 1/2in. with bags inflated and a 15 3/4in. x 39 3/4in. portable base, this dust collector is ideal for shops with limited space
  • Paddle safety switch with a removable key protects against unauthorized use
  • Can be operated as either a stationary, central dust collector or a mobile unit
  • Meets Underwriters Laboratories (UL) 1017-4 and Canadian Standards Association (CSA) C22.2 No. 243-M91 safety standards

Key Specs

AttributeSpecification

item#

81823

Brand

Shop Fox

Manufacturer's Warranty

2 year limited warranty

Ship Weight

59.0 LB

Air Flow

800 cfm

Horsepower

1 HP
AttributeSpecification

Product Type

Dust Collector

Volts

120/240

Filter Type

Bag

Amps

15

Product Weight

lb

Dimensions L x W x H (in.)

39.75 x 15.75 x 54.5 in

Reviews

Questions & Answers

10 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. We need the bottom dust collector for our Shop Fox W1727

    1 answer
    Originally posted on grizzly.com

    1. Thanks for reaching out. The replacement bags are D3545.

  2. what is the part number for the replacement bag filter that you sell

    1 answer
    Originally posted on grizzly.com

    1. Thanks for asking. The upper bag is PX1727009, while the lower bags are T24268. You can also upgrade the upper bag to a canister filter, T23129.

  3. Can you recommend an aftermarket canister filter for this unit?

    1 answer
    Originally posted on grizzly.com

    1. We appreciate receiving your question. We do not currently have a canister filter that we recommend to fit this machine.

  4. does this unit have an induction motor? If not, are there any 120 V dust collectors that do?

    1 answer
    Originally posted on grizzly.com

    1. Thank you for reaching out. This dust collector includes an induction motor.

  5. Can this unit be wall mounted?

    1 answer
    Originally posted on grizzly.com

    1. We appreciate you reaching out to us. While this unit is not intended for wall mounting, we provide alternative options. Please reach out to Product Support for further assistance.

  6. is there a cannister filter available for this model?

    1 answer
    Originally posted on grizzly.com

    1. Thank you for your question. At the moment, we do not provide an option for a canister filter upgrade.

  7. Where is it made?

    1 answer

    1. The item is manufactured in Taiwan.

      Helpful?

  8. will this use a regular house plug, or do I need to rewire the collector. Thanks......

    1 answer

    1. The dust collector is prewired with a 120 volt plug.

      Helpful?

  9. What is the static suction head?

    1 answer

    1. The maximum static pressure at 0 CFM is 5.67 inches (of water). The inlet size is 4".

      Helpful?
