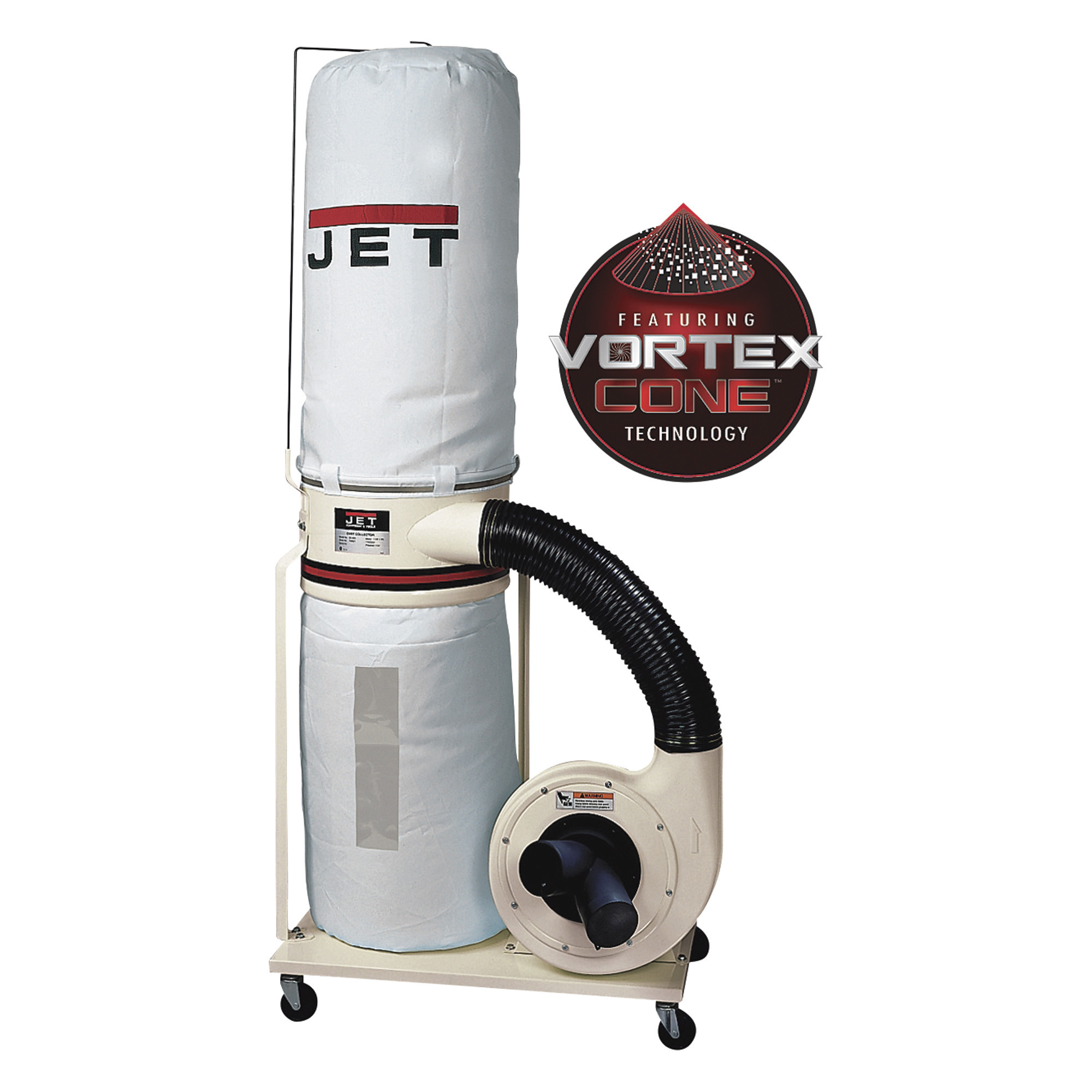

JET Dust Collector, 2 HP, 230 Volt, Model# DC-1200VX-BK1

Item# 34978
"JET Dust Collector, 2 HP, 230 Volt, Model# DC-1200VX-BK1"
JET Dust Collector, 2 HP, 230 Volt, Model# DC-1200VX-BK1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Dust Collector, 2 HP, 230 Volt, Model# DC-1200VX-BK1

Click or Tap image to Zoom

$813.99

  • Shipping:

    Factory shipped

  • Store Pickup:

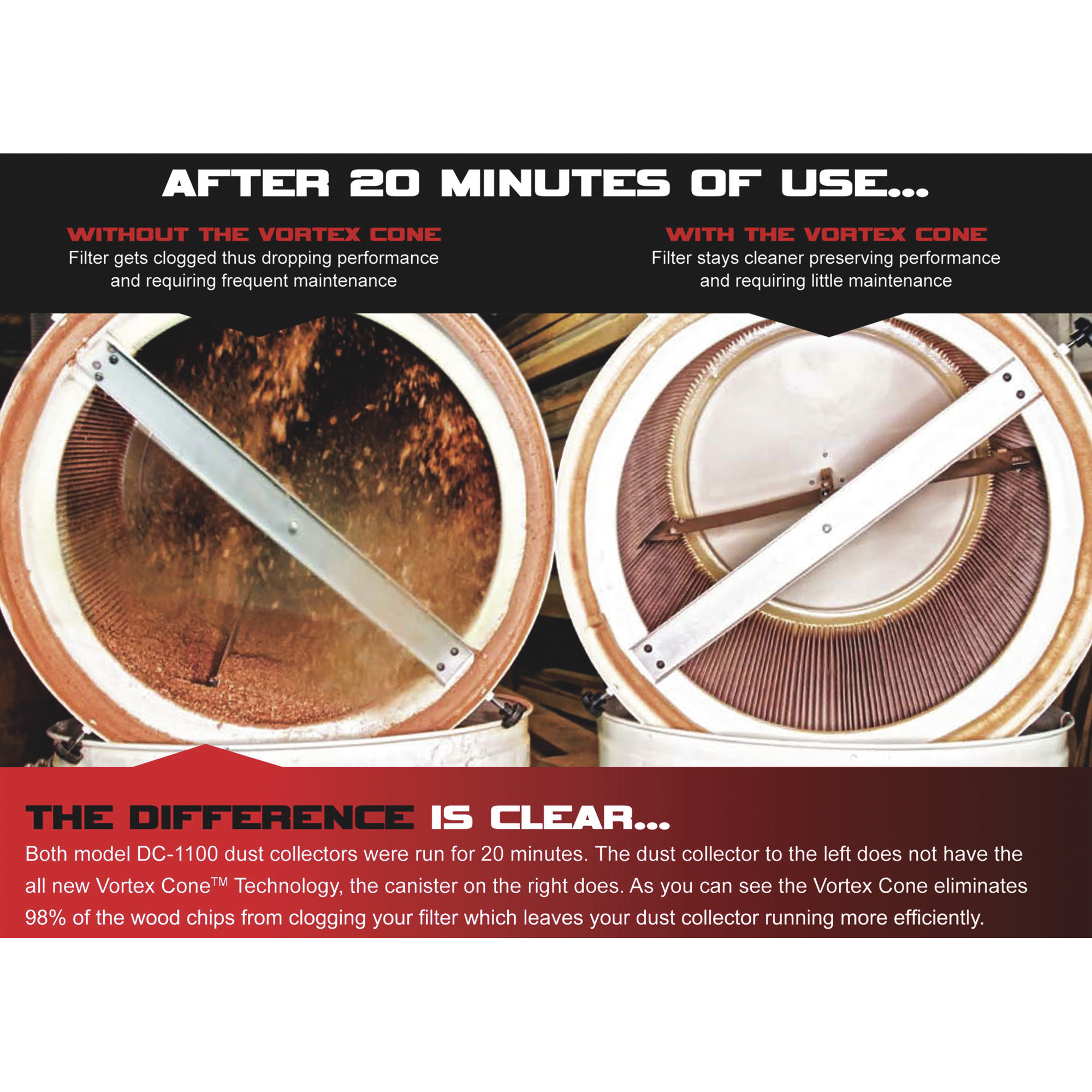

  • Vortex Cone improves chip separation and collector bag packing efficiency
  • Eliminates premature filter clogging for sustained performance
  • Single-stage design for economical and quiet operation
  • Industrial controls designed for years of trouble-free use
  • Quick-connect collection 29in. long, 20in dia., 5.3 cu. ft. capacity bags with elastic band for fast, easy installation and removal

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Dust Collector, 2 HP, 230 Volt, Model# DC-1200VX-BK1
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • 3M Sanding/Drywall/Fiberglass Respirator with Valve, N95, NIOSH Approved, Model# 8511HA1-A
  • 3M Professional-Grade Over-the-Head Hearing Protector, NRR 30dB, Model# 90565-4DC-PS
Price for all four:

$873.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

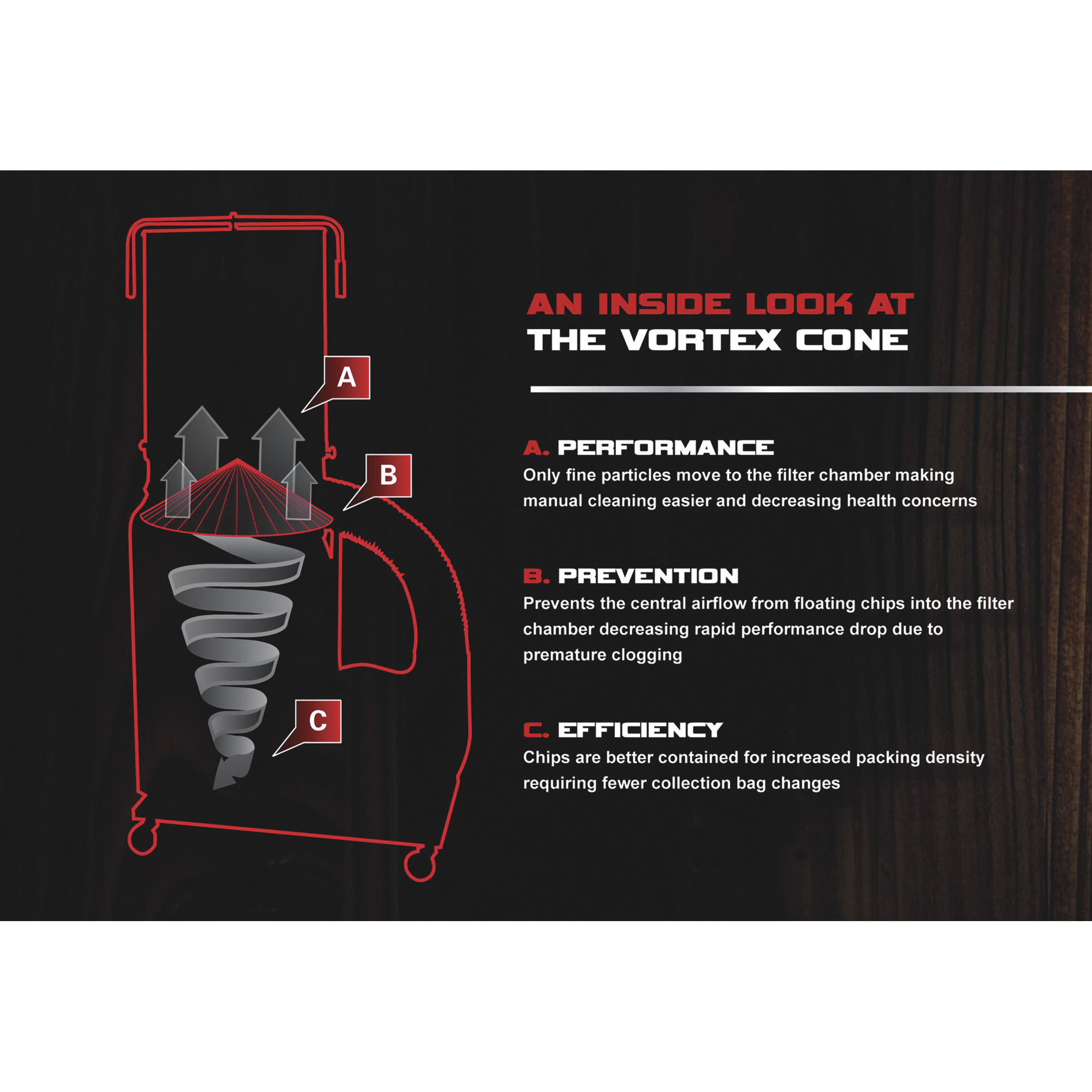

This dust collector features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

What's Included

    (1) JET Dust Collector, 2 HP, 230 Volt, Model# DC-1200VX-BK1

Downloads

Product Manual

Features + Benefits

  • Vortex Cone improves chip separation and collector bag packing efficiency
  • Eliminates premature filter clogging for sustained performance
  • Single-stage design for economical and quiet operation
  • Industrial controls designed for years of trouble-free use
  • Quick-connect collection 29in. long, 20in dia., 5.3 cu. ft. capacity bags with elastic band for fast, easy installation and removal
  • High air velocity (CFM) design stands up to any competitive specifications
  • Permanently lubricated, totally enclosed, fan-cooled motor us rated for continuous-duty
  • Includes four casters for maneuverability and total portability
  • Static pressure: 11 1/2in. water
  • Particle size: 96% of 30 micron particles
  • Velocity at 4in.: 13, 745 ft. per min.
  • Air inlet: 1 at 6in. or 2 at 4in.
  • 12in. impeller diameter
  • Steel impeller
  • Tank: 10in. high, 20in. dia.

Key Specs

AttributeSpecification

item#

34978

Brand

JET

Manufacturer's Warranty

5 year limited warranty

Ship Weight

150.0 LB

Air Flow

1,200 cfm

Horsepower

2.25 HP
AttributeSpecification

Product Type

Dust Collector

Volts

230

Filter Type

Bag/filter

Amps

8

Product Weight

lb

Dimensions L x W x H (in.)

37.0 x 22.0 x 79.0 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Whats the CFM on this machine?

    1. 1200 CFM

      Helpful?

    2. The air flow from the JET Dust Collector is 1200 CFM.

      Helpful?

  2. what bags does the model DC-1200VX-BK1 use

    1 answer

    1. The replacement collection bag would be part number JE708699A. The part number for the filter bag would be JE708698. You would contact our parts department at 1.800.657.0516 to order replacement parts.

      Helpful?

  3. Can you wire a 6-50 plug for this?

    1 answer

    1. A 6-50 plug would not be recommended for this dust collector.

      Helpful?

  4. what is max distance for main line run?

    I have a small basement shop and am considering permanent installation of this unit at the other end of the basement or even possibly outside in an enclosure and run the mainline along the ceiling. I know having the machine closer to the woodworking equipment is always optimal but how much vacuum or cfm loss would I get over say 20' or 30'?

    1 answer

    1. This unit is rated at 1,200 CFM and can maintain that flow up to 35' before it starts tapering off. A main line can run longer than 35', but the CFM will vary depending on the material of the tubing, how well it is sealed off and how tight the joints are.

      Helpful?

  5. How loud in decibels is this system?

    1 answer

    1. At 3 feet away it is rated at 70-80 decibels.

      Helpful?
