We appreciate your inquiry. This machine has a capacity for 22-gauge steel. The main issue lies in the jaw opening width—1/8” thick aluminum is far too thick to fit, and we would not recommend using material of that thickness with this machine.

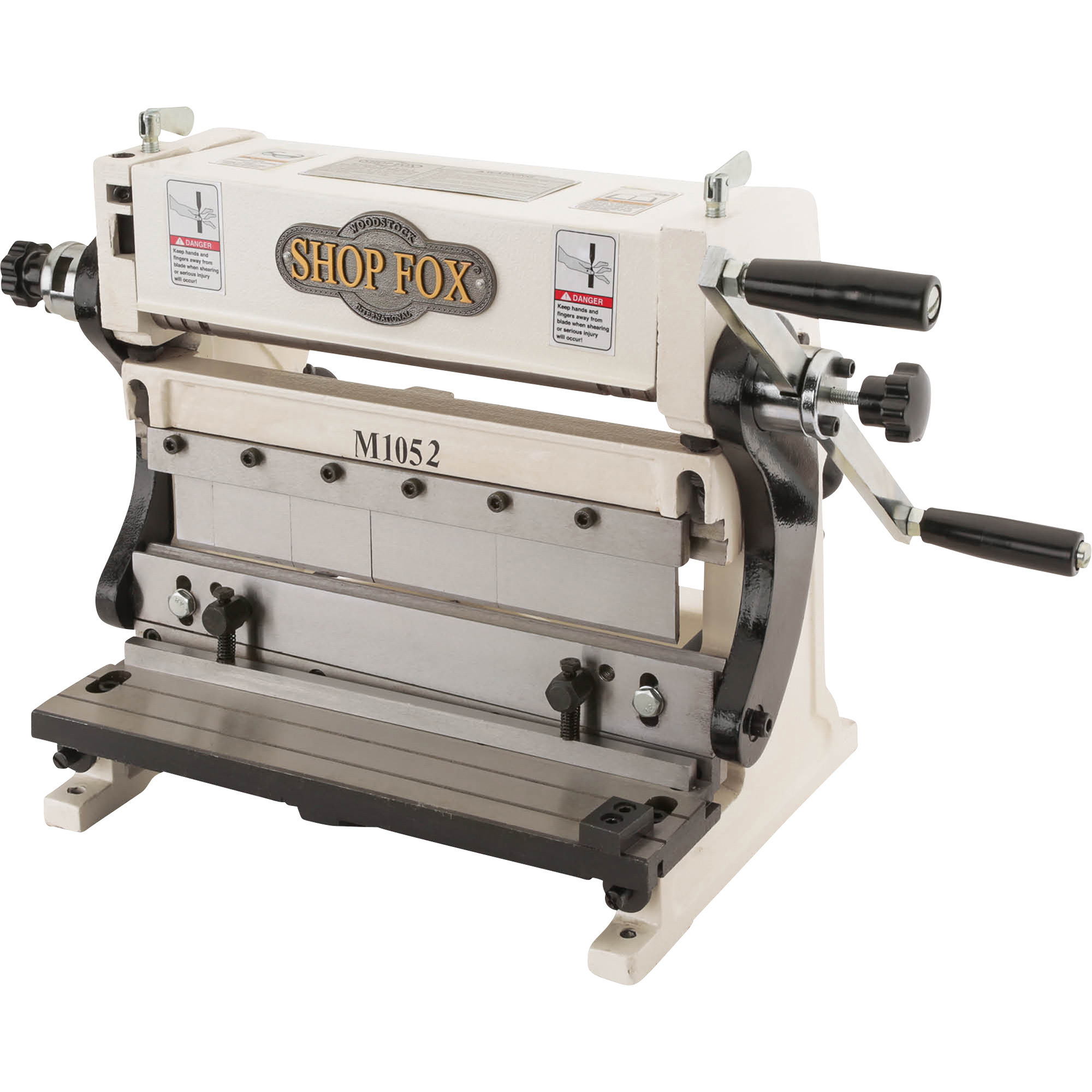

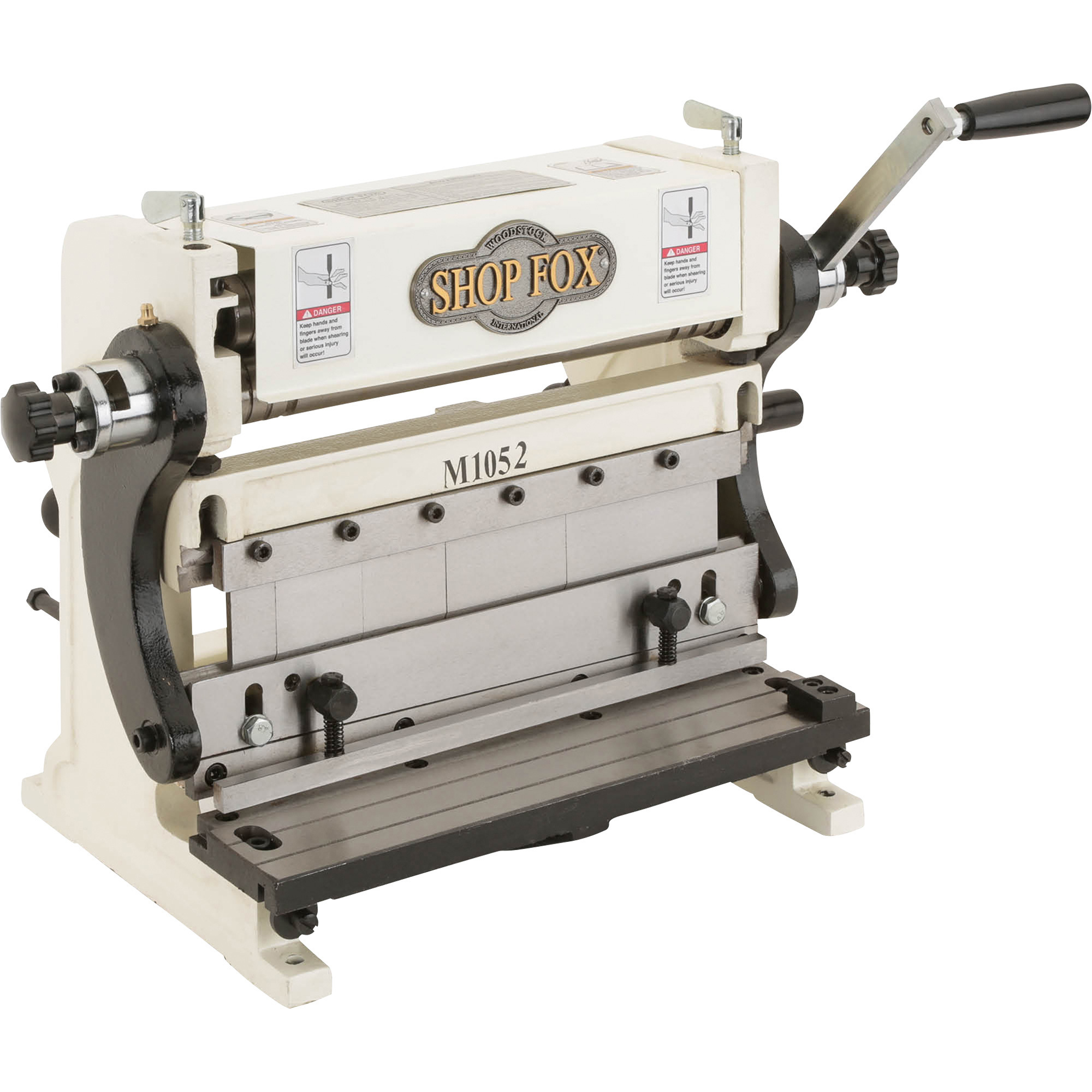

Shop Fox 3-in-1 Combination Sheet Metal Machine - 12in., 22-Ga., Model# M1052
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$513.00
- Handles up to 22-gauge mild steel

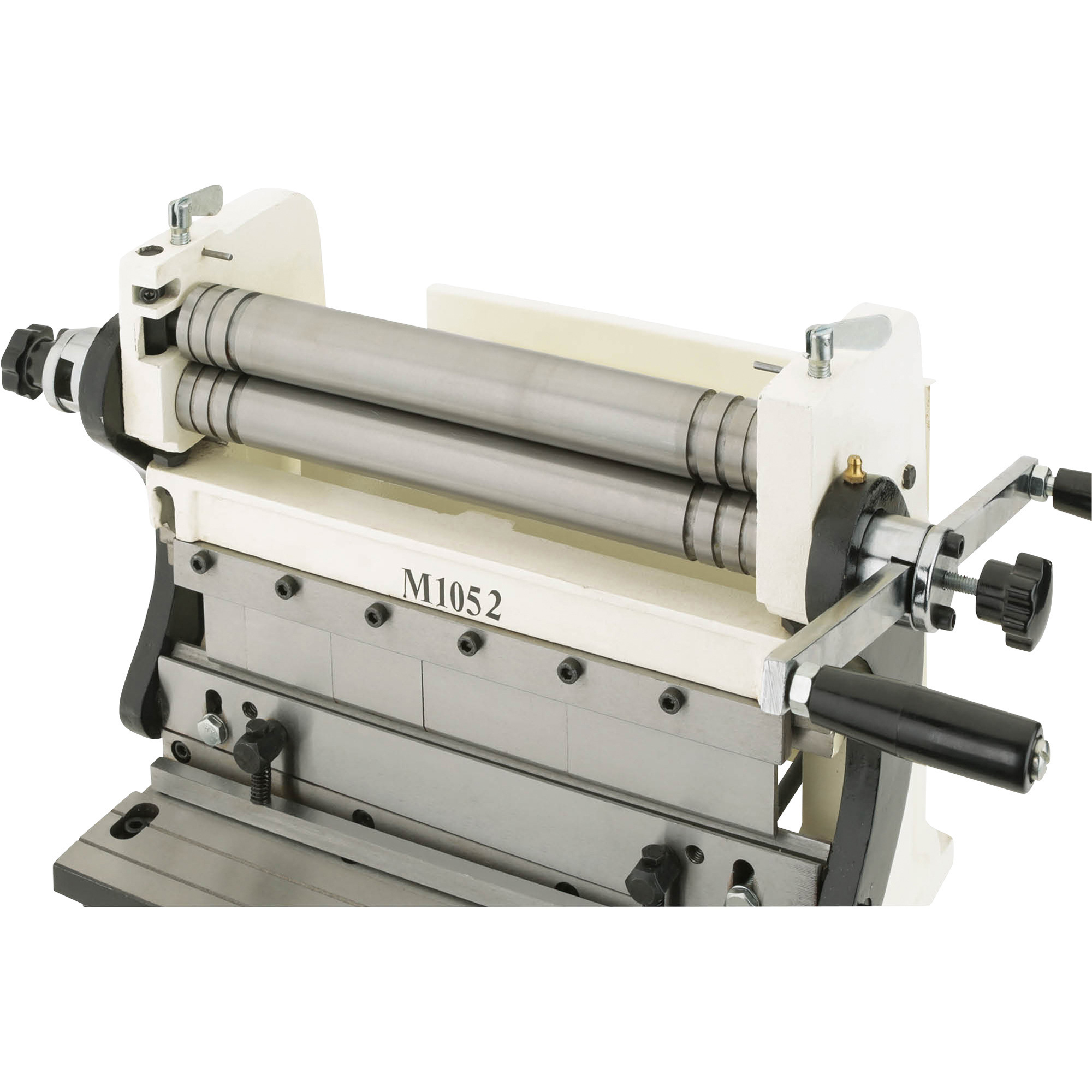

- Has 1 1/2in. dia. rolls
- 23in.L x 24in.W x 15 3/8in.H
See full description
-
Can this be used to bend 1/8” thick x 1” wide aluminum bars in addition to sheet metal/aluminum?
1 answerOriginally posted on grizzly.com -
-
How many inches will this break bend? Will it bend up to 10 feet?
1 answer-
You can feed any length material through this, up to 12" wide.
Helpful?
-
-
Can this machine bend steel and metal
1 answer-
The bending brake has a capacity to bend up to 22 gauge (0.034") mild steel.
Helpful?
-
-
Alignment
Is the metal to be bent or sheared easy to align?
1 answer-
You would measure and mark the material at both ends and insert into the machine at markings and either bend or shear the material. The Shop Fox Machine is easy to operate.
Helpful?
-
-
where is this tool made?
1 answer-
This Shop Fox sheet metal machine is manufactured in China.
Helpful?
-
See All Manual Bending Brakes
See All Shop Fox Manual Bending Brakes
Currently Viewing This Product
$20,944.99- $12,999.99
Specifications
Specifications
Shop Fox 3-in-1 Combination Sheet Metal Machine - 12in., 22-Ga., Model# M1052
Baileigh, Heavy Duty Manual Box and Pan Brake, Max. Material Gauge 18 Model# BB-14418
Baileigh, Heavy Duty Manual Box and Pan Brake, Max. Material Gauge 12 Model# BB-9612
Baileigh, Manual Brake, Max. Material Gauge 16 Model# HB-4816
Max. Bending Capacity - Flat
Same
12 in
-
-
-
Dimensions L x W x H (in.)
Same
23 x 24 x 15.375 in
176.0 x 34.0 x 48.0 in
122.0 x 33.0 x 44.0 in
64.0 x 23.0 x 30.0 in
Max. Material Gauge
Same
-
18
12
16
Dies Included
Same
-
No
No
No
Max. Depth
Same
-
6 in
6 in
6 in
Max. Bending Radius
Same
-
135 °
135 °
135 °
Max. Width
Same
-
144 in
96 in
48 in
Slip Roll Length
Same
-
0 in
0 in
0 in
Product Weight
Same
-
5390.0000 lb
3210.0000 lb
480.0000 lb
