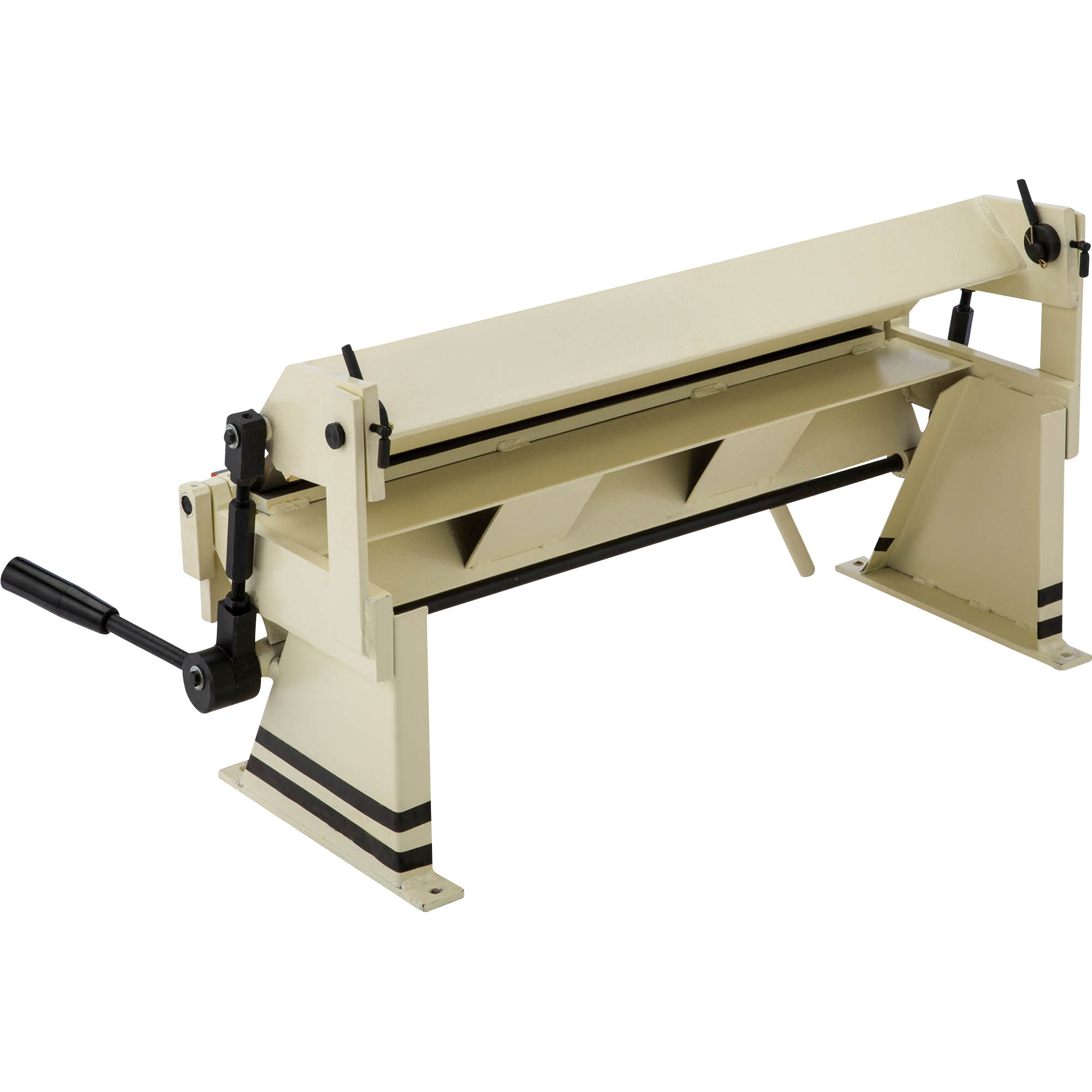

Shop Fox Box and Pan Brake - 24in., 20-Ga. Capacity, Model# M1011

Item# 334965
Shop Fox Box and Pan Brake - 24in., 20-Ga. Capacity, Model# M1011

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Shop Fox Box and Pan Brake - 24in., 20-Ga. Capacity, Model# M1011

Click or Tap image to Zoom

$630.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Bends mild steels up to 20-gauge thick, 24in. wide and ranging in angle from 0 to 135 degrees
  • Footprint: 10 1/2in. x 26 1/4in.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The SHOP FOX® Box and Pan Brake M1011 is an indispensable tool if you need to increase the strength of sheet metal plates with bends, or you intend on fabricating more complicated brackets, gussets, boxes, or fixtures. The removable and adjustable fingers can be installed in a variety of positions to accommodate varying widths of metal.

Cannot ship to AK, CA or HI.

What's Included

    (1) Box and pan brake

Downloads

Product Manual

Features + Benefits

  • Bends mild steels up to 20-gauge thick, 24in. wide and ranging in angle from 0 to 135 degrees
  • Footprint: 10 1/2in. x 26 1/4in.

Key Specs

AttributeSpecification

item#

334965

Brand

Shop Fox

Manufacturer's Warranty

2 year limited warranty

Ship Weight

99.0 LB
AttributeSpecification

Max. Bending Capacity - Flat

24 in

Dies Included

Yes

Max. Depth

1.75 in

Dimensions L x W x H (in.)

14 x 30.68 x 11 in

Reviews

Questions & Answers

10 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Maximum CLAMPING thickness?

    Will the M1011 brake CLAMP 16 or 14 gauge metal? I see that it is only RATED for 20 gauge bends, but I am cutting "bend-lines" to make bending easier. Will this brake CLAMP on sheet metal thicker than 20 gauge?

    1. For clamping ONLY, yes you can raise the fingers one full inch to hold any gauge in place for marking bend lines. It should also lock the work in place by adjusting the turnbuckles - but I would not try actual bending on metal thicker than 20 gauge.

      Helpful?

    2. I've clamped and bent 12" wide 14 and 16 gauge aluminum with no problems.

      Helpful?

    3. The Shop Fox box and pan brake would have a maximum clamp capability of 20 gauge too.

      Helpful?

  2. I just ordered a Fox Box M1011

    The pictures depict more fingers. How many fingers come with the product I just ordered?

    1. The picture on the owner's manual shows only 5 fingers, but both M1011's I purchased have 10 fingers. The apparently previous version included two 9 inch fingers which greatly reduced the brake's versatility. Maximum finger width on the current version is 4 inches, which offers much greater flexibility and allows you to make smaller boxes. Of course, two 4 inch fingers can be combined to make a 9 inch bend if needed.

      Helpful?

    2. There are 10 fingers of various widths

      Helpful?

    3. The Shop Fox Brake will come with a total of 10 fingers. 1" fingers (qty 2), 2" fingers (qty 4), 3" Fingers (qty 2) and 4" fingers (qty 2). The sizes can be mixed in several orientations to better accommodate different bends.

      Helpful?

  3. What is the maximum depth of a box side?

    1 answer

    1. The maximum box depth is 1-3/4”.

      Helpful?

  4. What thickness of aluminum can this brake safely bend?

    I'm looking for a brake solution for bending .063" aluminum sheet which is less than 12" wide. Would this model work for my application?

    1 answer

    1. This brake is only rated to bend up to 20 gauge, which translates to 0.032" for aluminum. It will not be able to bend your 0.063" thick sheet of aluminum.

      Helpful?

  5. Where buy replacement fingers

    I would like to buy additional fingers. Can you get replacement fingers for the M1011?

    1 answer

    1. Replacement parts would be available through the manufacturer directly.

      Helpful?

  6. What would be the capacity of this machine only bending 12" wide parts?

    I have 12" wide or less parts to bend (.060) thick and need a machine that would handle this.

    1 answer

    1. This SHOP FOX model will bend up to 20 gauge mild steel.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
