This shelter comes with 4 cork-screw type anchors that screw into the ground nearly 2 feet. Each anchor goes in each corner of the shelter and straps to the frame easily. What is not easy is screwing those things into the ground. They have to screw all the way in so that only the eye is above ground. We used a heavy-duty large electric drill with a large "L" shaped allen wrinch in it to screw them in over halfway before the drill couldn't turn it any more. The rest we just used a long pole (about 2') and turned them in the rest of the way by hand. Hard work but our shelter just survived 40-60 MPH wind storm that lasted 18 hours. Impressive!

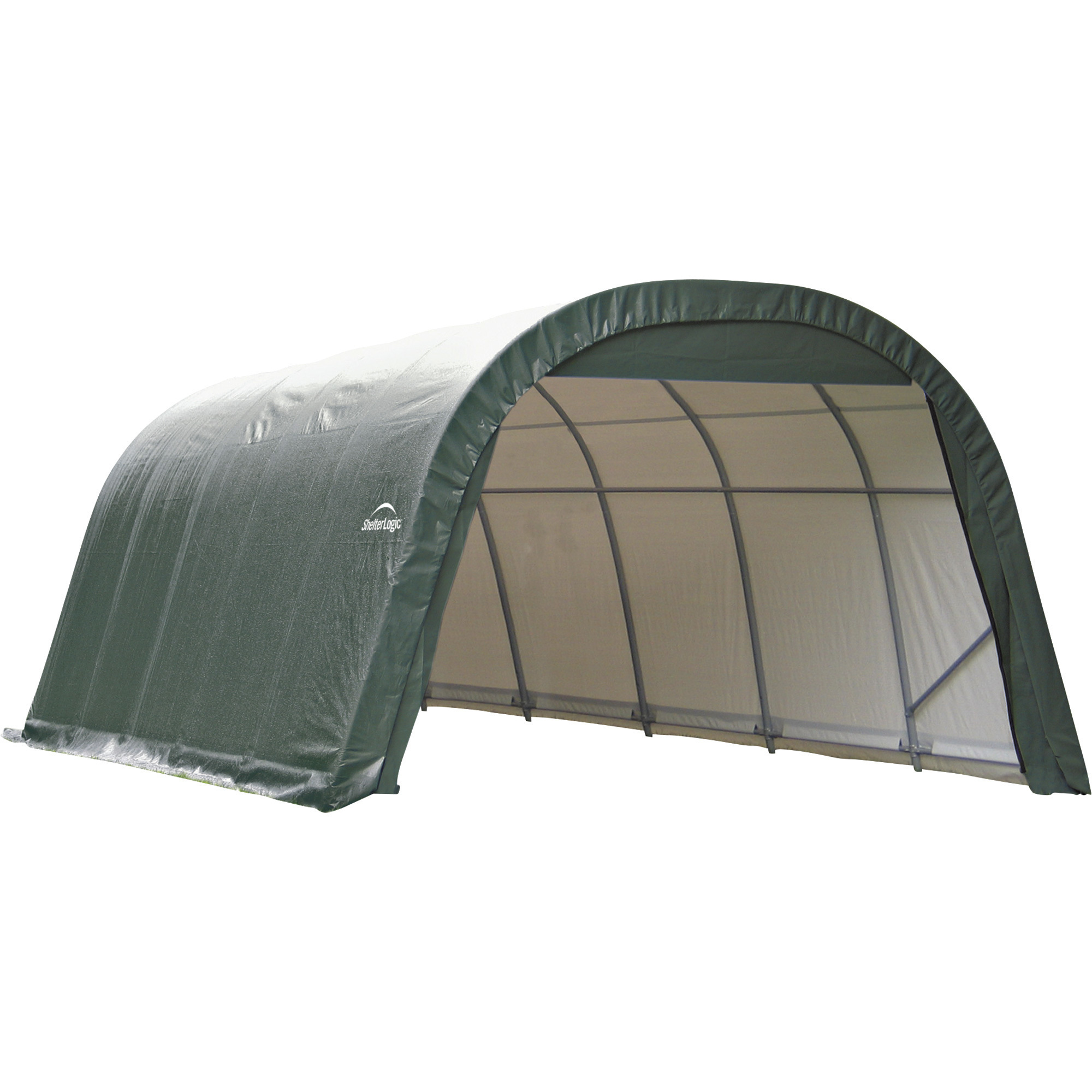

ShelterLogic ShelterCoat 12ft.W x 20ft.L Wind and Snow Rated Garage, Round, Green STD, Model#, Model# 71342
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$1229.99
Choose Options for complete product description, reviews and purchasing.
Color
- Frame constructed of heavy-duty 1 5/8in. diameter steel
- Premium powder-coat finish protects frame from corrosion and rust

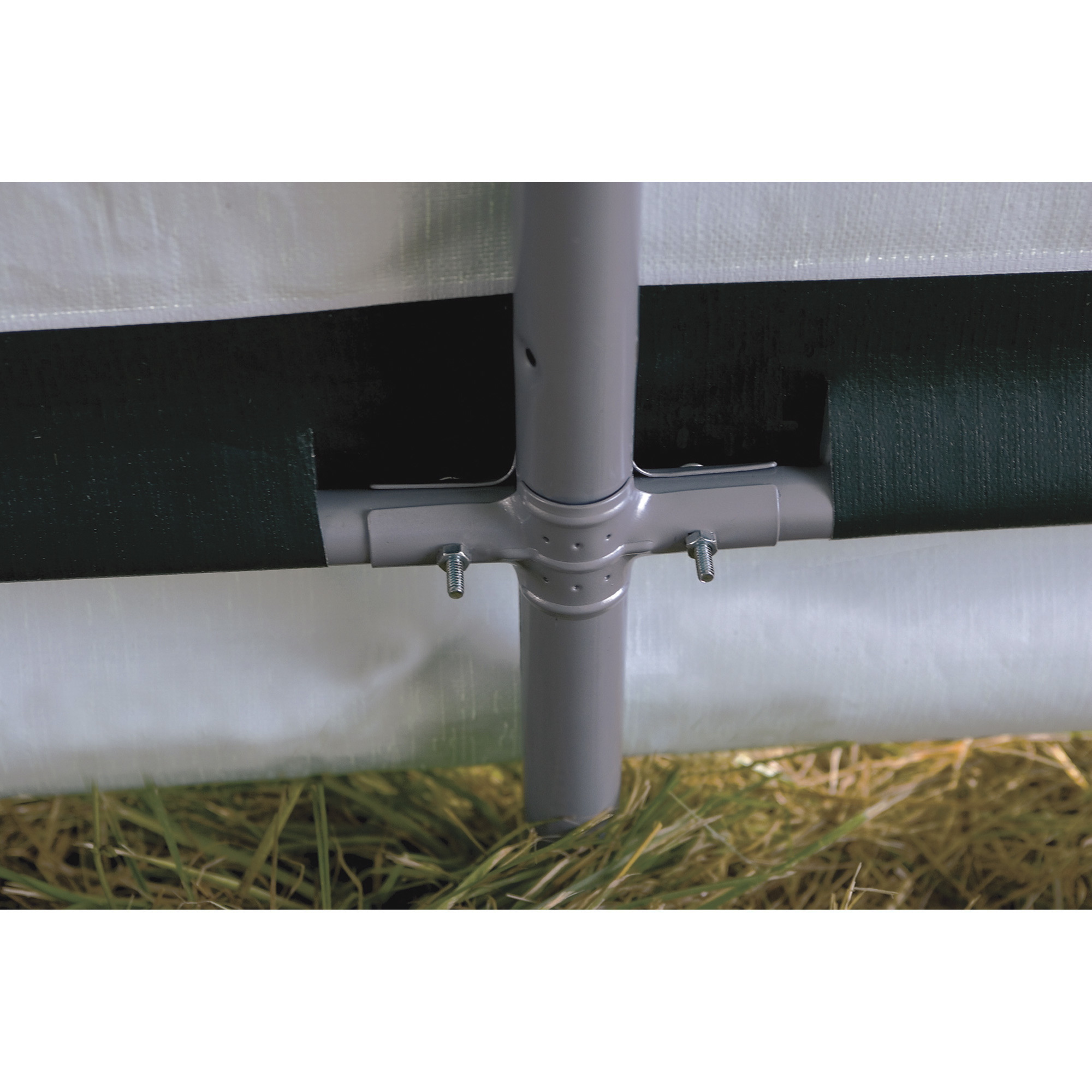

- Patented ShelterLock stabilizers at every rib connection for rock-solid strength and stability

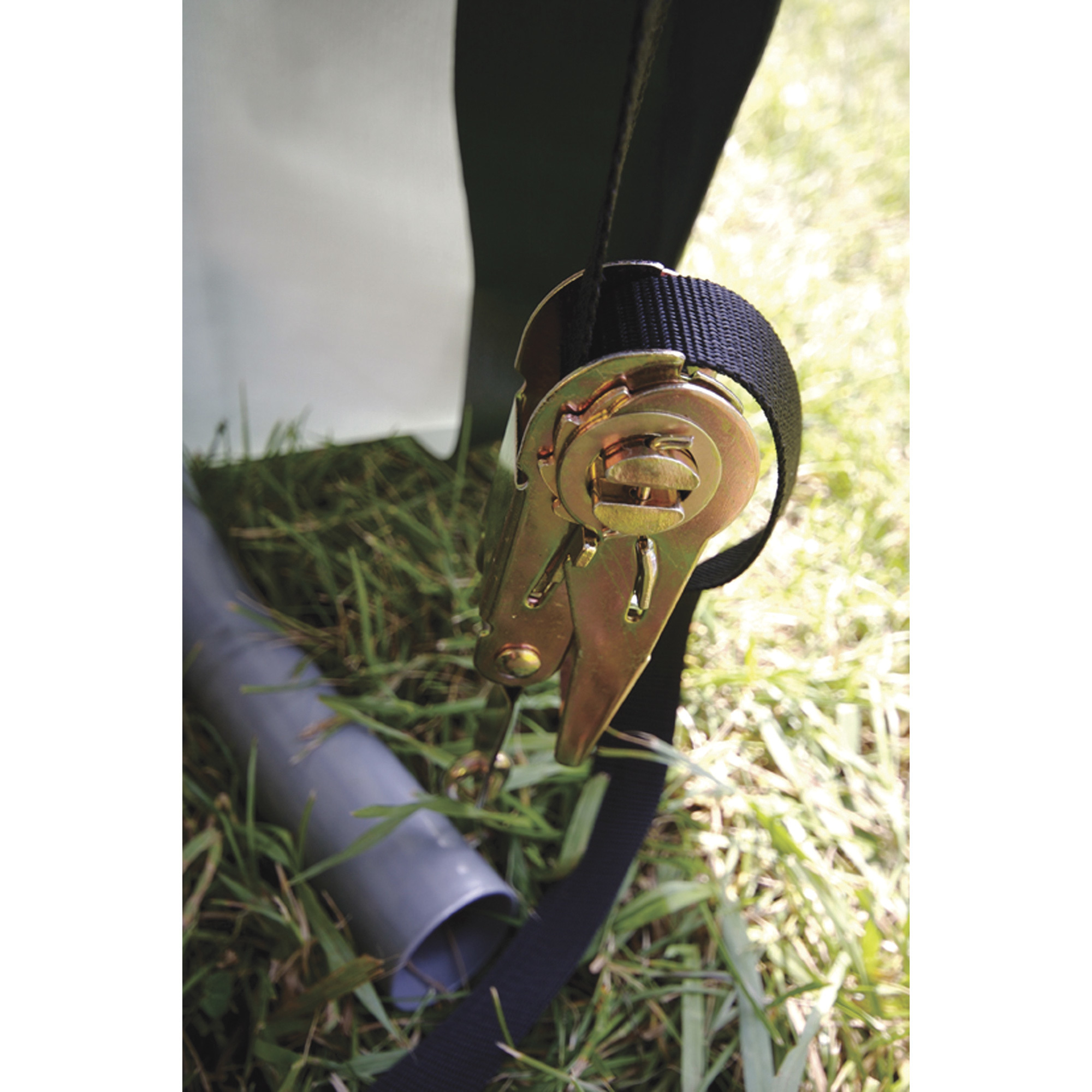

- Ratchet-Tite tension system and Easy-Slide cross rails keep the cover smooth and taut
- Bolt-together hardware at every connection point ensures maximum strength and durability
See full description
What's Included
- (1) Frame kit (1) One-pc. fitted cover (2) Double-zippered door panels (6) 30in. anchors (6) Steel footplates
Downloads
Features + Benefits
-
How does it secure to the ground?
-
Helpful?
-
The shelterlogic original shelters series of portable garages all secure to the ground with the included augers in the garage kit package. You can upgrade to an optional anchoring system. You can also visit the Northern Tool and pick up some concrete lag anchors or some other type anchoring system.
These shelters are very versatile and can be set up on flat dirt, gravel, concrete pad or knee wall of blocks. Many people use them for farm use and portable garage shelters. The manufacturer shelter logic originalshelters.com recommends them for AutoShelters, Cycle Storage, Small tractors, generator shed, lawn tools, and equipment storage. You will really like it if you buy one!
Helpful?
-
The kit includes heavy duty auger-anchors that you screw into the ground. You put these in at the base of each leg and then tie the frame to these anchors. This is a critical step since the garage has a lot of sail area in a big wind.
Helpful?
-
The kit comes with auger stakes to hold it down, I built mine on top of a platform and archored it to the platform.
Helpful?
-
The ShelterLogic Instant Garage is secure to the ground with 30 inch auger anchors. Six anchors come with this garage, and additional are available for purchase through Northern Tool + Equipment.
Helpful?
-
-
How long does this take to assemble this unit? What tools would be required?
-
It took me 3-4 hrs. Only tools required was a socket & ratchet and a screwdriver. Very east to assemble.
Helpful?
-
We had 4 people assembling this shelter. It can be assembled by 2 with a little more effort but opt for 4 - especially if its a bit windy. The 4 of us took 3 hours to assemble the frame and anchor it, then about an hour and a half to put the coverings on the next day. It only took us 2 days because we started late and ran out of daylight. Recommendation - if you have a large electric power drill that you can put a large "L" shaped allen wrench in, that makes putting the anchors in MUCH easier than turning them all the way in by hand. It may not sink them all the way if you live in a place like Maine where there's a large rock every 3 inches but even if it only goes halfway in with the drill you'll save a lot of time and energy.
Helpful?
-
On this ShelterLogic 12-Ft.W Round-Style Instant Garage it takes approximately 2-3 hours to assemble with 2-4 people to assemble. The required tools are safety glasses, rope, tape measure, ratchet, wrench, ladder and rubber mallet.
Helpful?
-
Shelterlogic's 12x20x8 Instant garage takes approximately 2-3 hours to assemble. It is recommended that you have 2-4 people for assembly. The recommended tools are safety glasses, rope, tape measure, ratchet, wrench, ladder and rubber mallet.
Helpful?
-
-
Can someone assemble this? How much would it cost to assemble this unit & time to assemble it as well?
-
We do not provide installers so we are unable to provide a cost of assembly. It is an estimated time of 2-3 hours for assembly with 2-4 people to assemble.
Helpful?
-
Shelterlogic does not provide installers and can not advise how much this would cost. The estimated assembly time is 2-3 hours. Shelterlogic recommends 2-4 people for assembly.
Helpful?
-
-
Best way to anchor shelter on an asphalt surface?
1 answer-
For asphalt surfaces, the ShelterLogic Easy Hook Anchors are recommended. We do offer them in a 4-pack, item 65503, as shown below.
Helpful?
-
-
Does this come with ties to hold the door open?
1 answer-
The door is zippered and designed to stay open without the need to use ties so it does not come with ties for the door.
Helpful?
-
-
is this snow rated -
live in New Hampshire, average snow fall is @ 60-100"/yr
1 answer-
Although the manufacturer does not give this a load rating, it has been known to handle 3 feet of snow and 65 MPH winds. The round design keeps you from having to remove snow like you would on the house style.
Helpful?
-
-
Can I order this with doors on each end, or do you make a models such as this with doors on each end?
I store snowmobiles that have no reverse, and need a drive through.
1 answer-
The ShelterLogic round style garage has a solid back panel and zippered front door only. We do offer a drive though barn style shelter with that option.
Helpful?
-
-
Mil thickness on canvas?
1 answer-
The material thickness for this instant garage is 9 oz per sq ft.
Helpful?
-
-
Do you sell just the cover with front and back panels for 73342 round style
1 answer-
For replacement covers contact ShelterLogic directly.
Helpful?
-
-
Can I get the toggle style anchors, instead of the auger type.?
1 answer-
We are unable to provide the toggle style anchors.
Helpful?
-
