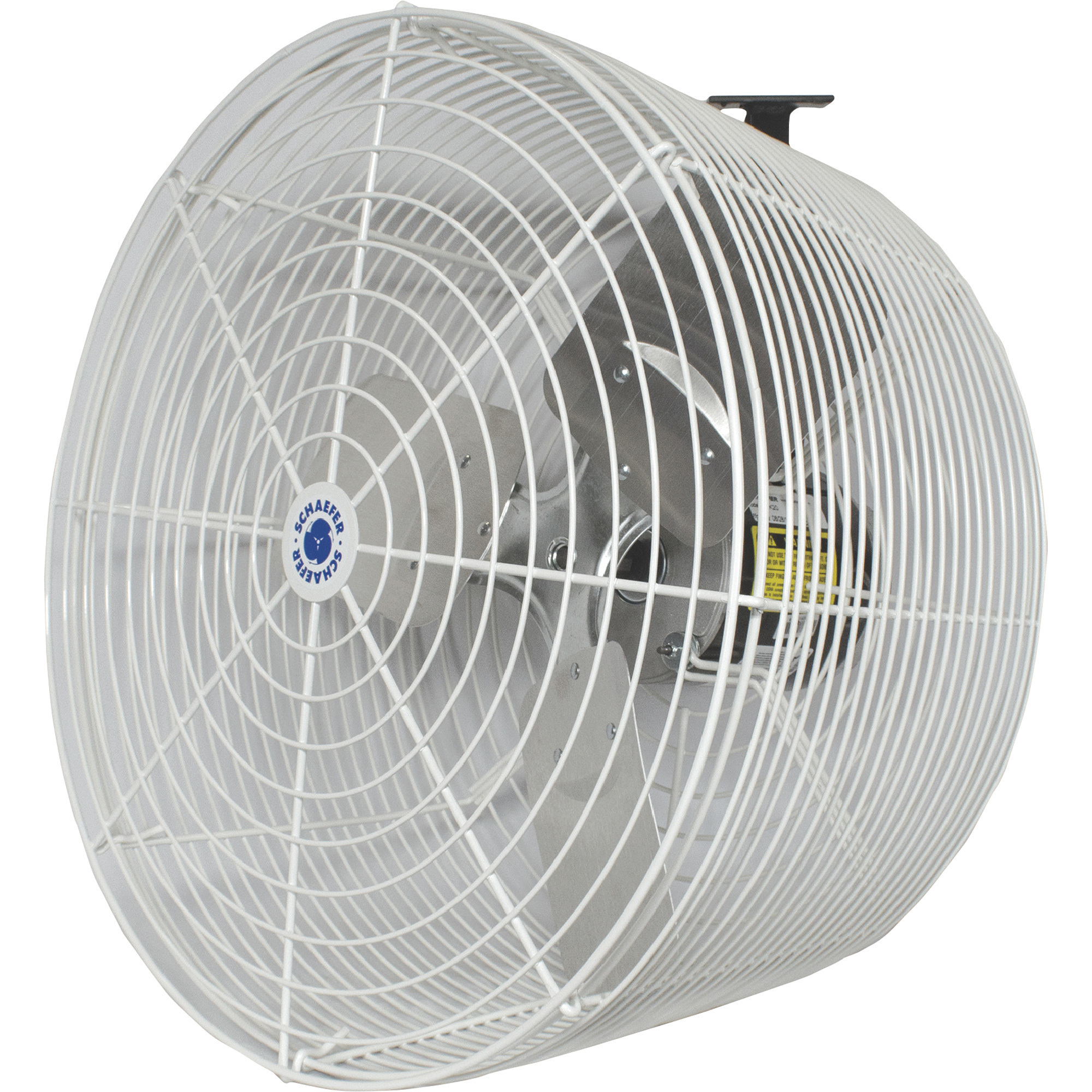

Schaefer Versa-Kool Air Greenhouse Circulation Fan, 20in., 5,473 CFM, 1/3 HP, 115/230 Volt, Model# VK20

Item# 258741
Top Seller
Schaefer Versa-Kool Air Greenhouse Circulation Fan, 20in., 5,473 CFM, 1/3 HP, 115/230 Volt, Model# VK20

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Schaefer Versa-Kool Air Greenhouse Circulation Fan, 20in., 5,473 CFM, 1/3 HP, 115/230 Volt, Model# VK20

Click or Tap image to Zoom

$349.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Deep guard design for unmatched performance, low noise levels and safety without sacrificing airflow
  • Matched high quality motors and blades for maximum efficiency
  • Powder coated steel guards for increased durability and corrosion resistance
  • Powder coated steel mounting bracket and power cord included
  • Wide variety of mounting options available for flexible and easy installation

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

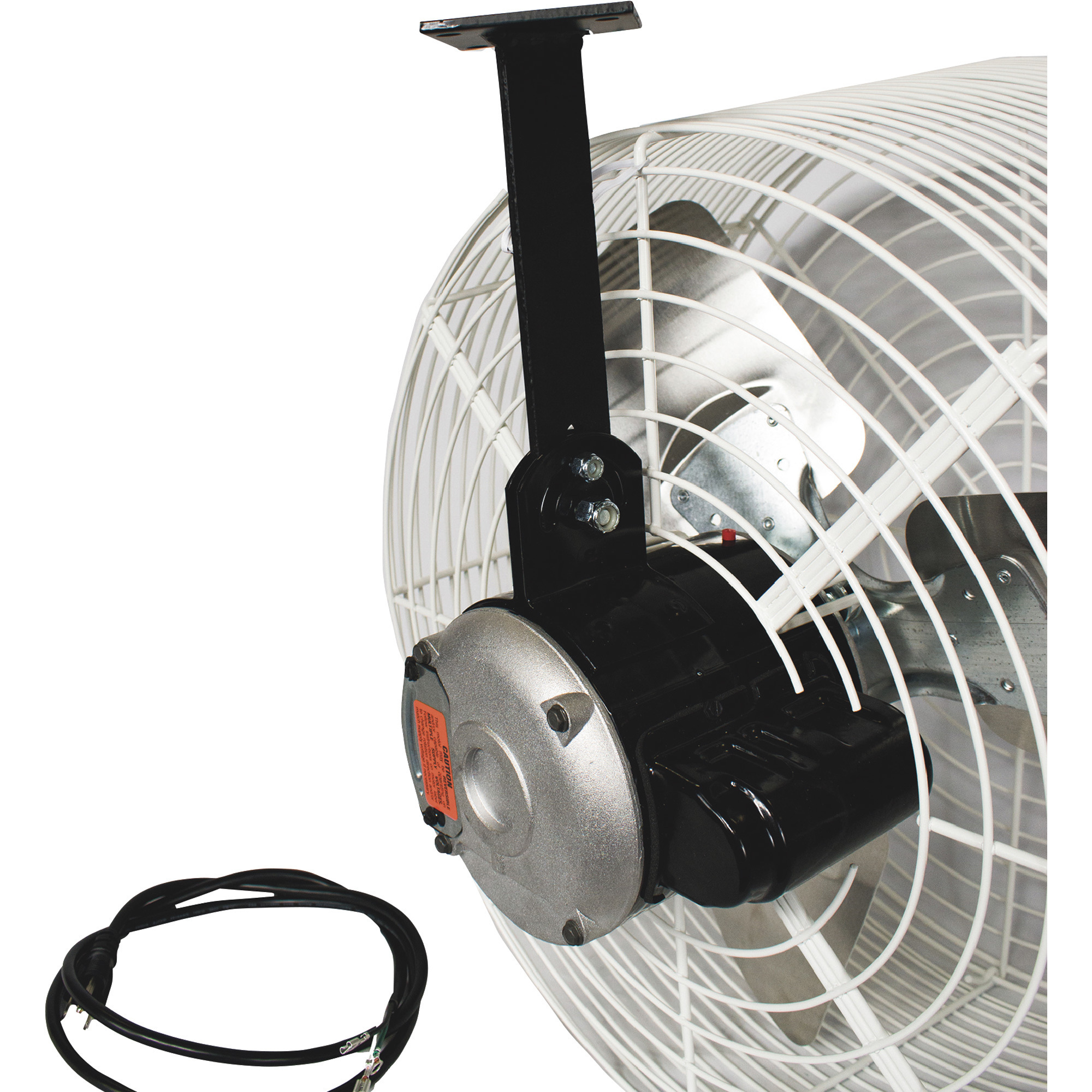

Maintenance-free, direct-drive, totally enclosed heavy-duty motor is thermally protected with pre-lubricated ball bearings. Patented, safe non-restrictive tapered fan guards are durable vinyl-coated zinc over steel. Aluminum fan blade. Low noise levels. Variable speed capable (variable speed control sold separately). Includes power cord.

What's Included

    (1) Fan (1) Mounting bracket

Features + Benefits

  • Deep guard design for unmatched performance, low noise levels and safety without sacrificing airflow
  • Matched high quality motors and blades for maximum efficiency
  • Powder coated steel guards for increased durability and corrosion resistance
  • Powder coated steel mounting bracket and power cord included
  • Wide variety of mounting options available for flexible and easy installation
  • Variable speed controls available
  • Two year warranty
  • Made in the USA

Key Specs

AttributeSpecification

item#

258741

Brand

Schaefer

Manufacturer's Warranty

2 year limited warranty

Ship Weight

37.0 LB

Drive Type

Direct
AttributeSpecification

Fan Diameter

20 in

Air Delivery

5,470 cfm

Volts

115/230

Outdoor Rated

No

Dimensions L x W x H (in.)

15 x 14 x 20 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Does the fan come with a remote control

    1 answer

    1. A remote control is not available for this fan.

      Helpful?

  2. What types of speed controllers are compatible with the VK-20?

    1 answer

    1. Our item #81040 variable speed controller can be used with this fan if wiring it for 120 volt.

      Helpful?

  3. Are these fans available in 480V

    1 answer

    1. This fan it not available in 480 volt.

      Helpful?

  4. What's the amperage at each voltage?

    1 answer

    1. The fan would have an amperage of 3.8 amps on 115 volts and 1.9 amps on 230 volts.

      Helpful?

  5. What is the waterproof / ip rating of this fan?

    1 answer

    1. An IP rating has not been specified for this product. It would be similar to an IP54 rating for a TEAO at minimum dependent on the install method according to the manufacturer. This unit has a powder coated guard which offers protection from water, an aluminum blade which doesn’t rust and a TEAO motor which would resist water. The unit is not to be used in direct rain environments.

      Helpful?

  6. Variable Speeds and Reversed

    Can the fan be run at variables speeds and at times reversed for air pull vs push even if the efficiency drops due to fan convexity. Essentially with the appropriate switch, can the motor be slowed and reversed?

    1 answer

    1. The fan can not be reversed. It is variable speed capable. It would require a variable speed controller.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
