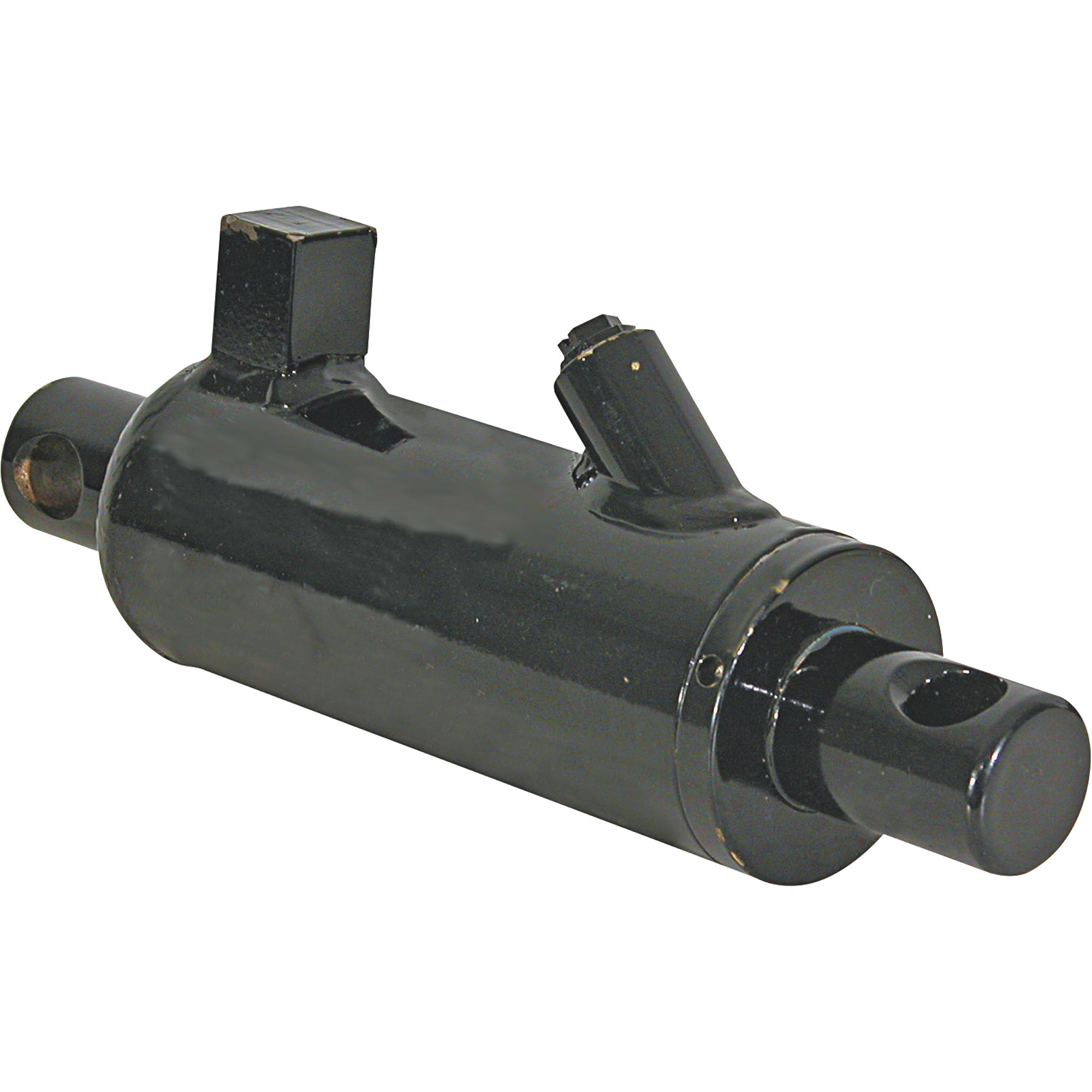

Buyers SAM, SAM Lift and Angle Cylinders to fit Sno-Way Snow Plows, Bore Diameter 1.5 in, Stroke 4 in, Rod Diameter 1.5 in, Model# 1303550
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- OEM part# 96100085

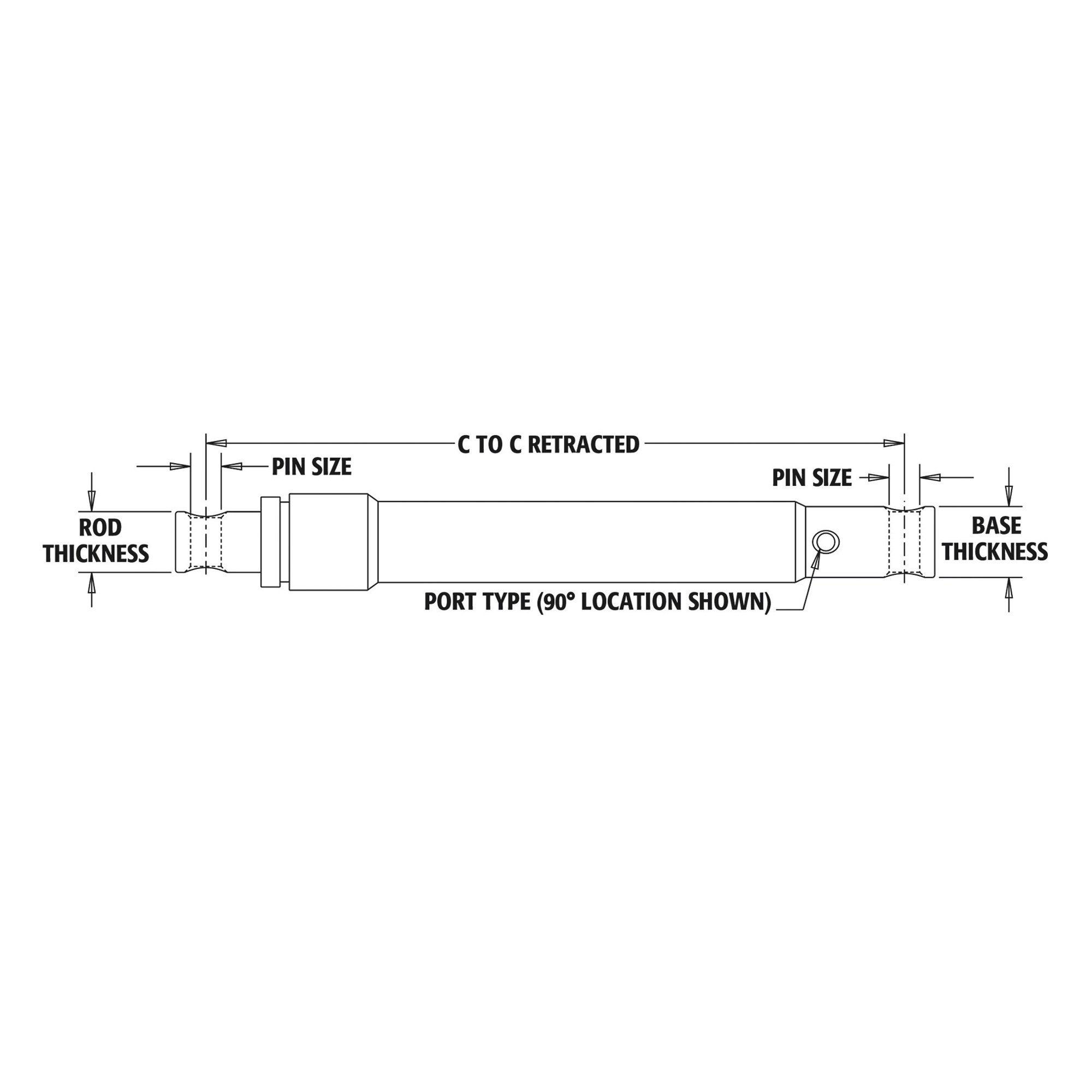

- Center to Center retracted distance: 10 1/4in.
- Center to Center extended distance: 14 1/4in.
- Rod diameter thickness: 1 1/2in.
- Base diameter thickness: 1 1/2in.
See full description
See All Snowplow Hydraulic Cylinders
See All Buyers SAM Snowplow Hydraulic Cylinders
Currently Viewing This Product
Specifications
1.5 in
2 in
3 in
3 in
4 in
10 in
10 in
10 in
1.5 in
1.5 in
1.5 in
1.5 in
Sno-way Plow
-
-
-
14.25 in
27.31 in
30 in
28 in
10.25 in
17.31 in
20 in
18 in
0
2,500
0
0
0.75 in
0 in
0 in
0 in
Single Acting
Double Acting
Double Acting
Single Acting
0.75 in
1 in
1.016 in
1 in
0.75 in
0 in
0 in
0 in
-
15.0000 lb
26.5000 lb
46.0000 lb
-
20.5 x 4.05 x 3.0 in
23.25 x 4.95 x 4.5 in
20.85 x 5.25 x 5.05 in
