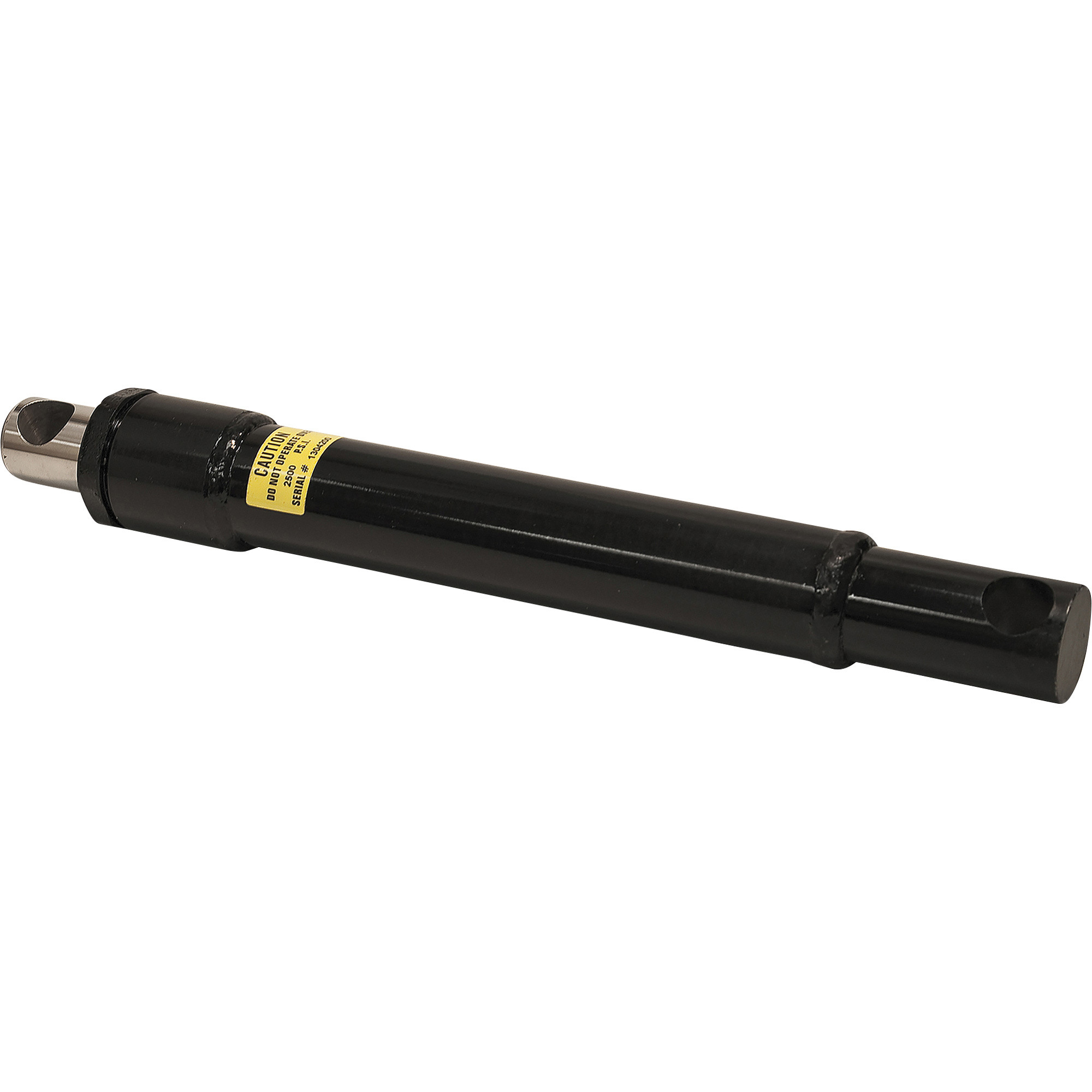

Buyers SAM, SAM Angle and Lift Cylinders to fit Western Snow Plows, Bore Diameter 1.5 in, Stroke 10 in, Rod Diameter 1.5 in, Model# 1304202

Item# 571663
Buyers SAM, SAM Angle and Lift Cylinders to fit Western Snow Plows, Bore Diameter 1.5 in, Stroke 10 in, Rod Diameter 1.5 in, Model# 1304202

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Buyers SAM, SAM Angle and Lift Cylinders to fit Western Snow Plows, Bore Diameter 1.5 in, Stroke 10 in, Rod Diameter 1.5 in, Model# 1304202

Click or Tap image to Zoom

$119.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Replaces Western Part# 56614

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Buyers SAM Angle and Lift Cylinders are designed to fit Western Snow Plows, offering a reliable and durable replacement for OEM parts. Featuring a bore diameter of 1.5 inches and a stroke length of 10 inches, these hydraulic cylinders are engineered for optimal performance in demanding snow plow applications. The rod diameter also measures 1.5 inches, ensuring robust construction and efficient operation. Built to withstand harsh conditions, these cylinders provide the necessary power and precision for effective snow plow angle and lift adjustments. Whether used for maintenance or upgrades, the Buyers SAM Angle and Lift Cylinders deliver consistent, high-quality performance, making them an essential component for maintaining the functionality and efficiency of Western Snow Plows.

What's Included

    (1) Hydraulic cylinder

Features + Benefits

  • Replaces Western Part# 56614

Key Specs

AttributeSpecification

item#

571663

Brand

Buyers SAM

Manufacturer's Warranty

1 year limited warranty

Ship Weight

13.2 LB

Bore Diameter

1.5 in

Stroke

10 in

Rod Diameter

1.5 in

Compatible With

Western Plow
AttributeSpecification

Extended Length

27 in

Retracted Length

17 in

Max. PSI

0

Closed Pin Center

0 in

Cylinder Action

Single Acting

Pin Diameter

0 in

Pin Length

75 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. What is the pin diameter

    1 answer

    1. The pin diameter on this cylinder is 3/4 inch.

      Helpful?

  2. What are the Closed Pin Center and Open Length measurements in inches?

    1 answer

    1. On this SAM Single Acting Hydraulic Cylinder the closed pin center is 17" and open pin is 27".

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
