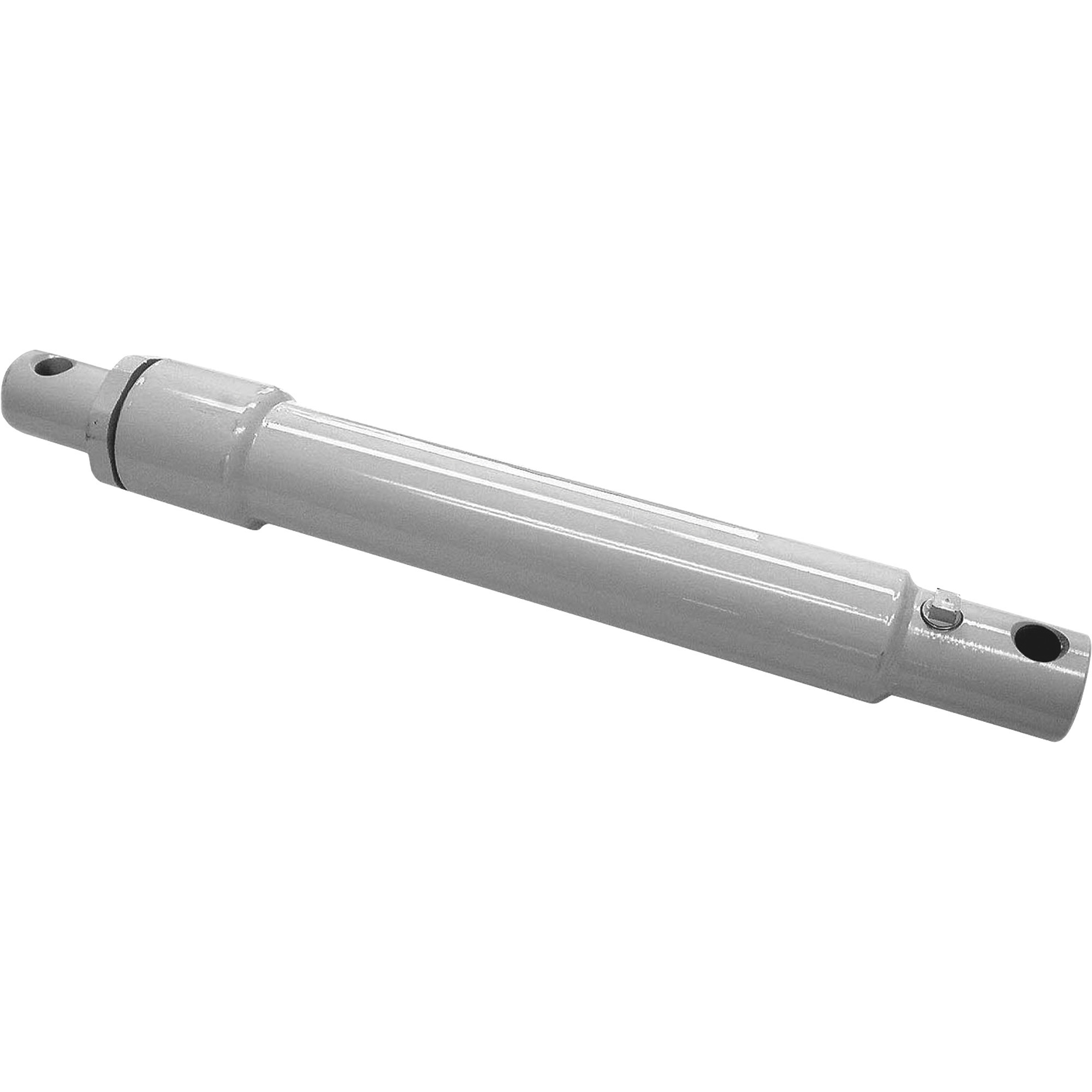

Buyers SAM, SAM Angle and Lift Cylinders to fit Western Snow Plows, Bore Diameter 2 in, Stroke 11 in, Rod Diameter 1.5 in, Model# 1304204

Item# 571665
Buyers SAM, SAM Angle and Lift Cylinders to fit Western Snow Plows, Bore Diameter 2 in, Stroke 11 in, Rod Diameter 1.5 in, Model# 1304204

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Buyers SAM, SAM Angle and Lift Cylinders to fit Western Snow Plows, Bore Diameter 2 in, Stroke 11 in, Rod Diameter 1.5 in, Model# 1304204

Click or Tap image to Zoom

$279.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • OEM part# 56750

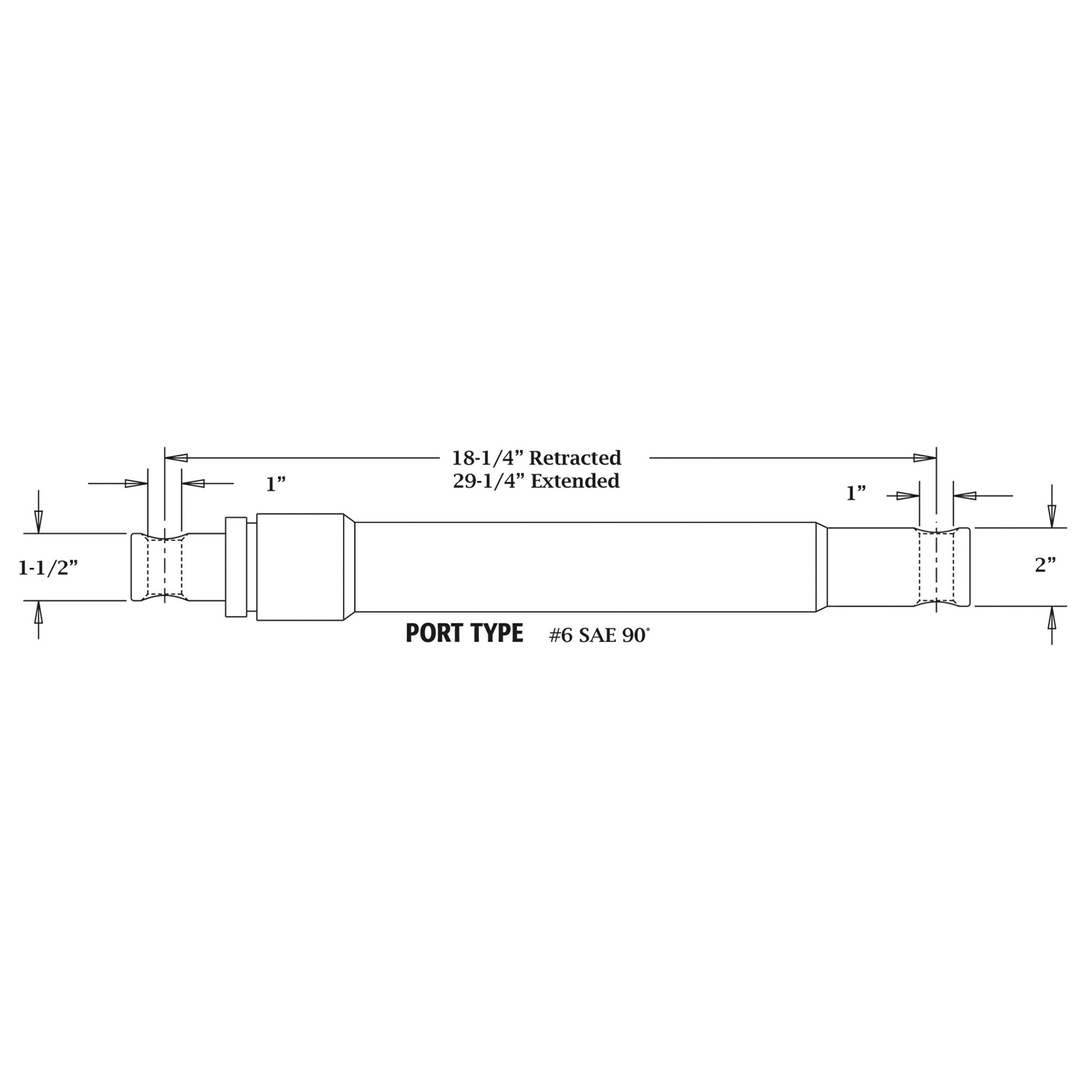

  • Center to Center retracted distance: 18 1/4in.
  • Center to Center extended distance: 29 1/4in.
  • Rod diameter thickness: 1 1/2in.
  • Base diameter thickness: 2in.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Buyers SAM Angle and Lift Cylinders are designed to fit Western Snow Plows, providing reliable performance and durability for demanding snow removal tasks. Featuring a double acting hydraulic cylinder with a 2-inch bore and an 11-inch stroke, this cylinder ensures efficient operation and precise control. The robust construction includes a 1.5-inch rod diameter, offering enhanced strength and stability during use. Engineered to replace Western part# 56750, the SAM Angle and Lift Cylinders are built to withstand harsh conditions and deliver consistent performance, making them an essential component for maintaining the functionality and efficiency of your snow plow equipment.

What's Included

    (1) Cylinder

Features + Benefits

  • OEM part# 56750
  • Center to Center retracted distance: 18 1/4in.
  • Center to Center extended distance: 29 1/4in.
  • Rod diameter thickness: 1 1/2in.
  • Base diameter thickness: 2in.
  • Pin size: 1in.
  • Port type: #6 SAE
  • Port location: 90 degrees

Key Specs

AttributeSpecification

item#

571665

Brand

Buyers SAM

Manufacturer's Warranty

1 year limited warranty

Ship Weight

21.9 LB

Bore Diameter

2 in

Stroke

11 in

Rod Diameter

1.5 in

Compatible With

Western Plow
AttributeSpecification

Extended Length

29.25 in

Retracted Length

18.25 in

Max. PSI

0

Closed Pin Center

0 in

Cylinder Action

Double Acting

Pin Diameter

0 in

Pin Length

1 in

Reviews

Questions & Answers

Questions

  1. specs

    What is retracted/extended length? Pin hole sizes? Max PSI rating?
    Port size and type? (ie 1/4" NPT or -8 SAE?)
    Thank you!

    1 answer

    1. The retracted length is 18.25". The extended length is 29.25". The pin hole size is 1". The max PSI is 2000. The port size is a #6 SAE.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
