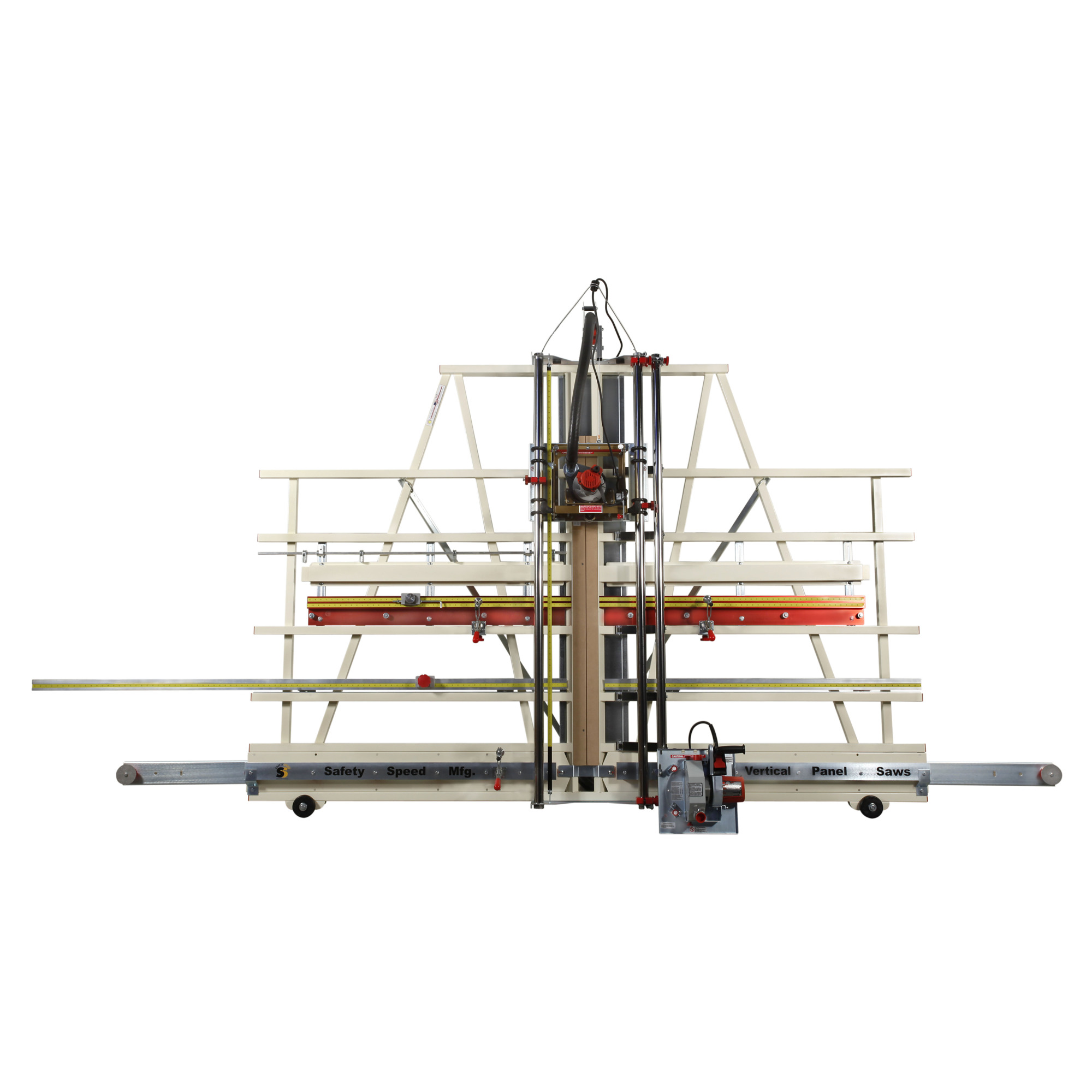

Safety Speed Manufacturing, Accessorized saw and router machine, Blade Size 8 in, Amps 13, Max. Crosscut 64 in, Model# SR5A

Item# 5333496
Safety Speed Manufacturing, Accessorized saw and router machine, Blade Size 8 in, Amps 13, Max. Crosscut 64 in, Model# SR5A

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Safety Speed Manufacturing, Accessorized saw and router machine, Blade Size 8 in, Amps 13, Max. Crosscut 64 in, Model# SR5A

Click or Tap image to Zoom

$9249.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 1/64" cut accuracy
  • 62" maximum routing height
  • 62" maximum routing height
  • 62" maximum cutting height
  • universal tooling that you can find at Northern Tool

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The SR5A is a fully accessorized machine including the following components that are considered accessories on our other offerings: MID-WAY FENCE with stop. 4 material clamps. 2 blind dado stops. Wheels Fixed Stand Pair of 22in. extensions Left and right quick stop gauges. MID-WAY FENCE flip stop. Dust kit Hold down bar Specialty saw blade and router bit for v-grooving Routing capabilities include making plow and cross dados as well as rabbet’s. Routing features include a floating router head allowing the router to plunge into, and raise out of the panel at any time. Additionally routing accessories include four clamps, and blind dado stops. The unique design of this unit allows for accurate cutting and V-Grooving of ACM (Aluminum Composite Material) panels. Features a unique floating router with a nylon guide guaranteeing a consistent depth of cut. The saw can also be switched over to a router in less than one minute. It also features a dust system in place to collect debris while cutting and routing.The SR5A panel saw/router combo allows operators to saw and rout on one vertical steel frame. Standard Equipment  3 1/4 Hp, 15 amp industrial duty saw motor. 1 3/4 Hp, 11 amp industrial duty router motor. 10ft. Welded steel frame. Chrome plated 1 3/4in. guide tubes. 8 Nylatron roller bearing systems. Adjustable vertical and horizontal rulers. Quick change from vertical and horizontal cutting. Thin material pressure guard. Injection molded plastic material rollers. Counterweight system. Adjustable floating router head. MID-WAY FENCE with stop. 4 material clamps. 2 blind dado stops. Wheels. Fixed Stand. Extensions. Left and right quick stop gauges. MID-WAY FENCE flip stop. Dust hood and hose kit. Hold down bar. Specialty saw blade and router bit for v-grooving 1 year parts warranty.

What's Included

    (1) SR5A Panel Saw & Router Combination Machine

Features + Benefits

  • 1/64" cut accuracy
  • 62" maximum routing height
  • 62" maximum routing height
  • 62" maximum cutting height
  • universal tooling that you can find at Northern Tool
  • 30sqft of floor space
  • Variable speed router
  • Skil Worm Driven Saw

Key Specs

AttributeSpecification

item#

5333496

Brand

Safety Speed Manufacturing

Manufacturer's Warranty

1 year limited warranty

Ship Weight

724.0 LB

Blade Size

8 in

Amps

13

Max. Crosscut

64 in

Max. RPM

5,800

Horsepower

3

Product Type

Panel Saws
AttributeSpecification

Blade Change Type

Keyless

Motor Voltage

110/220

Material

Steel

Color

Beige

Power Source

Corded

Corded

Yes

Power Cord Length

20 ft

Dimensions L x W x H (in.)

120.0 x 36.0 x 90.0 in

Product Weight

687.0000 lb

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
