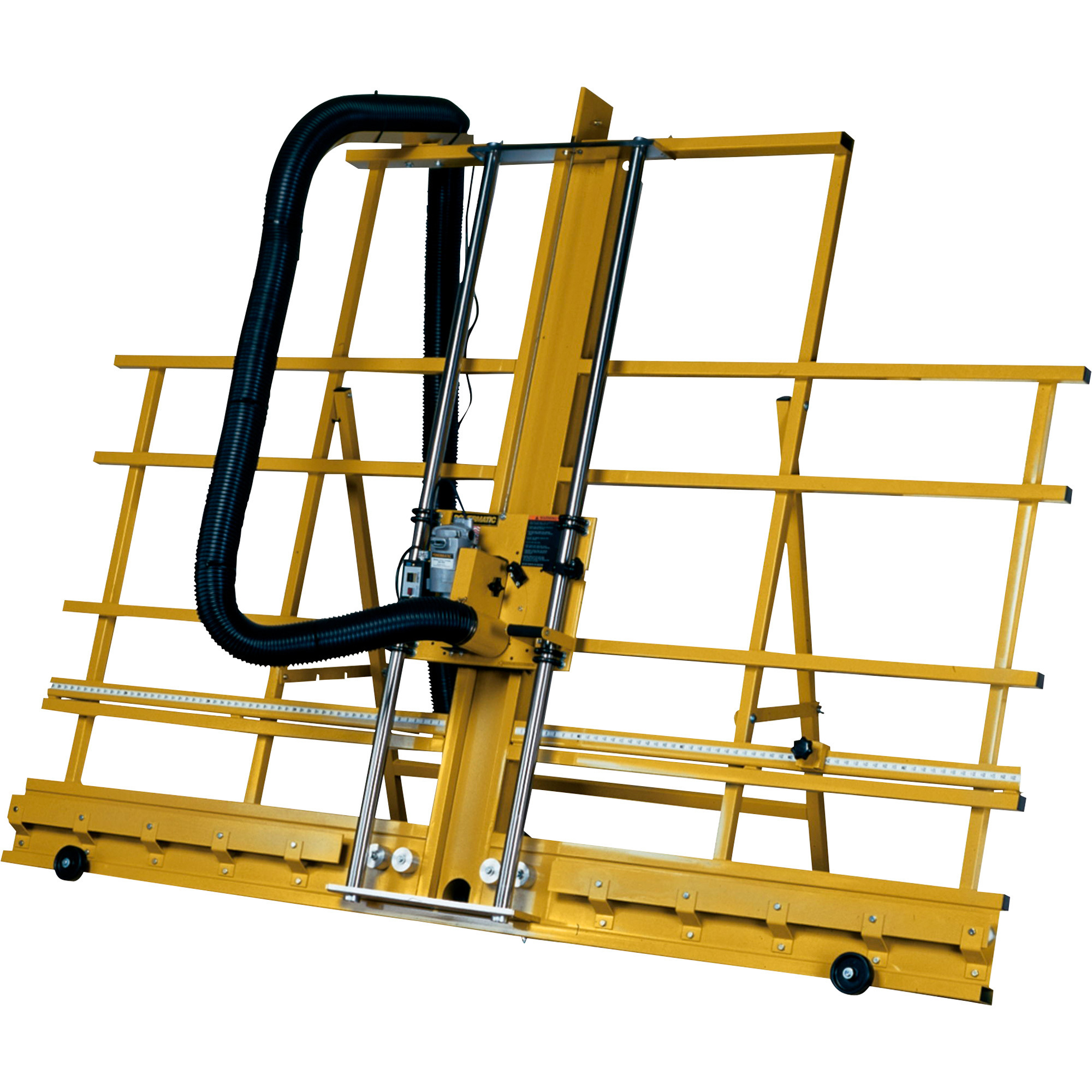

Powermatic 511 Vertical Panel Saw, 3 HP, 1 PH, 115V

Item# 84634
Powermatic 511 Vertical Panel Saw, 3 HP, 1 PH, 115V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powermatic 511 Vertical Panel Saw, 3 HP, 1 PH, 115V

Click or Tap image to Zoom

$9026.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

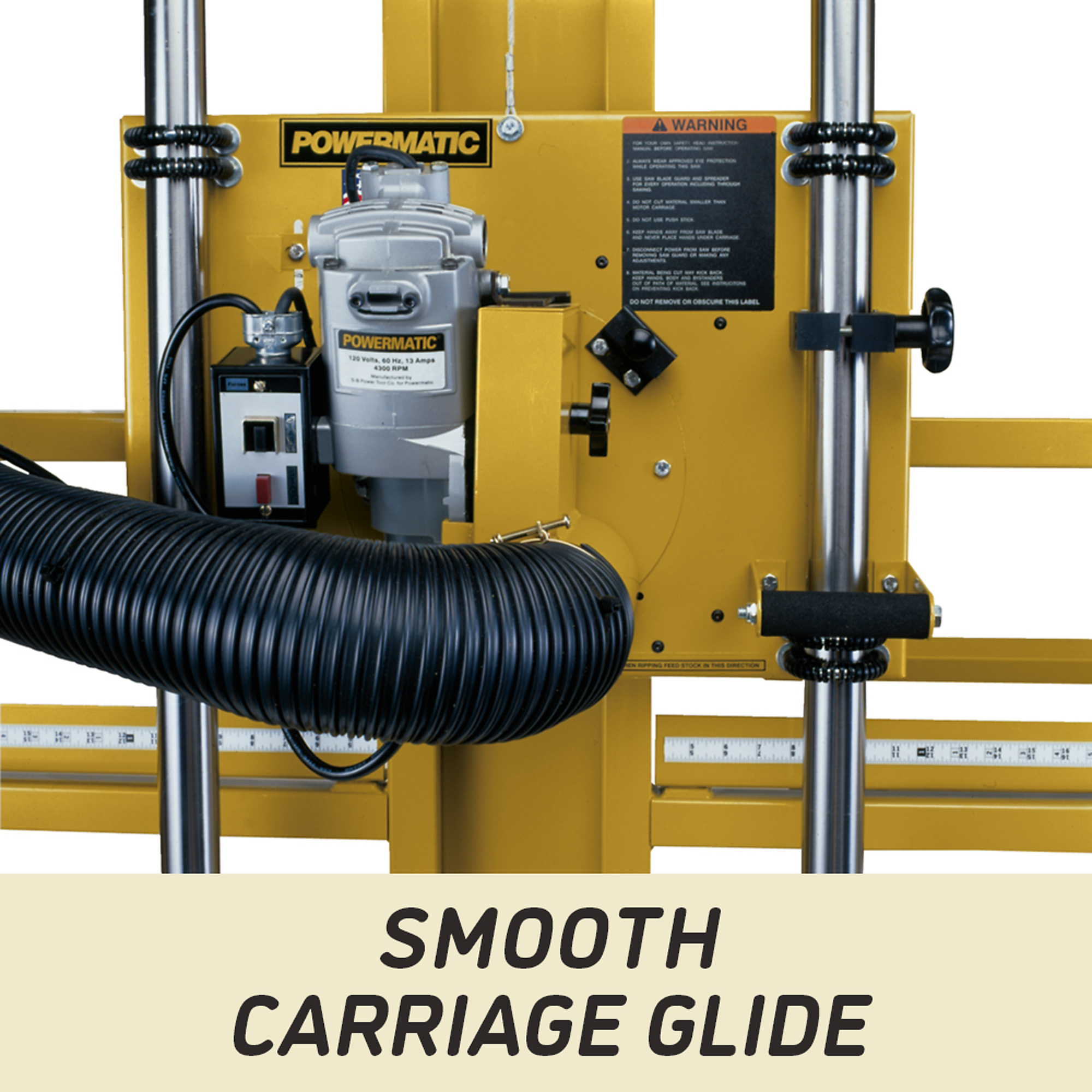

  • Stainless steel guide tubes with 8 guide roller assemblies provide smooth carriage glide

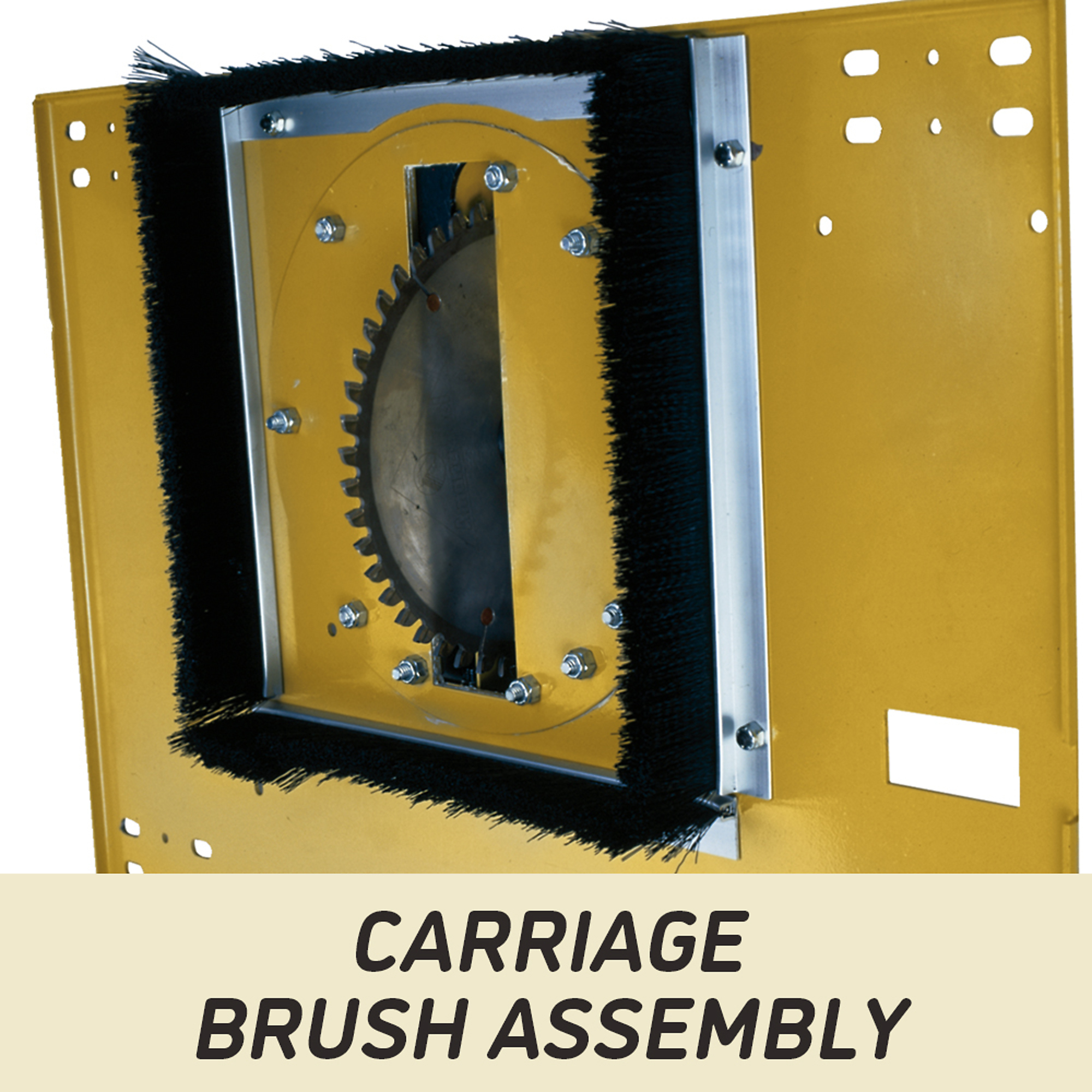

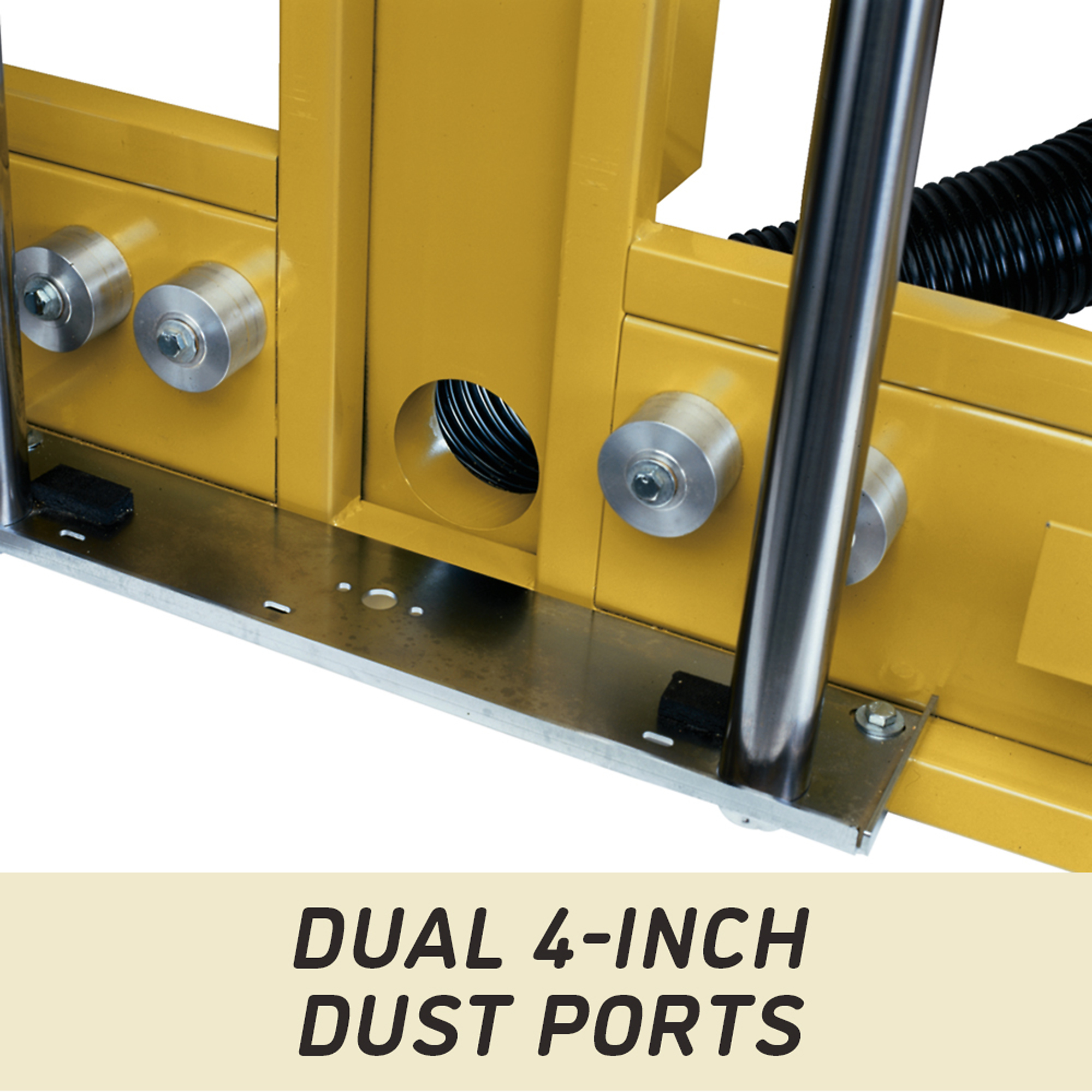

  • Dual 4in. dust ports with nylon brush surrounding blade for front and rear dust exhaust
  • True counterweight system keeps the carriage where you position it while loading stock
  • Solid aluminum rollers with outside support brackets for square cuts
  • Casters for easy mobility

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Powermatic 511 Vertical Panel Saw has plenty of power for the most demanding requirements of sheet good cutting. The carriage assembly is designed with 8 unique guide roller assemblies, allowing it to glide effortlessly along the stainless steel rails. This saw features a powerful 3 HP worm-drive motor which rotates in the carriage, adding the versatility to perform rip cuts. The solid aluminum rollers with outside support bracket assure smooth feeding of stock and perfect 90° cuts every time. This saw will handle panels up to 5ft. tall. It also includes horizontal and vertical scales and casters for mobility. The true counterweight system keeps the saw carriage in the desired position when loading or unloading panels. With the innovative dual dust collection ports and nylon brush surrounding the blade, this saw provides superior dust collection from the front and rear side of the panel. Item too large for lift gate. Forklift required for on site unloading.

What's Included

    (1) Powermatic 511 Vertical Panel Saw, 3 HP, 1 PH, 115V

Downloads

Product Manual

Features + Benefits

  • Stainless steel guide tubes with 8 guide roller assemblies provide smooth carriage glide
  • Dual 4in. dust ports with nylon brush surrounding blade for front and rear dust exhaust
  • True counterweight system keeps the carriage where you position it while loading stock
  • Solid aluminum rollers with outside support brackets for square cuts
  • Casters for easy mobility
  • 3 HP worm drive saw motor rotates in carriage to perform rip cuts

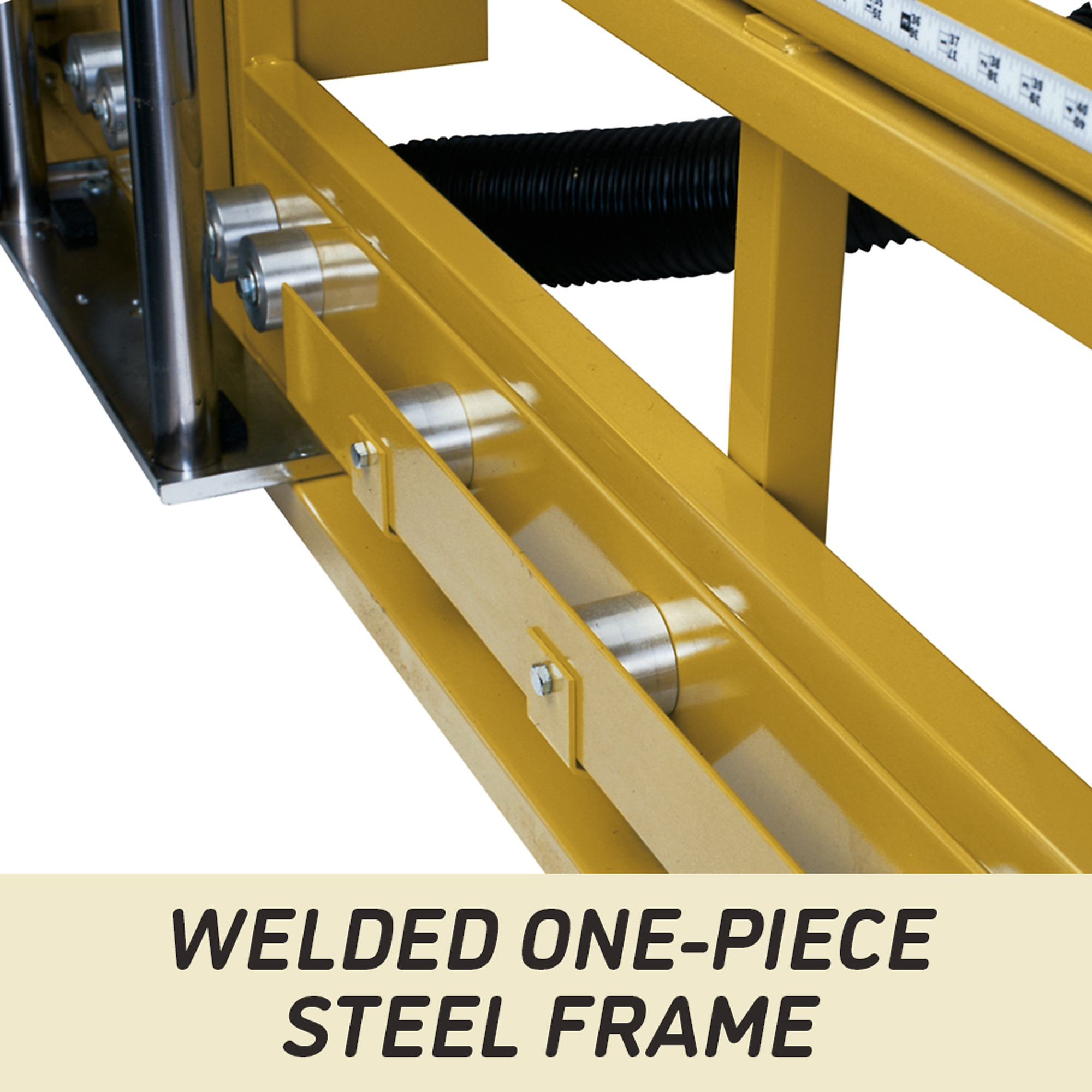

  • Heavy-duty welded one-piece steel frame prevents vibration, ensures solid support

Key Specs

AttributeSpecification

item#

84634

Brand

Powermatic

Manufacturer's Warranty

5 year limited warranty

Ship Weight

600.0 LB

Blade Size

10 in

Amps

13

Max. Crosscut

62 in
AttributeSpecification

Max. RPM

4,200

Horsepower

3

Product Type

Panel Saws

Blade Change Type

Keyless

Motor Voltage

115

Dimensions L x W x H (in.)

124.5 x 39.5 x 86.0 in

Product Weight

500.0000 lb
