This hydraulic cylinder is single acting. You would use one on each side of the snowplow to have power angle.

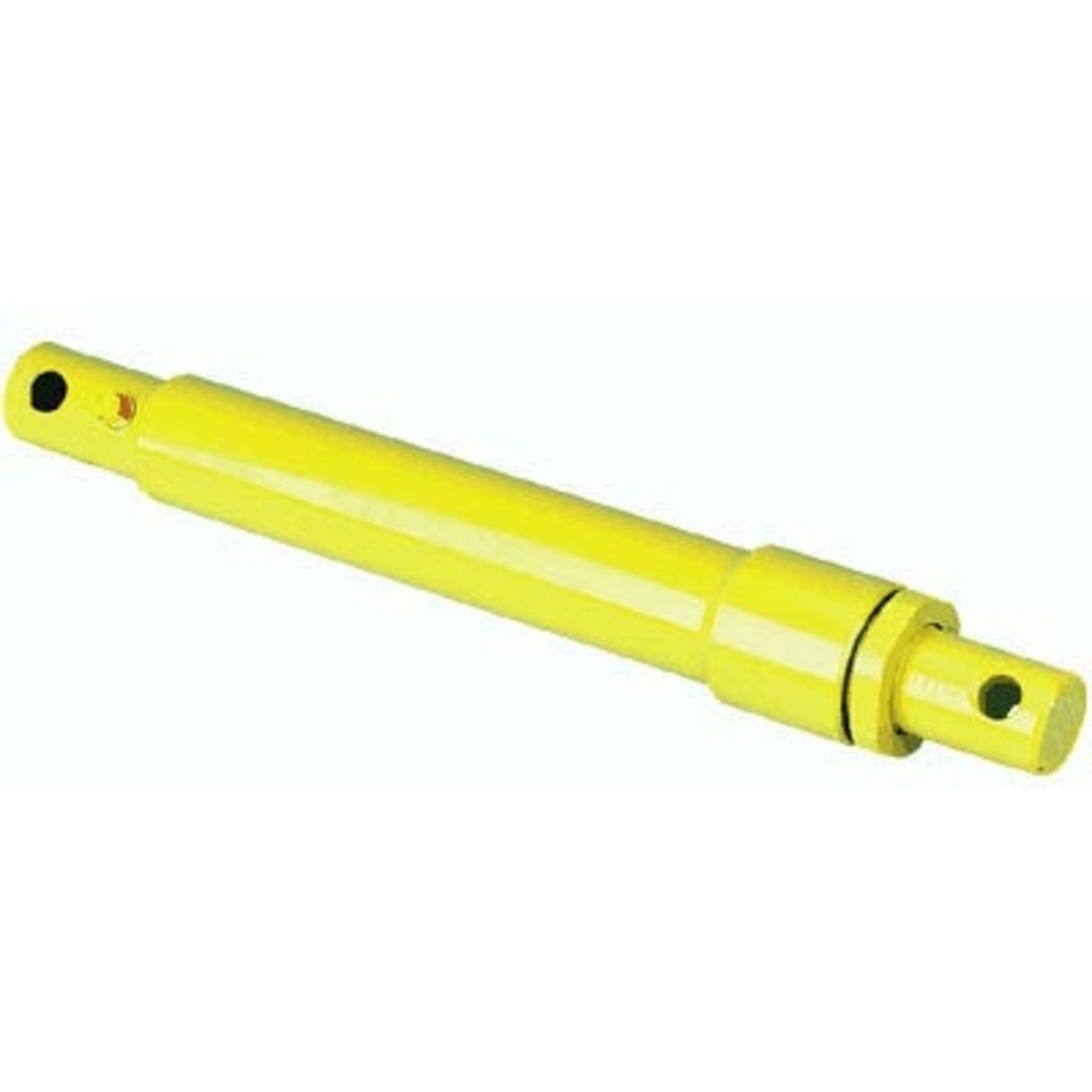

Buyers SAM, SAM Angle and Lift Cylinders to fit Western Snow Plows, Bore Diameter 1.5 in, Stroke 10 in, Rod Diameter 1.5 in, Model# 1304205
Top Seller
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$149.99
- OEM part# 56102
- Rod diameter thickness: 1 1/2in.
- Base diameter thickness: 1 3/4in.
- Port type: 1/4in. NPT
- Port location: 90 degrees
See full description
See All Snowplow Hydraulic Cylinders
See All Buyers SAM Snowplow Hydraulic Cylinders
Currently Viewing This Product
Specifications
Specifications
Buyers SAM, SAM Angle and Lift Cylinders to fit Western Snow Plows, Bore Diameter 1.5 in, Stroke 10 in, Rod Diameter 1.5 in, Model# 1304205
Buyers SAM, SAM Angle and Lift Cylinders to fit Western Snow Plows, Bore Diameter 2 in, Stroke 16 in, Rod Diameter 2.25 in, Model# 1304220
Buyers Products, SAM 1-1/2 x 6in. Power Lift Cylinder-Replaces Meyer #05984 Bore Diameter 1.5 in, Stroke 6 in, Rod Diameter 1.13 in, Model# 1304020
Buyers Products, SAM 1-1/2 x 6in. Lift Cylinder-Replaces Western #25200 Bore Diameter 1.5 in, Stroke 6 in, Rod Diameter 1.5 in, Model# 1304210
Bore Diameter
Same
1.5 in
2 in
1.5 in
1.5 in
Stroke
Same
10 in
16 in
6 in
6 in
Rod Diameter
Same
1.5 in
2.25 in
1.13 in
1.5 in
Compatible With
Same
Western Plow
Western Plow
Meyer Plow
Western Plow
Extended Length
Same
27.25 in
39.93 in
18.37 in
18.93 in
Retracted Length
Same
17.25 in
23.25 in
12.38 in
13 in
Max. PSI
Same
0
0
0
0
Closed Pin Center
Same
17.25 in
223.93 in
12.37 in
12.93 in
Cylinder Action
Same
Single Acting
Single Acting
Single Acting
Single Acting
Pin Diameter
Same
0.75 in
1 in
0.62 in
0.75 in
Pin Length
Same
0 in
1 in
0 in
0.75 in
