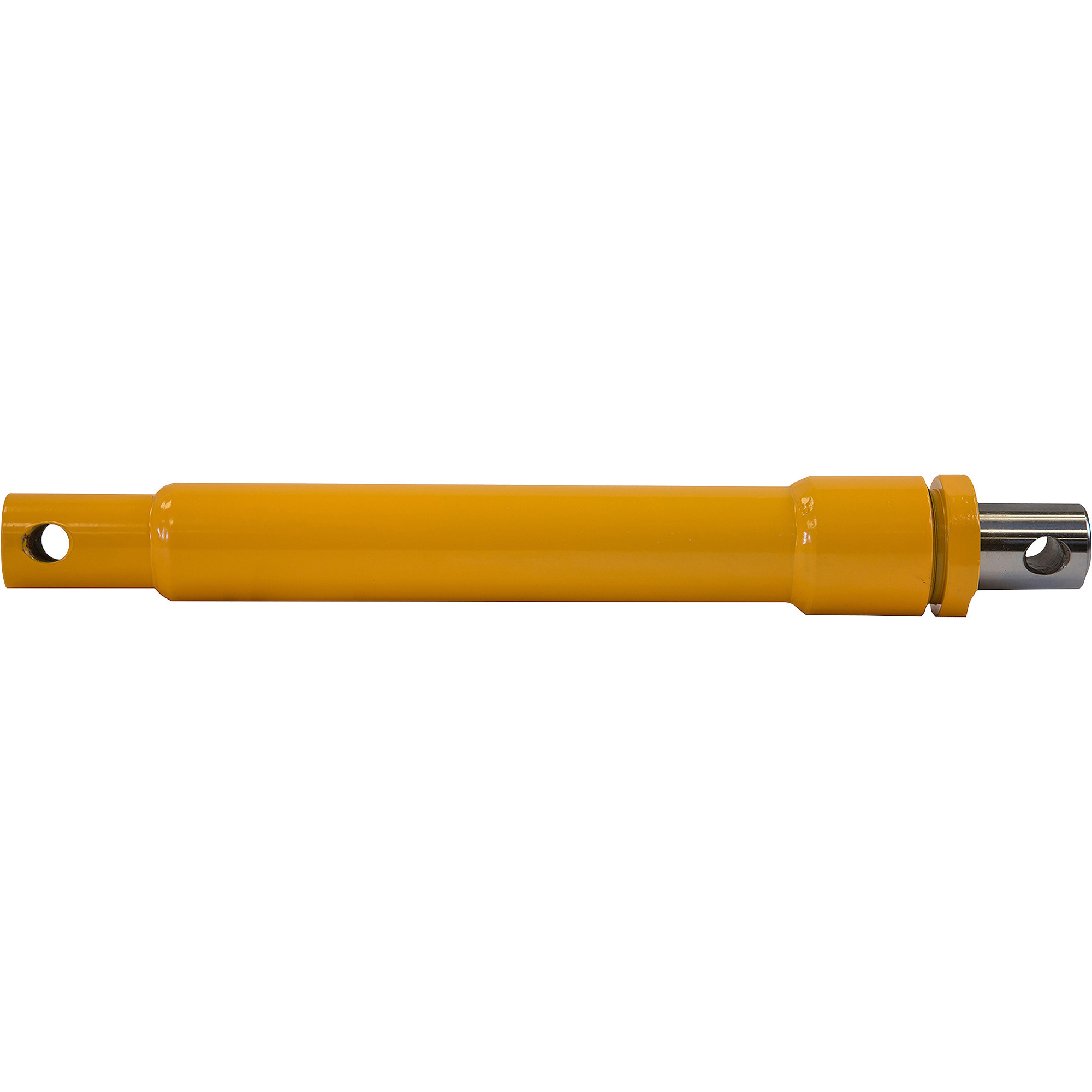

Buyers SAM, SAM Lift and Angle Cylinders fits Meyer/Diamond Snow Plows, Bore Diameter 1.5 in, Stroke 12 in, Rod Diameter 1.5 in, Model# 1304010

Item# 905316
Buyers SAM, SAM Lift and Angle Cylinders fits Meyer/Diamond Snow Plows, Bore Diameter 1.5 in, Stroke 12 in, Rod Diameter 1.5 in, Model# 1304010

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Buyers SAM, SAM Lift and Angle Cylinders fits Meyer/Diamond Snow Plows, Bore Diameter 1.5 in, Stroke 12 in, Rod Diameter 1.5 in, Model# 1304010

Click or Tap image to Zoom

$119.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • OEM part# 05437

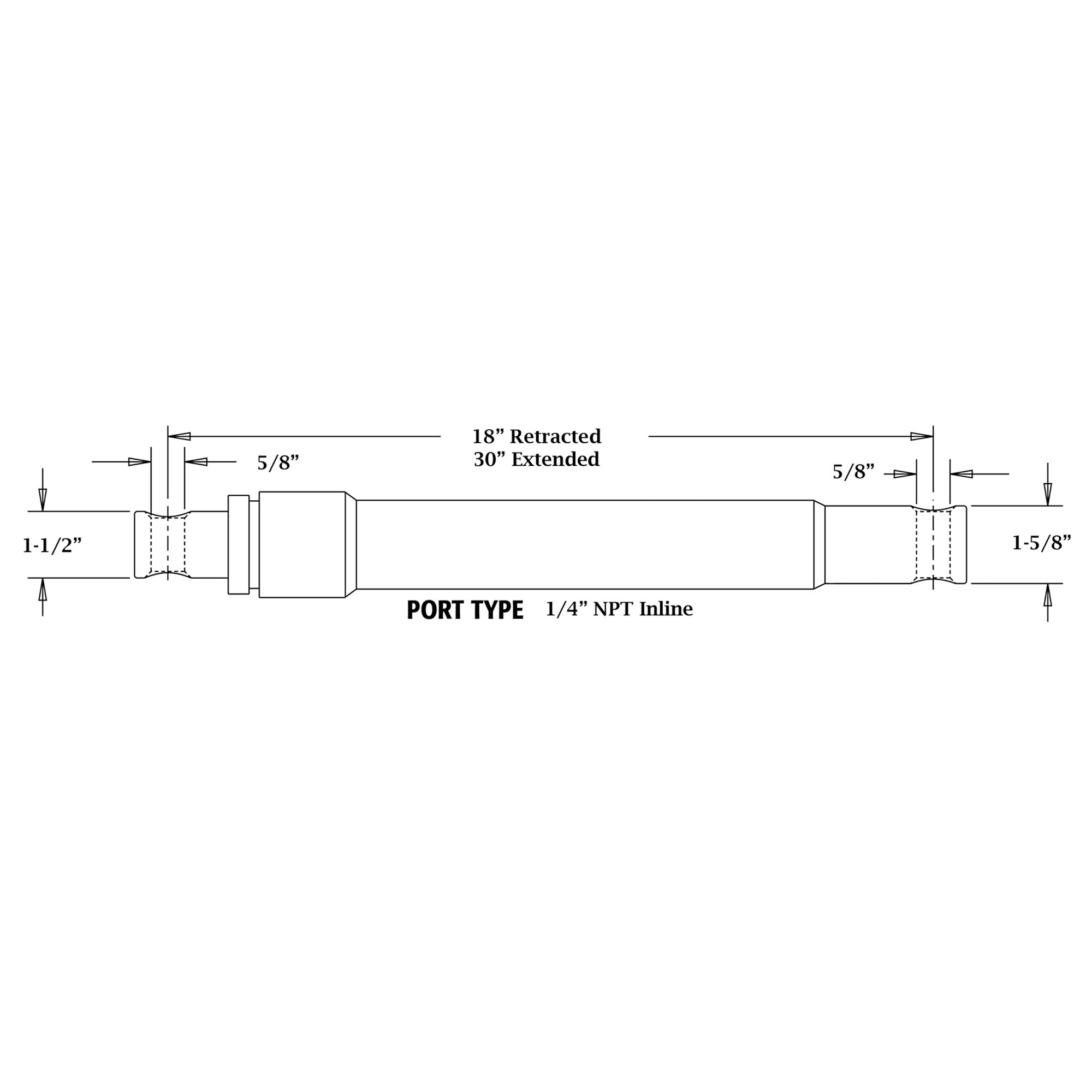

  • Center to Center retracted distance: 18in.
  • Center to Center extended distance: 30in.
  • Rod diameter thickness: 1 1/2in.
  • Base diameter thickness: 1 5/8in.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Buyers SAM Lift and Angle Cylinders are designed to fit Meyer/Diamond snow plows, providing reliable and efficient power-angling capabilities. With a bore diameter of 1.5 inches, a stroke length of 12 inches, and a rod diameter of 1.5 inches, these cylinders are engineered for durability and performance in demanding snow plowing applications. Constructed with high-quality materials, they ensure smooth operation and precise control, making them an essential component for effective snow plow management. Whether lifting or angling the plow, these cylinders deliver the strength and reliability needed to tackle tough winter conditions.

What's Included

    (1) Hydraulic cylinder

Features + Benefits

  • OEM part# 05437
  • Center to Center retracted distance: 18in.
  • Center to Center extended distance: 30in.
  • Rod diameter thickness: 1 1/2in.
  • Base diameter thickness: 1 5/8in.
  • Pin size: 5/8in.
  • Port type: 1/4in. NPT
  • Port location: Inline

Key Specs

AttributeSpecification

item#

905316

Brand

Buyers SAM

Manufacturer's Warranty

1 year limited warranty

Ship Weight

14.2 LB

Bore Diameter

1.5 in

Stroke

12 in

Rod Diameter

1.5 in

Compatible With

Meyer Plow
AttributeSpecification

Extended Length

30 in

Retracted Length

18 in

Max. PSI

0

Closed Pin Center

18 in

Cylinder Action

Single Acting

Pin Diameter

0.62 in

Pin Length

0.62 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

  1. Are there instructions on how to bleed this cylinder?

    1 answer

    1. It is recommended to extend the cylinder as far as it will go, then raise and lower it slowly about 3-4 times to bleed the line.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
