A rebuild/seal kit is unavailable for this cylinder.

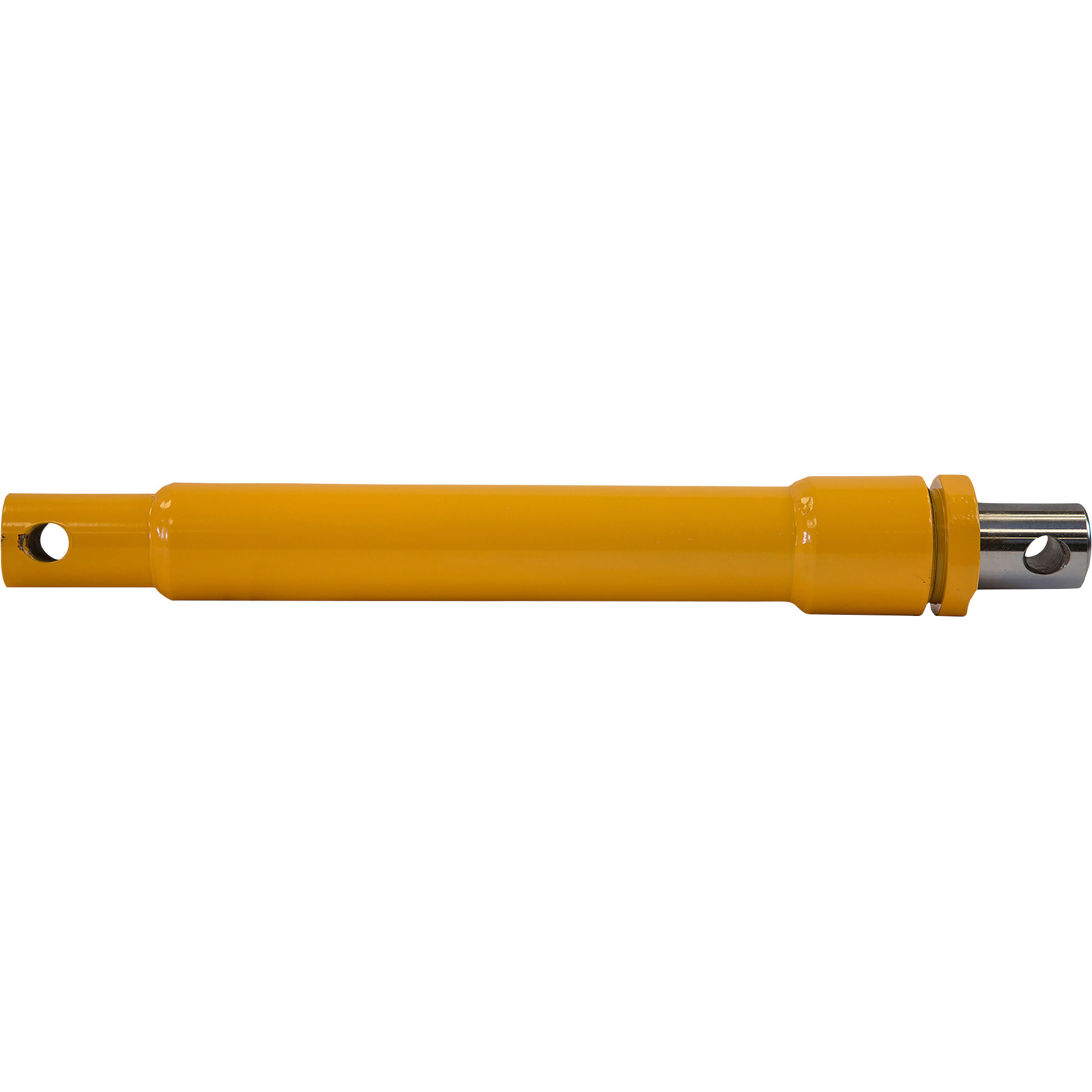

Buyers SAM, SAM Lift Angle Cylinders to fit Meyer/Diamond Snow Plows, Bore Diameter 1.5 in, Stroke 10 in, Rod Diameter 1.5 in, Model# 1304005
Top SellerClearance
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$49.50
Reg $109.99Save $60.49
Order today to get this price.
- OEM part# 05810

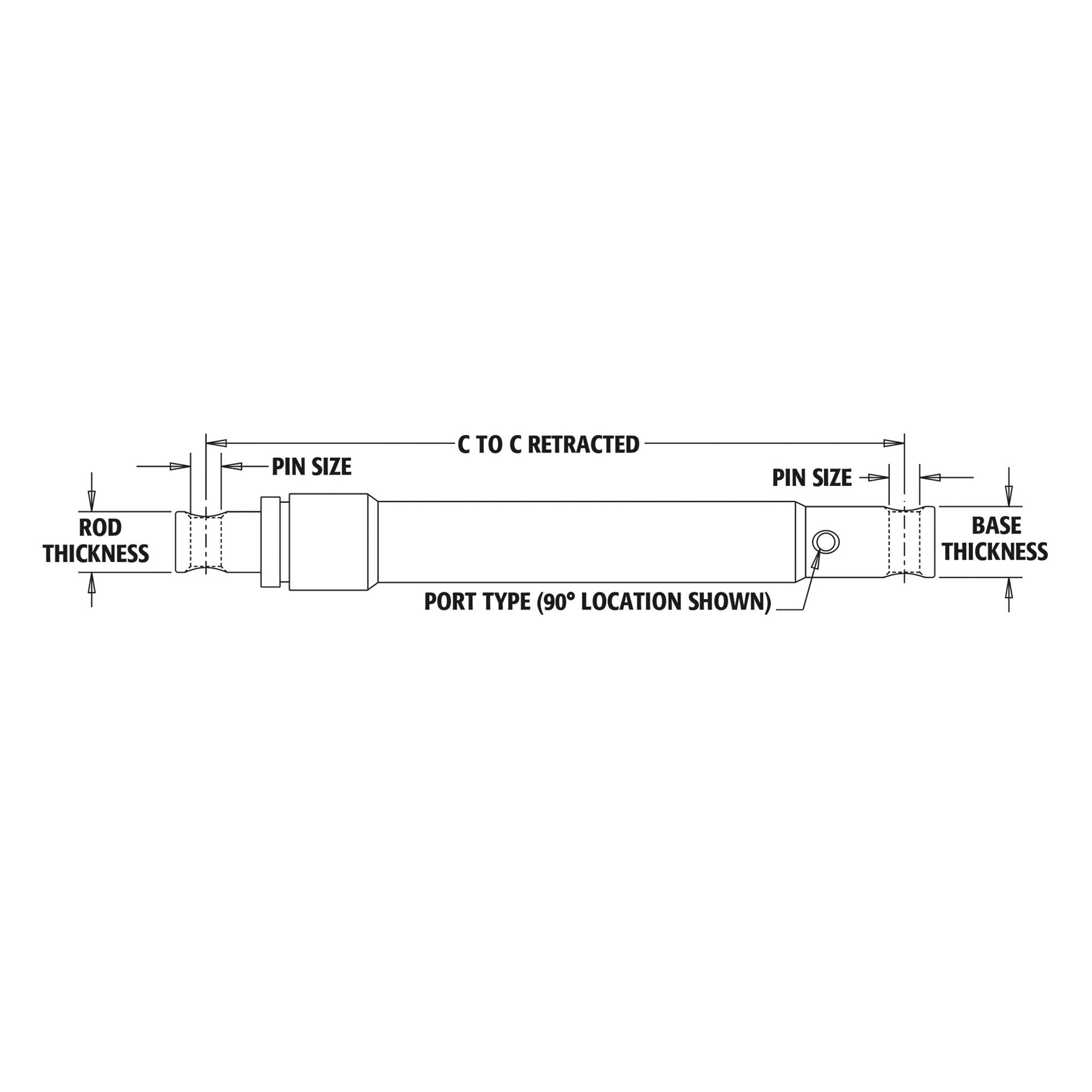

- Center to Center retracted distance: 16 1/4in.
- Center to Center extended distance: 26 1/4in.
- Rod diameter thickness: 1 1/2in.
- Base diameter thickness: 1 5/8in.
See full description
See All Snowplow Hydraulic Cylinders
See All Buyers SAM Snowplow Hydraulic Cylinders
Currently Viewing This Product
$49.50Reg $109.99Save $60.49Order today to get this price.
Specifications
Specifications
Buyers SAM, SAM Lift Angle Cylinders to fit Meyer/Diamond Snow Plows, Bore Diameter 1.5 in, Stroke 10 in, Rod Diameter 1.5 in, Model# 1304005
Buyers Products, SAM 1-1/2 x 6in. Lift Cylinder-Replaces Western #25200 Bore Diameter 1.5 in, Stroke 6 in, Rod Diameter 1.5 in, Model# 1304210
Buyers SAM, SAM Angle and Lift Cylinders to fit Western Snow Plows, Bore Diameter 1.5 in, Stroke 10 in, Rod Diameter 1.5 in, Model# 1304205
Buyers SAM, SAM Lift and Angle Cylinders to fit Fisher Snow Plows, Bore Diameter 2 in, Stroke 16 in, Rod Diameter 2 in, Model# 1304310
Bore Diameter
Same
1.5 in
1.5 in
1.5 in
2 in
Stroke
Same
10 in
6 in
10 in
16 in
Rod Diameter
Same
1.5 in
1.5 in
1.5 in
2 in
Compatible With
Same
Meyer Plow
Western Plow
Western Plow
Fisher Plow
Extended Length
Same
26.25 in
18.93 in
27.25 in
40.81 in
Retracted Length
Same
16.25 in
13 in
17.25 in
23.25 in
Max. PSI
Same
0
0
0
0
Closed Pin Center
Same
16.37 in
12.93 in
17.25 in
24.81 in
Cylinder Action
Same
Single Acting
Single Acting
Single Acting
Single Acting
Pin Diameter
Same
0.62 in
0.75 in
0.75 in
1.25 in
Pin Length
Same
0.62 in
0.75 in
0 in
0 in
