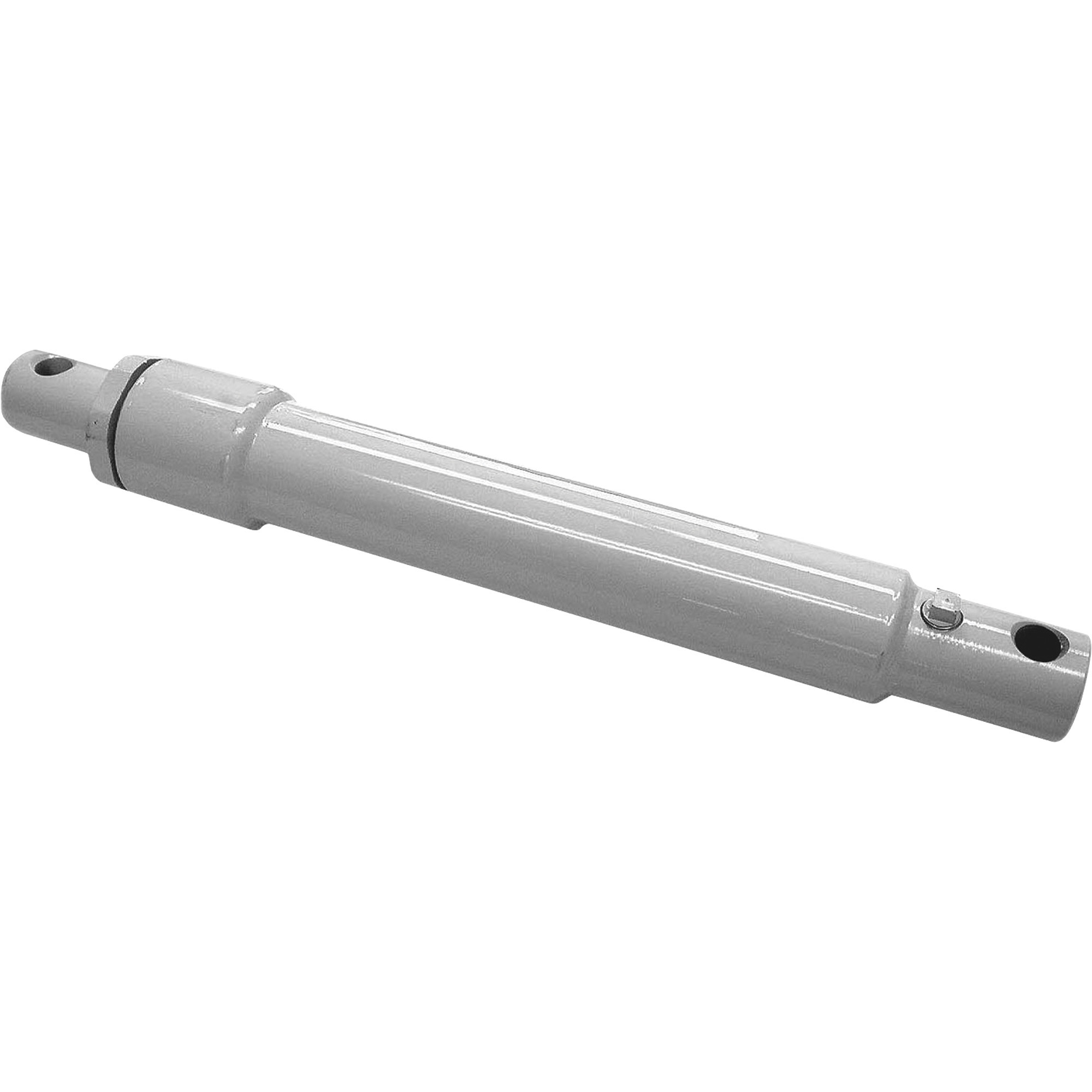

Buyers SAM, SAM Angle and Lift Cylinders to fit Western Snow Plows, Bore Diameter 1.5 in, Stroke 8 in, Rod Diameter 1.5 in, Model# 1304201

Item# 571662
Buyers SAM, SAM Angle and Lift Cylinders to fit Western Snow Plows, Bore Diameter 1.5 in, Stroke 8 in, Rod Diameter 1.5 in, Model# 1304201

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Buyers SAM, SAM Angle and Lift Cylinders to fit Western Snow Plows, Bore Diameter 1.5 in, Stroke 8 in, Rod Diameter 1.5 in, Model# 1304201

Click or Tap image to Zoom

$109.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • OEM part# 56538K
  • Center to Center retracted distance: 15 1/4in.
  • Center to Center extended distance: 23 1/4in.
  • Rod diameter thickness: 1 1/2in.
  • Base diameter thickness: 1 3/4in.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Buyers SAM Angle and Lift Cylinders are precision-engineered hydraulic cylinders designed to fit Western Snow Plows, offering a reliable replacement for OEM parts. With a bore diameter of 1.5 inches and a stroke length of 8 inches, these cylinders are built to deliver consistent performance and durability in demanding snow plow applications. The rod diameter also measures 1.5 inches, ensuring robust construction and optimal functionality. These hydraulic cylinders are essential for maintaining the efficiency and effectiveness of your snow plow, providing the necessary force for angle and lift operations. Whether you're upgrading or replacing worn-out components, Buyers SAM Angle and Lift Cylinders are crafted to meet high standards of quality and reliability, ensuring your snow plow remains in peak condition for tackling harsh winter conditions.

What's Included

    (1) Hydraulic cylinder

Features + Benefits

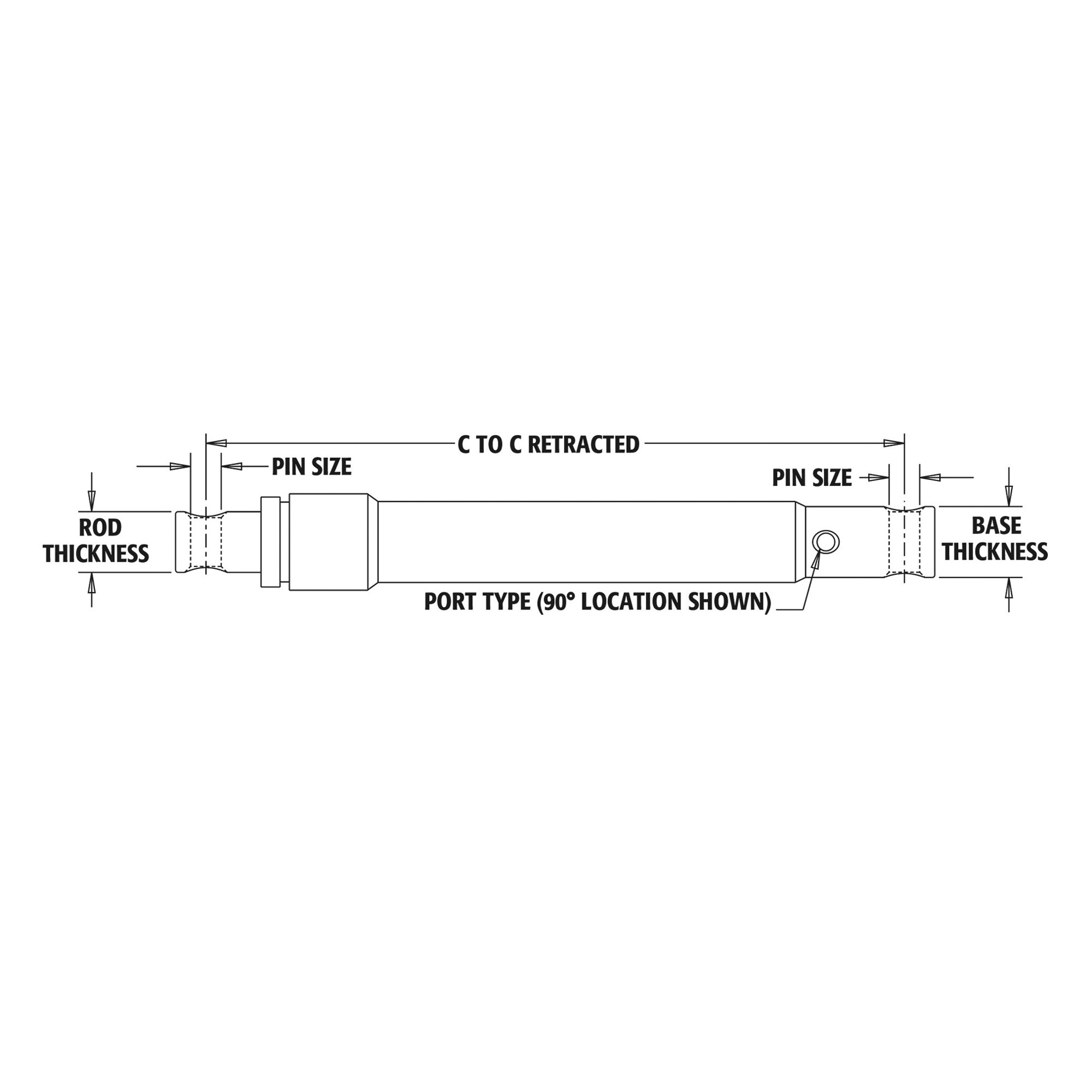

  • OEM part# 56538K
  • Center to Center retracted distance: 15 1/4in.
  • Center to Center extended distance: 23 1/4in.
  • Rod diameter thickness: 1 1/2in.
  • Base diameter thickness: 1 3/4in.
  • Pin size: 3/4in.
  • Port type: #6 SAE
  • Port location: 90 degrees

Key Specs

AttributeSpecification

item#

571662

Brand

Buyers SAM

Manufacturer's Warranty

1 year limited warranty

Ship Weight

11.7 LB

Bore Diameter

1.5 in

Stroke

8 in

Rod Diameter

1.5 in

Compatible With

Western Plow
AttributeSpecification

Extended Length

23.25 in

Retracted Length

15.25 in

Max. PSI

0

Closed Pin Center

0.75 in

Cylinder Action

Single Acting

Pin Diameter

0.75 in

Pin Length

0.75 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. What is the pressure rating?

    1 answer

    1. The standard pressure rating on the cylinder is 1850 PSI.

      Helpful?

  2. What is the pin diameter on part no. 571662?

    1 answer

    1. The dimensions for this item are as follows 16 3/8" Open length, 26 1/4 Pin diameter, and 5/8" hole diameter.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
