This S.A.M. Replacement Hydraulic Cylinder For Fisher Plows measures 3-1/2" approximately from the bottom of the cylinder to the bottom of the upper nut.

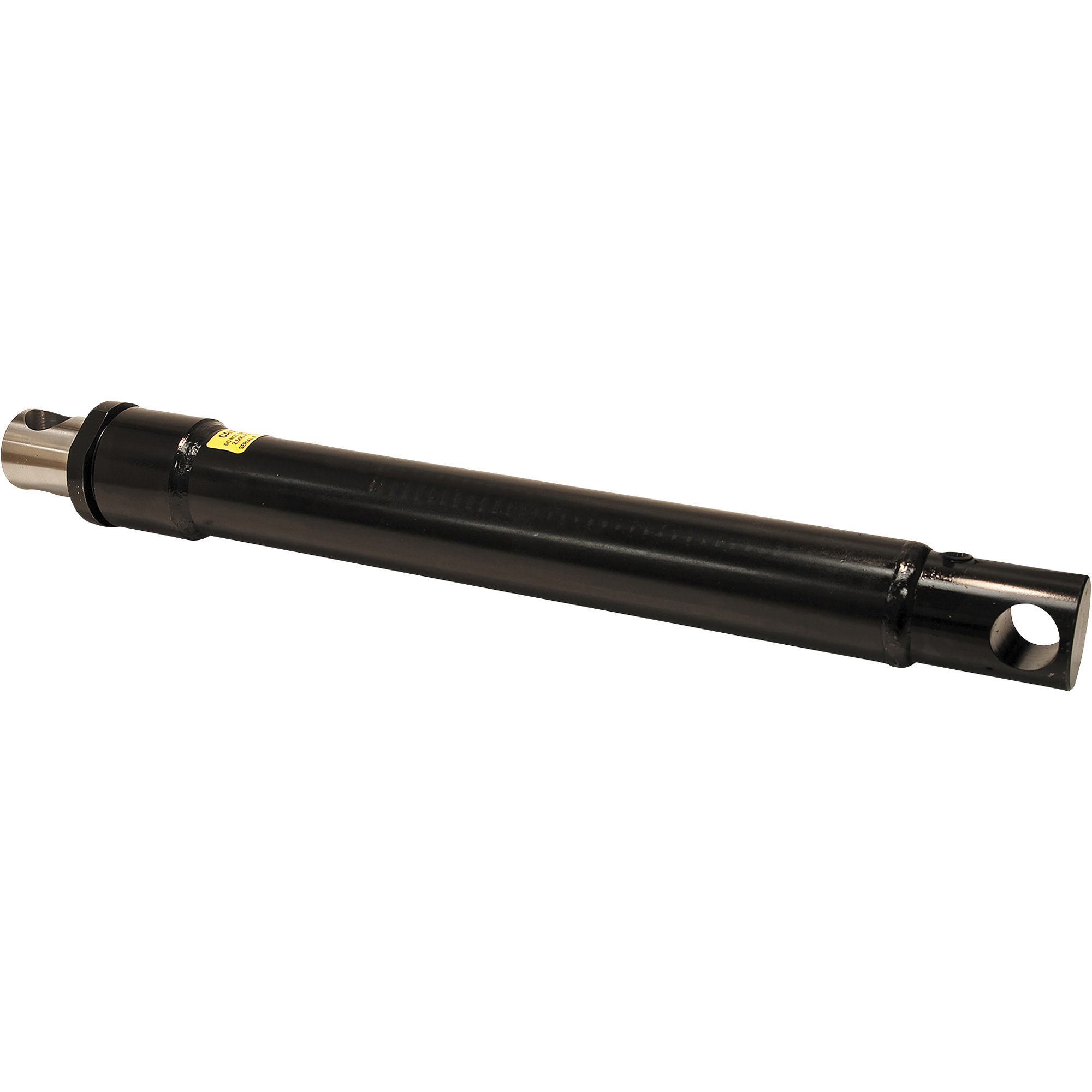

Buyers SAM, SAM Lift and Angle Cylinders to fit Fisher Snow Plows, Bore Diameter 2 in, Stroke 16 in, Rod Diameter 2 in, Model# 1304310
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$274.99
- OEM part# A5166

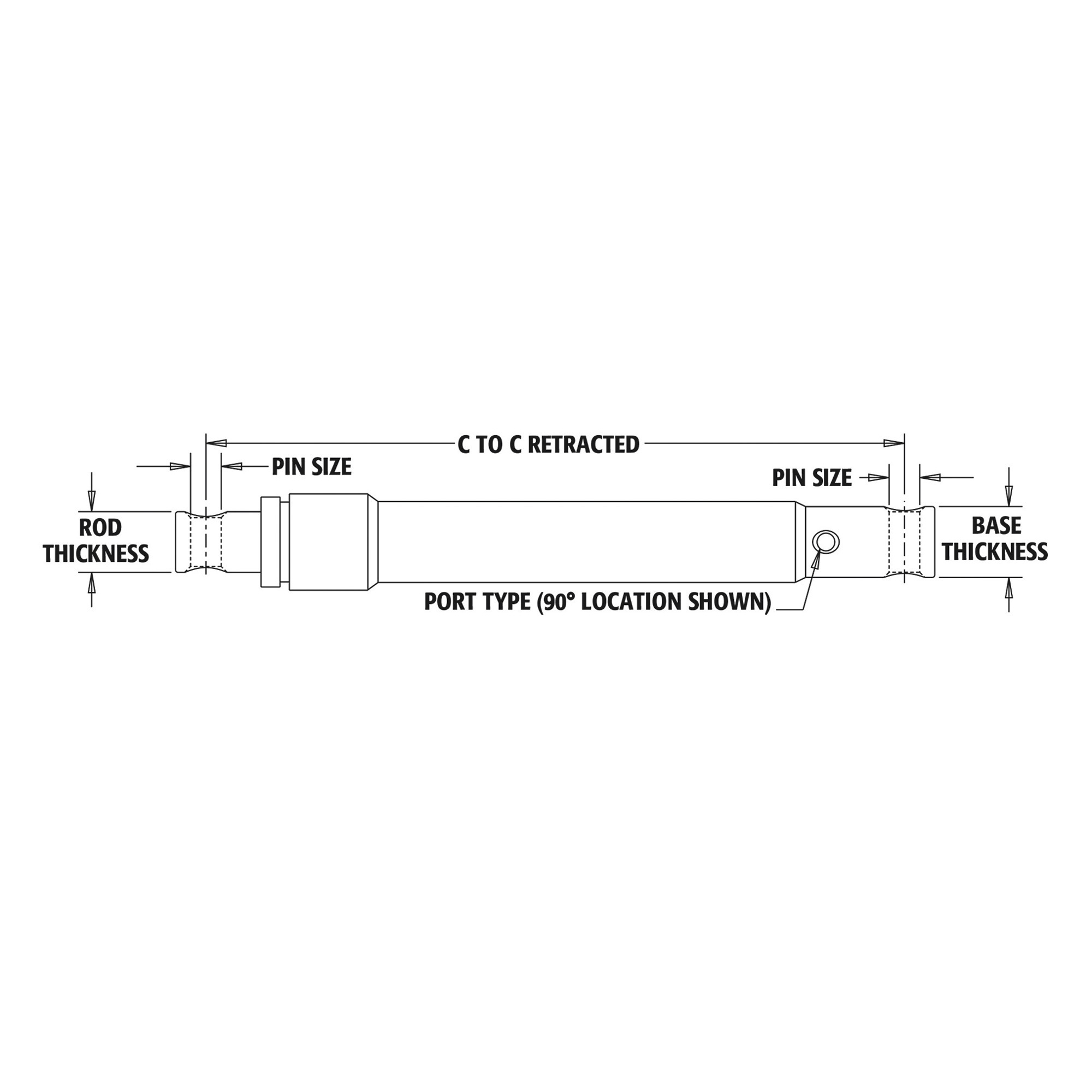

- Rod diameter thickness: 2in.
- Base diameter thickness: 2 1/4in.
- Port type: 1/4in. NPT
- Port location: 90 degrees
See full description
See All Snowplow Hydraulic Cylinders
See All Buyers SAM Snowplow Hydraulic Cylinders
Currently Viewing This Product
Specifications
Specifications
Buyers SAM, SAM Lift and Angle Cylinders to fit Fisher Snow Plows, Bore Diameter 2 in, Stroke 16 in, Rod Diameter 2 in, Model# 1304310

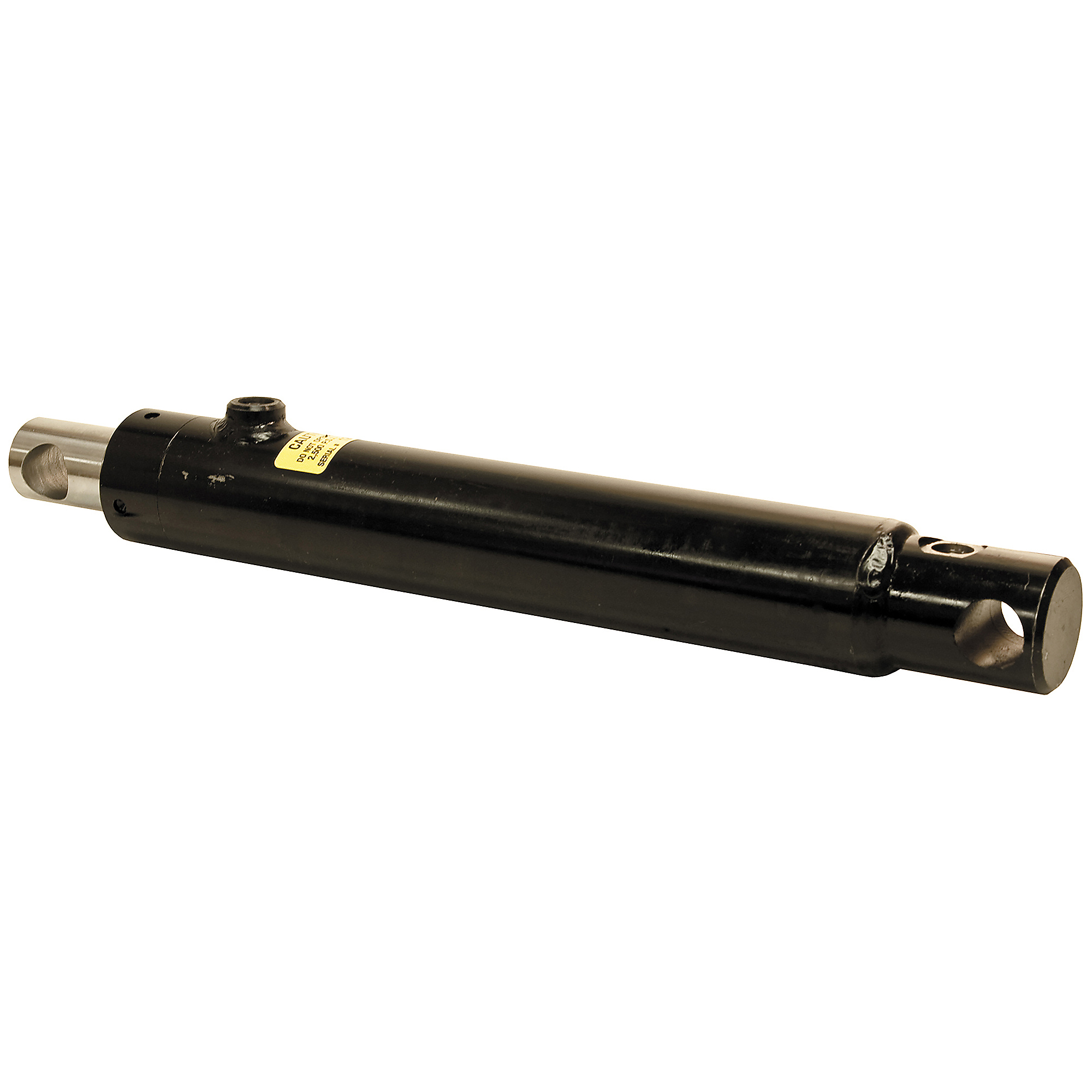

Buyers Products, SAM 2 x 10in. Power Double Acting Angling Cylinder, Bore Diameter 2 in, Stroke 10 in, Rod Diameter 1.5 in, Model# 1304217

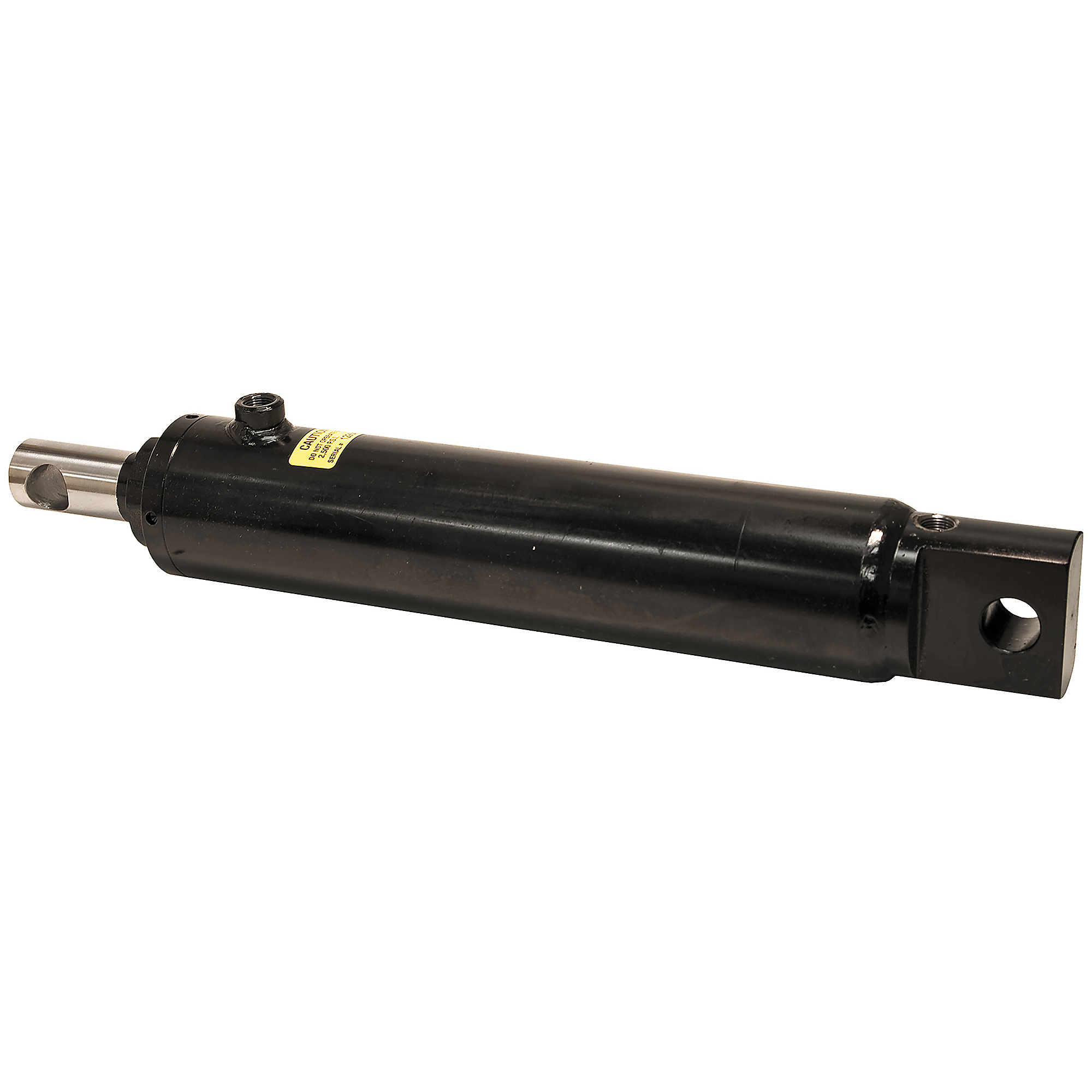

Buyers Products, SAM Double-Acting Hydraulic Cylinder OEM: 99806239 Bore Diameter 3 in, Stroke 10 in, Rod Diameter 1.5 in, Model# 1304550

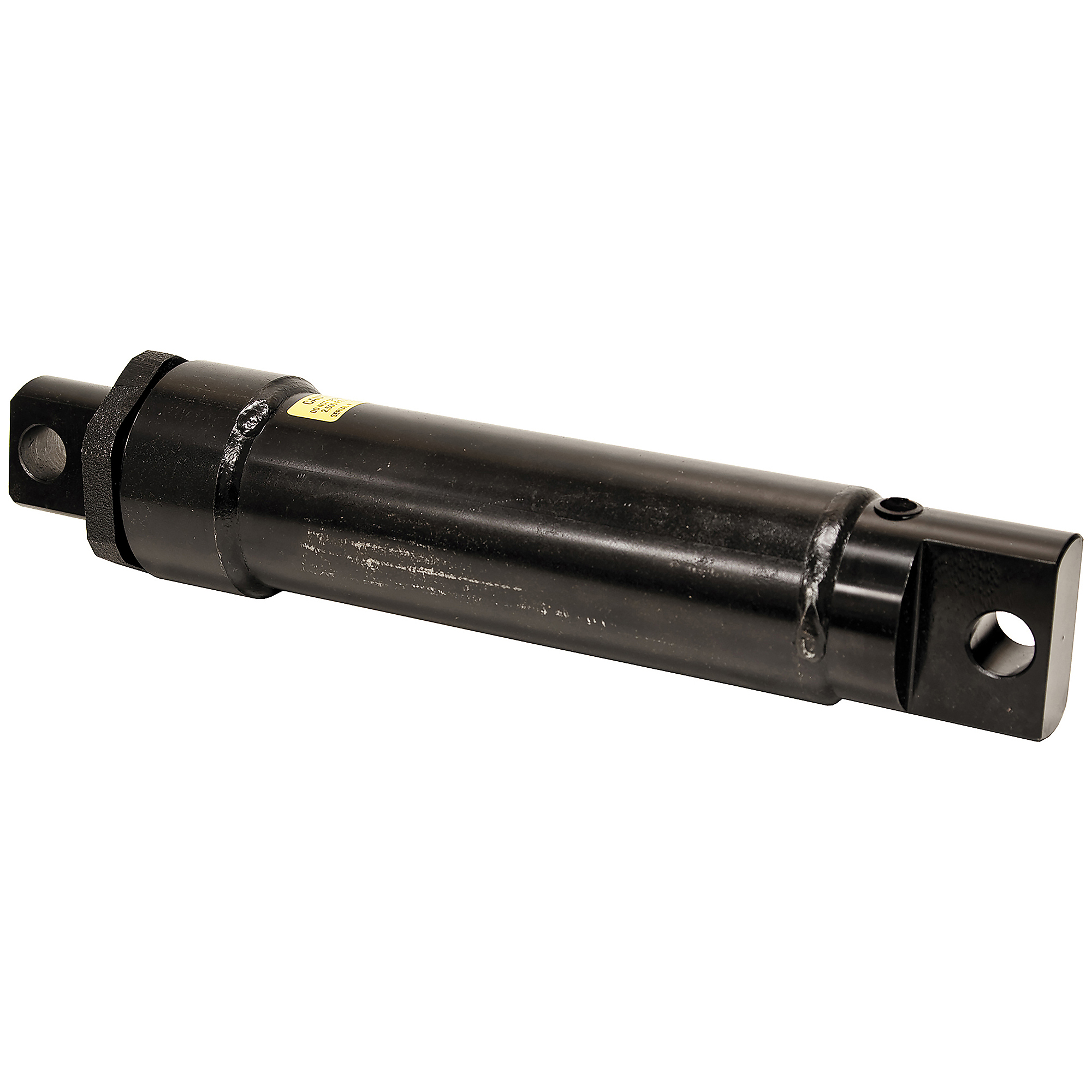

Buyers Products, SAM Single-Acting Hydraulic Cylinder, Bore Diameter 3 in, Stroke 10 in, Rod Diameter 1.5 in, Model# 1304520
Bore Diameter
Same
2 in
2 in
3 in
3 in
Stroke
Same
16 in
10 in
10 in
10 in
Rod Diameter
Same
2 in
1.5 in
1.5 in
1.5 in
Compatible With
Same
Fisher Plow
-
-
-
Extended Length
Same
40.81 in
27.31 in
30 in
28 in
Retracted Length
Same
23.25 in
17.31 in
20 in
18 in
Max. PSI
Same
0
2,500
0
0
Closed Pin Center
Same
24.81 in
0 in
0 in
0 in
Cylinder Action
Same
Single Acting
Double Acting
Double Acting
Single Acting
Pin Diameter
Same
1.25 in
1 in
1.016 in
1 in
Pin Length
Same
0 in
0 in
0 in
0 in
Product Weight
Same
-
15.0000 lb
26.5000 lb
46.0000 lb
Dimensions L x W x H (in.)
Same
-
20.5 x 4.05 x 3.0 in
23.25 x 4.95 x 4.5 in
20.85 x 5.25 x 5.05 in
