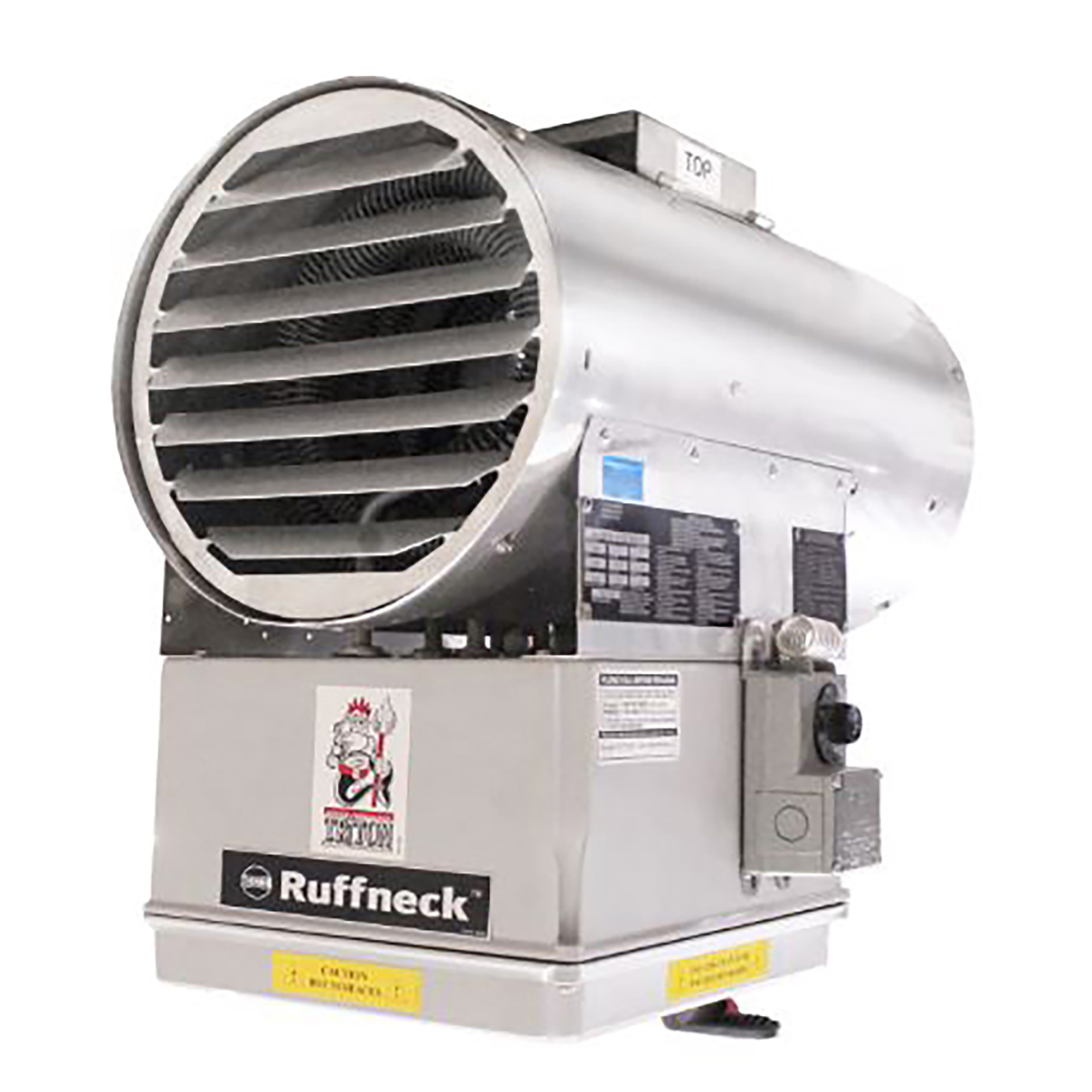

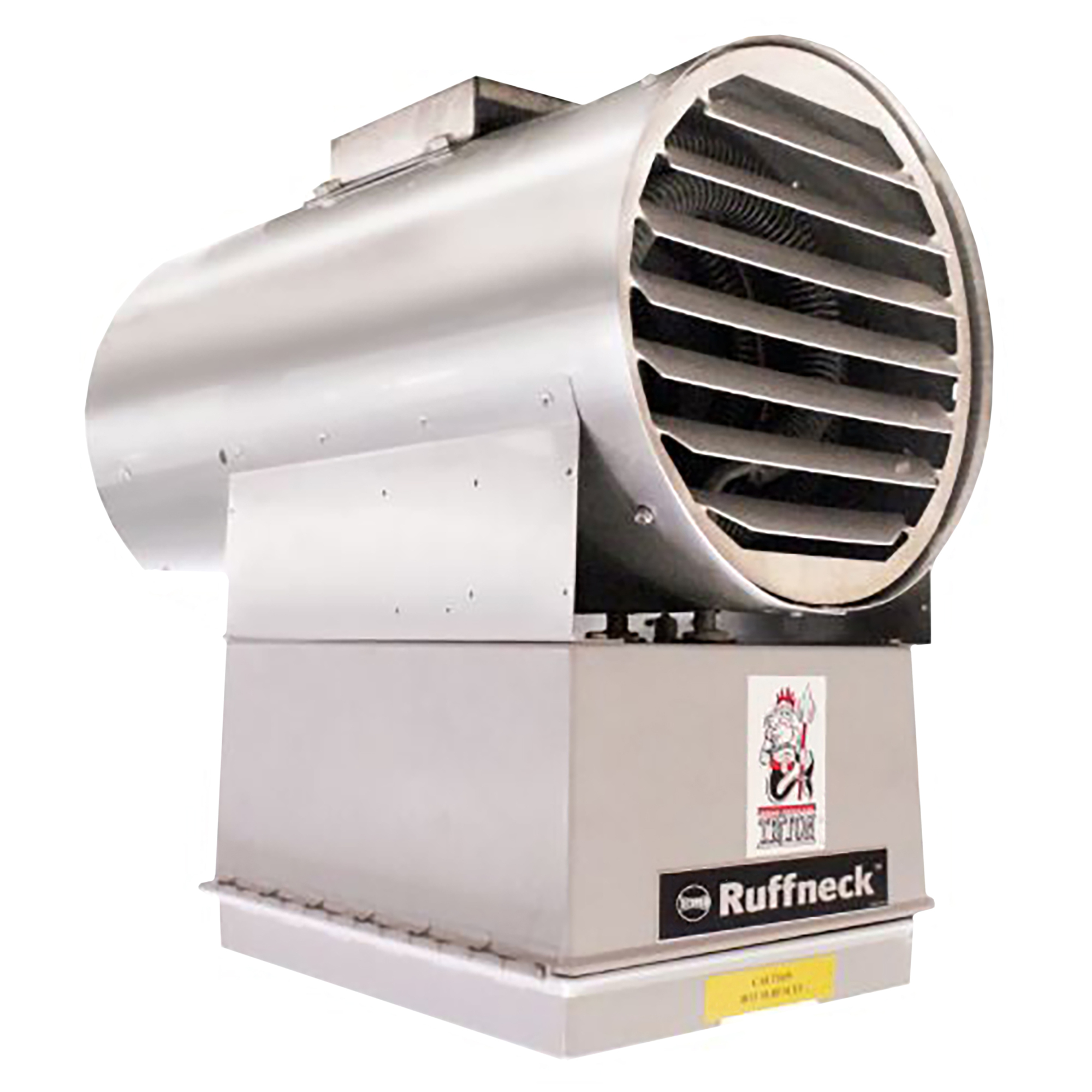

Ruffneck, CR1 Triton Washdown Unit Heater - 480V 3O 10kW, Heat Type Forced Air, Heat Output 34120 Btu/hour, Model# CR1-480360-100-T

Item# 5092653
Ruffneck, CR1 Triton Washdown Unit Heater - 480V 3O 10kW, Heat Type Forced Air, Heat Output 34120 Btu/hour, Model# CR1-480360-100-T

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ruffneck, CR1 Triton Washdown Unit Heater - 480V 3O 10kW, Heat Type Forced Air, Heat Output 34120 Btu/hour, Model# CR1-480360-100-T

Click or Tap image to Zoom

$4149.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Washdown Unit Heater c/w T'stat - 480V 3Ø 10kW
  • Ruffneck™ CR1 Triton™ Series is a new generation of NEMA 4X corrosion-resistant washdown heaters. The first UL-listed Type 4X heater with models ranging from 3 kW to 39 kW.
  • IMPORTANT: Ruffneck™ CR1 heaters are suitable for non-hazardous locations only. For washdown applications use water pressure of less than 70 psi.
  • The entire heater is NEMA Type 4X
  • Epoxy-coated fan blade

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Ruffneck CR1 Triton Washdown Unit Heater is a high-performance, corrosion-resistant heater designed for non-hazardous locations where water pressure is below 70 psi. This forced air heater operates at 480V 3-phase power and delivers a substantial heat output of 34,120 BTUs per hour, making it ideal for demanding environments that require reliable and efficient heating. Built to withstand rigorous conditions, the CR1 Triton features durable construction that ensures long-term performance and resistance to corrosion, providing peace of mind and reducing maintenance needs. Whether used in industrial settings, washdown areas, or other applications where cleanliness and durability are paramount, this heater offers robust heating capabilities while maintaining safety and reliability.

What's Included

    (1) Washdown Unit Heater c/w T'stat - 480V 3Ø 10kW

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Washdown Unit Heater c/w T'stat - 480V 3Ø 10kW
  • Ruffneck™ CR1 Triton™ Series is a new generation of NEMA 4X corrosion-resistant washdown heaters. The first UL-listed Type 4X heater with models ranging from 3 kW to 39 kW.
  • IMPORTANT: Ruffneck™ CR1 heaters are suitable for non-hazardous locations only. For washdown applications use water pressure of less than 70 psi.
  • The entire heater is NEMA Type 4X
  • Epoxy-coated fan blade
  • 16-gauge stainless-steel cabinet
  • Custom-configured stainless-steel elements
  • Optional built-in accessories
  • Stainless-steel wall/ceiling mounting kit
  • 120 V controls
  • Stainless-steel temperature high-limit
  • Increased safety and protection against water penetration
  • Added corrosion protection
  • Better resistance to corrosion for longer life
  • Improved heat distribution and corrosion protection
  • Flexibility and reduced field installation costs
  • Flexible options for mounting heater
  • Better contactor pull-in reliability
  • Increased safety and reliability

Key Specs

AttributeSpecification

item#

5092653

Brand

Ruffneck

Manufacturer's Warranty

1 year limited warranty

Ship Weight

125.0 LB

Heat Type

Forced Air

Heat Output

34,120 Btu/hour

Hardwired

Yes

Indoor-Outdoor Use

Indoor

Volts

480

Watts

10,000

Amps

16.9
AttributeSpecification

Assembled Width

13 in

Assembled Height

24.25 in

Assembled Depth

23.5 in

Needs Direct Venting

No

Remote Included

No

Tip-Over Safety Switch

No

Blower Included

Yes

Blower CFM

700 cfm

Oscillating

No

Product Weight

75.0000 lb

Dimensions L x W x H (in.)

23.5 x 13.0 x 24.25 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
