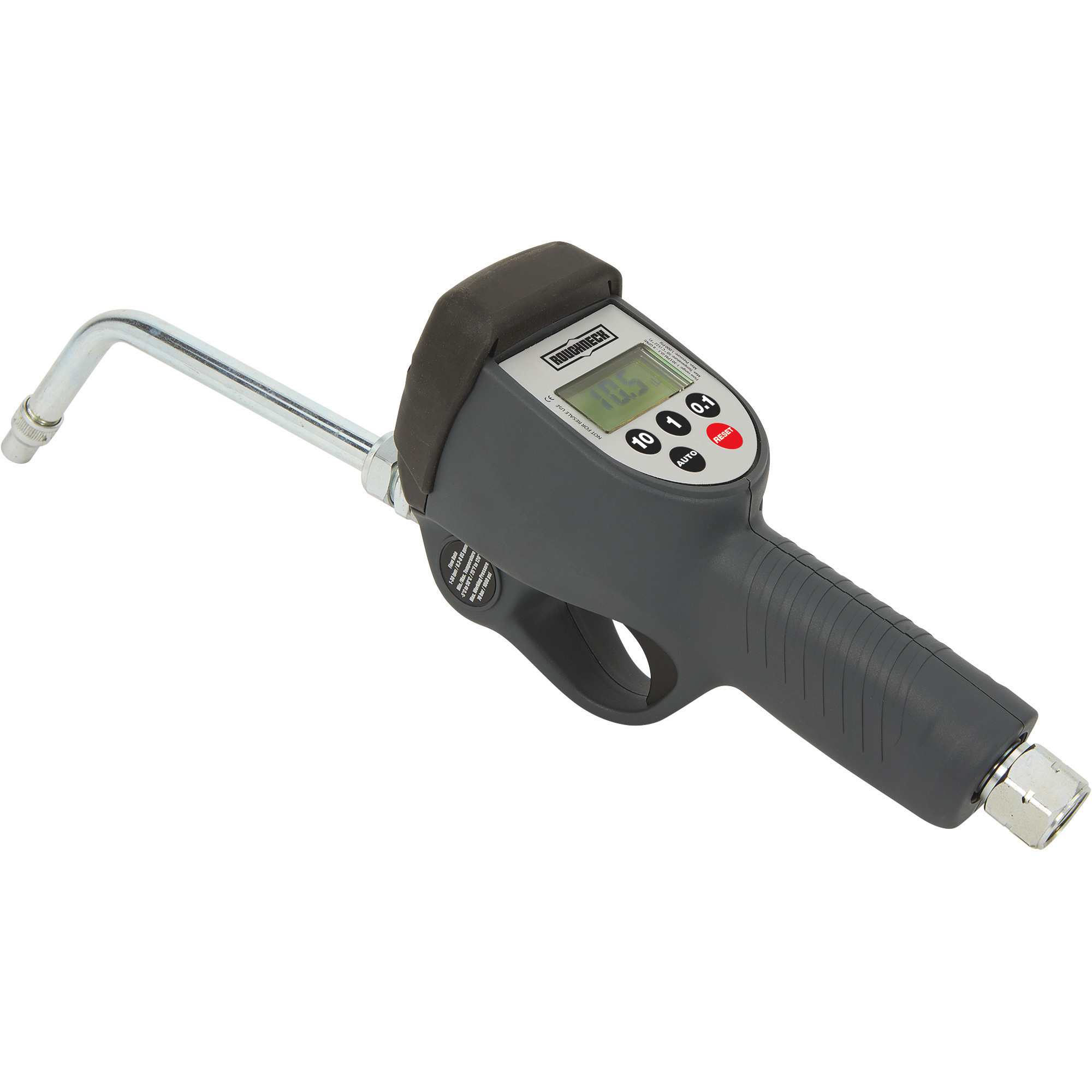

Roughneck Oil Control Gun with Preset Meter, 0.3–8 GPM, 1000 PSI

Item# 111793
Roughneck Oil Control Gun with Preset Meter, 0.3–8 GPM, 1000 PSI

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Roughneck Oil Control Gun with Preset Meter, 0.3–8 GPM, 1000 PSI

Click or Tap image to Zoom

$319.99

  • Shipping:

    Backordered: Order now to reserve yours -
    Estimated to ship 06/29/26

  • Store Pickup:

    Not available - online only
  • Compatible with oils in the 10–5,000 cSt viscosity range and diesel (not for gasoline, antifreeze or windshield fluids)
  • Delivers a 0.3–8 GPM (1–30 LPM) flow rate
  • 1/2in. NPT inlet with built-in swivel and strainer to capture large contaminants
  • Accuracy of ±0.5% with 0.2% repeatability
  • Rated for up to 1,000 PSI max. pressure

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Roughneck Oil Control Gun with Preset Meter, 0.3–8 GPM, 1000 PSI
  • Northern Tool + Equipment AA Alkaline Batteries, 4-Pk.
  • Northern Tool + Equipment AA Alkaline Batteries, 24-Pk.
Price for all three:

$329.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Roughneck Oil Control Gun with electronic preset meter is a dual-mode oil gun featuring manual and preset dispensing. The gun allows a preset quantity of media to be dispensed, eliminating the chance of fill error in a manual operation. A resettable totalizer offers individual batch control and can be set in liters, quarts, pints and gallons. A second resettable totalizer can be used in the same measuring formats for multiple dispense operations. Max. preset volume of 99.9 units. Also includes a lifetime non-resettable totalizer.

What's Included

    (1) Roughneck Oil Control Gun with Preset Meter (1) Steel extension

Features + Benefits

  • Compatible with oils in the 10–5,000 cSt viscosity range and diesel (not for gasoline, antifreeze or windshield fluids)
  • Delivers a 0.3–8 GPM (1–30 LPM) flow rate
  • 1/2in. NPT inlet with built-in swivel and strainer to capture large contaminants
  • Accuracy of ±0.5% with 0.2% repeatability
  • Rated for up to 1,000 PSI max. pressure
  • Includes (2) resettable totalizers in liter, quart, pint and gallon formats plus (1) non-resettable lifetime totalizer
  • Maximum preset dispensing quantity: 99.9 units; lifetime totalizer up to 999,999 units
  • Electronic preset operation powered by (4) 1.5V AA batteries
  • Heavy-duty aluminum construction for long service life
  • Wetted components include aluminum, steel, stainless steel, brass, polyurethane, acetic resin and high-nitrile rubber
  • Working temperature range: -5°–50°C (23°–122°F)
  • Includes steel extension with built-in non-drip tip

Key Specs

AttributeSpecification

item#

111793

Brand

Roughneck

Manufacturer's Warranty

1 year limited warranty

Ship Weight

4.51 LB

Min. Flow Rate

0.3 GPM
AttributeSpecification

Max. Flow Rate

8 GPM

Max. PSI

1,000

Product Type

Fuel Meters

Inlet Port

1/2 in. NPT

Reviews

Questions & Answers

Questions

1–4 of 4 Questions
Sort by:

  1. Does this pump 1540 engine oil?

    1 answer

    1. This control gun can be used with 15W-40 engine oil which falls within the 10-5,000 cSt viscosity range.

      Helpful?

  2. Is this unit suitable for use in a service truck where it will be exposed to weather and sunlight?

    1 answer

    1. This meter is IP55 rated and can be considered weatherproof.

      Helpful?

  3. Is the "Preset" value used to shut off the flow when a desired amount is reached so you can leave unattended and not over fill a gear case?

    1 answer

    1. The gun allows a pre-set quantity of media to be dispensed, eliminating the chance of fill error in a manual operation.

      Helpful?

  4. how do you change the meter from leters to quarts? how do you set the presets also?

    1 answer

    1. To change from liters to quarts, press the Reset button. The meter now displays the resettable total, wait for 4-5 seconds, when the METER displays non-resettable total simultaneously press AUTO & RESET simultaneously
      for about 2-3 seconds. First, the screen will blink with the dispensed quantity, now long press the AUTO button to change blinking of non-resettable to blinking of units and change the unit by pressing the AUTO button multiple times to choose the desired unit of measurement. Press and hold the AUTO key to go to the next activity. Press RESET to exit from the customization menu.

      To set the preset values, press the RESET button. The meter now displays the resettable total, wait for 4-5 seconds until the meter displays non-resettable total and the resettable written over the TOTAL disappears. Simultaneously press and hold both the AUTO & RESET button. The first preset value will start blinking, blinking means that the value can be changed. To get a new preset desired value,
      use the numeric keys. Now long press AUTO to select that value. Press the AUTO button to move to the other preset value. With a single press of the AUTO button the marked value changes from 1 to 2, 2 to 3 etc. Press the RESET button to set the value.

      Helpful?
