Rigid Hitch, Hydraulic Drum Brake Kit, Passenger Side, 12in, 6-Bolt on 5.5 inch Circle, Model# BPH1206HR

Item# 6973428
Rigid Hitch, Hydraulic Drum Brake Kit, Passenger Side, 12in, 6-Bolt on 5.5 inch Circle, Model# BPH1206HR

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Rigid Hitch, Hydraulic Drum Brake Kit, Passenger Side, 12in, 6-Bolt on 5.5 inch Circle, Model# BPH1206HR

Click or Tap image to Zoom

$420.10

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • The 12" x 2-1/2" hub/drum has a 6 bolt on 5-1/2" bolt circle with a 3,000 lbs capacity PER side. Fits 6,000 lb axles.
  • This also includes a 5-bolt hydraulic backing plate that mounts directly onto your axle's passenger side flange. Rated at 3,000 lbs each / 6,000 lbs per pair. (5)- 3/8" x 1-1/2" bolts, nuts and lock washers are included.
  • Also include the bearings & seal. Seal included is a double lip SL-213 with a 3.375" outside diameter and a 2.125" inside diameter, .313" thickness. (1) L-25580 inner bearing (1.75" I.D), (1) L-15123 outer bearing (1.25" I.D), (1) cotter pin, (1) dust cap and (6) 1/2"-20 lug nuts. The races are preinstalled in the hub/drum for your convenience.
  • Please note: Castle nut or grease are not included in this assembly.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This hub/drum assembly contains everything you need to replace your hub/drum brake on the passenger side of your trailer. This assembly works for a spindle that has a 1-3/4in. inner bearing surface to a 1-1/4in. bearing surface.

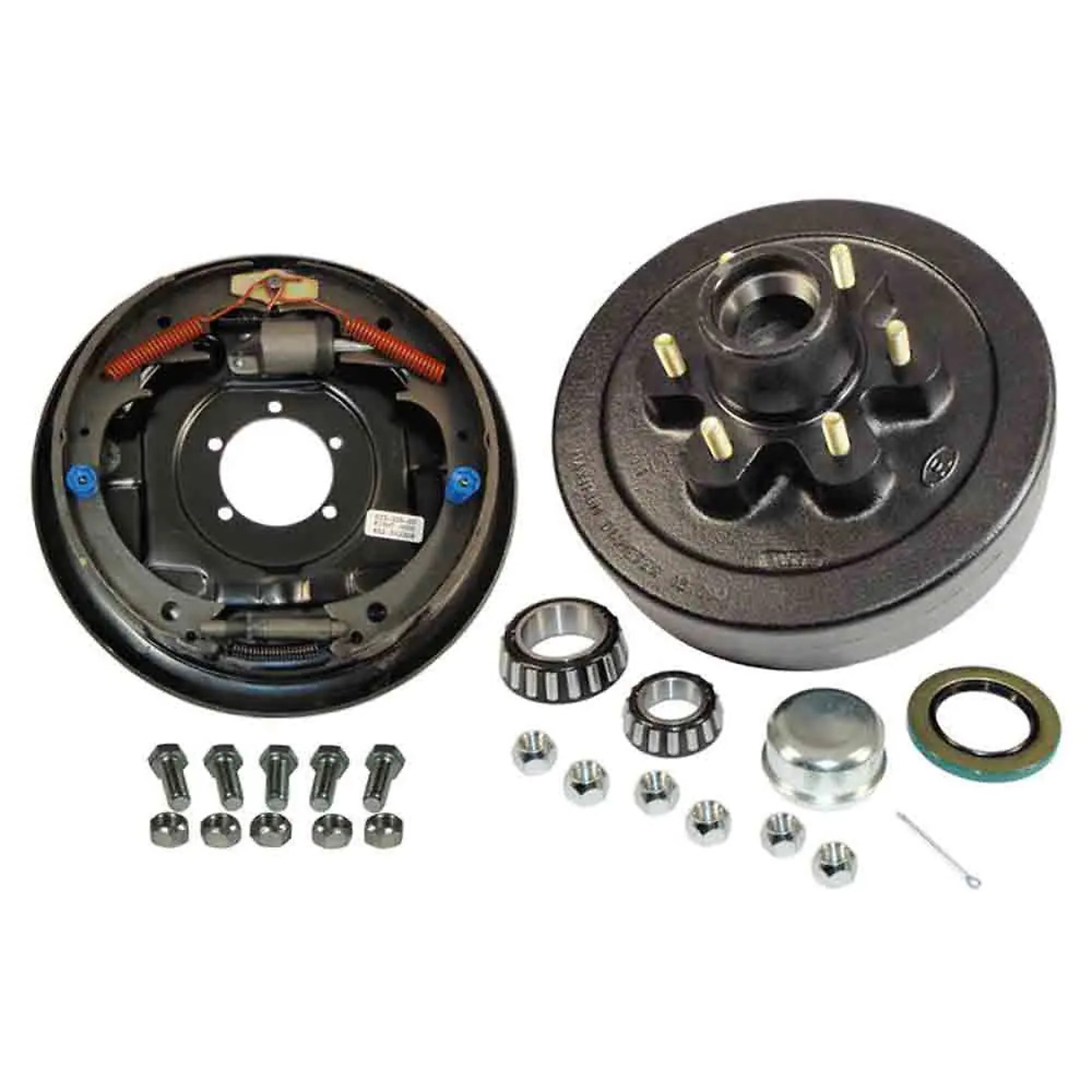

What's Included

    (1) 12" Hubdrum (1) Backing Plate

Features + Benefits

  • The 12" x 2-1/2" hub/drum has a 6 bolt on 5-1/2" bolt circle with a 3,000 lbs capacity PER side. Fits 6,000 lb axles.
  • This also includes a 5-bolt hydraulic backing plate that mounts directly onto your axle's passenger side flange. Rated at 3,000 lbs each / 6,000 lbs per pair. (5)- 3/8" x 1-1/2" bolts, nuts and lock washers are included.
  • Also include the bearings & seal. Seal included is a double lip SL-213 with a 3.375" outside diameter and a 2.125" inside diameter, .313" thickness. (1) L-25580 inner bearing (1.75" I.D), (1) L-15123 outer bearing (1.25" I.D), (1) cotter pin, (1) dust cap and (6) 1/2"-20 lug nuts. The races are preinstalled in the hub/drum for your convenience.
  • Please note: Castle nut or grease are not included in this assembly.

Key Specs

AttributeSpecification

item#

6973428

Brand

Rigid Hitch

Manufacturer's Warranty

5 year limited warranty

Ship Weight

50.0 LB

Drum Size

12 in

Brake Assembly

Right

Fits Axle Capacity

6,000 lb

Fits Wheel Size Max.

16 in

Fits Wheel Size Min.

15 in

Bolt Pattern

6 on 5-1/2
AttributeSpecification

Included (qty.)

Single

Brake Type

Hydraulic Drum

Inner Bearing Size

1.75 in

Outer Bearing Size

1.25 in

Hubs Included

No

Brake Lines

No

Brake Component

Single Servo

Product Weight

50.0000 lb

Dimensions L x W x H (in.)

17.0 x 12.0 x 14.0 in
