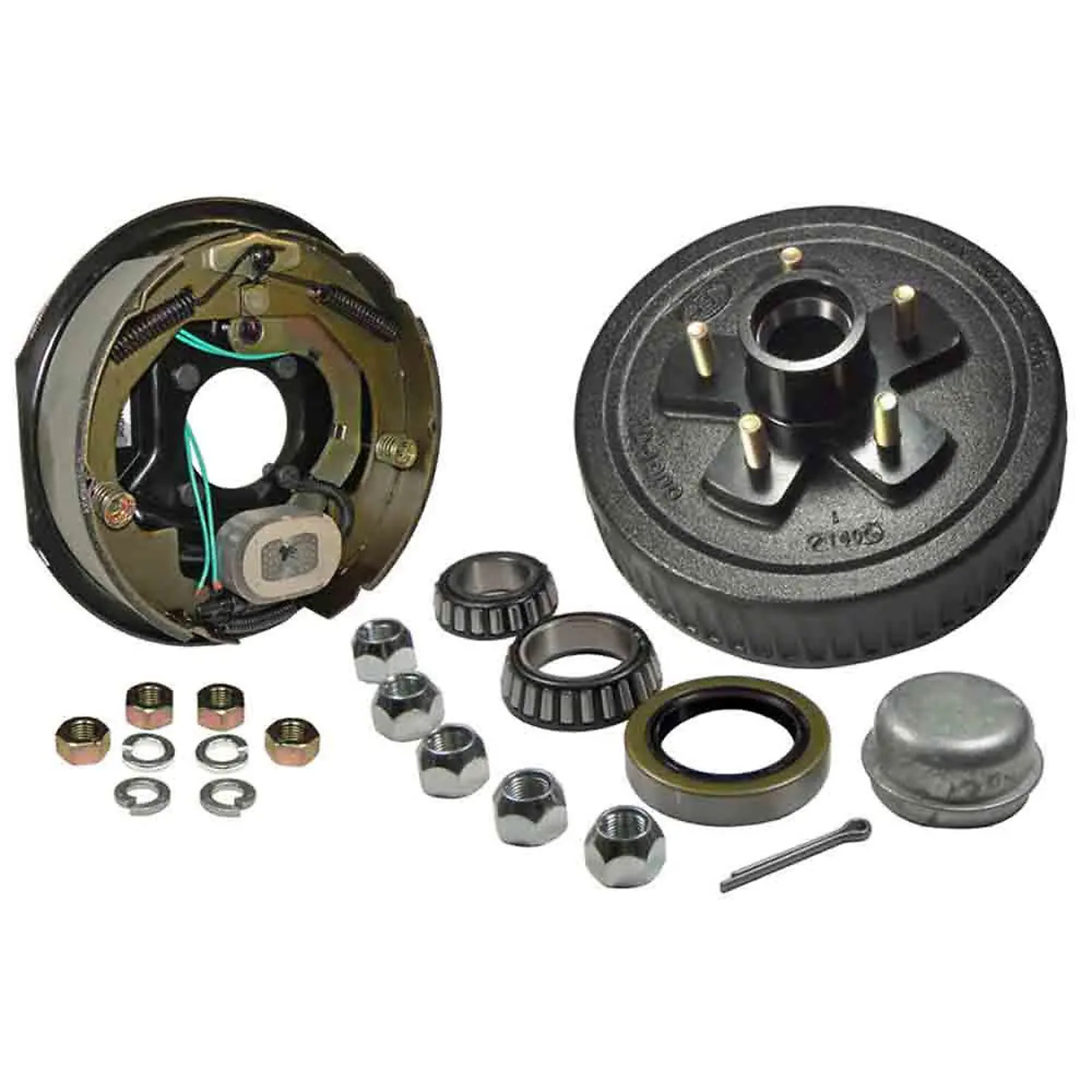

Rigid Hitch, Electric Drum Brake Kit, Passenger Side, 10in, 5-Bolt on 4.5 inch Circle, Model# BPH1004ER

Item# 6973268
Rigid Hitch, Electric Drum Brake Kit, Passenger Side, 10in, 5-Bolt on 4.5 inch Circle, Model# BPH1004ER

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Rigid Hitch, Electric Drum Brake Kit, Passenger Side, 10in, 5-Bolt on 4.5 inch Circle, Model# BPH1004ER

Click or Tap image to Zoom

$143.19

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

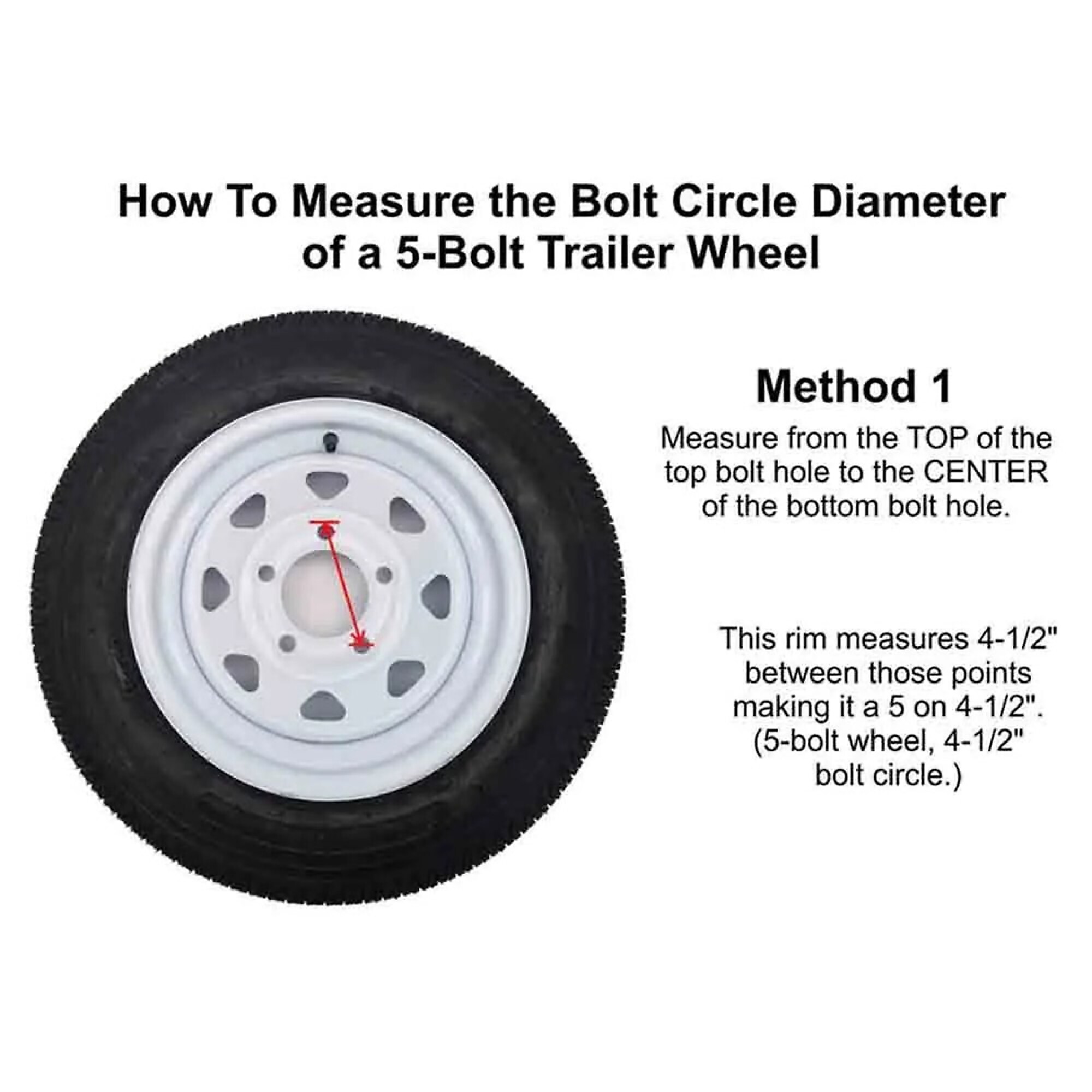

  • * * * Please measure your existing bolt pattern using attached instructions to ensure this 5 on 4-1/2" bolt circle hub is correct. * * *
  • This also includes a 4-bolt electric backing plate that mounts directly onto your axle's passenger side flange. The 4-bolt hole spacing is 2-7/8" apart with a 3" center hole diameter. Rated at 1,750 lbs each / 3,500 lbs per pair. (4)- 7/16"-14 x 1-1/2" bolts, nuts and lock washers are included.
  • Also include the bearings & seal. Seal included is a double lip SL-172 with a 2.561" outside diameter and a 1.719 inside diameter, .50" thickness. (1) L-68149 inner bearing (1.378" I.D), (1) L-44649 outer bearing (1.0625" I.D), (1) cotter pin, (1) dust cap and (5) 1/2"-20 lug nuts. The races are preinstalled in the hub/drum for your convenience.
  • Please note: Castle nut or grease are not included in this assembly.
  • The 10" x 2-1/2" hub/drum has a 5 bolt on 4-1/2" bolt circle with a 1,750 lbs capacity PER side. Fits 3,500 lb axles.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This hub/drum assembly contains everything you need to replace your hub/drum brake on the passenger side of your trailer. This assembly works for a spindle that has a 1-3/8in. inner bearing surface to a 1-1/16in. bearing surface.

What's Included

    (1) 10" Hubdrum (1) Backing Plate

Features + Benefits

  • * * * Please measure your existing bolt pattern using attached instructions to ensure this 5 on 4-1/2" bolt circle hub is correct. * * *
  • This also includes a 4-bolt electric backing plate that mounts directly onto your axle's passenger side flange. The 4-bolt hole spacing is 2-7/8" apart with a 3" center hole diameter. Rated at 1,750 lbs each / 3,500 lbs per pair. (4)- 7/16"-14 x 1-1/2" bolts, nuts and lock washers are included.
  • Also include the bearings & seal. Seal included is a double lip SL-172 with a 2.561" outside diameter and a 1.719 inside diameter, .50" thickness. (1) L-68149 inner bearing (1.378" I.D), (1) L-44649 outer bearing (1.0625" I.D), (1) cotter pin, (1) dust cap and (5) 1/2"-20 lug nuts. The races are preinstalled in the hub/drum for your convenience.
  • Please note: Castle nut or grease are not included in this assembly.
  • The 10" x 2-1/2" hub/drum has a 5 bolt on 4-1/2" bolt circle with a 1,750 lbs capacity PER side. Fits 3,500 lb axles.

Key Specs

AttributeSpecification

item#

6973268

Brand

Rigid Hitch

Manufacturer's Warranty

5 year limited warranty

Ship Weight

34.0 LB

Drum Size

10 in

Brake Assembly

Right

Fits Axle Capacity

3,500 lb

Fits Wheel Size Max.

14 in

Fits Wheel Size Min.

12 in

Bolt Pattern

5 on 4-1/2
AttributeSpecification

Included (qty.)

Single

Brake Type

Electric Drum

Inner Bearing Size

1.37 in

Outer Bearing Size

1.06 in

Hubs Included

No

Brake Lines

No

Brake Component

Free Backing

Product Weight

34.0000 lb

Dimensions L x W x H (in.)

16.0 x 6.0 x 15.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
