Rigid Hitch, 12-Inch Hub And Drum Assembly, 6-Bolt on 5.5 inch Circle, Works with 1-3/4 To 1-1/4 Tapered Spindles for 5K to 6K Axle, Used with 12 x 2 electric or hydraulic brakes, 3K Capacity per Hubdrum, Model# HD-1206HD-02A

Item# 6909346
Rigid Hitch, 12-Inch Hub And Drum Assembly, 6-Bolt on 5.5 inch Circle, Works with 1-3/4 To 1-1/4 Tapered Spindles for 5K to 6K Axle, Used with 12 x 2 electric or hydraulic brakes, 3K Capacity per Hubdrum, Model# HD-1206HD-02A

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

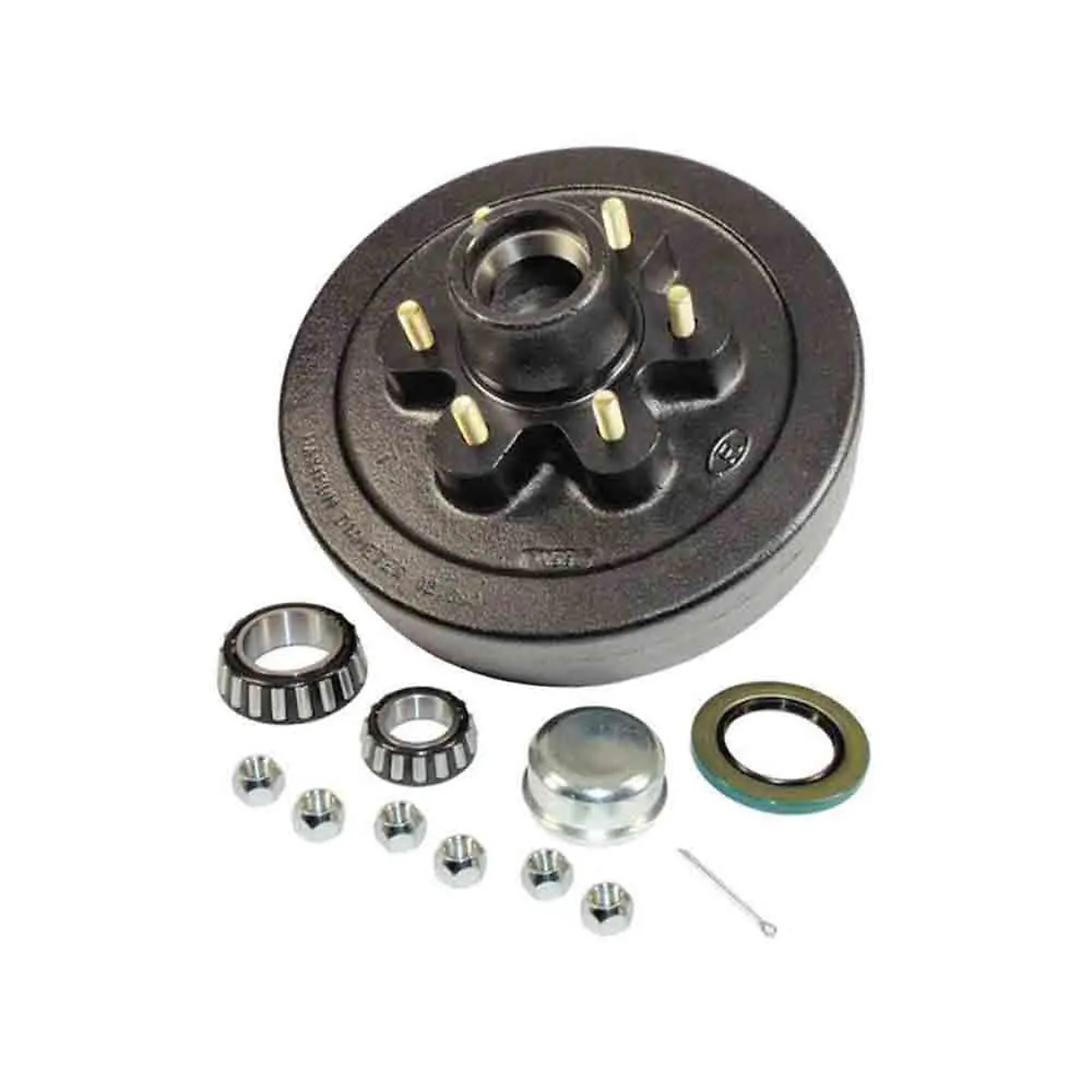

Rigid Hitch, 12-Inch Hub And Drum Assembly, 6-Bolt on 5.5 inch Circle, Works with 1-3/4 To 1-1/4 Tapered Spindles for 5K to 6K Axle, Used with 12 x 2 electric or hydraulic brakes, 3K Capacity per Hubdrum, Model# HD-1206HD-02A

Click or Tap image to Zoom

$110.59

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Includes pressed in bearing races with a pilot diameter is 3.63", flange diameter is 7.5". Lugs are 1/2"-20.
  • 2-1/2" deep inside for use with 12" x 2" electric or hydraulic brakes.
  • Hub assembly includes: L-25580 Inner Bearing, L-15123 Outer Bearing, SL-213 Grease Seal, SCP-100 Cotter Pin, DC-1520 Dust Cap, (6) STN-506 Lug Nuts
  • NOTE: This kit does not include the castle nut. You must use your existing nut for installation.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Rigid Hitch 12-Inch Hub and Drum Assembly is designed for use with 1-3/4in. to 1-1/4in. tapered spindles on axles rated from 5,200 lbs. to 6,000 lbs. This assembly features a 6-bolt pattern on a 5.5in. circle, making it compatible with a variety of trailers. It is suitable for use with 12in. x 2in. electric or hydraulic brakes and offers a robust 3,000 lbs. capacity per hub and drum. Built to provide reliable performance and durability, this hub and drum assembly ensures smooth and safe operation for your trailer's braking system.

What's Included

    (1) Trailer Hub Kit

Features + Benefits

  • Includes pressed in bearing races with a pilot diameter is 3.63", flange diameter is 7.5". Lugs are 1/2"-20.
  • 2-1/2" deep inside for use with 12" x 2" electric or hydraulic brakes.
  • Hub assembly includes: L-25580 Inner Bearing, L-15123 Outer Bearing, SL-213 Grease Seal, SCP-100 Cotter Pin, DC-1520 Dust Cap, (6) STN-506 Lug Nuts
  • NOTE: This kit does not include the castle nut. You must use your existing nut for installation.

Key Specs

AttributeSpecification

item#

6909346

Brand

Rigid Hitch

Manufacturer's Warranty

5 year limited warranty

Ship Weight

34.0 LB

Studs (qty.)

6

Bolt Circle Pattern

5.5 in
AttributeSpecification

Weight Capacity Each

3,000 lb

Seal Size ID

2.13 in

Single-Lip

No

Double-Lip

Yes

Product Weight

34.0000 lb

Dimensions L x W x H (in.)

17.0 x 14.0 x 12.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
