Rigid Hitch, 10-Inch Hub and Drum Assembly, 5-Bolt on 4.5 Inch Bolt Circle, Works with 1-3/8 To 1-1/16 Tapered Spindles for a 3,500lb Axle, 1750lb Capacity per Hub, Includes EZ-Lube Cap and Plug, Model# HD-1000-04-EZ

Item# 6909311
Rigid Hitch, 10-Inch Hub and Drum Assembly, 5-Bolt on 4.5 Inch Bolt Circle, Works with 1-3/8 To 1-1/16 Tapered Spindles for a 3,500lb Axle, 1750lb Capacity per Hub, Includes EZ-Lube Cap and Plug, Model# HD-1000-04-EZ

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Rigid Hitch, 10-Inch Hub and Drum Assembly, 5-Bolt on 4.5 Inch Bolt Circle, Works with 1-3/8 To 1-1/16 Tapered Spindles for a 3,500lb Axle, 1750lb Capacity per Hub, Includes EZ-Lube Cap and Plug, Model# HD-1000-04-EZ

Click or Tap image to Zoom

$76.94

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

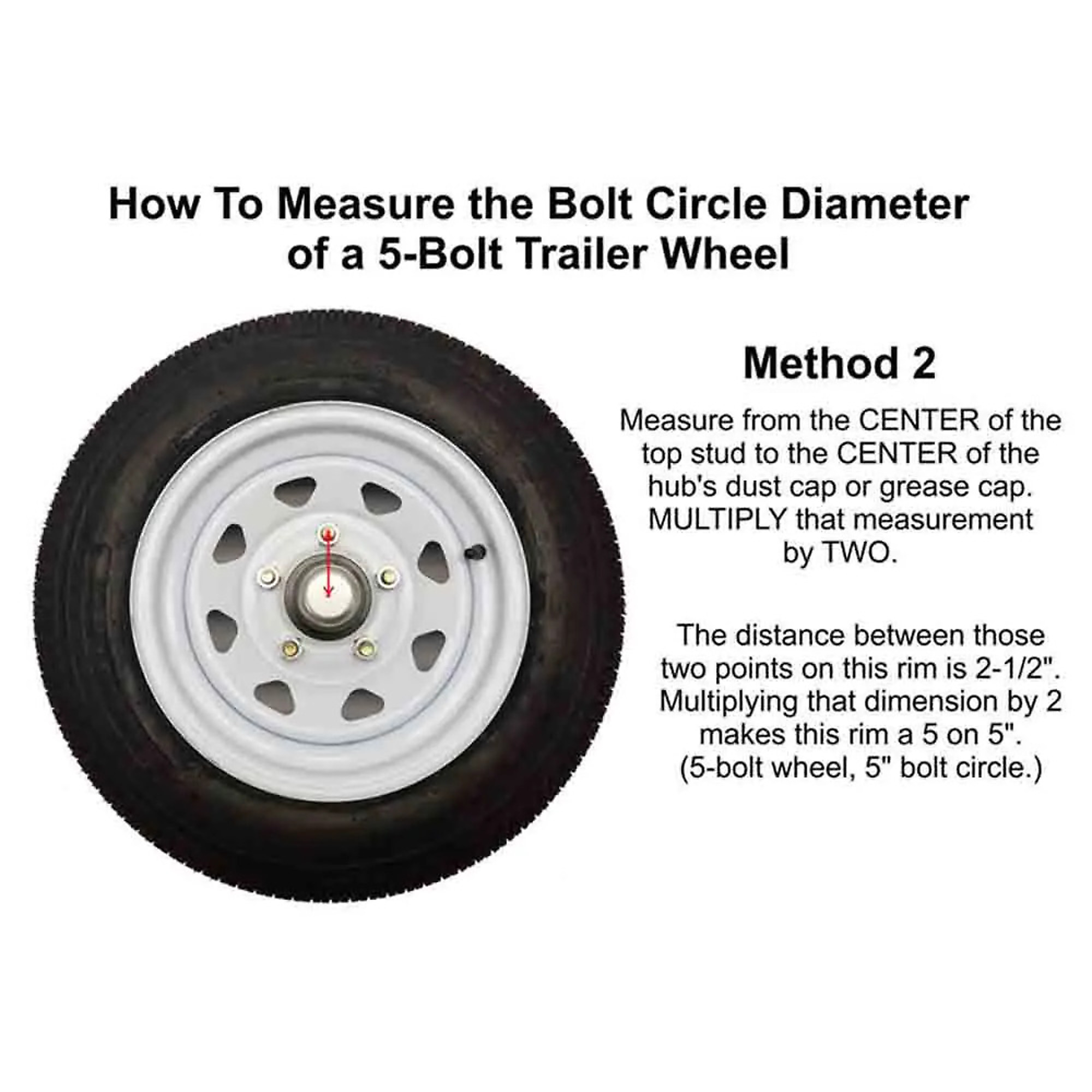

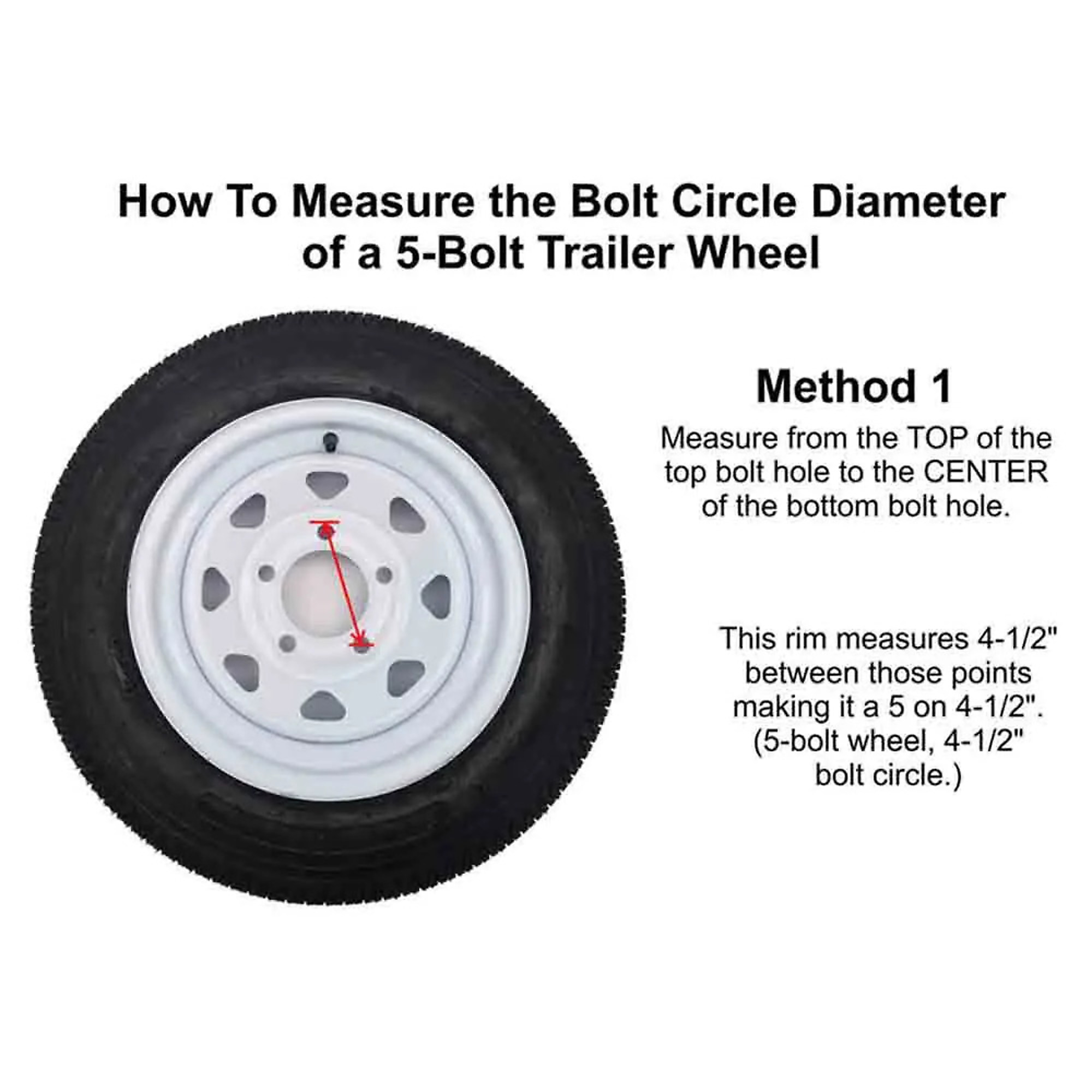

  • * * * Please measure your existing bolt pattern using attached instructions to ensure this 5 on 4-1/2" bolt circle hub is correct. * * *
  • Fits 3,500 lb. axles. Rated at 1,750 lbs per hub-drum
  • 5-bolt on 4-1/2" bolt circle with 1/2"-20 studs

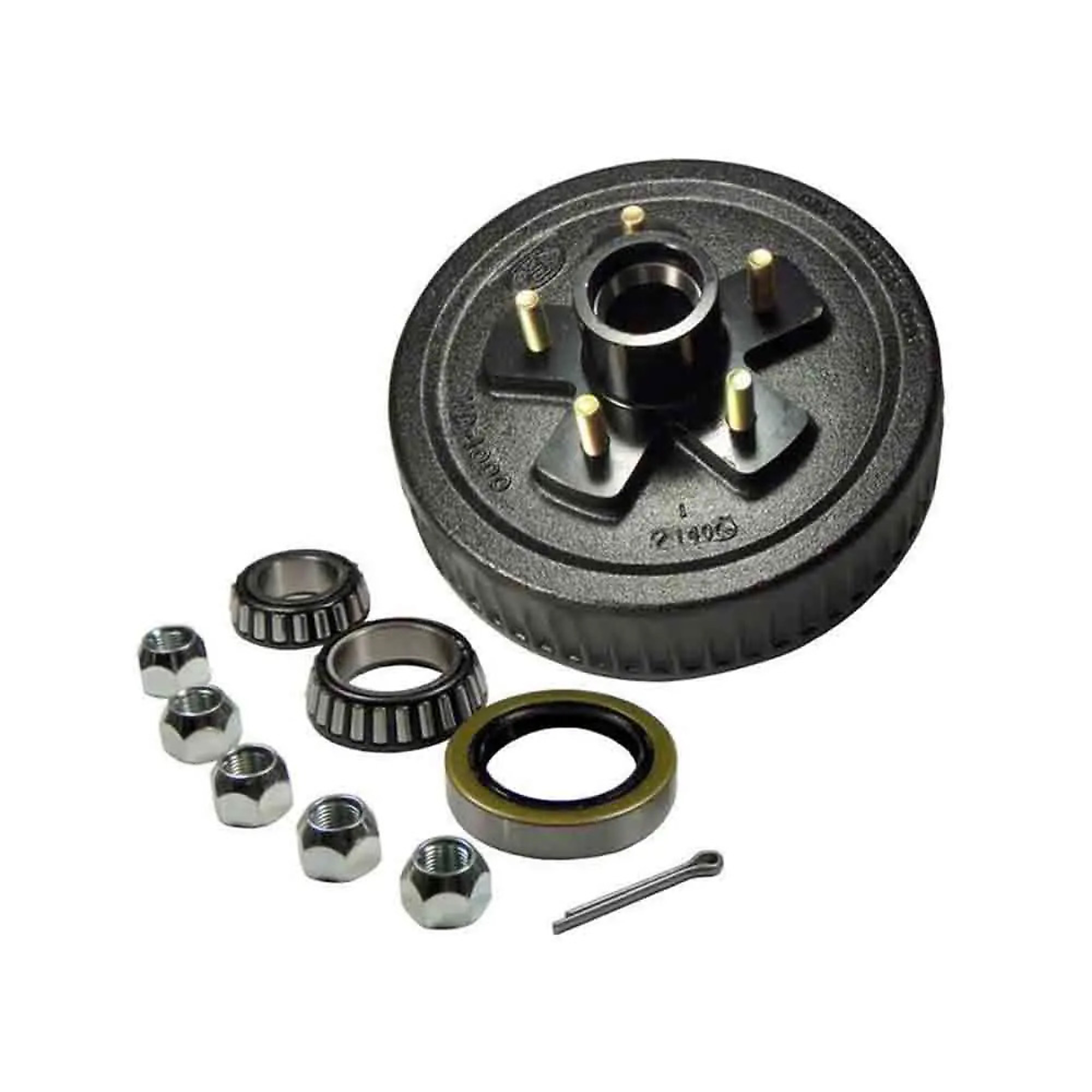

  • Complete assembly with bearings, seal, dust cap, cotter pin and lug nuts
  • 10" hub-drum assembly has 5-bolt pattern on 4-1/2" circle. 2½" deep inside for use with 10" x 2¼" electric or hydraulic brakes.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Rigid Hitch 10-Inch Hub and Drum Assembly is designed for optimal performance and reliability for your 3,500lb axle. It features a 5-bolt pattern on a 4.5in. bolt circle, making it compatible with 1-3/8in. to 1-1/16in. tapered spindles. With a hub capacity of 1,750lbs per hub, this assembly ensures robust support and stability for heavy-duty applications. The inclusion of an EZ-Lube cap and plug facilitates easy maintenance and lubrication, enhancing the longevity and efficiency of the hub and drum. Ideal for trailers and other axle-based equipment, this assembly combines durability with ease of use, making it a dependable choice for demanding tasks.

What's Included

    (1) Trailer Hub Kit

Features + Benefits

  • * * * Please measure your existing bolt pattern using attached instructions to ensure this 5 on 4-1/2" bolt circle hub is correct. * * *
  • Fits 3,500 lb. axles. Rated at 1,750 lbs per hub-drum
  • 5-bolt on 4-1/2" bolt circle with 1/2"-20 studs
  • Complete assembly with bearings, seal, dust cap, cotter pin and lug nuts
  • 10" hub-drum assembly has 5-bolt pattern on 4-1/2" circle. 2½" deep inside for use with 10" x 2¼" electric or hydraulic brakes.

Key Specs

AttributeSpecification

item#

6909311

Brand

Rigid Hitch

Manufacturer's Warranty

5 year limited warranty

Ship Weight

24.0 LB

Studs (qty.)

5

Bolt Circle Pattern

4.5 in
AttributeSpecification

Weight Capacity Each

1,750 lb

Seal Size ID

1.72 in

Single-Lip

No

Double-Lip

Yes

Product Weight

24.0000 lb

Dimensions L x W x H (in.)

16.0 x 15.0 x 6.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
