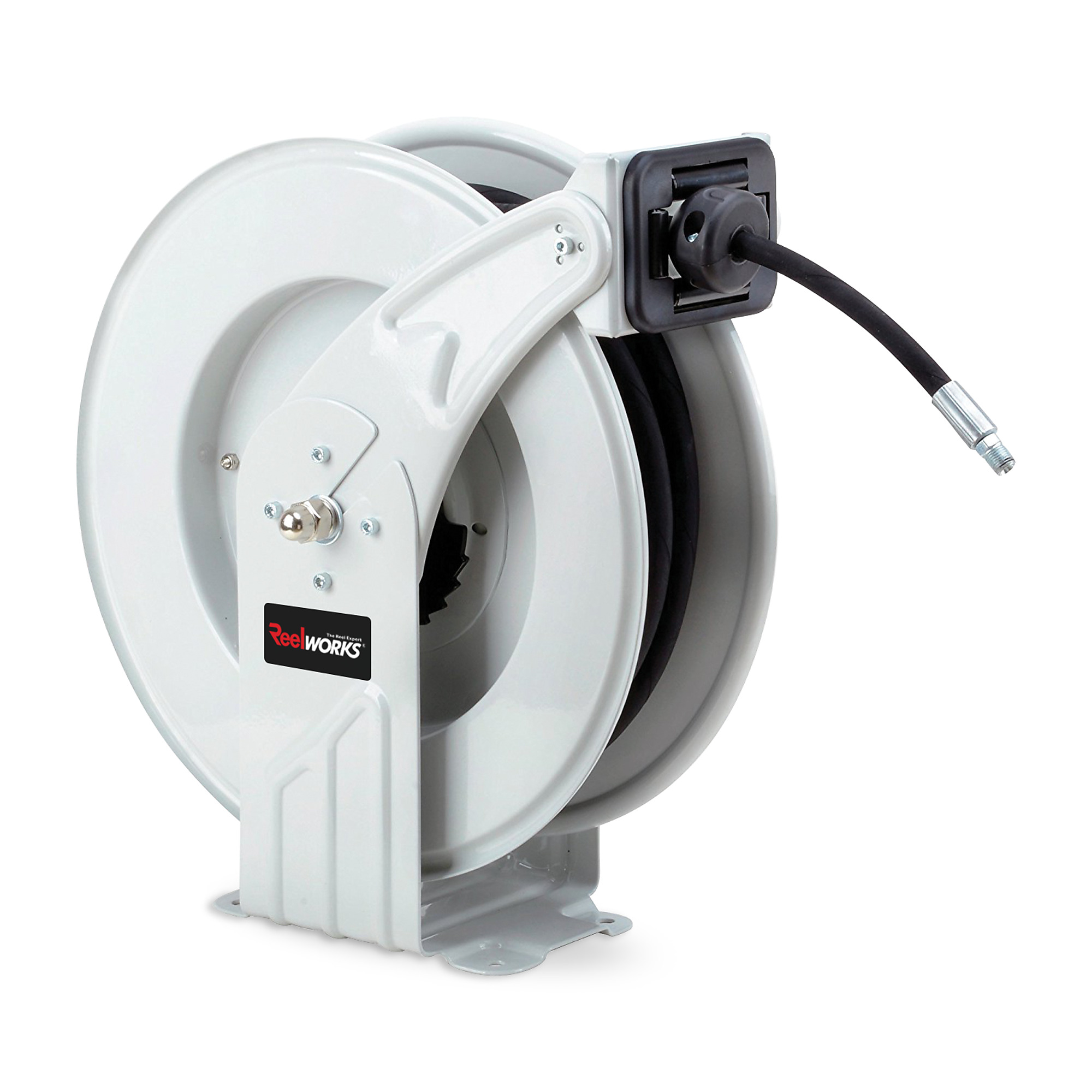

ReelWorks Retractable Grease Hose Reel — 1/4in. x 50ft., 5800 PSI, Heavy-Duty Steel, Model# TRI-H860152

Item# 6692837
ReelWorks Retractable Grease Hose Reel — 1/4in. x 50ft., 5800 PSI, Heavy-Duty Steel, Model# TRI-H860152

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ReelWorks Retractable Grease Hose Reel — 1/4in. x 50ft., 5800 PSI, Heavy-Duty Steel, Model# TRI-H860152

Click or Tap image to Zoom

$299.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

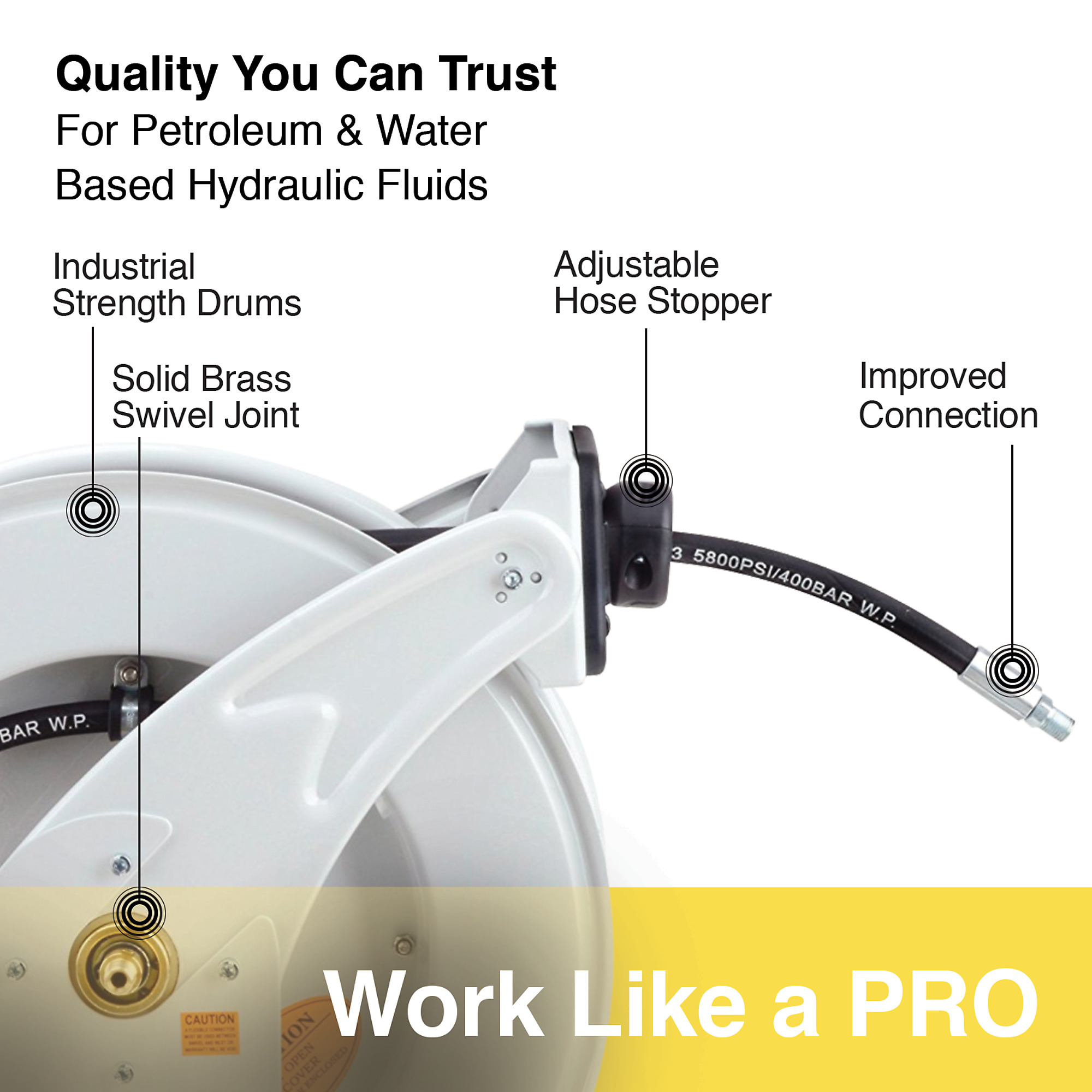

  • SPECIFICATIONS - This Reelworks Grease Hose Reel is crafted of heavy duty gauge industrial steel, heat treated w/ powder coating resisting against corrosion. Reinforced flanged edges, stamped steel dual guide arms & pedestal base all light weight & strong, ensuring optimal support. The Premium Commercial SAE.100R2AT Grease Hose is made of Nitrile, Neoprene & double high-tensile steel wire braid & has a working pressure of 5800PSI/400BAR w/ 1/4" (6.35m) MNPT connections for large volume delivery.

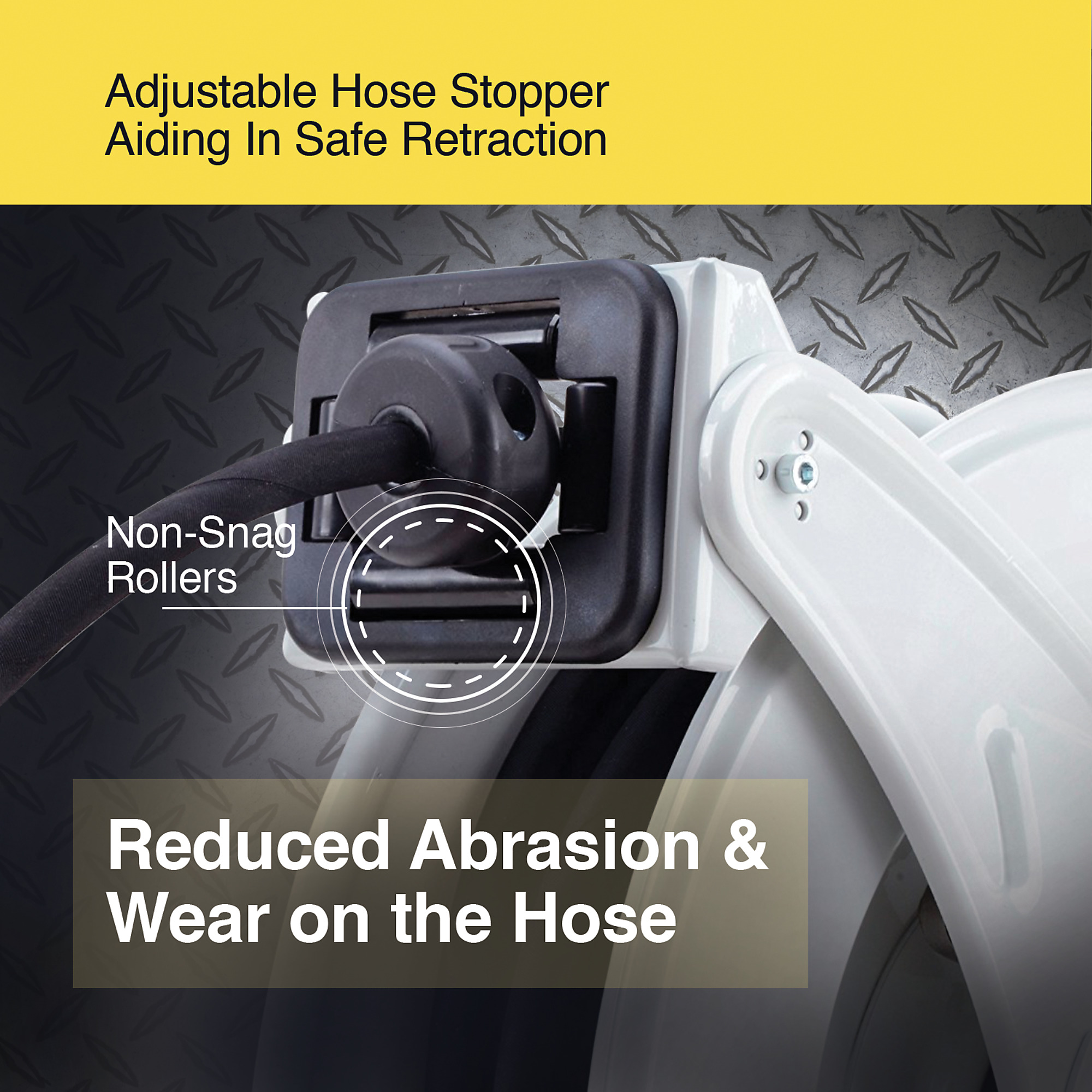

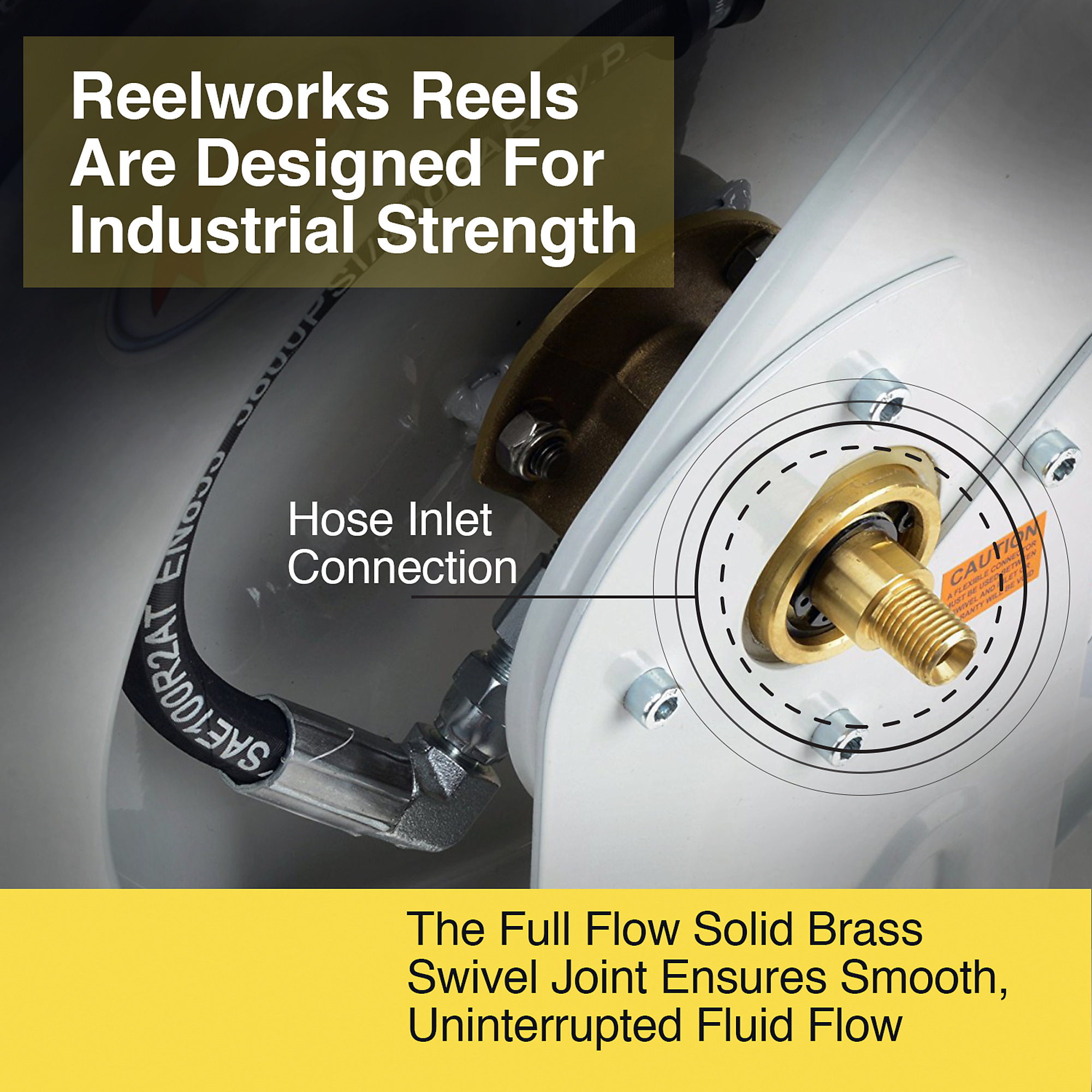

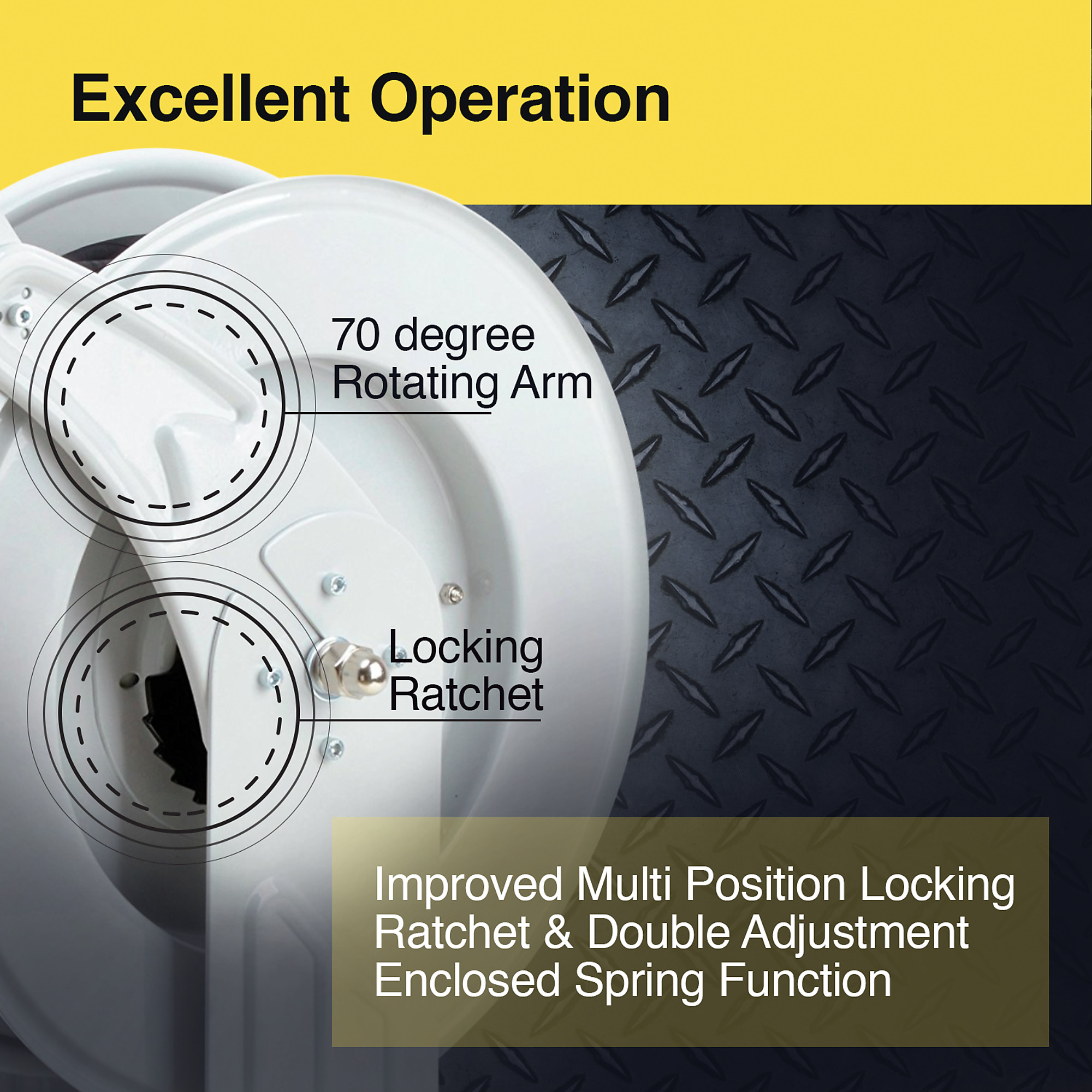

  • PRODUCT INTEGRITY - Utilizing double adjustment enclosed multi-position release ratchet spring, locking the hose at any desired length. Ball bearing swivel joint inlet connection protecting against leaks & reducing swivel spool & body friction, an Adjustable Hose Stopper & Non-Snag Rollers. Premium SAE.100R2AT Hose is Resistant to: Oils, acids, puncture resistance, abrasion, weather & works in the toughest conditions of -40°F to 212°F (-40°C to 100°C), for the best advantage to suit your needs.
  • SAFETY and PROPER USE - Our Reels are cull quality tested. Reelworks Reels are best suited for indoor/outdoor use, night/day, DIY or industrial applications allowing for extension to be up out of the way keeping the home/workplace safe. Includes bolts fitting the 1/2” (12.7mm) holes to mount, (lead-in hose not included). Grease Hose Reels are suitable for Petroleum & Water based hydraulic fluids (NOT AIR or FUELS).

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

REELWORKS Grease-Hose-Reel Retractable 1/4in. Inch x 50ft. Feet ELITE Long Premium Commercial SAE.100R2AT Hose MAX 5800 PSI Spring Driven Steel Construction Heavy Duty Industrial Dual Arm Pedestal, TRI-H860152. This Reelworks Grease Hose Reel is crafted of heavy-duty gauge industrial steel, heat-treated w/powder coating resisting against corrosion. Reinforced flanged edges, stamped steel dual guide arms pedestal base all lightweight strong, ensuring optimal support. The Premium Commercial SAE.100R2AT Grease Hose is made of Nitrile, Neoprene double high-tensile steel wire braid has a working pressure of 5800PSI/400BAR w/ 1/4in. (6.35m) MNPT connections for large volume delivery. Utilizing double adjustment enclosed multi-position release ratchet spring, locking the hose at any desired length. A ball bearing swivel joint inlet connection protecting against leaks reducing swivel spool body friction, an Adjustable Hose Stopper Non-Snag Rollers. Premium SAE.100R2AT Hose is Resistant to: Oils, acids, puncture resistance, abrasion, weather works in the toughest conditions of -40°F to 212°F (-40°C to 100°C), for the best advantage to suit your needs. Our Reels are cull quality tested. Reelworks Reels are best suited for indoor/outdoor use, night or day, DIY or industrial applications allowing for extension to be up out of the way keeping the home/workplace safe. Includes bolts fitting the 1/2” (12.7mm) holes to mount, (lead-in hose not included). Grease Hose Reels are suitable for Petroleum Water based hydraulic fluids (NOT AIR).

What's Included

    (1) Retractable Grease Hose Reel

Features + Benefits

  • SPECIFICATIONS - This Reelworks Grease Hose Reel is crafted of heavy duty gauge industrial steel, heat treated w/ powder coating resisting against corrosion. Reinforced flanged edges, stamped steel dual guide arms & pedestal base all light weight & strong, ensuring optimal support. The Premium Commercial SAE.100R2AT Grease Hose is made of Nitrile, Neoprene & double high-tensile steel wire braid & has a working pressure of 5800PSI/400BAR w/ 1/4" (6.35m) MNPT connections for large volume delivery.
  • PRODUCT INTEGRITY - Utilizing double adjustment enclosed multi-position release ratchet spring, locking the hose at any desired length. Ball bearing swivel joint inlet connection protecting against leaks & reducing swivel spool & body friction, an Adjustable Hose Stopper & Non-Snag Rollers. Premium SAE.100R2AT Hose is Resistant to: Oils, acids, puncture resistance, abrasion, weather & works in the toughest conditions of -40°F to 212°F (-40°C to 100°C), for the best advantage to suit your needs.
  • SAFETY and PROPER USE - Our Reels are cull quality tested. Reelworks Reels are best suited for indoor/outdoor use, night/day, DIY or industrial applications allowing for extension to be up out of the way keeping the home/workplace safe. Includes bolts fitting the 1/2” (12.7mm) holes to mount, (lead-in hose not included). Grease Hose Reels are suitable for Petroleum & Water based hydraulic fluids (NOT AIR or FUELS).

Key Specs

AttributeSpecification

item#

6692837

Brand

ReelWorks

Manufacturer's Warranty

1 year limited warranty

Ship Weight

54.0 LB

Fitting Size

1/4 in

Max. PSI

5,800

Hose Length

600 in
AttributeSpecification

Material

Rubber

Product Type

Other

Swivel

No

Storage Case Included

No

Length

600 in

Product Weight

51.6000 lb

Dimensions L x W x H (in.)

17.5 x 8.5 x 19.8 in
