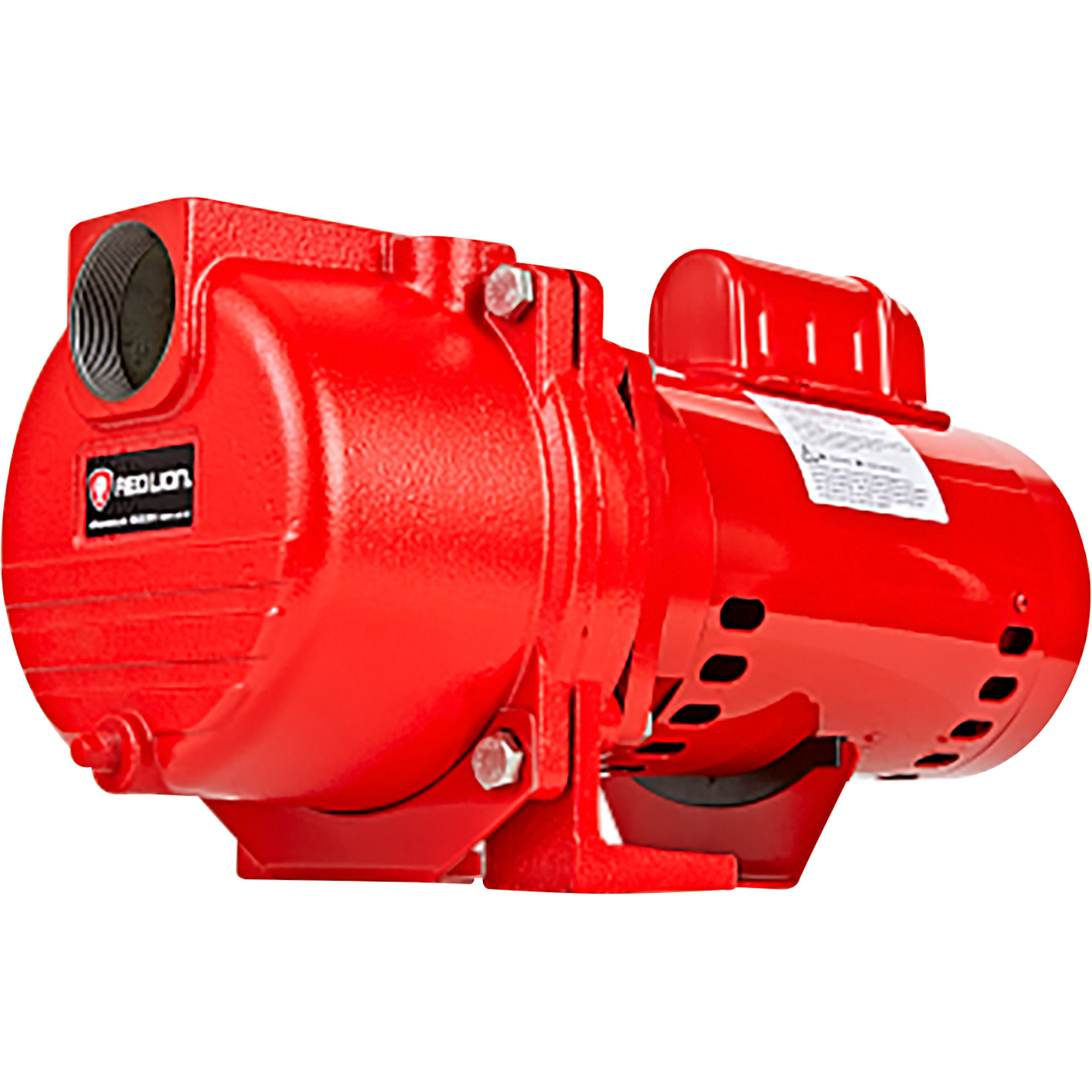

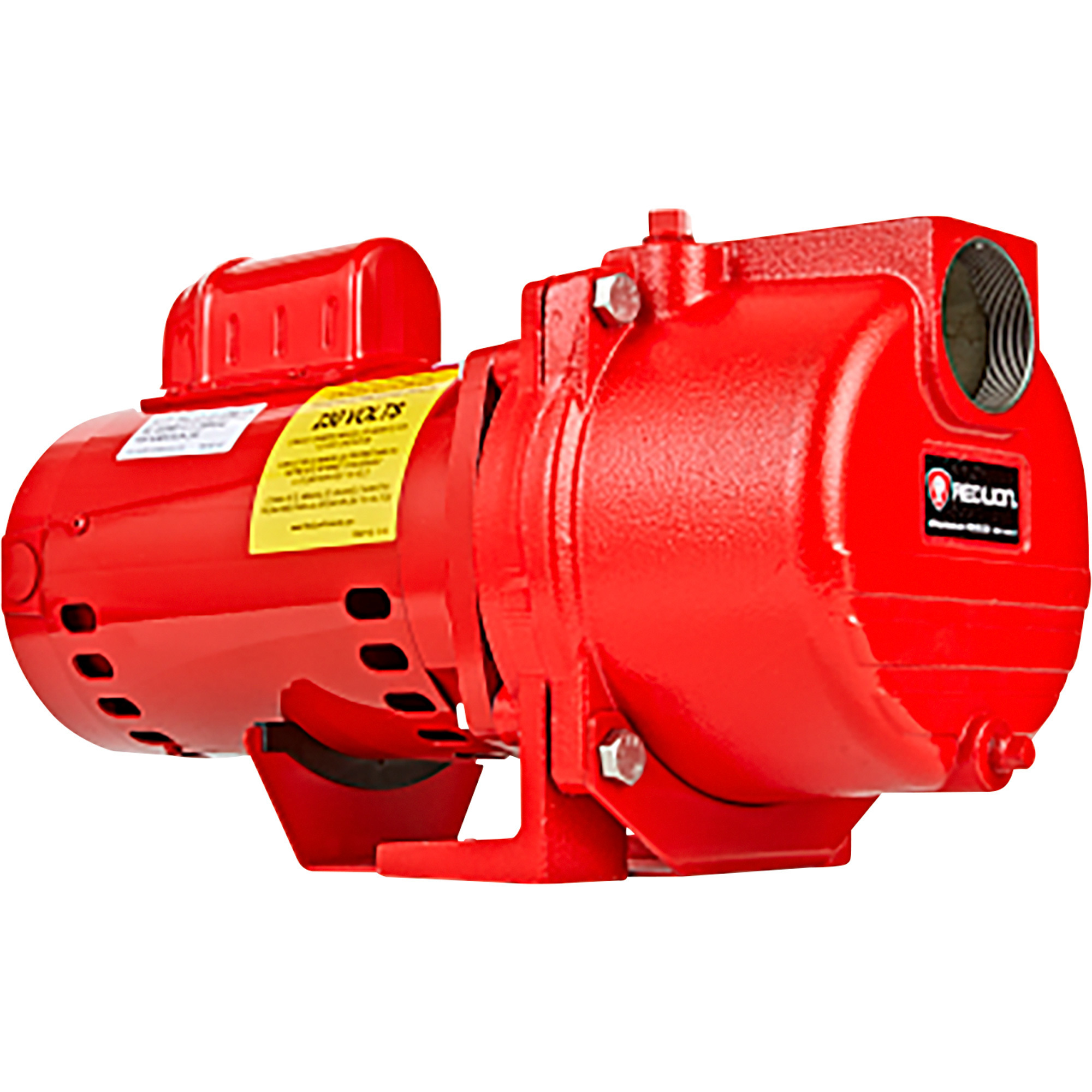

Red Lion Cast Iron Sprinkler Pump, 4,260 GPH, 1.5 HP, 2in. and 1 1/2in. Ports, Model# RL-SPRK150

Item# 81303
Red Lion Cast Iron Sprinkler Pump, 4,260 GPH, 1.5 HP, 2in. and 1 1/2in. Ports, Model# RL-SPRK150

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Red Lion Cast Iron Sprinkler Pump, 4,260 GPH, 1.5 HP, 2in. and 1 1/2in. Ports, Model# RL-SPRK150

Click or Tap image to Zoom

  • Heavy-duty cast iron casing and seal plate for years of service and reliability
  • 115/230 dual voltage operation
  • High-efficiency impeller and diffuser for high-performance and efficient water flow
  • 2in. suction and 1 1/2in. discharge ports help prevent debris from clogging impellers and maintain full-flow performance
  • Easy to prime up to 25ft., no additional priming required after initial fill

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Red Lion Cast Iron Sprinkler Pump is ideal for both residential and commercial lawn and turf sprinkling systems.

What's Included

    (1) Cast iron sprinkler pump

Downloads

Product Manual

Features + Benefits

  • Heavy-duty cast iron casing and seal plate for years of service and reliability
  • 115/230 dual voltage operation
  • High-efficiency impeller and diffuser for high-performance and efficient water flow
  • 2in. suction and 1 1/2in. discharge ports help prevent debris from clogging impellers and maintain full-flow performance
  • Easy to prime up to 25ft., no additional priming required after initial fill

Key Specs

AttributeSpecification

item#

81303

Brand

Red Lion

Manufacturer's Warranty

2 year limited warranty

Ship Weight

65.0 LB

Max. Flow

4,260 GPH

Horsepower

1.5 HP

Port Size

2 in
AttributeSpecification

Self-Priming

Yes

Volts

115/230

Max. PSI

44 PSI

Max. Total Head

100 ft

Max. Suction Lift

25 ft

Product Weight

29.0000 lb

Dimensions L x W x H (in.)

11.5 x 22.0 x 12.25 in

Reviews

Questions & Answers

16 Reviews This action will navigate to reviews.

Questions

1–10 of 18 Questions
Sort by:

  1. It states that the pump can be 130/240. What would be the differences in gpm if ran at the lower voltage.

    1. No difference, the pump runs the same - when you double the voltage it cuts the amperage in half - so it runs slightly cooler.

      Helpful?

    2. The flow rate for the pump would not change.

      Helpful?

  2. Is this pump a single ph or a 3 ph?

    1 answer

    1. The pump would be single phase.

      Helpful?

  3. do i need any special hockup to set this up

    1 answer

    1. This will require wiring by a professional electrician. This is factory set for 230 Volts. A 2" suction hose and 1-1/2" discharge hose will be needed. Please view item #49622 for the suction hose. Please view item #4962 for a discharge hose.

      Helpful?

  4. Is there a warranty on Red Lion model RL-SPRK 150

    1 answer

    1. The pump will come with a 2 year limited warranty through the manufacturer.

      Helpful?

  5. how many amps does it take to run it

    1 answer

    1. This pump requires 18.6 amps for 115 volts, and 9.3 amps for a 230 volt set up.

      Helpful?

  6. would this pump work with unfiltered pond water

    1 answer

    1. This pump should not be used without the use a filter or strainer.

      Helpful?

  7. Where's the pump curve?

    1 answer

    1. Please see page 8 in the product manual for a loss of head chart per 100' of pipe. The manual can be found on this item's specifications page. For a full pump curve, please contact the manufacturer directly.

      Helpful?

  8. Does this pump need a filter to prevent damage if so what do you use?

    1 answer

    1. This will require a filter. A foot valve that includes a strainer can be used. If using as a well pump, a steel well point such as item #108107 would work as it features a size 80 mesh opening.

      Helpful?

  9. if I use 115v on the pump, what is the recommended amp breaker is required? Thanks.

    1 answer

    1. The sprinkler pump would require a minimum of a 25 amp breaker for wiring at 115 volt. You would want to check with your local code requirements.

      Helpful?

  10. Manual states that pump must be operated in dry environment. Does this mean it cannot be install outdoors without a cover?

    1 answer

    1. The pump has a open fan cooled motor. It would require a cover to protect if from the elements.

      Helpful?
