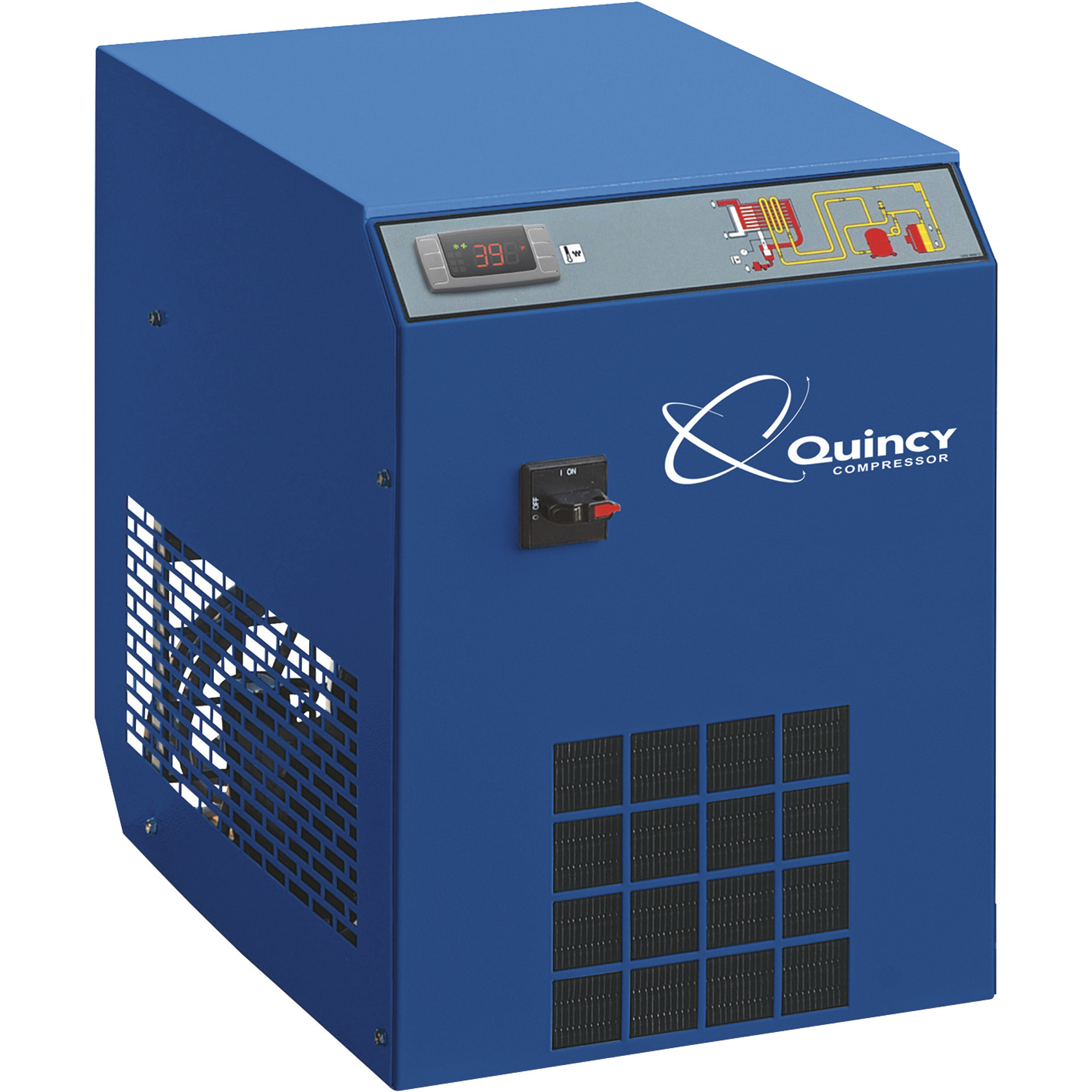

Quincy Refrigerated Air Dryer, Non-Cycling, 30 CFM, 115 Volt, Single Phase, Model# QPNC-30

Item# 106322
Quincy Refrigerated Air Dryer, Non-Cycling, 30 CFM, 115 Volt, Single Phase, Model# QPNC-30

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Refrigerated Air Dryer, Non-Cycling, 30 CFM, 115 Volt, Single Phase, Model# QPNC-30

Click or Tap image to Zoom

$1935.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 30 CFM
  • 1/2in. NPT
  • 232 max PSIG
  • Run/alarm indicator lights
  • Integrated moisture separator and zero loss drain

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy Refrigerated Air Dryers purify compressed air by chilling it to +39°F. This causes entrained moisture to condense. Condensed moisture carries airborne dirt and oil to the separator where it is removed from the air stream by an automatic drain.
Non-Cycling -- Best suited for smaller systems expecting fairly constant loads. These units use a 2-stage heat exchanger to maintain consistent dew points. Freeze-ups are prevented and optimum performance is maintained.

What's Included

    (1) Quincy Refrigerated Air Dryer -- Non-Cycling

Features + Benefits

  • 30 CFM
  • 1/2in. NPT
  • 232 max PSIG
  • Run/alarm indicator lights
  • Integrated moisture separator and zero loss drain
  • Analyzer gauge
  • Schematic
  • Stop/start switch with lock out
  • +39°F pressure dew point
  • UL listed

Key Specs

AttributeSpecification

item#

106322

Brand

Quincy Compressor

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

60.0 LB

Max. Flow Rate

30 cfm

Volts

115

Air Inlet Size

1/2 in

Max. Temperature

131 °F
AttributeSpecification

Dew Point

39 °F

Watts

190

Filter Type

Coalescing

Adjustable

Yes

Environmentally Friendly

Yes

Product Weight

74.0000 lb

Dimensions L x W x H (in.)

21.0 x 15.0 x 25.0 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. What are the dimensions of tge machine?

    1 answer

    1. The dimensions of the air dryer are 19" L x 14" W x 18" H.

      Helpful?

  2. Does it auto cycle the condensed water out or do I have to do it manually

    1 answer

    1. This refrigerated air dryer has an automatic condensate drain.

      Helpful?

  3. Can I use a 1" air gun with this unit

    1 answer

    1. This is just an air dryer, it does not include an air compressor.

      Helpful?

  4. If I have a portable diesel air compressor of 185 CFM connect to this air dryer, would it work?

    1 answer

    1. The compressor that is hooked up to the air dryer can not exceed 30 CFM.

      Helpful?

  5. Can i run two different compressors through this at the same time? I have one supplying my booth and one in the main shop.

    1 answer

    1. Two compressors can be connected to this air dryer and run at the same time, as long as they do not exceed the 30 CFM rating combined.

      Helpful?

  6. Would this be the ideal model for a 7.5 hp Quincy?

    1 answer

    1. This is suitable for use with a 7.5 HP. Quincy air compressor or any brand and model that is under 30 cfm and 232 psi.

      Helpful?

  7. What is the Amperage draw @ 115V single-phase?

    1 answer

    1. The amperage draw will be approximately 1.74 amps. It will have a KW draw of 0.2 KW.

      Helpful?

  8. What is the operating psi?

    1 answer

    1. The air dryer can operate at up to 232 maximum PSI. The operating PSI would be determined by the PSI that is set on your air compressor.

      Helpful?

  9. Where is it made?

    1 answer

    1. This Quincy air dryer is made in Italy.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
