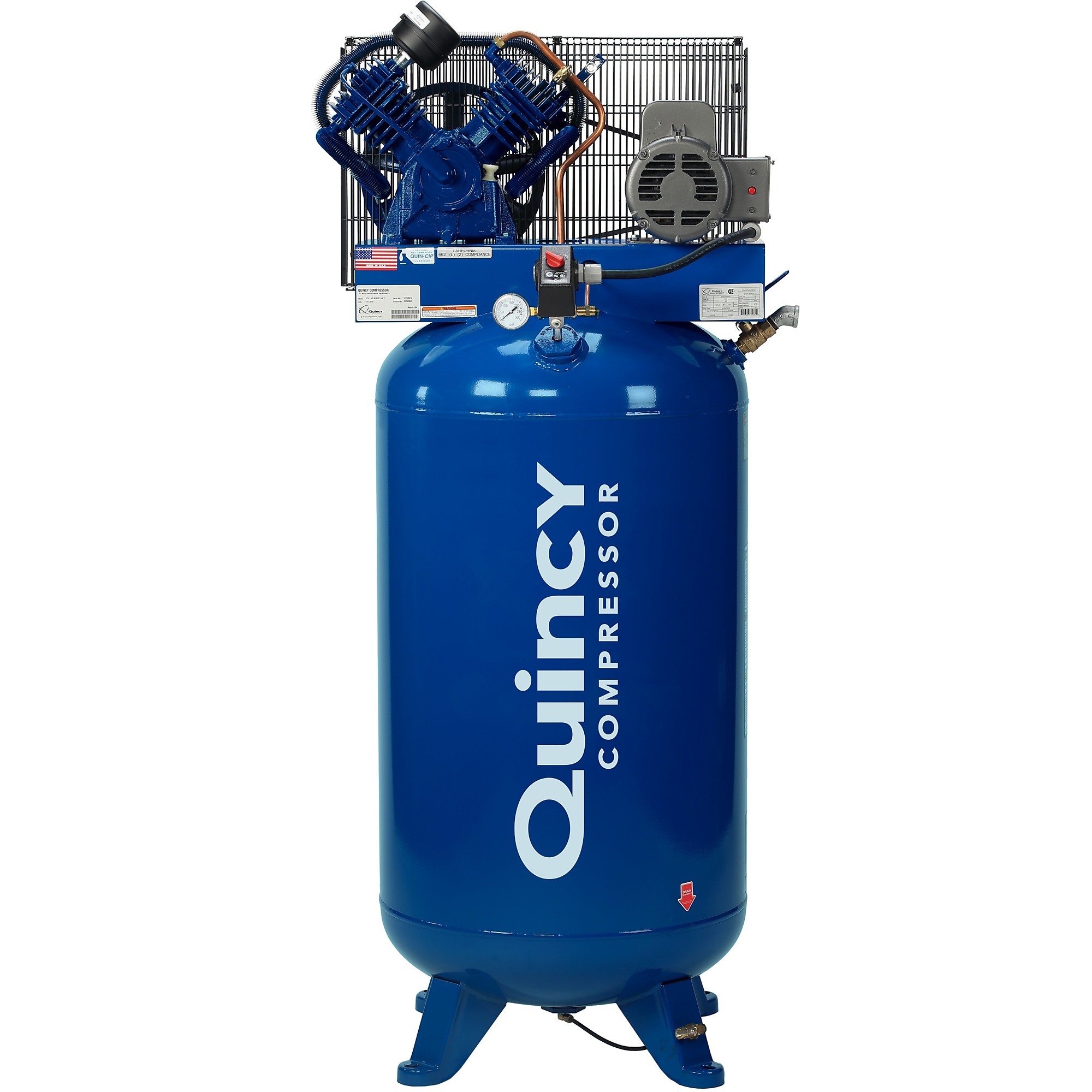

Quincy Compressor QT-54 Air Compressor — 80-Gal., 230V, 5 HP, Model# 2021120137

Item# 6571912
Quincy Compressor QT-54 Air Compressor — 80-Gal., 230V, 5 HP, Model# 2021120137

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Compressor QT-54 Air Compressor — 80-Gal., 230V, 5 HP, Model# 2021120137

Click or Tap image to Zoom

$2379.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Heavy Duty Made in the USA Baldor Motor
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 135-175 working PSI
  • 50,000+ Hours Pump Life
  • Heavy duty 4-cylinder cast iron two-stage pump design

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy reciprocating air compressors are designed to be a compressor for life. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower. They run at a slower RPM, run cooler and cost less to operate. The compressor boasts a 50,000-hour pump life rating. Includes a heavy duty 4 cyclinder cast iron two stage pump and Made in the USA premium Baldor 56 frame motor. One-year limited warranty without extended warranty kit purchase. Purchase an extended warranty kit (Item# 42626) at the same time (on the same receipt) as your Quincy air compressor and it will double the package warranty to 2 years and triple the pump warranty to 3 years (on-site parts and labor included).

What's Included

    (1) QUINCY QT-54 80GAL-230V RECIP AIR COMPRESSOR

Features + Benefits

  • Heavy Duty Made in the USA Baldor Motor
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 135-175 working PSI
  • 50,000+ Hours Pump Life
  • Heavy duty 4-cylinder cast iron two-stage pump design
  • Splash lubricated
  • Heavy-duty, easy-to-reach, manual ball valve
  • 2-stage belt drive pump with solid cast iron cylinder
  • Motor RPM: 3450
  • Finned tube intercooler for maximum cooling and increased valve life
  • Aluminum head for heat dissipation
  • Extra-capacity oil reservoir for low oil temperatures
  • Cast iron fly wheel for energy efficiency and durability
  • 100% duty cycle
  • ASME-coded pressure relief valves and steel tanks
  • UL & CSA approval on all electrical components
  • Ships in heavy-duty protective crate with oil in the pump.
  • Additional charge for liftgate shipping option.
  • Quincy recommends a 50 Amp circuit breaker along with properly sized wire.
  • Installations may vary but all electrical work should be done through a licensed electrician.

Key Specs

AttributeSpecification

item#

6571912

Brand

Quincy Compressor

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

417.0 LB

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

15.4

Motor Phase

1

Stage

2

Tank Orientation

Vertical

Horsepower

5 HP

Max. PSI

175

Amps

24

Duty Cycle

100 %

Motor RPM

3,450

Working Pressure

135-175 PSI
AttributeSpecification

Engine Start Type

Electric

Pump Life

50,000 hr

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1/2 in. NPT

CFM at 40 PSI

15.6

CFM at Max. PSI

15.2

Noise Level

80 dB

Oil Required

Yes

Lubrication System

Splash

Tank Fill Time

6.5 min

Air Dryer

None

Drain Type

Manual

Product Weight

395.0000 lb

Dimensions L x W x H (in.)

25.69 x 31.29 x 68.75 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Is this compressor come with oil filed?

    1 answer

    1. This compressor is shipped from the factory with oil, but it is still recommended to check the oil level prior to operating it.

      Helpful?

  2. What is the duty cycle of this compressor?

    1 answer

    1. The air compressor has a 100% duty cycle.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
