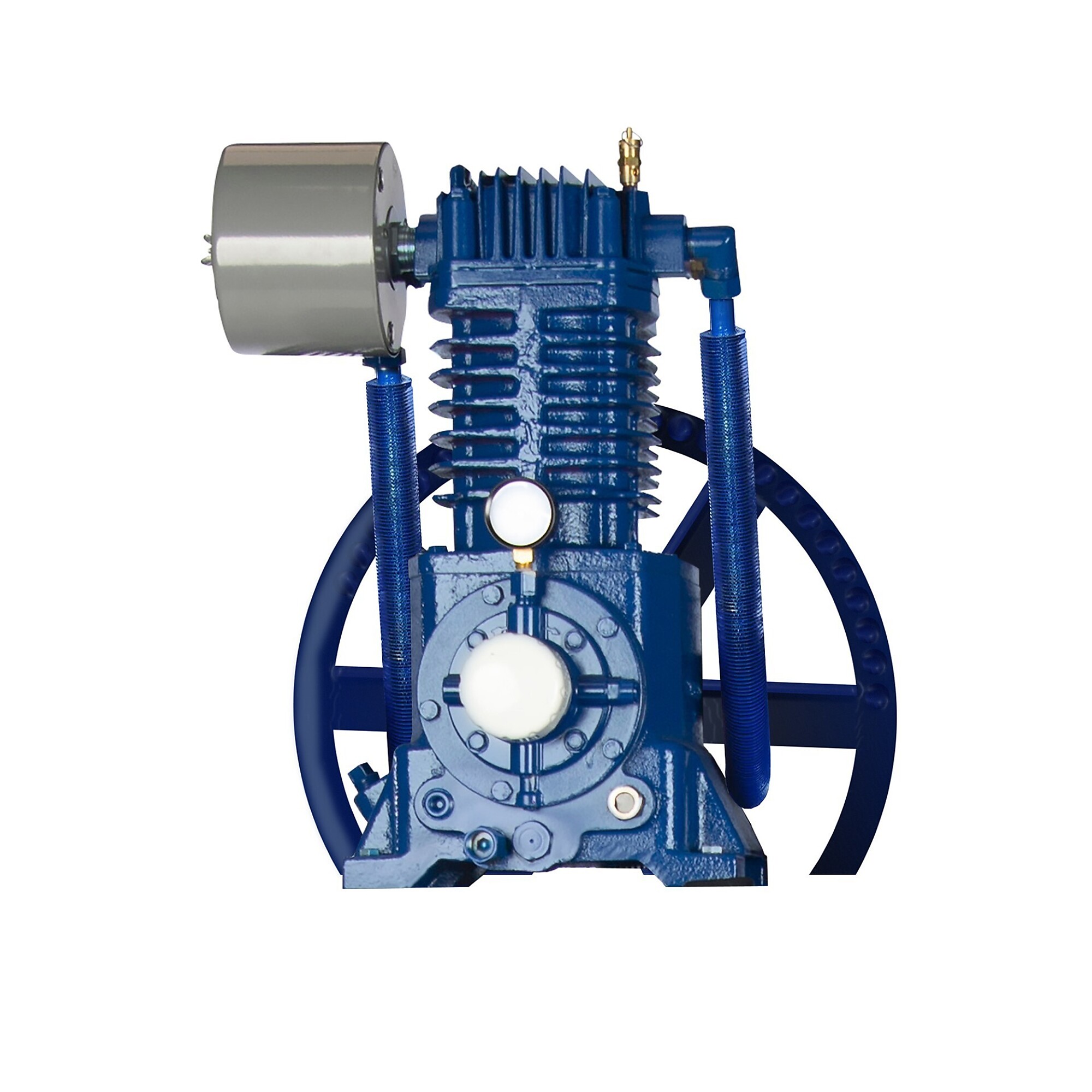

Quincy QP-1 Cast Iron Two-Stage Pump, Model# 2020040309

Item# 7513386
New
Quincy QP-1 Cast Iron Two-Stage Pump, Model# 2020040309

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy QP-1 Cast Iron Two-Stage Pump, Model# 2020040309

Click or Tap image to Zoom

$2399.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • QP-1 Pump
  • Cast Iron
  • Industrial Two-Stage
  • 4.5 “low pressure bore and a 2.5“ high pressure bore, with a 3.5“ stroke
  • 400-1200 RPM

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy QP-1 cast iron industrial two stage pump is for a 2-cylinder air-cooled pressure lubricated compressor, with up to 175 psi continuous pressure capability.  We use a gearmotor positive displacement oil pump with an oil filter for strenuous applications.  It has a 4.5 “low pressure bore and a 2.5“ high pressure bore, with a 3.5“ stroke.  This compressor can be run anywhere between 400 and 1200 RPM.  Comes with a B-section 2 groove 18.9“ flywheel.

What's Included

    (1) Quincy QP-1 Cast Iron Two-Stage Pump, Model# 2020040309

Features + Benefits

  • QP-1 Pump
  • Cast Iron
  • Industrial Two-Stage
  • 4.5 “low pressure bore and a 2.5“ high pressure bore, with a 3.5“ stroke
  • 400-1200 RPM

Key Specs

AttributeSpecification

item#

7513386

Brand

Quincy Compressor

Manufacturer's Warranty

3 month limited warranty

Ship Weight

167.0 LB

Material

Cast Iron
AttributeSpecification

Stage

2

Recommended Use

Air Compressor

Max. PSI

175

Product Weight

142.0000 lb

Dimensions L x W x H (in.)

30.0 x 22.5 x 23.75 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 month limited warranty
