Product Summary

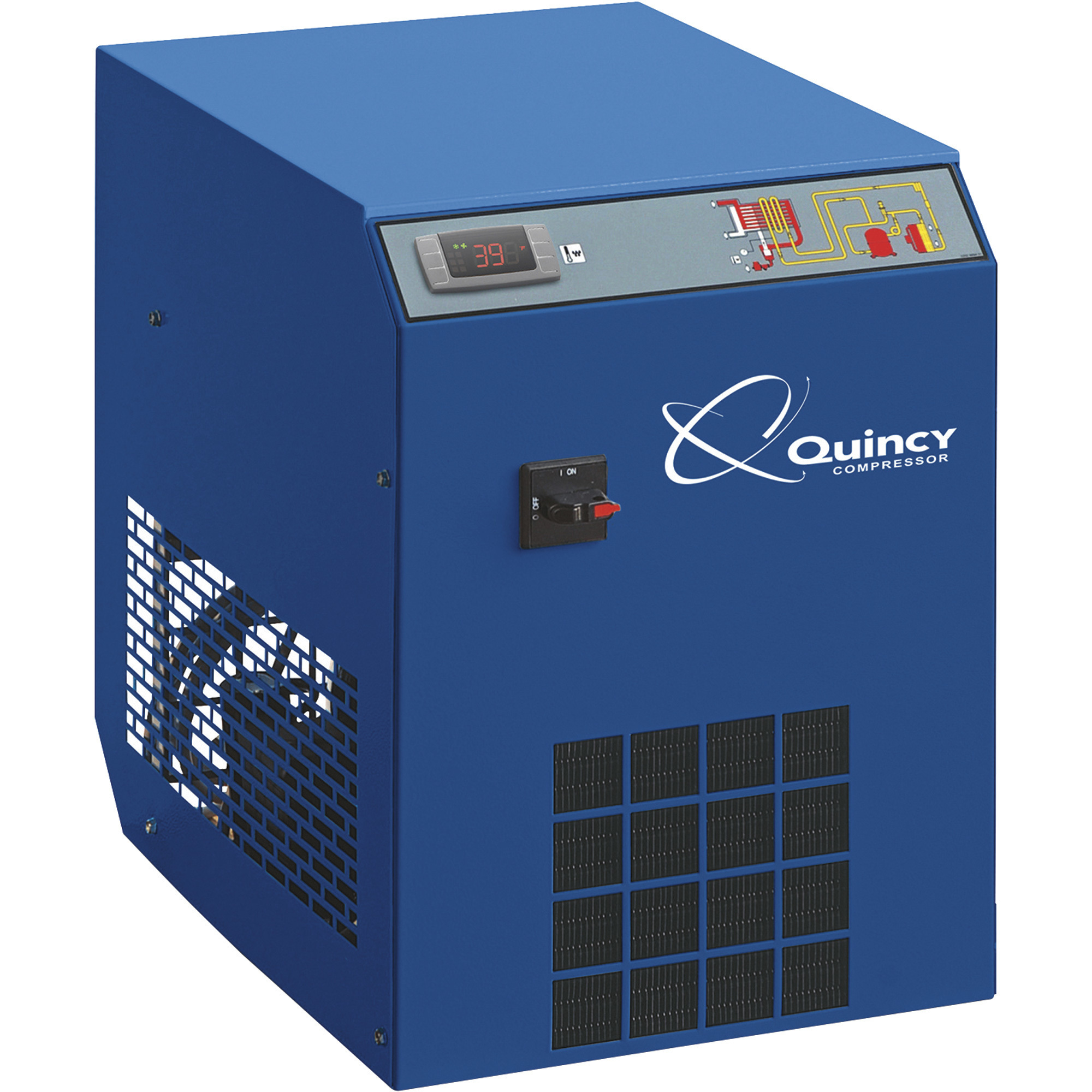

Quincy Non-Cycling Refrigerated Air Dryer uses a two-stage heat exchanger system to maintain consistent dew points. Temperature of the compressed air is reduced to approximately +39°F to condense moisture. Moisture is then removed from the system by an integrated moisture separator and zero loss drain. The dry condensed air is then reheated by warm incoming air and is then ready for delivery to downstream products.

What's Included

    (1) Non-cycling refrigerated air dryer

Features + Benefits

  • 13 CFM airflow @ 100 PSI
  • Zero loss electric drain for energy savings
  • Integrated moisture separator
  • Low-pressure drop over dryer
  • Digital dew point display
  • Environmentally safe refrigerant
  • 232 PSIG max. pressure
  • 1/2in. NPT connection
  • UL listed

Key Specs

AttributeSpecification

item#

106320

Brand

Quincy Compressor

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

57.0 LB

Max. Flow Rate

13 cfm

Volts

115

Air Inlet Size

1/2 in

Max. Temperature

131 °F
AttributeSpecification

Dew Point

39 °F

Watts

160

Filter Type

Coalescing

Adjustable

Yes

Environmentally Friendly

Yes

Product Weight

74.0000 lb

Dimensions L x W x H (in.)

21.0 x 15.0 x 25.0 in

Warranty

Manufacturer's Warranty

12 months parts/12months labor
