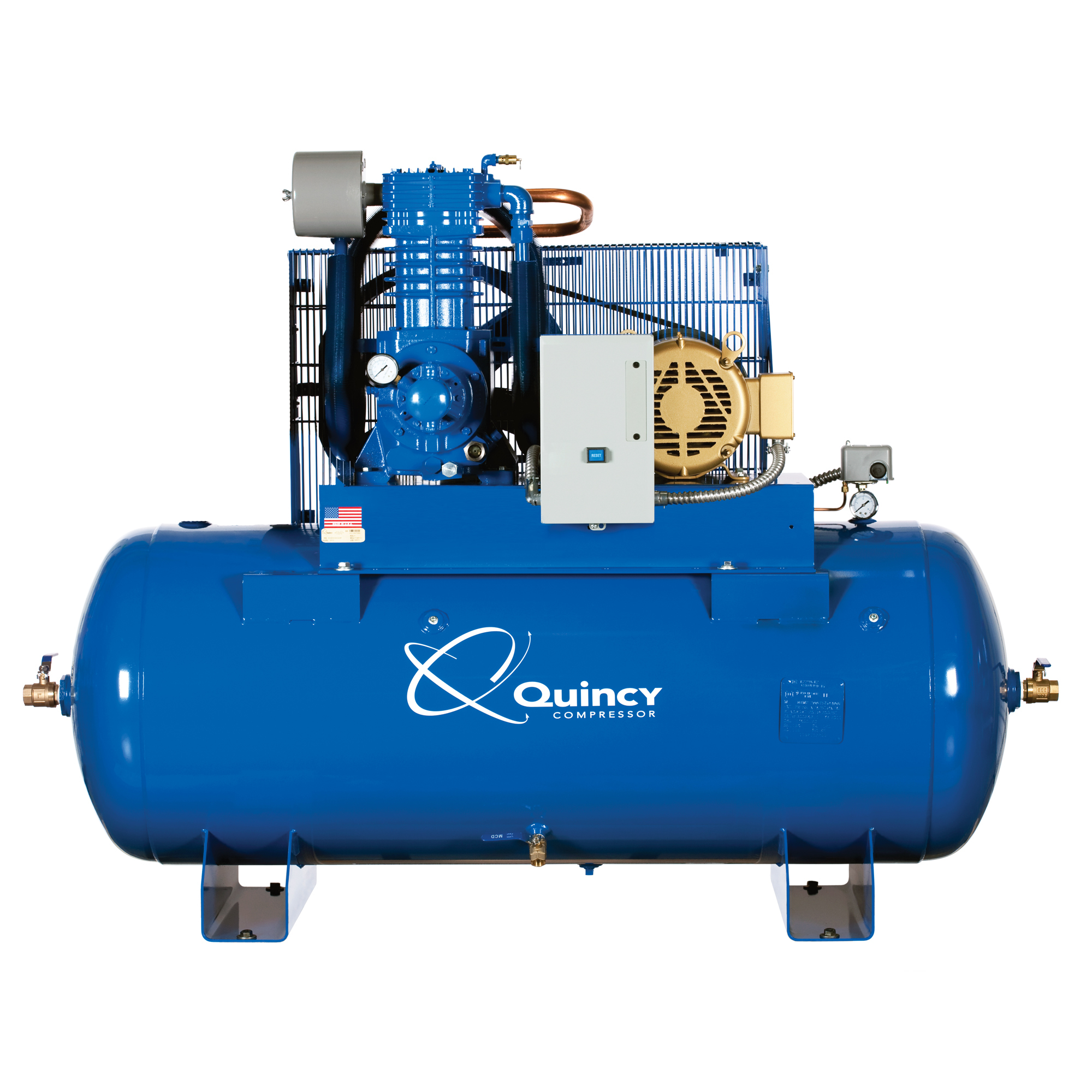

Quincy Compressor, QT 5H 80G 2Stg Air Compressor 230V 1ph H MAX, Horsepower 5 HP, Air Tank Size 80 Gal, Volts 230 Model# 451C80HCBM

Item# 5778444
Quincy Compressor, QT 5H 80G 2Stg Air Compressor 230V 1ph H MAX, Horsepower 5 HP, Air Tank Size 80 Gal, Volts 230 Model# 451C80HCBM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Compressor, QT 5H 80G 2Stg Air Compressor 230V 1ph H MAX, Horsepower 5 HP, Air Tank Size 80 Gal, Volts 230 Model# 451C80HCBM

Click or Tap image to Zoom

$4699.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • Industrial-duty motor
  •  Industrial-duty general-purpose mounted and wired magnetic starter
  •  Less than 5 PPM oil carry-over (blow-by) rating
  •  Finned tube intercooler for maximum cooling and increased valve life

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy QT reciprocating air compressors are designed to be a compressor for life. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower. They run at a slower RPM, run cooler and cost less to operate. Heavy-duty compressors are engineered for industrial applications and boast an industry-leading 50,000-hour pump life rating. MAX configuration features automatic tank drain, low oil shutdown and heavy-duty aftercooler included. Purchase an extended warranty kit at the same time (on the same receipt) as your Quincy 80-gallon air compressor and it will double the package warranty to 2 years and triple the pump warranty to 3 years (on-site parts and labor included). Made in U.S.A.

What's Included

    (1) Quincy QT 5-HP 80 Gallon Two-Stage Air Compressor (230V-1-Phase) Horizontal MAX

Features + Benefits

  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • Industrial-duty motor
  •  Industrial-duty general-purpose mounted and wired magnetic starter
  •  Less than 5 PPM oil carry-over (blow-by) rating
  •  Finned tube intercooler for maximum cooling and increased valve life
  • Aluminum head for heat dissipation
  • Extra-capacity oil reservoir for low oil temperatures
  • Cast iron fly wheel for energy efficiency and durability
  •  100% duty cycle
  •  Splash lubrication
  • Low oil shutdown
  • Heavy-duty aftercooler
  • UL & CSA approval on all electrical components
  • ASME-coded pressure relief valves and tanks
  • Additional charge for liftgate shipping option

Key Specs

AttributeSpecification

item#

5778444

Brand

Quincy Compressor

Manufacturer's Warranty

1 year limited warranty

Ship Weight

710.0 LB

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

18.1

Motor Phase

1

Stage

2

Tank Orientation

Horizontal

Horsepower

5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

28

Duty Cycle

100 %
AttributeSpecification

Motor RPM

658

Working Pressure

135-175 PSI

Pump Life

50,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

17.4

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

Yes

After Cooler Included

Yes

Drain Type

Automatic

Product Weight

680.0000 lb

Dimensions L x W x H (in.)

67.0 x 30.0 x 49.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
