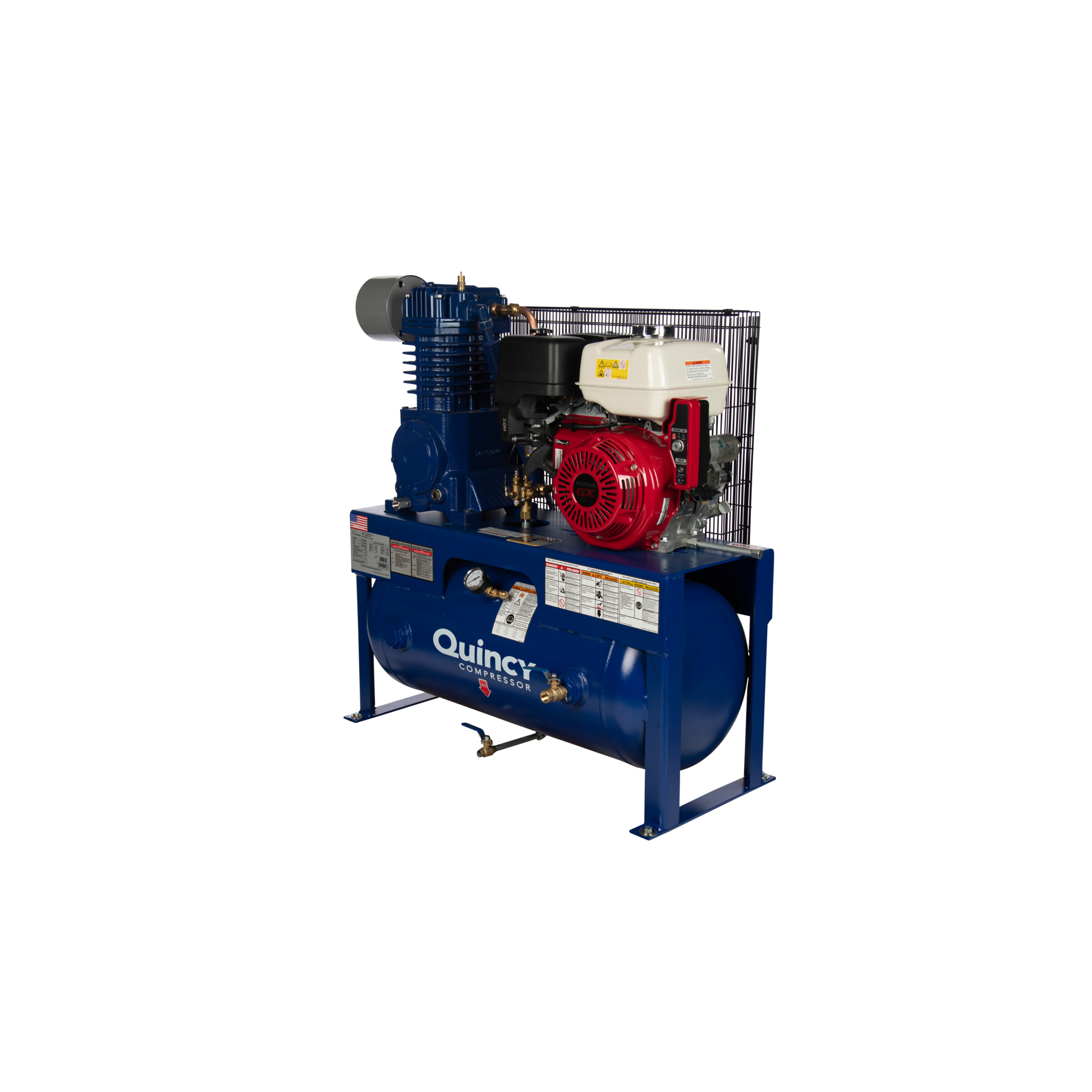

Quincy Compressor, QT 13H 30G 2Stg Air Compressor (Honda) Horiz, Horsepower 13 HP, Air Tank Size 30 Gal, Model# G413H30HCB

Item# 5775331
"Quincy Compressor, QT 13H 30G 2Stg Air Compressor (Honda) Horiz, Horsepower 13 HP, Air Tank Size 30 Gal, Model# G413H30HCB"
Quincy Compressor, QT 13H 30G 2Stg Air Compressor (Honda) Horiz, Horsepower 13 HP, Air Tank Size 30 Gal, Model# G413H30HCB

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Compressor, QT 13H 30G 2Stg Air Compressor (Honda) Horiz, Horsepower 13 HP, Air Tank Size 30 Gal, Model# G413H30HCB

Click or Tap image to Zoom

$4299.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • 13 Hp Honda Engine
  • 12 V electric start with recoil
  • Fully pressure lubricated two-stage
  • Heavy-duty, easy-to-reach, manual ball valve

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy QT reciprocating air compressors are designed to be a compressor for life. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower. They run at a slower RPM, run cooler and cost less to operate. Heavy-duty compressors are engineered for industrial applications and boast a best-in-the-industry 50,000-hour pump life rating.  One-year limited warranty without extended warranty kit purchase. Purchase an extended warranty kit (Item# 42637) at the same time (on the same receipt) as your Quincy air compressor and it will double the package warranty to 2 years and triple the pump warranty to 3 years (parts and labor). U.S.A.

What's Included

    (1) Quincy QT 13-HP 30-Gallon Two-Stage Air Compressor (13 HP Honda) Horizontal

Features + Benefits

  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • 13 Hp Honda Engine
  • 12 V electric start with recoil
  • Fully pressure lubricated two-stage
  • Heavy-duty, easy-to-reach, manual ball valve
  • Finned tube intercooler for maximum cooling and increased valve life
  • Electric start with recoil backup and extra-capacity oil reservoir
  • Splash Lubrication
  • ASME-coded pressure relief valves and tank
  • Aluminum head for heat dissipation
  • UL & CSA approval on all electrical components
  • ASME-coded pressure relief valves and tanks
  • OSHA Complant Totally Enclosed Belt Guard

Key Specs

AttributeSpecification

item#

5775331

Brand

Quincy Compressor

Manufacturer's Warranty

1 year limited warranty

Ship Weight

565.0 LB

Horsepower

13 HP

Air Tank Size

30 Gal

Engine Brand

Honda

CFM at 90 PSI

24.7

Max. PSI

175

Stage

2

Air Outlets (qty.)

1

Duty Cycle

100 %

Motor RPM

867

Working Pressure

135 – 175 psi (machine loads at 135 psi and unloads at 175 psi) PSI
AttributeSpecification

Pump Life

50,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

23.6

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Drain Type

Manual

Tank Orientation

Horizontal

Engine Model

Honda

Product Weight

515.0000 lb

Dimensions L x W x H (in.)

42.0 x 21.0 x 40.0 in
