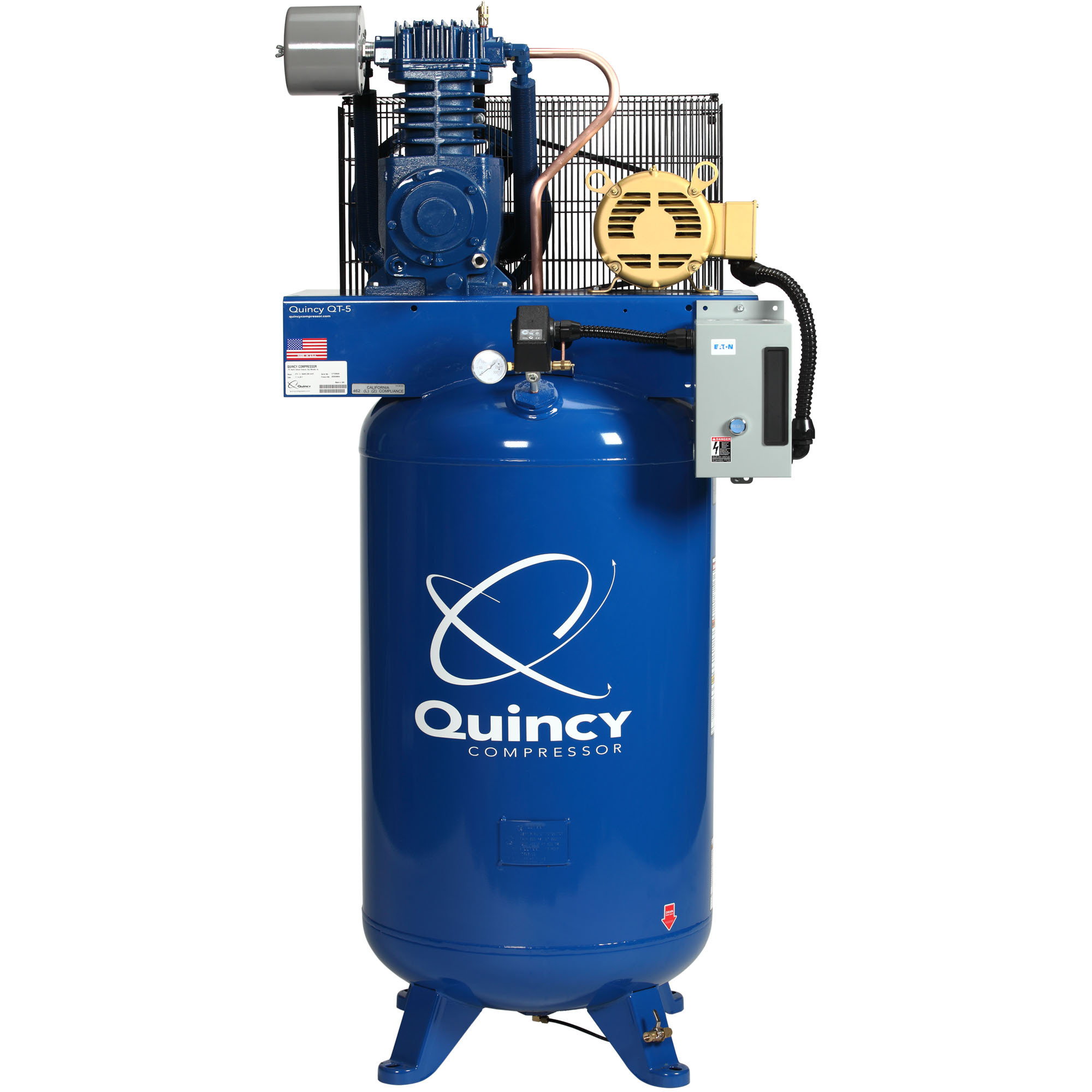

Quincy Compressor, 5 Horsepower, 80 Gallon, 2 Stage Air Compressor, 230 Volts, Model# 451CS80VCB

Item# 5950241
Quincy Compressor, 5 Horsepower, 80 Gallon, 2 Stage Air Compressor, 230 Volts, Model# 451CS80VCB

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Compressor, 5 Horsepower, 80 Gallon, 2 Stage Air Compressor, 230 Volts, Model# 451CS80VCB

Click or Tap image to Zoom

$3349.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • 100% duty cycle
  • Mounted and wired magnetic starter
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 135-175 Working PSI

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy reciprocating air compressors are designed to be a compressor for life. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower. They run at a slower RPM, run cooler and cost less to operate. Heavy-duty compressors are engineered for industrial applications and boast a best-in-the-industry 50,000-hour pump life rating. Purchase an extended warranty kit (Item# 42637) at the same time (on the same receipt) as your Quincy air compressor and register online within 10 days of receipt, and it will double the package warranty to 2 years and triple the pump warranty to 3 years (on-site parts and labor included). U.S.A

What's Included

    (1) Quincy QT-1, 5-HP 80 Gallon Two-Stage Air Compressor (230V-1-Phase) Vertical PRO, Model # 451CS80VCB

Features + Benefits

  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • 100% duty cycle

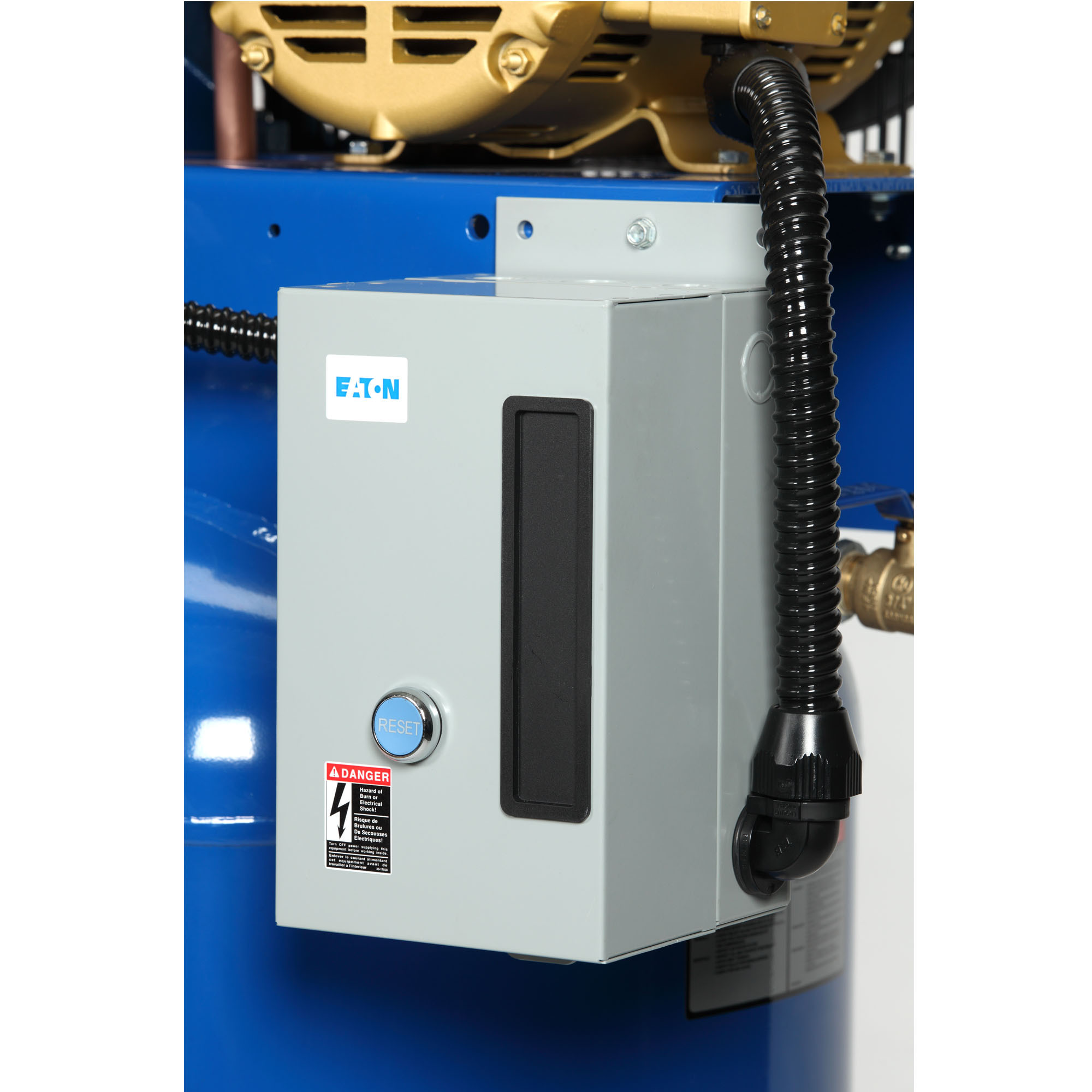

  • Mounted and wired magnetic starter
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 135-175 Working PSI
  • Pump RPM: 685
  • 2-cylinder pump design
  • Heavy-duty, easy-to-reach, manual ball valve
  • 2-stage belt drive pump with solid cast iron cylinder
  • Finned tube intercooler for maximum cooling and increased valve life
  • Aluminum head for heat dissipation
  • Extra-capacity oil reservoir for low oil temperatures
  • Cast iron fly wheel for energy efficiency and durability
  • Ships in heavy-duty protective crate with oil in the pump
  • Splash lubrication
  • UL & CSA approval on all electrical components
  • ASME-coded pressure relief valves and tanks
  • Additional charge for liftgate shipping option
  • Made in U.S.A

Key Specs

AttributeSpecification

item#

5950241

Brand

Quincy Compressor

Manufacturer's Warranty

1 year limited warranty

Ship Weight

715.0 LB

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

18

Motor Phase

1

Stage

2

Tank Orientation

Vertical

Horsepower

5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

30

Duty Cycle

100 %

Motor RPM

1,725
AttributeSpecification

Working Pressure

135-175 PSI

Engine Start Type

Electric

Pump Life

50,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

17.4

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Manual

Product Weight

680.0000 lb

Dimensions L x W x H (in.)

31.0 x 24.0 x 72.0 in

Reviews

Questions & Answers

Questions

  1. How loud is this compressor?

    1 answer

    1. The decibel rating on the compressor is 78 decibels.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
