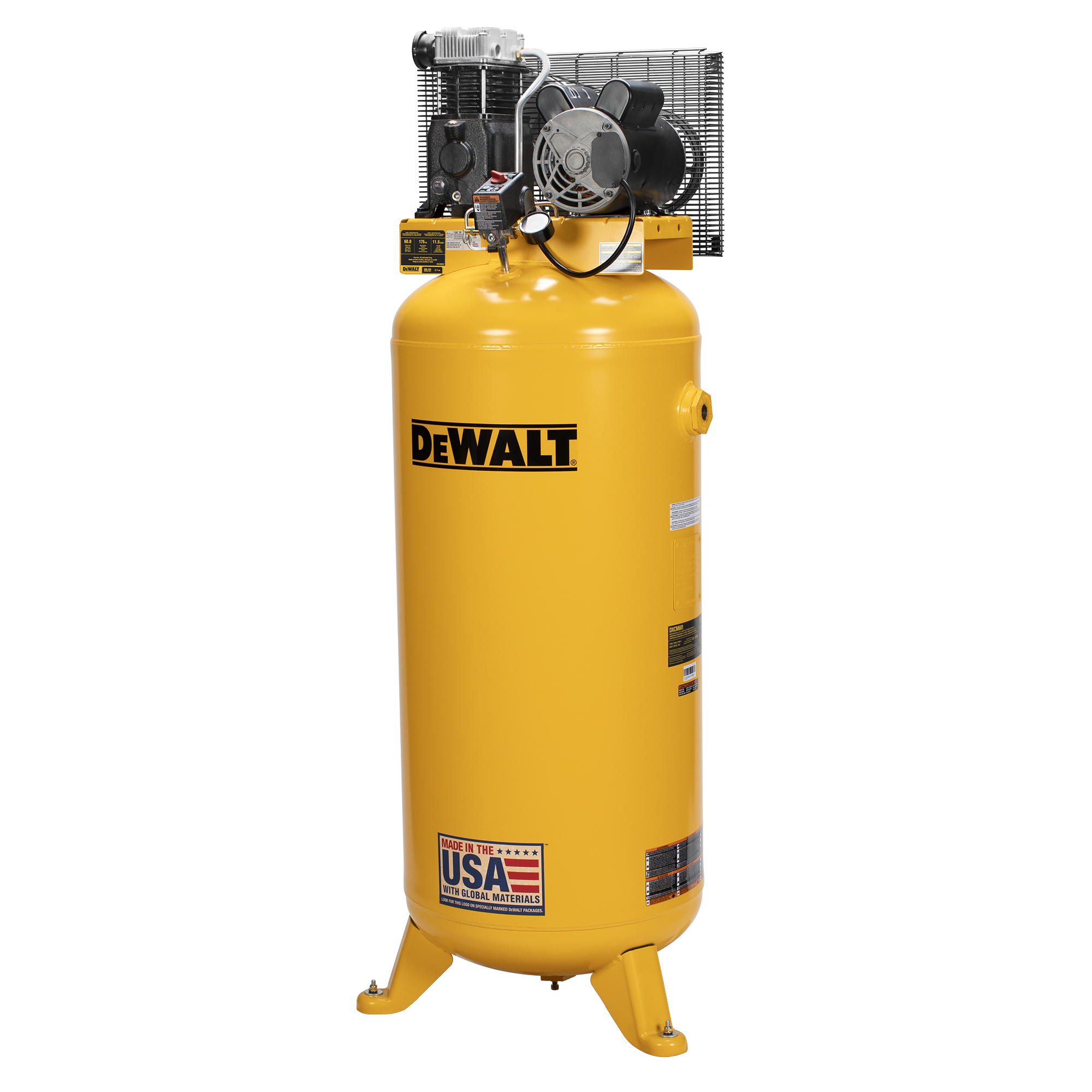

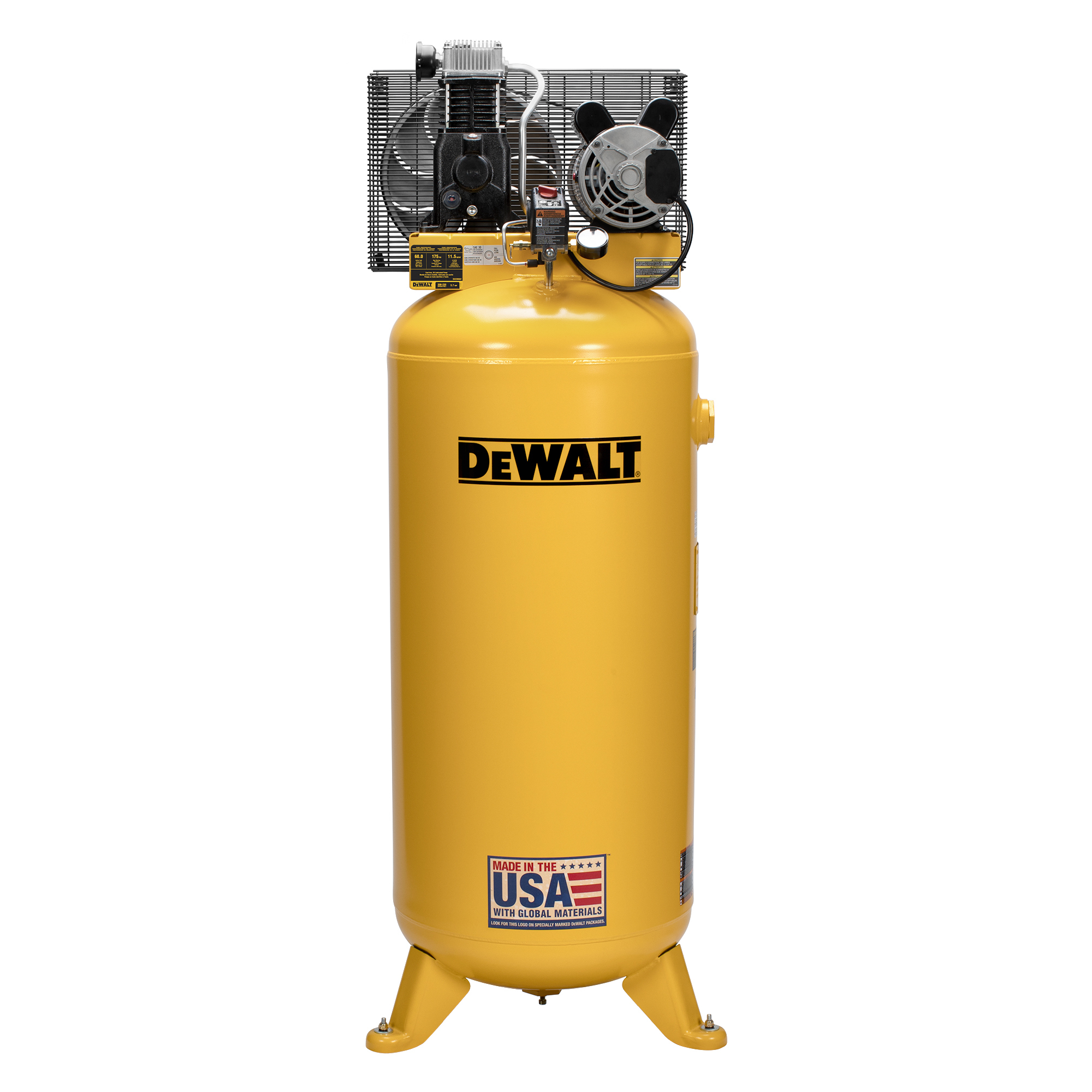

DEWALT 60 Gallon Air Compressor, Vertical Single Stage 175 PSI, 3.7 HP,, Model# DXCM602

Item# 4920429
3 of 21 reviewers received a sample product or took part in a promotion
DEWALT 60 Gallon Air Compressor, Vertical Single Stage 175 PSI, 3.7 HP,, Model# DXCM602

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT 60 Gallon Air Compressor, Vertical Single Stage 175 PSI, 3.7 HP,, Model# DXCM602

Click or Tap image to Zoom

$1029.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 175 maximum psi: provides more than 2X longer air tool run time compared to other 60 Gal. 135 psi compressors
  • 11.5 SCFM at 90 psi: 30% higher psi versus other 60 Gal. 135 psi compressors

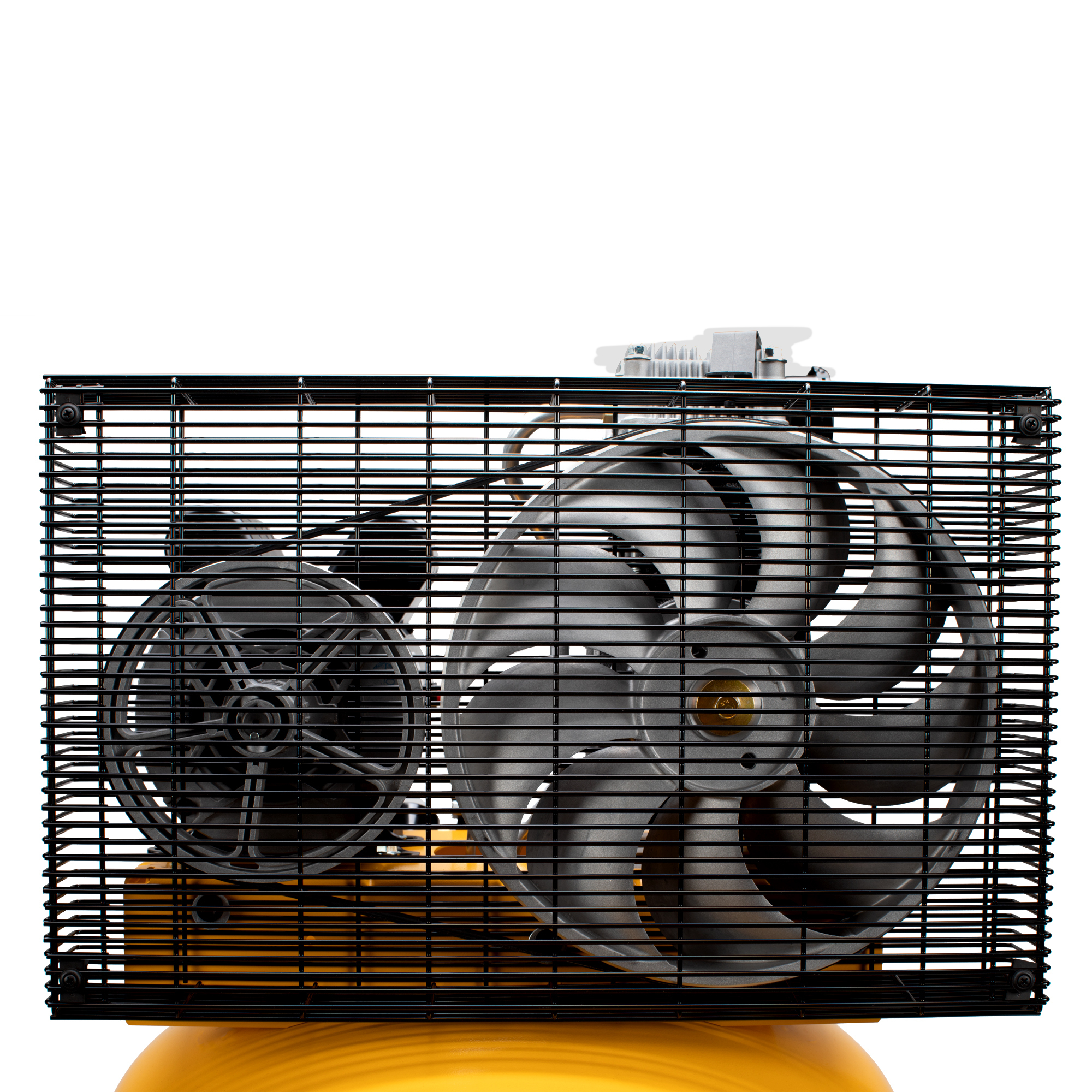

  • Long-life oil lubricated pump with high efficiency aluminum flywheel provides maximum cooling

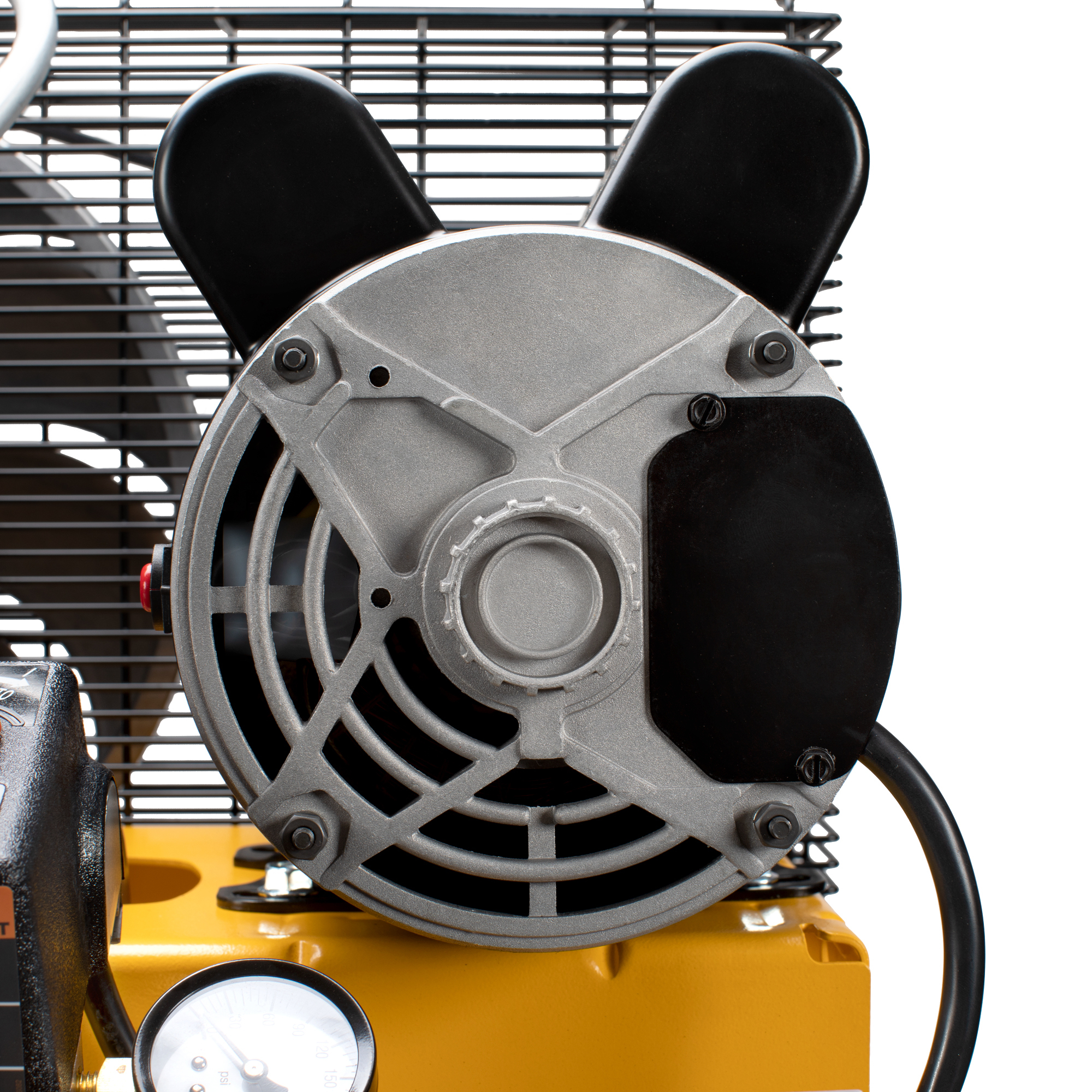

  • Spread volt motor designed to operate at 208-Volt and 230-Volt applications
  • Large capacity ASME tank

See full description

Complete Your Solution

  • DEWALT 60 Gallon Air Compressor, Vertical Single Stage 175 PSI, 3.7 HP,, Model# DXCM602

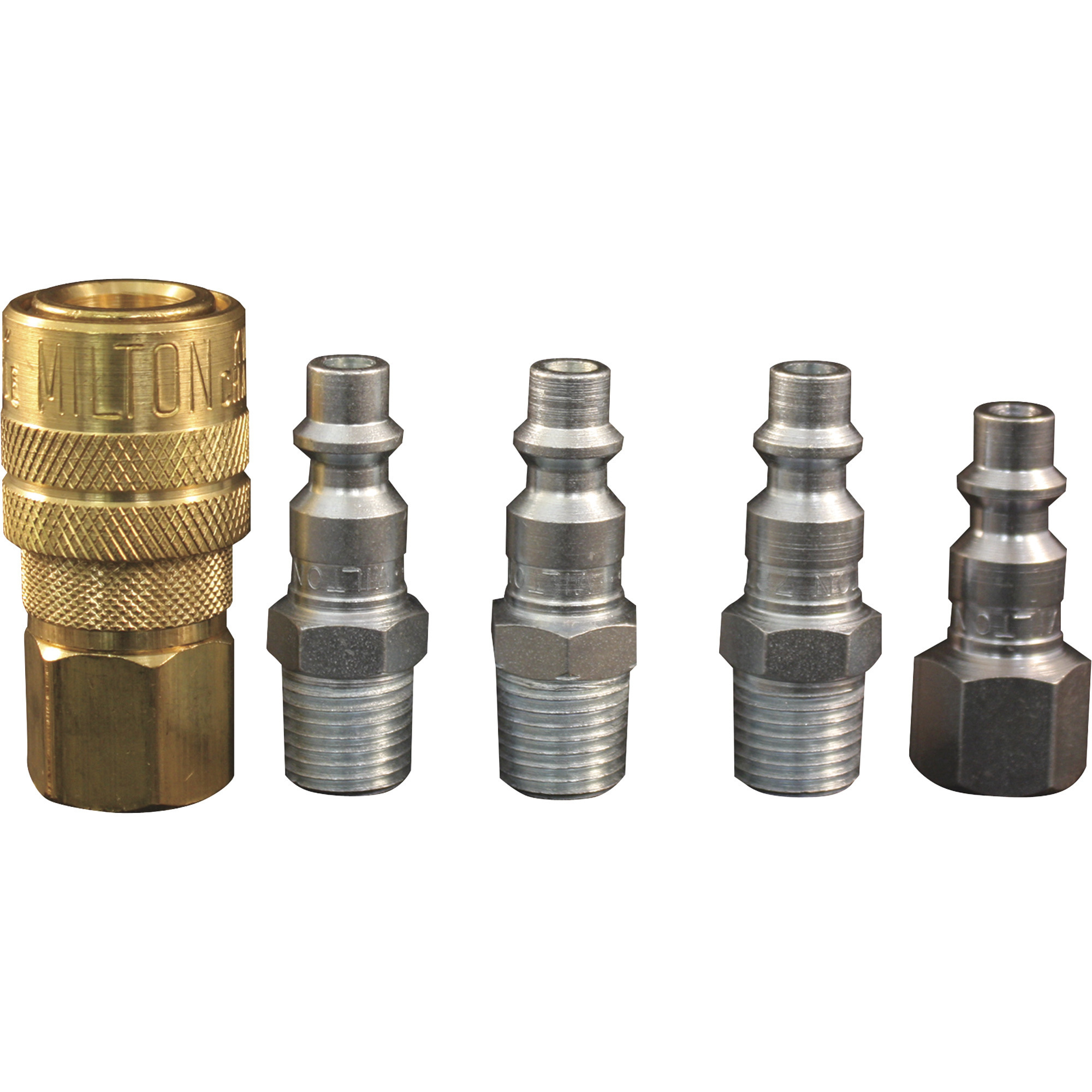

  • Milton M-Style Air Coupler and Plug Set, 1/4in. NPT, 5-Pc., Model# S-211

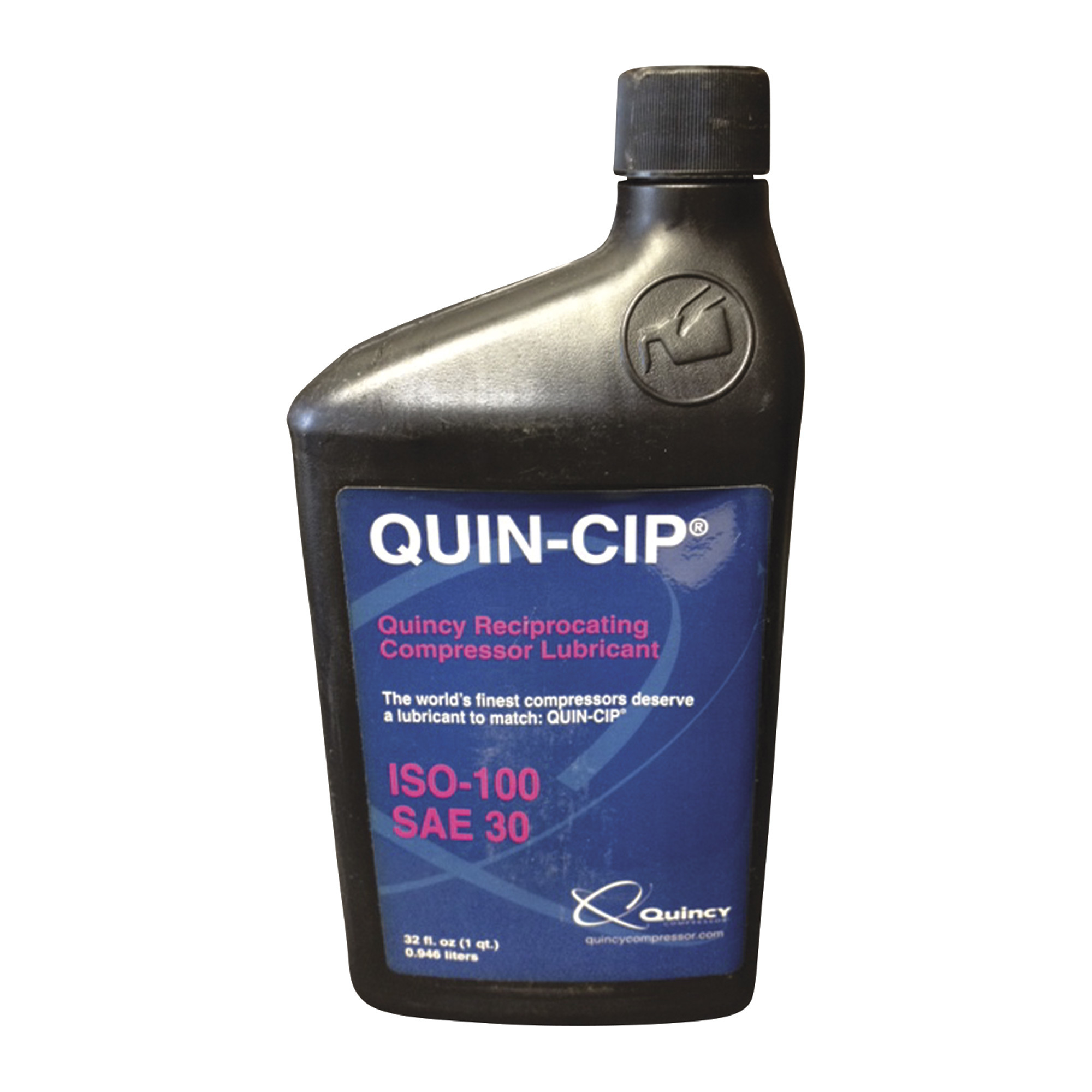

  • Quincy Compressor 30W Compressor Oil, 1-Qt., Model# 112543Q100
Price for all three:

$1078.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Designed with performance and durability in mind, the DEWALT 60 Gal. Single Stage Air Compressor at 175 psi provides more than 2X longer air tool run time versus other 60 Gal. 135 psi compressors. It features an air delivery of 11.5 SCFM at 90 psi which is 30% higher psi compared to other 60 Gal. 135 psi compressors. The DEWALT 60 Gal. 175 psi air compressor is perfect for a small shop, automotive enthusiast or serious DIY user. This unit features a 208-230 spread volt electric motor. It should be connected to a power supply that is 240-Volt, 60 Hz, AC only. Please consult your local codes and a certified electrician before wiring this compressor for power. (This unit requires a 30 amp double pole breaker for proper installation) This compressor does not include a power cord.

What's Included

    (1) 60 Gal. 175 PSI Electric Stationary Single Stage Air Compressor

Features + Benefits

  • 175 maximum psi: provides more than 2X longer air tool run time compared to other 60 Gal. 135 psi compressors
  • 11.5 SCFM at 90 psi: 30% higher psi versus other 60 Gal. 135 psi compressors
  • Long-life oil lubricated pump with high efficiency aluminum flywheel provides maximum cooling
  • Spread volt motor designed to operate at 208-Volt and 230-Volt applications
  • Large capacity ASME tank

Key Specs

AttributeSpecification

item#

4920429

Brand

DEWALT

Manufacturer's Warranty

2 year limited warranty

Ship Weight

237.0 LB

Air Tank Size

60 Gal

Volts

208-230

CFM at 90 PSI

11.5

Motor Phase

1

Stage

1

Tank Orientation

Vertical

Air Compressor Type

Stationary Electric

Horsepower

3.7 HP

Max. PSI

175
AttributeSpecification

Amps

15

Engine Start Type

Electric

Pump Material

Cast Iron

CFM at 40 PSI

13.4

Noise Level

87 dB

Oil Required

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Air Dryer

None

Drain Type

Manual

Product Weight

200.0000 lb

Dimensions L x W x H (in.)

22.5 x 22.5 x 65.0 in

Reviews

Questions & Answers

21 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Can this b wired to regular 220 electric

    1 answer

    1. This air compressor can be wired to single phase, 220V. This unit features a 208-230V spread volt electric motor.

      Helpful?

  2. What is the air outlet size?

    1 answer

    1. The air compressor would have a 1/2" outlet.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

2 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
