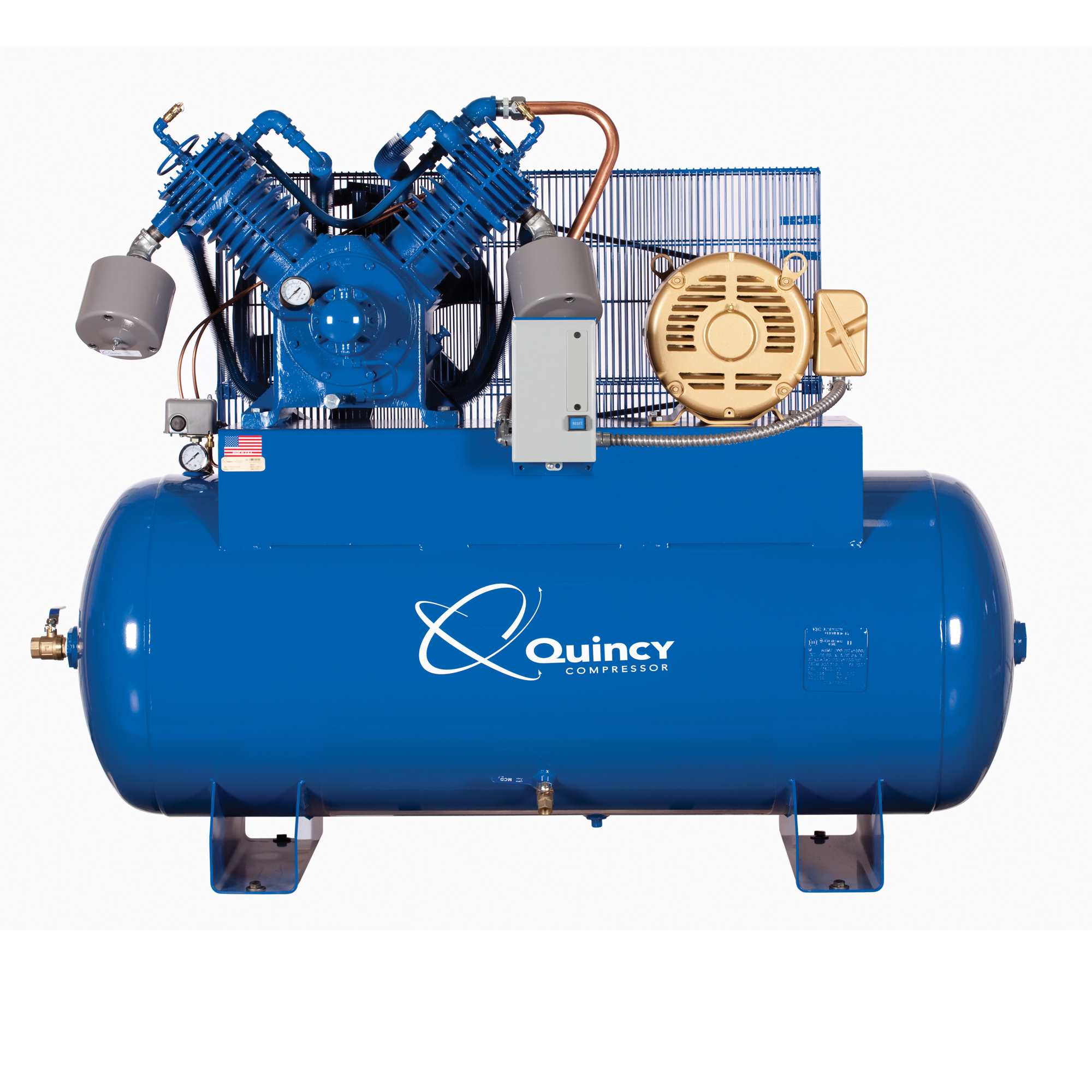

Quincy Compressor, QP 15H 120G 2S Air Compressor 200V 3ph H MAX, Horsepower 15 HP, Air Tank Size 120 Gal, Volts 200 Model# 5153D12HCB20M

Item# 5775471
Quincy Compressor, QP 15H 120G 2S Air Compressor 200V 3ph H MAX, Horsepower 15 HP, Air Tank Size 120 Gal, Volts 200 Model# 5153D12HCB20M

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Compressor, QP 15H 120G 2S Air Compressor 200V 3ph H MAX, Horsepower 15 HP, Air Tank Size 120 Gal, Volts 200 Model# 5153D12HCB20M

Click or Tap image to Zoom

$10,799.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • QP compressor has a fully pressure-lubricated system for smooth, continuous operation
  • Oil pump pressure-lubricates crankshaft, bearings and connecting rods up to the wrist pins
  • Pressurized oil results in less wear on components
  • Pressure-lubricated system provides up to 15% longer life than a splash-lubricated compressor

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy QP Air Compressor's fully pressure-lubricated system allows for smooth, continuous operation. This heavy duty, cast-iron compressor has an oil pump for pressure lubrication to the crankshaft, bearings and connecting rods up to the wrist pins. Pressurized oil flowing to all critical surfaces means less wear on the components. Spin-on filter lengthens pump life and improves reliability. Compressor also features low oil pressure shutdown, mounted air-cooled aftercooler, mounted electric automatic tank drain, dual controls and more. The QP balances cost-effectiveness with longer life to maximize your investment, providing up to 15% longer life than a splash-lubricated compressor. Compressor comes with a 1-year limited warranty. An optional No Bull 3-year pump/2-year package on-site warranty is available when you buy the Item# 43107 extended warranty kit

What's Included

    (1) Quincy QP 15-HP 120 Gallon Two-Stage Air Compressor (200V-3-Phase) Horizontal MAX

Features + Benefits

  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • QP compressor has a fully pressure-lubricated system for smooth, continuous operation
  • Oil pump pressure-lubricates crankshaft, bearings and connecting rods up to the wrist pins
  • Pressurized oil results in less wear on components
  • Pressure-lubricated system provides up to 15% longer life than a splash-lubricated compressor
  •  Cast iron 2-stage pump with aluminum head
  • Pump life up to 60,000+ hours
  • Spin-on filter lengthens pump life and improves reliability
  • Low oil pressure shutdown for protection

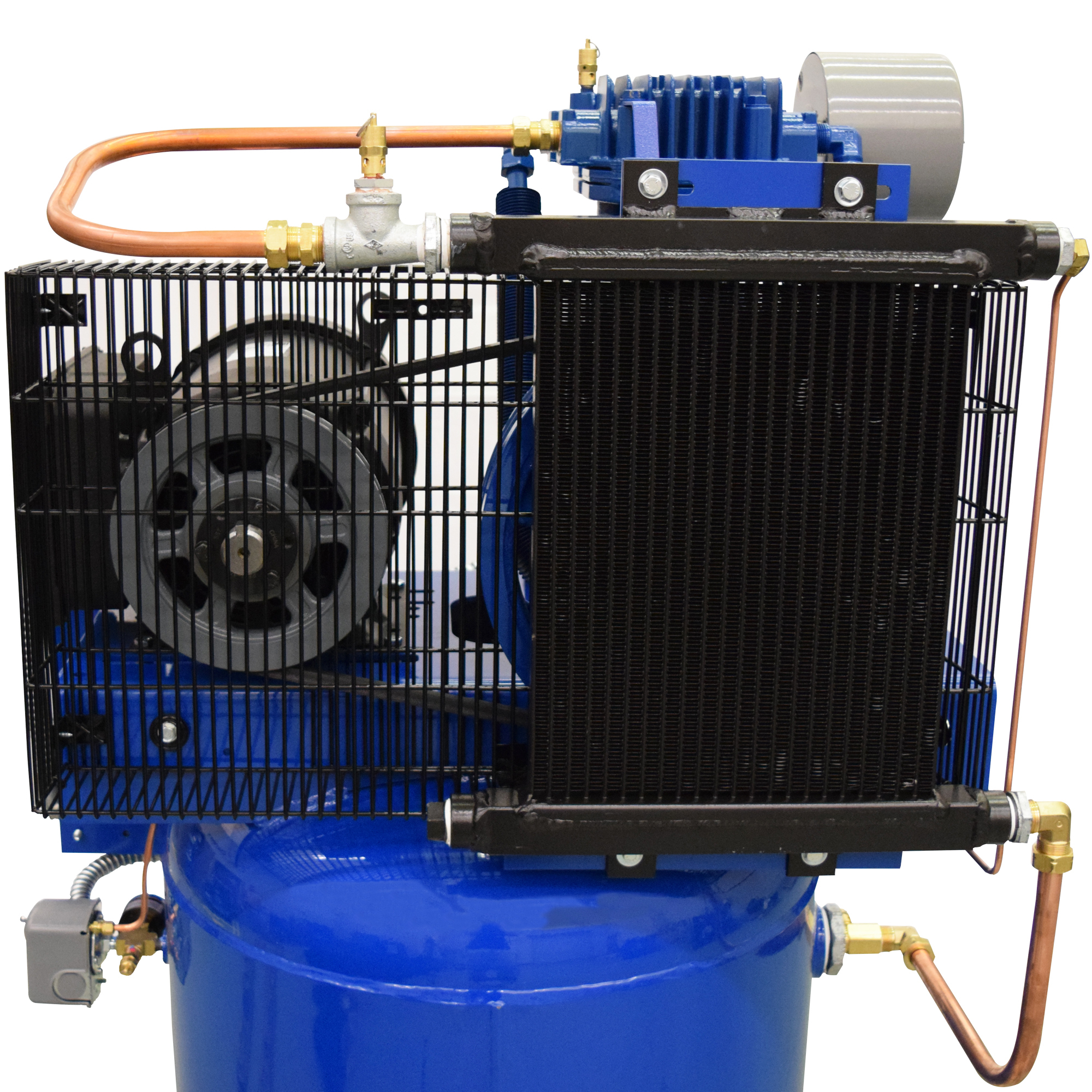

  • Mounted air-cooled aftercooler

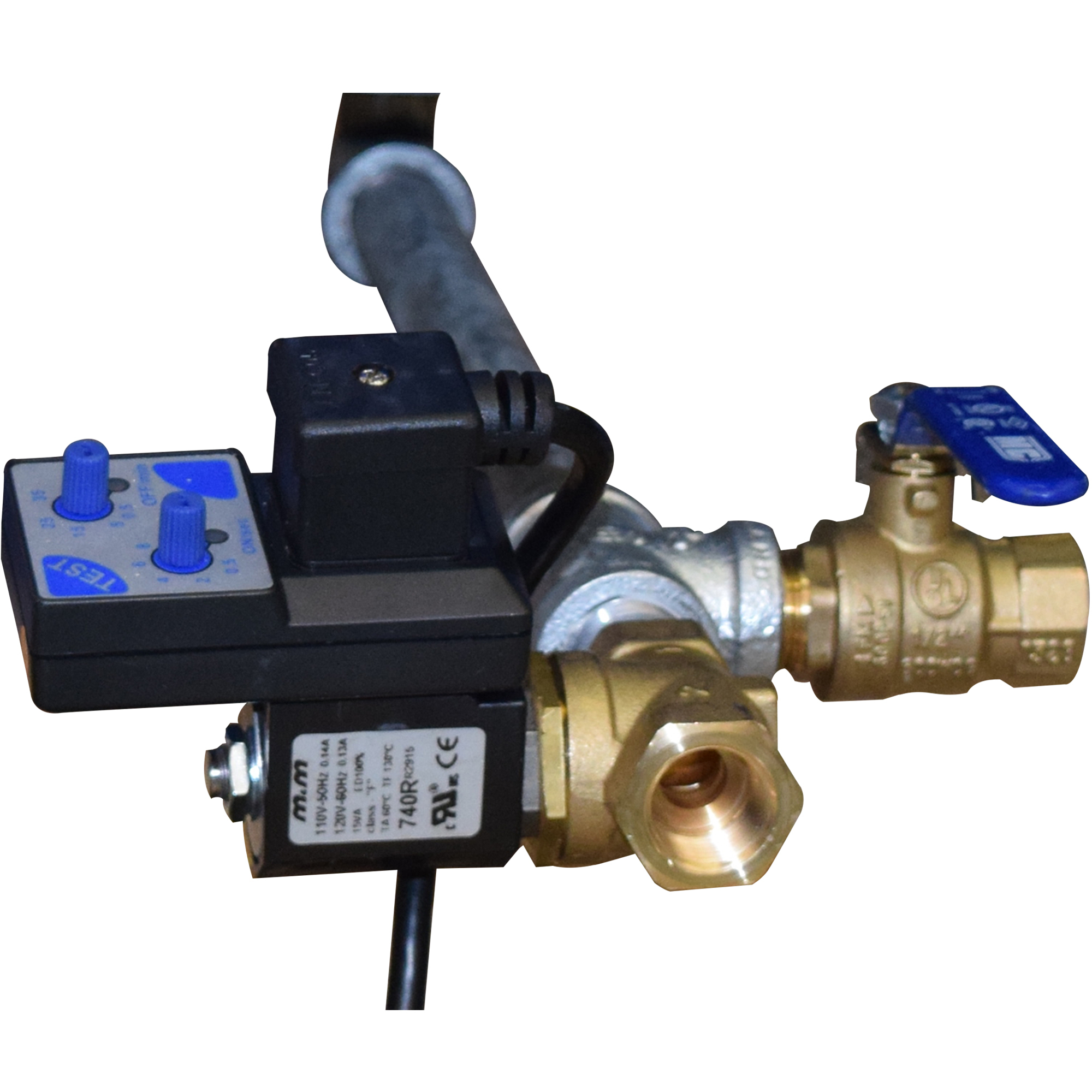

  • Electronic automatic tank drain
  • Digital control panel with hour meter and adjustable cut-in/cut-out pressures
  • Continuous 100% duty cycle operation
  • 120-gallon horizontal tank

Key Specs

AttributeSpecification

item#

5775471

Brand

Quincy Compressor

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1035.0 LB

Air Tank Size

120 Gal

Volts

200

CFM at 90 PSI

54.1

Motor Phase

3

Stage

2

Tank Orientation

Horizontal

Horsepower

15 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

48.3
AttributeSpecification

Duty Cycle

100 %

Motor RPM

932

Working Pressure

135-175 PSI

Pump Life

60,000 hr

Pump Material

Cast Iron

Air Outlet Size

1 in. NPT

CFM at Max. PSI

51

Oil Required

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Drain Type

Automatic

Product Weight

995.0000 lb

Dimensions L x W x H (in.)

71.0 x 30.0 x 55.0 in
