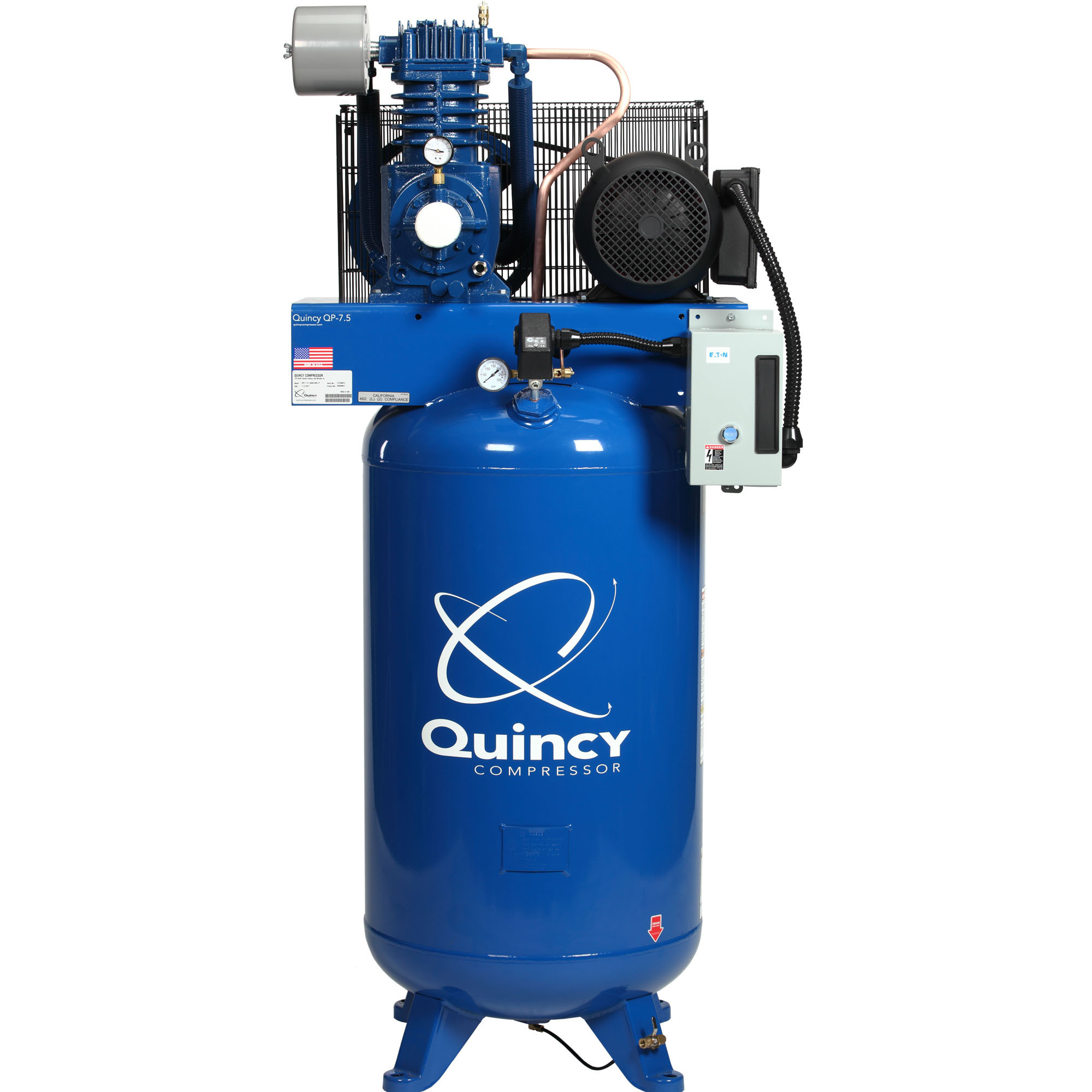

Quincy Compressor Two-Stage Air Compressor — 7.5 HP, 80-Gallon, 230V, Model# 2020040746

Item# 5775729
Quincy Compressor Two-Stage Air Compressor — 7.5 HP, 80-Gallon, 230V, Model# 2020040746

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Compressor Two-Stage Air Compressor — 7.5 HP, 80-Gallon, 230V, Model# 2020040746

Click or Tap image to Zoom

$4979.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • QP heavy-duty cast iron fully pressure lubricated system provides positive lubrication to all critical surfaces: crankshaft, bearings and connecting rods up to wrist pins
  • High-quality Gerotor oil pump and oil filter ensures consistent lubrication, lower operating temperatures and better filtration for longer life and reliability
  • Provides up to 15% longer pump life than traditional splash lubricated compressors
  • Delivers 60,000+ hours of pump life

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy QP heavy-duty pressure lubricated reciprocating air compressors are designed for tougher applications where traditional splash lubricated compressors just are not enough. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower. They run at a slower RPM, run cooler and cost less to operate. QP pump delivers up to 15% longer life than splash lubricated pumps. Heavy-duty compressors are engineered for industrial applications and boast an industry-leading 60,000-hour pump life rating.Compressor comes standard with a 1-year warranty, but has an option of extending the warranty with purchase and use of Item #43106 Extended warranty kit. Double your Quincy QP 7.5 HP, 80-gallon pressure lubricated air compressor's one-year warranty to 2 years "bumper-to-bumper" and triple the pump warranty to 3 years (on-site parts and labor) by purchasing this Extended Support and Maintenance Kit at the same time (on the same receipt) as your Quincy QP 7.5 HP, 80-gallon air compressor. Register the purchase online within 10 days of receipt and follow the owner s manual maintenance schedule to get the extended warranty coverage. Kit includes 9 quarts QuinCip D synthetic fluid, one polyester washable air filter element, three oil filters and 10 maintenance stickers. To extend your compressor warranty out to 5 years (on-site parts and labor), purchase the Extended Warranty Kit Plus (Item# 44810) during the first three years of ownership (must have also purchased the Extended Warranty Kit (Item# 43106) with compressor. U.S.A.

What's Included

    (1) Quincy QP 7.5-HP 80 Gallon Two-Stage Air Compressor (230V-1-Phase) Vertical PRO

Features + Benefits

  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • QP heavy-duty cast iron fully pressure lubricated system provides positive lubrication to all critical surfaces: crankshaft, bearings and connecting rods up to wrist pins
  • High-quality Gerotor oil pump and oil filter ensures consistent lubrication, lower operating temperatures and better filtration for longer life and reliability
  • Provides up to 15% longer pump life than traditional splash lubricated compressors
  • Delivers 60,000+ hours of pump life
  • Continuous 100% duty cycle operation
  • Equipped with a powerful 7.5 HP electric motor with magnetic starter
  • Pressure-lubricated QP 2-stage cast iron pump
  • Belt drive
  • ASME certified 80-gallon tank with manual tank drain
  • One-year limited warranty without warranty kit purchase. Purchase an extended warranty kit same time (same receipt) as your Quincy air compressor and it will double the warranty to 2 years and triple the pump warranty to 3 years (parts and labor).

Key Specs

AttributeSpecification

item#

5775729

Brand

Quincy Compressor

Manufacturer's Warranty

1 year limited warranty

Ship Weight

770.0 LB

Horsepower

7.5 HP

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

24.4

Max. PSI

175

Stage

2

Air Outlets (qty.)

1

Amps

40

Duty Cycle

100 %

Motor RPM

896
AttributeSpecification

Working Pressure

135-175 PSI

Motor Phase

1

Pump Life

60,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

23.6

Oil Required

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Drain Type

Manual

Tank Orientation

Vertical

Product Weight

720.0000 lb

Dimensions L x W x H (in.)

35.0 x 28.0 x 77.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. How many cycles per hour is this compressor rated?

    1 answer

    1. The recommended cycle time would be 6 times per hour.

      Helpful?

  2. What is the cfm air pressure? Max. and Min.

    1 answer

    1. The maximum for this compressor is 22.4 CFM at the maximum 175 PSI and is 24.4 CFM at 90 PSI. An external regulator with gauge can be added to lower the pressure to what you need, but cannot exceed 175 PSI.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
