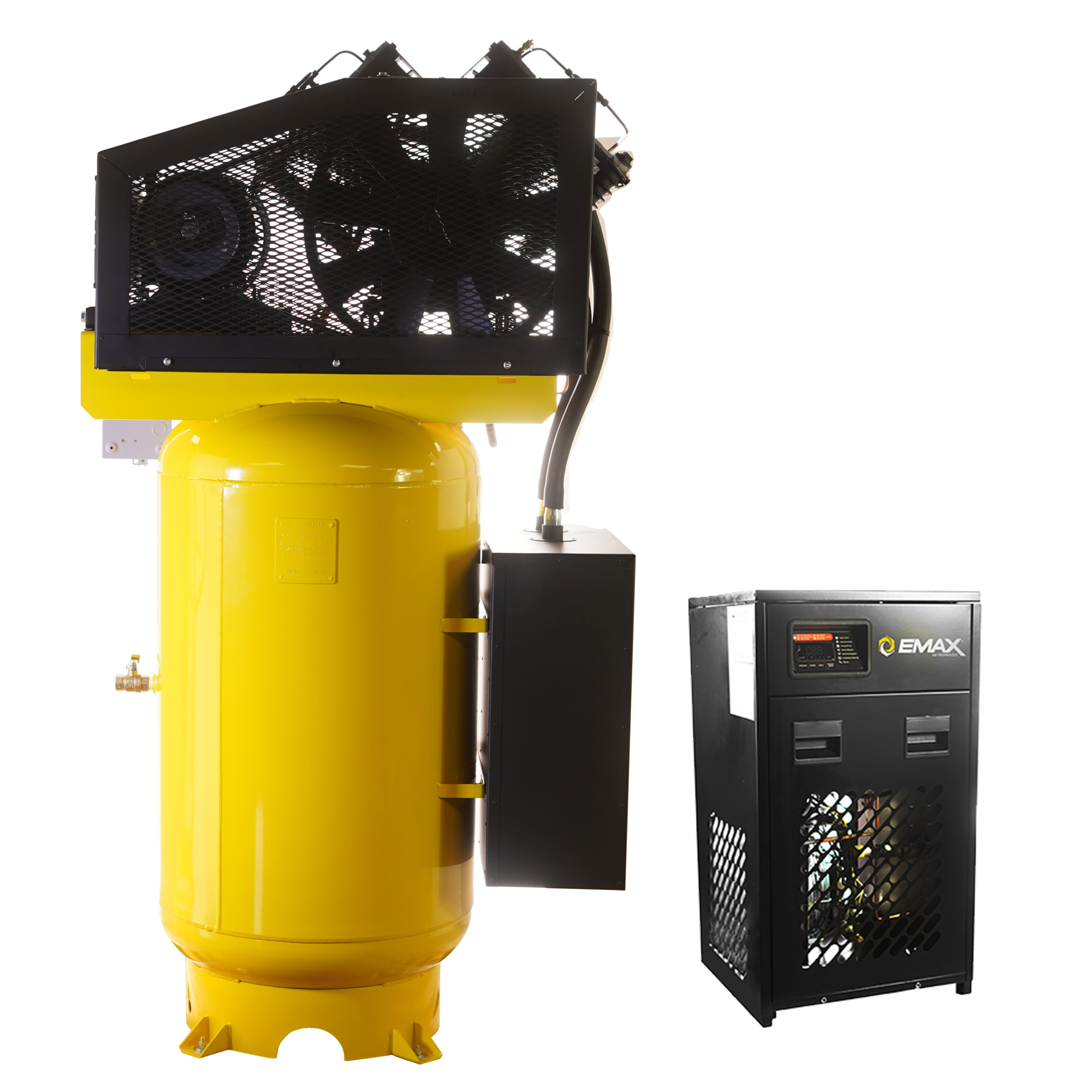

EMAX Silent Air Industrial Plus 10 HP, 3-Phase, 460 Volt, 80-Gallon Vertical Compressor Bundle with 58 CFM Air Dryer, Model# SP10V080V3PK

Item# 123544
EMAX Silent Air Industrial Plus 10 HP, 3-Phase, 460 Volt, 80-Gallon Vertical Compressor Bundle with 58 CFM Air Dryer, Model# SP10V080V3PK

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EMAX Silent Air Industrial Plus 10 HP, 3-Phase, 460 Volt, 80-Gallon Vertical Compressor Bundle with 58 CFM Air Dryer, Model# SP10V080V3PK

Click or Tap image to Zoom

$7779.10

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 10 HP, 460V 3-phase pressure lubricated, 80-gallon vertical compressor delivers 38 CFM @ 100 PSI
  • Paired with environmentally friendly 58 CFM refrigerated air dryer with built-in automatic tank drain and coalescing filters
  • Note: this package does not come with hydraulic hose of connection line

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The EMAX Silent Air Industrial Plus 10 HP, 460 Volt, 3-Phase 80-Gallon Vertical Compressor With 58 CFM Dryer Bundle has made it easier for you to select the equipment you need, whether you are working out of a garage or an industrial environment. This bundle has the EMAX Industrial Plus 10 HP, 2 Stage V4 3-Phase Vertical 80-Gallon Piston Air Compressor which is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 38 CFM 100 PSI, top PSI of 175. Features industrial TEFC electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality all paired with all cast iron Patented pressure lubricated pump. This unit has the patented Whisper 100 silent air system which lowers the noise decibels by more than 35%. Features a patented pressure lubricated pump, continuous run option, Belt tensioner, automatic tank drain and industrial grade TEFC motor. EMAX has paired it with their environmentally friendly 58 CFM energy efficient refrigerated air dryer featuring built in automatic tank drain and coalescing filters. These bundles are backed by the best warranty in the industry. Note: this package does not come with hydraulic hose of connection line.

What's Included

    (1) 10 HP, 460V 3-phase electric air compressor with 80-gallon tank (1) 58 CFM refrigerated air dryer

Downloads

Product Manual
Safety Data Sheet

Features + Benefits

  • 10 HP, 460V 3-phase pressure lubricated, 80-gallon vertical compressor delivers 38 CFM @ 100 PSI
  • Paired with environmentally friendly 58 CFM refrigerated air dryer with built-in automatic tank drain and coalescing filters
  • Note: this package does not come with hydraulic hose of connection line

Key Specs

AttributeSpecification

item#

123544

Brand

EMAX

Manufacturer's Warranty

5 year limited warranty

Ship Weight

1073.0 LB

Air Tank Size

80 Gal

Volts

460

CFM at 90 PSI

40

Motor Phase

3

Stage

2

Horsepower

10 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

24

Duty Cycle

70 %
AttributeSpecification

Motor RPM

1,750

Working Pressure

145 PSI

Pump Life

70,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at 40 PSI

42

CFM at Max. PSI

34

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Pressure

Tank Fill Time

4.5 min

Drain Type

Automatic

Product Weight

930.0000 lb

Dimensions L x W x H (in.)

x 42.0 x in

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. What is the Decibel Rating of this compressor?

    1 answer

    1. The decibel rating on the compressor is 66 decibels.

      Helpful?

  2. What size of hydraulic hose of connection line is needed to connect to the dryer?

    1 answer

    1. Both units are equipped with 3/4" female fittings. They require a 3/4" hose that is rated for a minimum of 200 PSI. The length is dependent on the user's application.

      Helpful?

  3. Can it be changed to a 2phase ?

    1 answer

    1. This air compressor has a 2-stage pump and a 3-phase motor. Modifications would void the warranty.

      Helpful?

  4. is this unit rated for outdoor use?

    1 answer

    1. This air compressor is not rated for outdoor use.

      Helpful?

  5. What is the voltage of the air dryer?

    1 answer

    1. The EMAX air dryer requires 120V single-phase power.

      Helpful?
