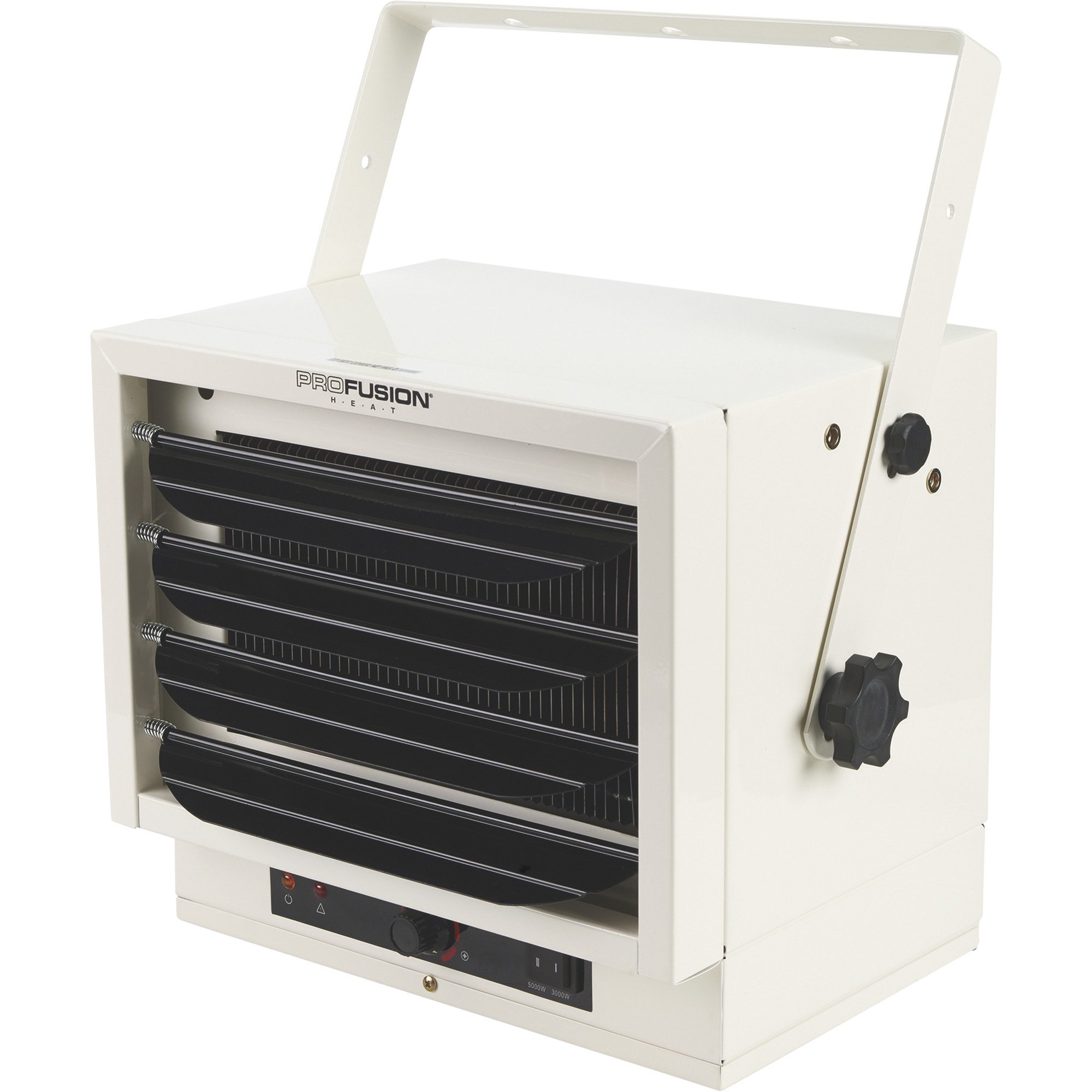

ProFusion Heat Ceiling-Mount Garage Heater — 17,065 BTU, 240 Volts, Model# HA24-50M

Item# 27553
"ProFusion Heat Ceiling-Mount Garage Heater — 17,065 BTU, 240 Volts, Model# HA24-50M"
ProFusion Heat Ceiling-Mount Garage Heater — 17,065 BTU, 240 Volts, Model# HA24-50M

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ProFusion Heat Ceiling-Mount Garage Heater — 17,065 BTU, 240 Volts, Model# HA24-50M

Click or Tap image to Zoom

  • Adjustable thermostat with 2 heat settings: 5,000 Watts (17,065 BTU) and 3,000 Watts (11,285 BTU)
  • Front-panel control switch
  • Can be mounted to tilt vertically and/or to swing horizontally
  • Long-lasting stainless steel NiCr heating element
  • Solid metal construction

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This ProFusion Heat Ceiling-Mount Garage Heater keeps your garage comfortably warm all season long. The space-saving, ceiling-mount design allows you to tilt this versatile heater vertically and/or swing horizontally. Fan-forced heat and an adjustable airflow keep you comfortable in every situation. For greater control, use the adjustable thermostat with 2 settings (3,000 Watts or 5,000 Watts) to select your ideal temperature.

What's Included

  • (1) Heater

Downloads

Product Manual

Features + Benefits

  • Adjustable thermostat with 2 heat settings: 5,000 Watts (17,065 BTU) and 3,000 Watts (11,285 BTU)
  • Front-panel control switch
  • Can be mounted to tilt vertically and/or to swing horizontally
  • Long-lasting stainless steel NiCr heating element
  • Solid metal construction
  • 30A circuit breaker recommended

Key Specs

AttributeSpecification

item#

27553

Brand

ProFusion Heat

Manufacturer's Warranty

1 year Limited Warranty

Ship Weight

25.0 LB

Heat Output

17,065 Btu/hour

Heat Type

Forced Air

Heating Capability

500 ft²

Blower Included

Yes
AttributeSpecification

Blower CFM

260 cfm

Amps

21

Thermostat Included

Yes

Remote Included

No

Volts

240

Watts

5,000

Hardwired

Yes

Reviews

Questions & Answers

400 Reviews This action will navigate to reviews.

Questions

1–10 of 49 Questions
Sort by:

  1. When the T-stat is satisfied, does the fan shut off or does it run constantly?

    1. The fan and heating element shut off simultaneously.

      Helpful?

    2. The fan does shut off.

      Helpful?

    3. With my unit, The fan and heater shuts down and cuts back on when the temperature falls.

      Helpful?

    4. it shuts off

      Helpful?

    5. The fan on this heater will shut off when the desired temperature is reached.

      Helpful?

  2. what is the reccomended size wire and breaker amps?

    1. 10/2 with ground, double 30 amp breakers

      Helpful?

    2. I used 10 gage wire and a double 30 amp breaker. The unit draws 21 amps on the high heat setting.

      Helpful?

    3. 10/2 wire with ground. 30 amp double pole breaker needed.

      Helpful?

    4. You will need 10/2 wire and a 30 amp double pole breaker.

      Helpful?

    5. The heater must be hardwired in with a 25-30 amp breaker and 10 gauge wire.

      Helpful?

  3. Can I use a 10/3 Wire?

    I have an existing 10/3 pre-wired available can I use a 10/3 to wire this?

    1. Certainly... I used 10-2 w/ground inside flex-conduit and 30 amp breaker. That's certainly adequit.

      Helpful?

    2. Yes, because there is no place to bond the neutral leg on a typical 4 wire 220v application. Use the black/white for the 120v legs and the green/copper as the ground and you're set.

      Helpful?

    3. yes. make sure the circuit is wired correctly with 30 amp breakers at the panel. L1, L2 + GRD, needs to be in flex conduit from the box to the heater
      If your not sure, hire an electrician

      Helpful?

    4. This ProFusion heater will work with 10/3 copper wire.

      Helpful?

  4. Are these Single or 3 phase?

    1. Single Phase

      Helpful?

    2. this is a 220 volt, single phase heater. requires a 30 Amp circuit with #10 wire.

      Helpful?

    3. This ProFusion Heat Ceiling-Mounted Garage Heater is a single phase heater.

      Helpful?

  5. Can the CZ220 heater be used in wood shop?

    Under General Safety Information in installation instructions - #15 specifies that this heater is not suitable for use in hazardous locations...areas where gasoline, paint, or flammable liquids are used or stored. Since I use stains and finishes in the shop, is that a problem? Or is a two-car garage-size shop big enough to dilute any fumes that might be produced?

    1. I have 2 of these ceiling-mounted in my workshop. I don't use gasoline in my shop but I do use stains, paint, varnish, etc. and as long as you use a bit of common sense I don't see a problem.

      Helpful?

    2. I don.t know what the official recommendation is but I have used this heater in my wood shop for several years and have had no problems, There is no glowing heating element It heats internally and transfers the heat through a heat exchanger much like a home furnace, I have used the same chemicals as you and am problem free.

      Helpful?

    3. As long as this heater is installed at a height of 8' it can be used safely in a wood shop with stains and finishes.

      Helpful?

  6. What is the square footage on average that the heater model Model# EH-4604 cover?

    1. 720 square foot garage with insulation and dry wall

      Helpful?

    2. This ProFusion heater will heat spaces of about 500 square feet on average.

      Helpful?

    3. My garage is about 600 square feet, insulated walls and ceiling (just fiberglass, nothing exotic), plus R-18 insulated garage doors. 17,000 btu works fine, but add a small fan blowing downward to pull the stratified hot air down to the concrete slab. Getting the concrete warm takes 24 hours, but after that the shop is comfortable for all kinds of work. The stored heat in the concrete is valuable, since if you are doing painting, spraying, and handling anything flammable I turn off ALL heat sources and air out the garage for a few minutes, and the concrete holds the heat until I can put the heater on again.

      Helpful?

  7. is this heater quite running?????

    1. You can hear it running but it's not loud - sounds pretty quiet to me for a shop heater that puts out the amount of heat it does.

      Helpful?

    2. You can hear the unit running but it is not loud at all.

      Helpful?

    3. The manufacturer does not provide a CFM or a noise level rating on the fan for this heater.

      Helpful?

  8. what is the lowest setting on the thermostat for this heater

    1. I am running mine on very low. The temperature stabilizes at 50 degrees.

      Helpful?

    2. The thermostat is not calibrated to temperature...instead you simply move the dial up or down until you are satisfied. In my experience, the dial set to the 9 o'clock position (nearly off) yields a garage space temperature of 60 degrees here in Wyoming.

      Helpful?

    3. This garage heater has a adjustable thermostat with three heat settings (low, medium & high). The lowest setting produces 11,285 BTU (3000 watts).

      Helpful?

  9. Will this heater work with a wall 2 pole thermostat?

    1. Theromstate is on the unit already.

      Helpful?

    2. The heater has a built in thermostat which works very well.

      Helpful?

    3. This unit comes with an adjustable thermostat with three heat settings: 5000 Watts (17,065 BTU), 4000
      Watts (14,105 BTU) and 3000 Watts (11,285 BTU). and would not work with another thermostat.

      Helpful?

  10. Does this unit have a power cord, or do you have to direct wire to the unit?

    1. No cord, Direct Wire Only

      Helpful?

    2. This heater is designed to be hardwired. It does not include a power cord with a plug.

      Helpful?

Warranty

Manufacturer's Warranty

1 year Limited Warranty
