Prince Tie-Rod Hydraulic Cylinder, 3,000 PSI, 2 1/2in. Bore, 12in. Stroke, 1 1/4in. Shaft

Item# 909112
Prince Tie-Rod Hydraulic Cylinder, 3,000 PSI, 2 1/2in. Bore, 12in. Stroke, 1 1/4in. Shaft

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

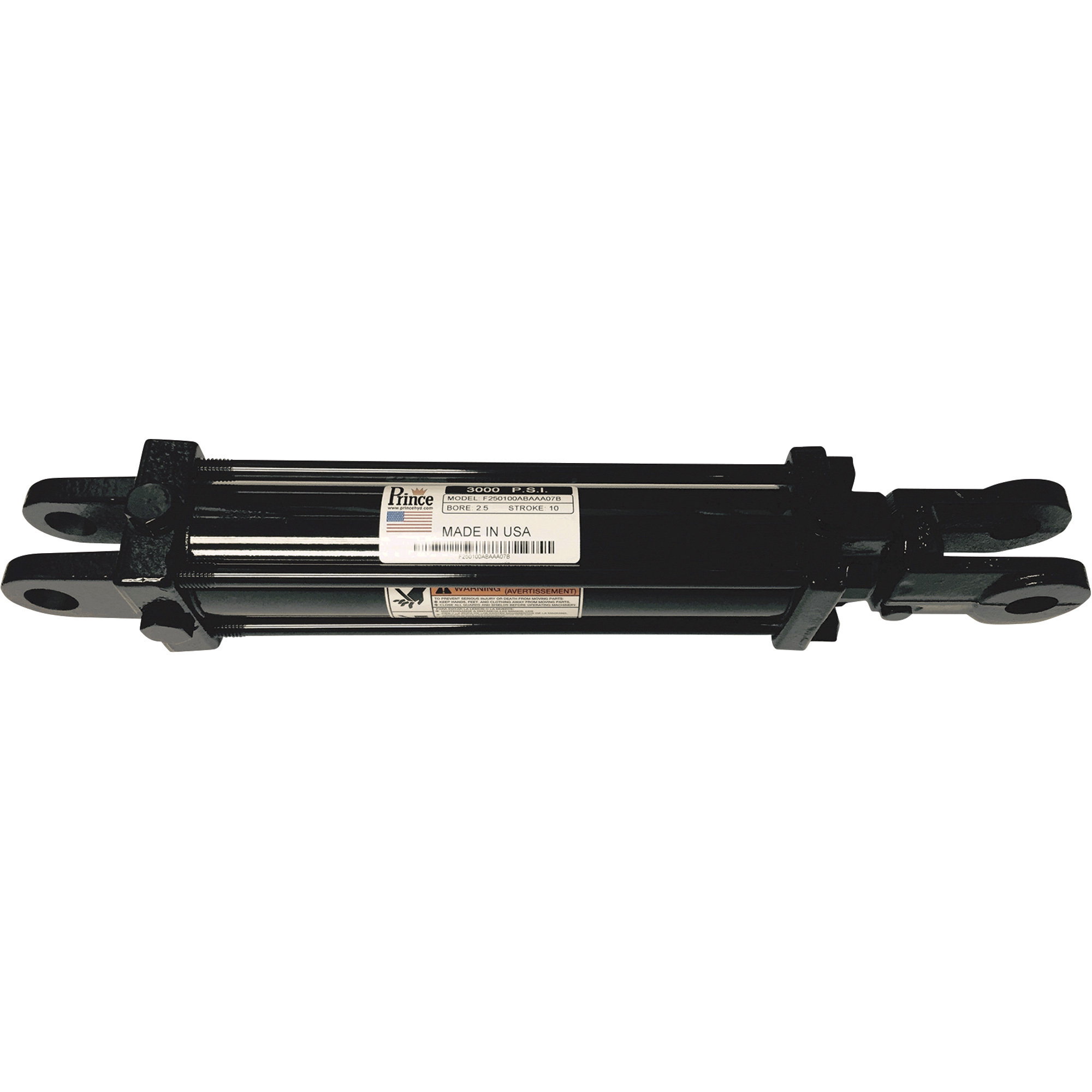

Prince Tie-Rod Hydraulic Cylinder, 3,000 PSI, 2 1/2in. Bore, 12in. Stroke, 1 1/4in. Shaft

Click or Tap image to Zoom

$299.99

  • Shipping:

  • Store Pickup:

    Not Available
  • Heavy duty, high strength tie-rods
  • Induction-hardened piston rod (piston rods on 2" bore not hardened)
  • Ports are SAE #8 (3/4-16)
  • Ductile iron piston, butt plate, gland, and clevis
  • Urethane u-cup & metal encased wiper (2 1/2" bore and larger)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Prince Tie-Rod Cylinder is made to handle the most demanding applications. With 70 plus years of American-made know-how they use a high-strength ductile iron piston, butt, gland, and clevis, plus urethane seals in a honed tube that allow them to handle 3,000 PSI continuous working pressure. Aircraft quality paint provides lasting performance. Seal kits are also available (sold separately.)

What's Included

    (1) Tie-rod cylinder

Features + Benefits

  • Heavy duty, high strength tie-rods
  • Induction-hardened piston rod (piston rods on 2" bore not hardened)
  • Ports are SAE #8 (3/4-16)
  • Ductile iron piston, butt plate, gland, and clevis
  • Urethane u-cup & metal encased wiper (2 1/2" bore and larger)
  • Crown seal on piston
  • Pins & Cotter pins included (Hardened pins on 4", 4.50" and 5" models)
  • Standard color is Gloss Black
  • Nylon piston bearing ring on 4", 4.50", & 5" bore models
  • 3000 PSI
  • Made in USA

Key Specs

AttributeSpecification

item#

909112

Brand

Prince

Manufacturer's Warranty

3 year limited warranty

Ship Weight

27.45 LB

Max. PSI

3,000
AttributeSpecification

Bore Diameter

2.5 in

Stroke Length

12 in

Shaft Diameter

1.25 in

Closed Pin Center

22.25 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. How do you measure the bore

    1 answer

    1. Insert a bore gauge into the cylinder, expand it to contact the walls, and lock it. Then, measure the gauge with a micrometer at several depths and angles to determine the true bore diameter. This model has a bore diameter of 2.5 inches.

      Helpful?

  2. Is the port size 1/2" NPT, or -8 SAE O-ring?

    1 answer

    1. It is 1/2" NPT.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
