Prince Hydraulic PTO Tractor Pump, 11.4 GPM, Model# HC-PTO-2A

Item# 1051

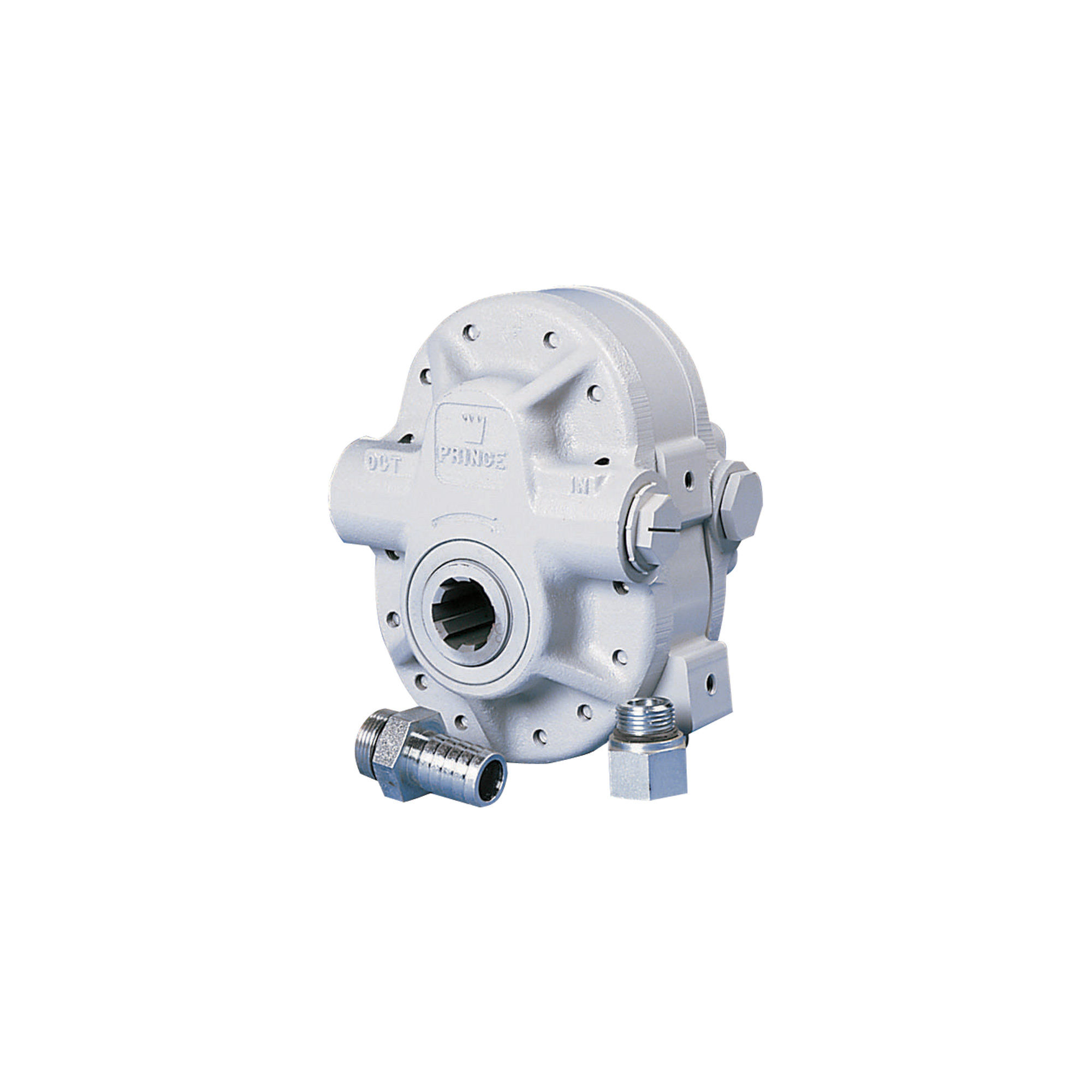

Prince Hydraulic PTO Tractor Pump, 11.4 GPM, Model# HC-PTO-2A

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Prince Hydraulic PTO Tractor Pump, 11.4 GPM, Model# HC-PTO-2A

Click or Tap image to Zoom

  • GPM: 11.4
  • RPM: 540
  • Diameter/Spline: 1 3/8in. / 6-Spline

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Gear-type, heavy-duty hydraulic pump is designed for PTO drive operation on tractors of all sizes. No additional gearing is required. These pumps feature self-adjusting wear plates that seal off leakage and offset any wear or expansion that may occur during the life of the pump. High tensile aluminum housing, minimum gear clearance, cast iron endplates. Internal splined shafts go all the way through and are supported on both sides by roller bearings. All models have a #16 SAE inlet port and two #12 SAE outlet ports. Include #12 SAE to 3/4in. NPTF female adapter. Reservoir size should at least be as large as the output of the pump.

What's Included

    (1) PTO Tractor Pump

Downloads

Product Manual

Features + Benefits

  • GPM: 11.4
  • RPM: 540
  • Diameter/Spline: 1 3/8in. / 6-Spline

Key Specs

AttributeSpecification

item#

1051

Brand

Prince

Manufacturer's Warranty

3 year limited warranty

Ship Weight

36.0 LB

Max. PSI

2,000
AttributeSpecification

Max. Flow Rate

11.4 GPM

Shaft Diameter

1.37 in

Shaft Type

Splined

Pump Type

PTO

Material

Multiple

Reviews

Questions & Answers

10 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. can this be installed upside down?

    I don't have enough clearance above the pto shaft to install as soon.

    1. I didn't either. On my Kubuto there was a metal shield protecting the PTO, I guess. It was bolted on so I took it off.

      Helpful?

    2. yes. it does not matter about mounting orientation, only direction of rotation must be followed.

      Helpful?

    3. Yes, pump will work at any angle, I've run mine at 90deg, and upside down.

      Helpful?

    4. The Prince hydraulic PTO tractor pump can be installed upside down.

      Helpful?

  2. Can I still use the PTO for other devices like a mower while using this pump ?

    1 answer

    1. Only one operation can be used at a time through the PTO pump.

      Helpful?

  3. Is there a minimum PTO HP required for this pump?

    1 answer

    1. The minimum HP would be 8.4.

      Helpful?

  4. Can this be used as motor on rotary cutter

    I want too use on hydraulic rotary cutter. I will be using tractor hydraulic system for pump

    1 answer

    1. This is designed to be used as a pump only. It will not operate as a motor.

      Helpful?

  5. What keeps pump in place

    What holds the pump on the PTO shaft I know that a chain keeps it from rotating ,is there a spring and ball to keep from sliding off

    1 answer

    1. The Prince Hydraulic pump will mount tight to the PTO shaft and it does not require a bracing to keep the pump on the shaft.

      Helpful?

  6. Does this pump have an internal pressure relief valve?

    1 answer

    1. This pump does not have in internal pressure relief valve.

      Helpful?

  7. Does it have only 1 direction for pressure.

    Is it a floating pressure type? Does it have down pressure or only for lifting?

    1 answer

    1. This pump produces flow. It does not create pressure. It is designed for 2250 PSI max. relief valve setting. A relief valve, external to the pump, must be provided in the system.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
