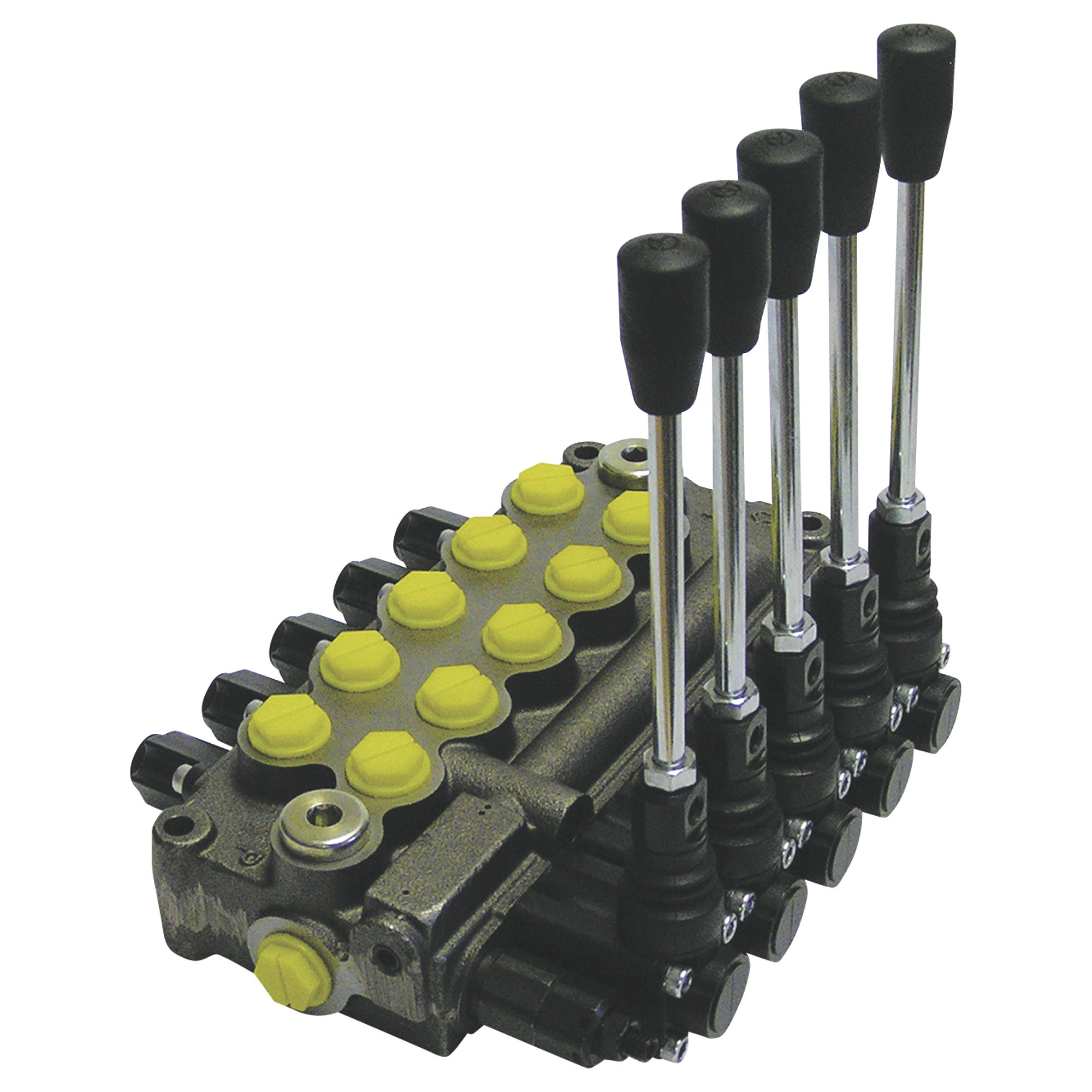

Prince Hydraulic Control Valve, 8 GPM, 5-Spool, Model# MB51BBBBB5C1

Item# 204610
Prince Hydraulic Control Valve, 8 GPM, 5-Spool, Model# MB51BBBBB5C1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Prince Hydraulic Control Valve, 8 GPM, 5-Spool, Model# MB51BBBBB5C1

Click or Tap image to Zoom

$759.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 2,000-3,500 PSI adjustable main relief

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Prince hydraulic control valve features a compact design that is ideal for small tractors and other low flow operations. SAE #8 ports eliminate leakage, enclosed handles eliminate exposure to elements. 4-way, 3-position spring center; can be converted to closed center or Power Beyond. 3,500 max. PSI. 2,000-3,500 PSI adjustable main relief, factory set to 2,500 PSI.

What's Included

    (1) Hydraulic control valve

Features + Benefits

  • 2,000-3,500 PSI adjustable main relief

Key Specs

AttributeSpecification

item#

204610

Brand

Prince

Manufacturer's Warranty

1 year limited warranty

Ship Weight

18.0 LB

GPM

8

Working Port

#8 SAE in
AttributeSpecification

Max. PSI

3,500

Spool (qty.)

5

Directional Control

4-way, 3-position

Inlet Port

#8 SAE in

Outlet Port

#8 SAE in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. Charging and discharging ports

    Does this valve body assy uses the same hydraulic fluid port for charging and discharging? or does it have a port for charging and another different one for discharging?
    I'm asking because there's only one picture and I cant see the opposite side.
    Thanks

    1 answer

    1. The Prince Hydraulic Control Valve has a SAE8 inlet port and SAE8 outlet port.

      Helpful?

  2. Is it a closed port valve? I need closed port, open center spool..

    1 answer

    1. The Prince Hydraulic Control Valve is an open center. In order to get the closed port, open center, you would need the power beyond plug. It is part# PM660312005 . This can be purchased through our parts department at 800-222-5381.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
