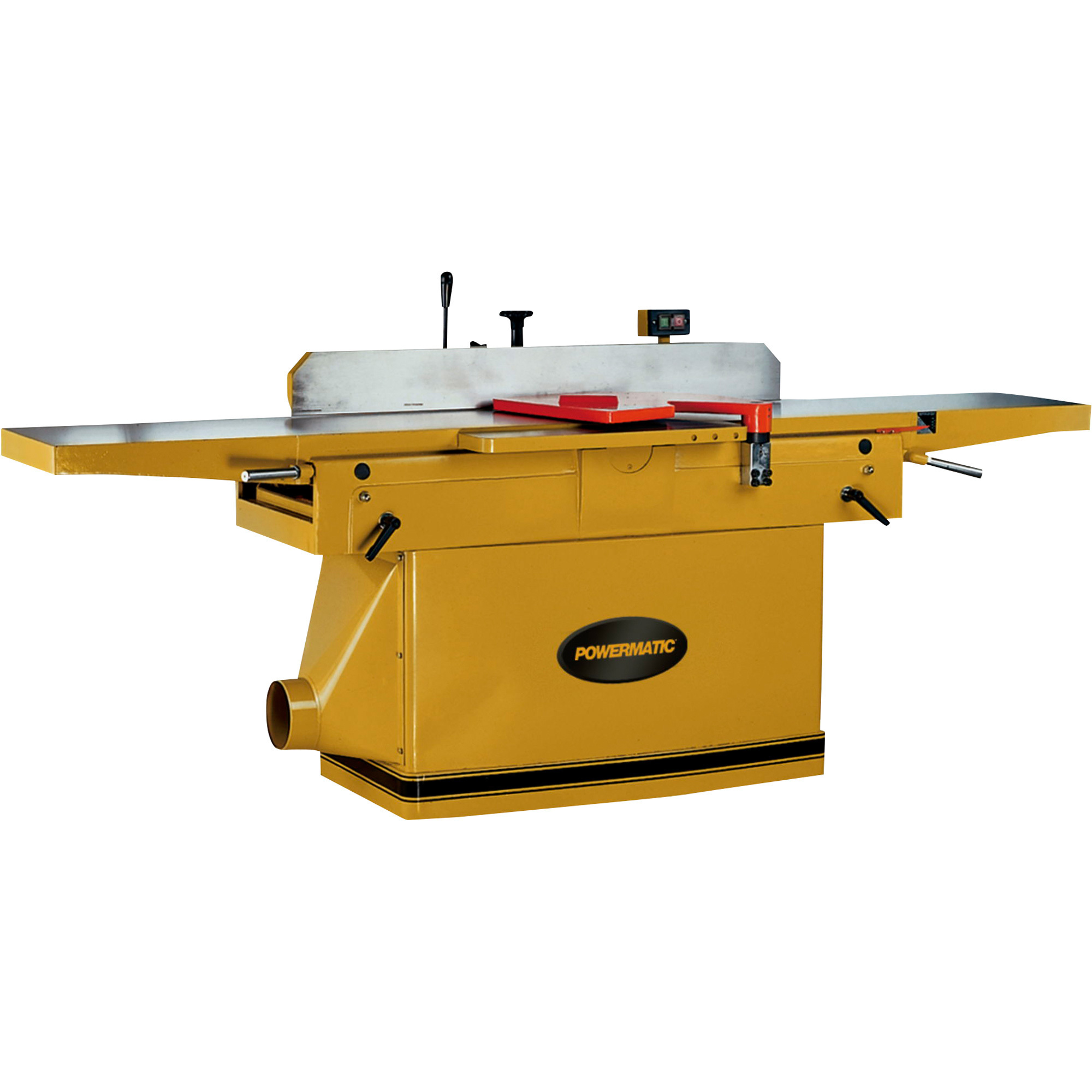

Powermatic 16in. Jointer, 7.5 HP, 3PH, 230V/460V, Model# PJ1696

Item# 84831
Powermatic 16in. Jointer, 7.5 HP, 3PH, 230V/460V, Model# PJ1696

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powermatic 16in. Jointer, 7.5 HP, 3PH, 230V/460V, Model# PJ1696

Click or Tap image to Zoom

$13,801.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

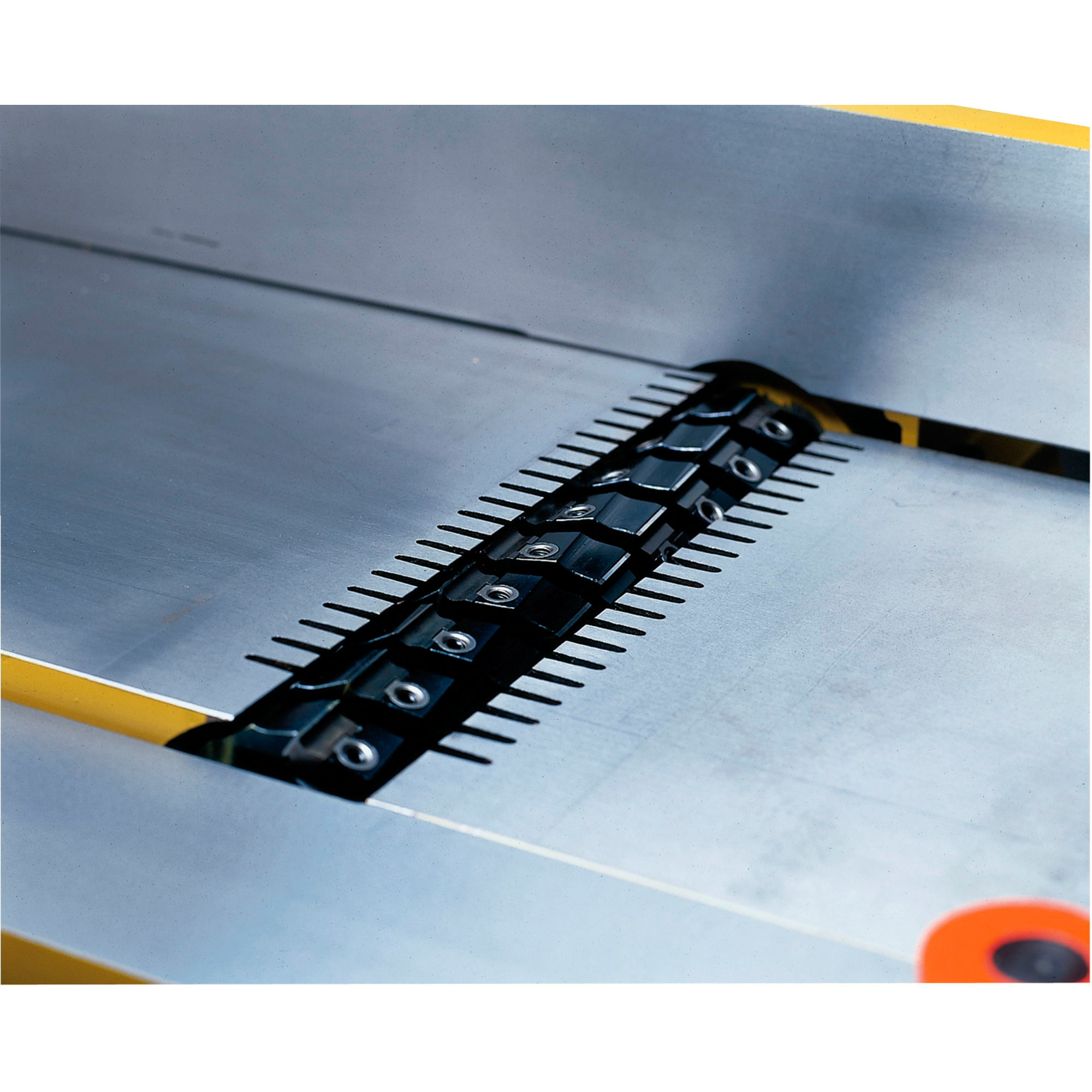

  • Helical cutterhead with 2-sided knife inserts reduces noise, eliminates adjustments and speeds knife changes
  • Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
  • Large 96in. x 16in. table surface for maximum support and fine finish

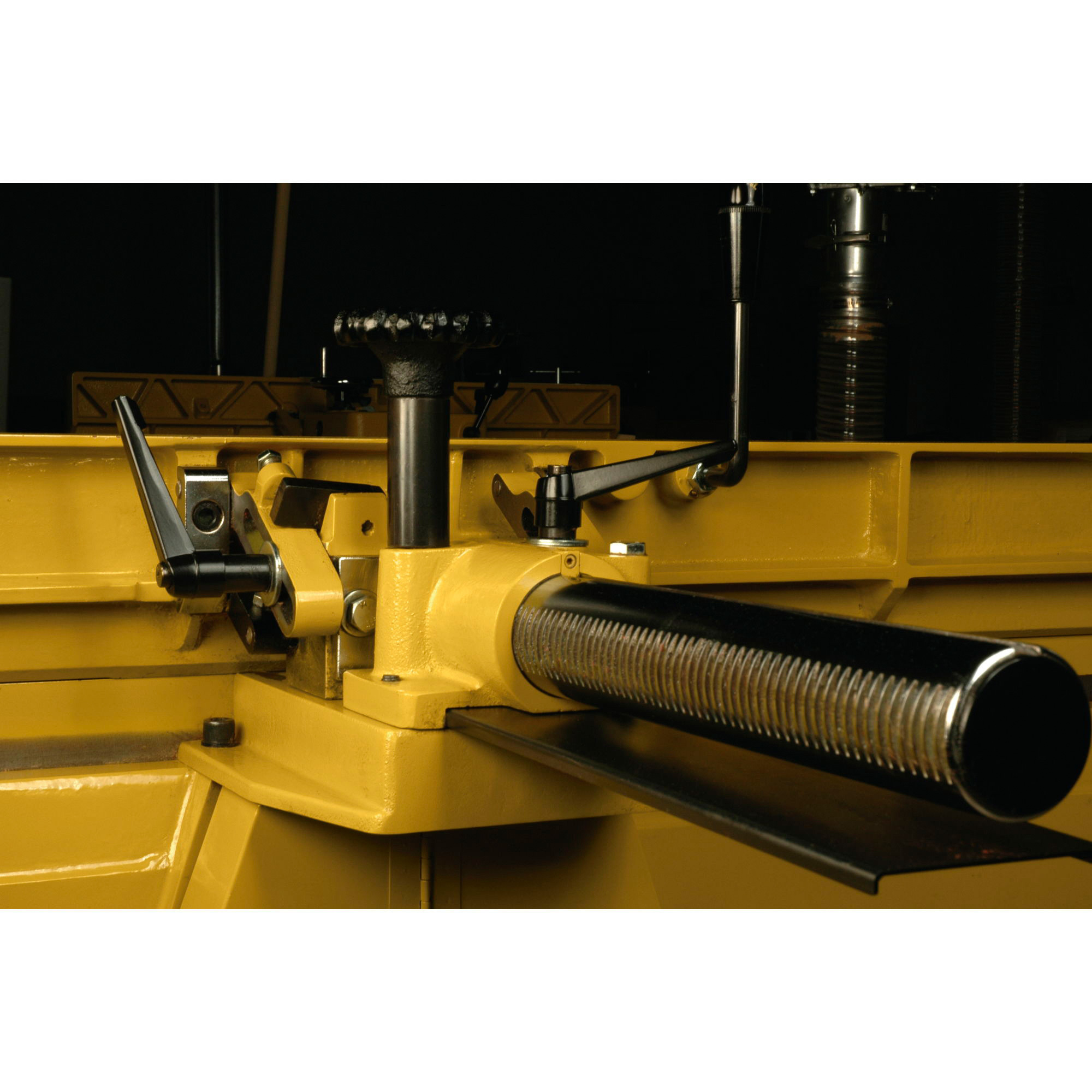

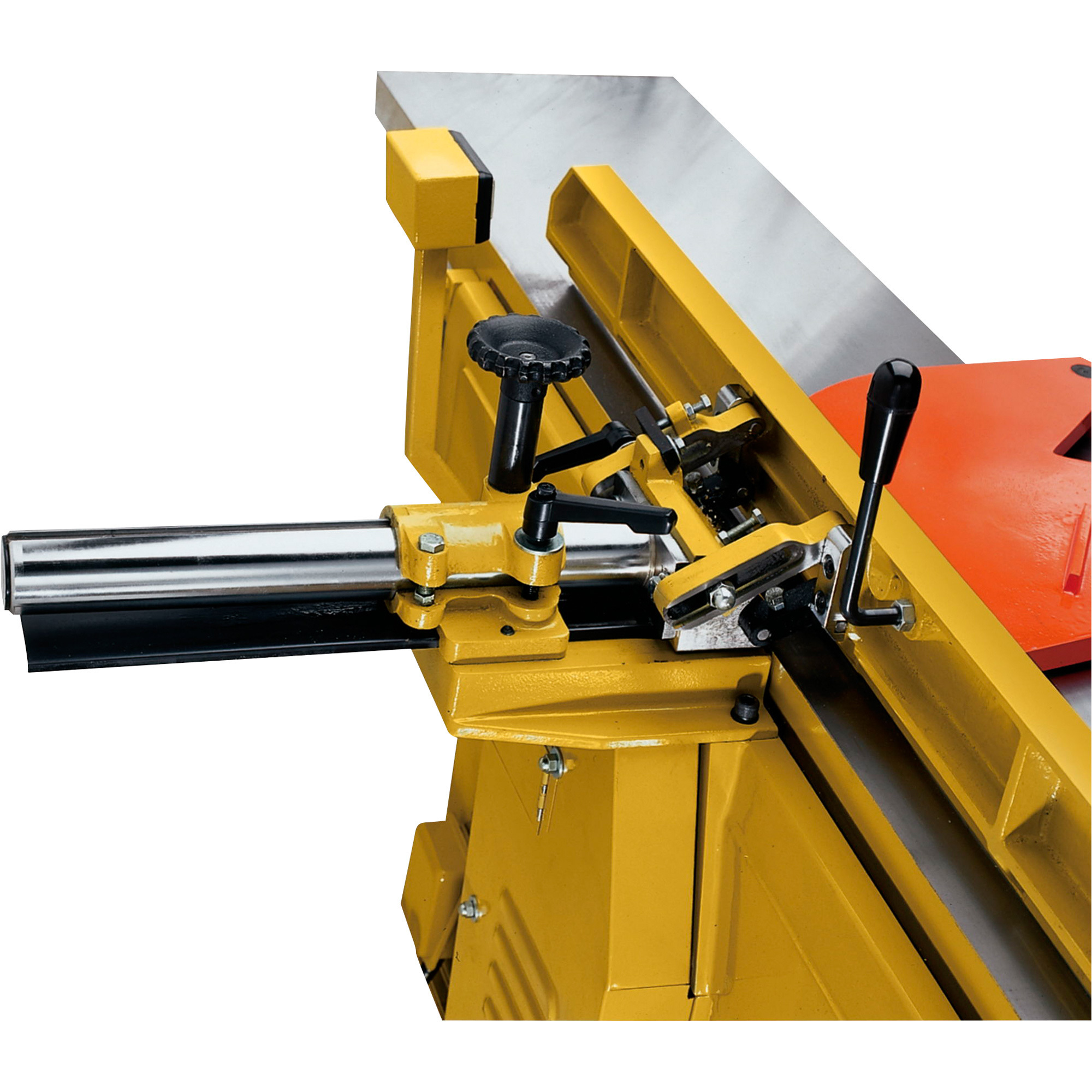

  • Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support
  • Full size rabbeting table supports large workpieces for rabbets up to 3/4in. deep

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

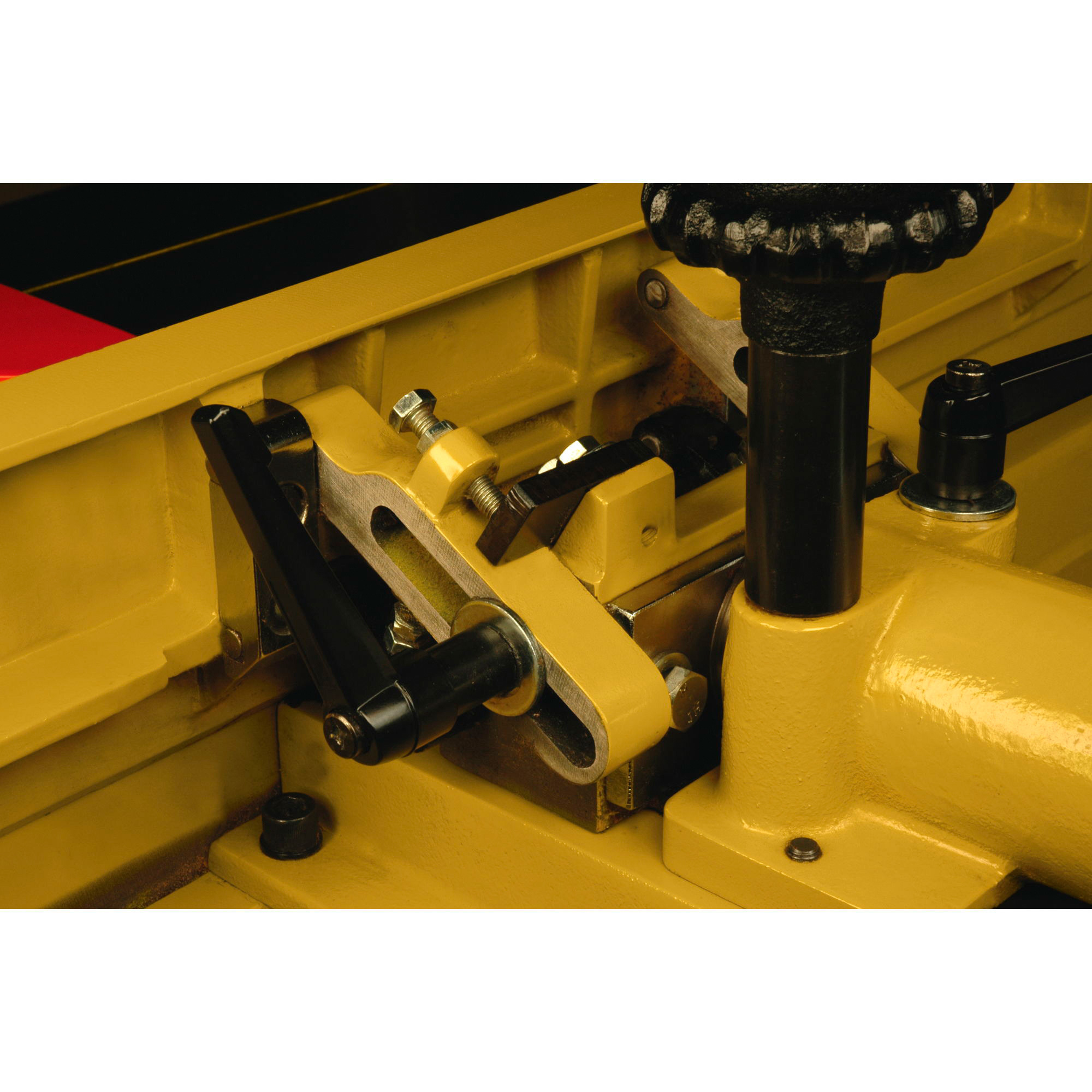

The Powermatic® 16in. jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially designed solid steel helical cutterhead consists of 6 rows of precision ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7 1/2 HP motor delivers all the power you need for even the biggest jobs.

What's Included

    (1) Powermatic 16in. Jointer, 7.5 HP, 3PH, 230V/460V, Model# PJ1696

Downloads

Product Manual

Features + Benefits

  • Helical cutterhead with 2-sided knife inserts reduces noise, eliminates adjustments and speeds knife changes
  • Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
  • Large 96in. x 16in. table surface for maximum support and fine finish
  • Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support
  • Full size rabbeting table supports large workpieces for rabbets up to 3/4in. deep
  • 7.5 HP Motor for industrial duty
  • Helical cutterhead with inserts
  • Tilting fence
  • Dust collection adaptor
  • Cutterhead guard
  • Tool kit
  • 460V operation requires an additional 460V magnetic switch, part PJ1696-205B

Key Specs

AttributeSpecification

item#

84831

Brand

Powermatic

Manufacturer's Warranty

5 year limited warranty

Ship Weight

1280.0 LB

Product Type

Jointers
AttributeSpecification

Max. Cutting Depth

0.75 in

Cutters (qty.)

58

Amps

2

Product Weight

lb

Dimensions L x W x H (in.)

46.0 x x in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
